iStarUSA Case D-314-MATX 3U Compact Rackmount 15inch 4x3.5inch PS2 ATX Black

Brand: iStarUSA
Case Size: 3 U Rack
Industrial Chassis with 15" in Depth - Supports Front Access USB2.0 x2 - Power and HDD LED - Power and Reset Switch - Support ATX PS2 Power Supply - Support 4 x Full Height Add-on Cards
Product Details

D-314-MATX is a reliable and stable 3U-high 15" depth industrial computer chassis. The full size I/O supports all microATX motherboard with a Dual-core/ Quad-Core processors and the backplane supports 4 full-height add-on cards. This chassis is only 15" deep and has optional two 80mm cooling fans at front and two 60mm fans at rear for air ventilation. In addition, D-314-MATX supports a standard PS2 power supply to meet regular server system applications.



D-314-MATX Specifications

Feature Value
Model Number D-314-MATX
RoHS Compliance Yes
Form Factor 3U
Standard Drive Bays
3.5" Drive (internal) 4
5.25" Drives 2+1

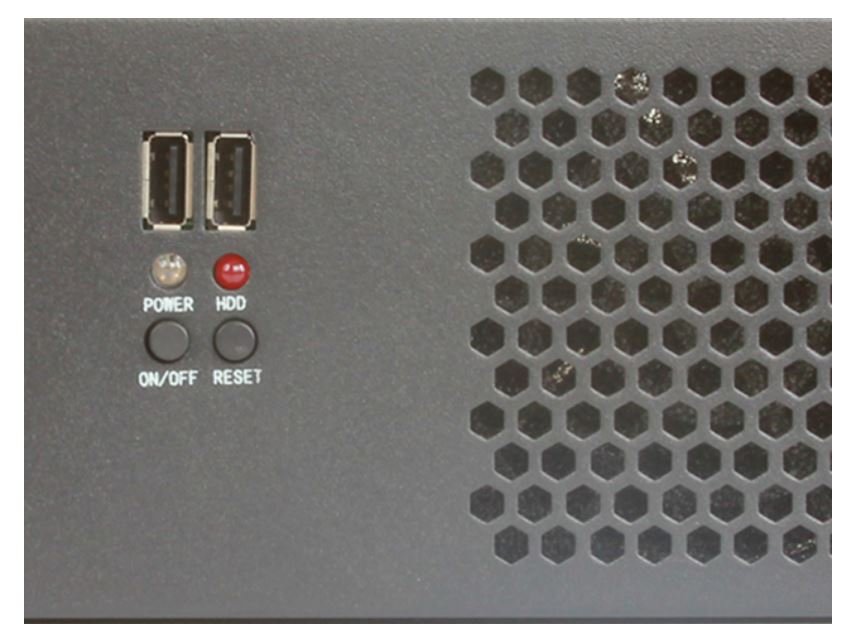

Indicators Power, HDD
Switches Power, Reset
Supported PSU Type PS2
Expansion Slots 4 (full height & up to 165mm deep with HDDs installed)
Material of Front Bezel SGCC 1.2mm
Material of Handle Steel
Material of Main Chassis SGCC 1.2mm
Color of Front Bezel Black
Color of Main Chassis Black
Front Connector 2x USB 2.0
Motherboard Size 12 x 9.6 (ATX, microATX, mini-ITX)
Optional Fan 80mm x2, 60mm x2
Dimensions (WxHxD) 19.00" x 5.24" x 16.89" / 482.6 mm x 133.1 mm x 429.0 mm
Notes - When ATX MB is in place, the available 5.25" drive bays will reduce to 2 because MB occupies the spacing of the bottom 5.25" bay.
Weight: 27 lbs
