be quiet! Pure Base 501 Silent Version Black ATX Case - 2 Pure Wings 3 140mm PWM Fans - USB 3.2 Gen. 2 Type C ATX BG073

Name: be quiet! Pure Base 501 Silent Version Black ATX Case - 2 Pure Wings 3 140mm PWM Fans - USB 3.2 Gen. 2 Type C ATX BG073
Brand: be quiet!
SKU: CNPS-BG073
Price: 119.99 USD
Availability: InStock

MPN: BG073

Brand: be quiet!

Case Size: Mid Tower

UPC/EAN: 4260052191798

Fans Included/Supported: 2 / 6

Form Factor: ATX, MATX,MITX

be quiet! Pure Base 501 Black: Compact & Powerful

Sleek ATX case with excellent airflow from 2 Pure Wings 3 fans. Fits large GPUs/coolers, supports water cooling (up to 360mm), and offers optional vertical GPU mount. Features USB 3.2 Gen. 2 Type C and easy cable management.

Product Details

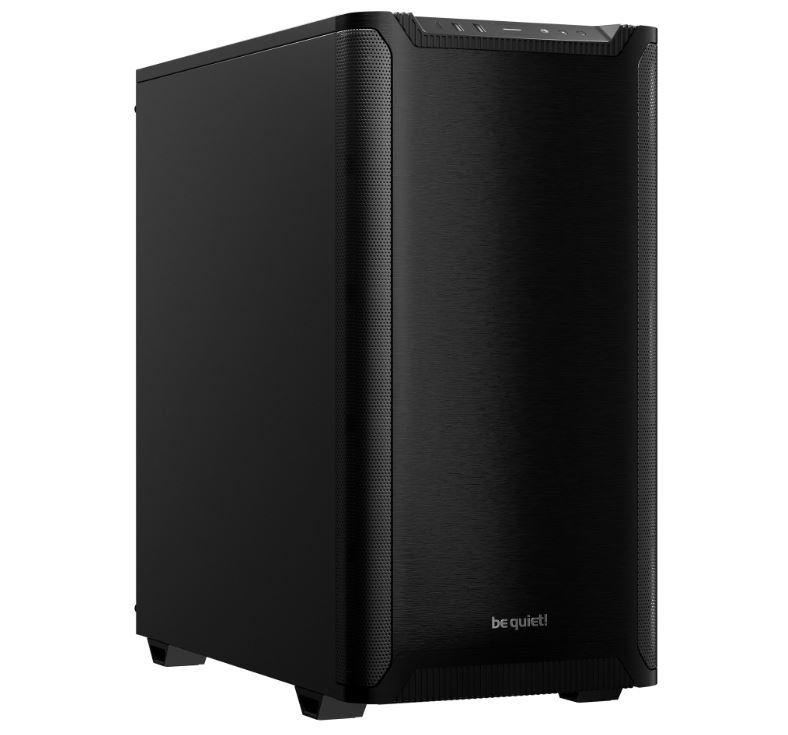

be quiet! Pure Base 501 Black ATX Case

Comfortably compact, the Pure Base 501 is a traditional, timeless and versatile be quiet! ATX case with compact dimensions.

Sleek front panel and airflow top cover for a unified, classic design
2 preinstalled Pure Wings 3 140mm PWM fans for extraordinary air pressure
Generous space for high-end graphics cards and large coolers, despite compact footprint
Optional vertical graphics card installation
Water cooling ready for radiators up to 360mm
USB 3.2 Gen. 2 Type C for best connectivity
Comfortable cable management with clever cable routing design

General
Model	Pure Base 501
Color option	Black
Motherboard compatibility	ATX / M-ATX / Mini-ATX

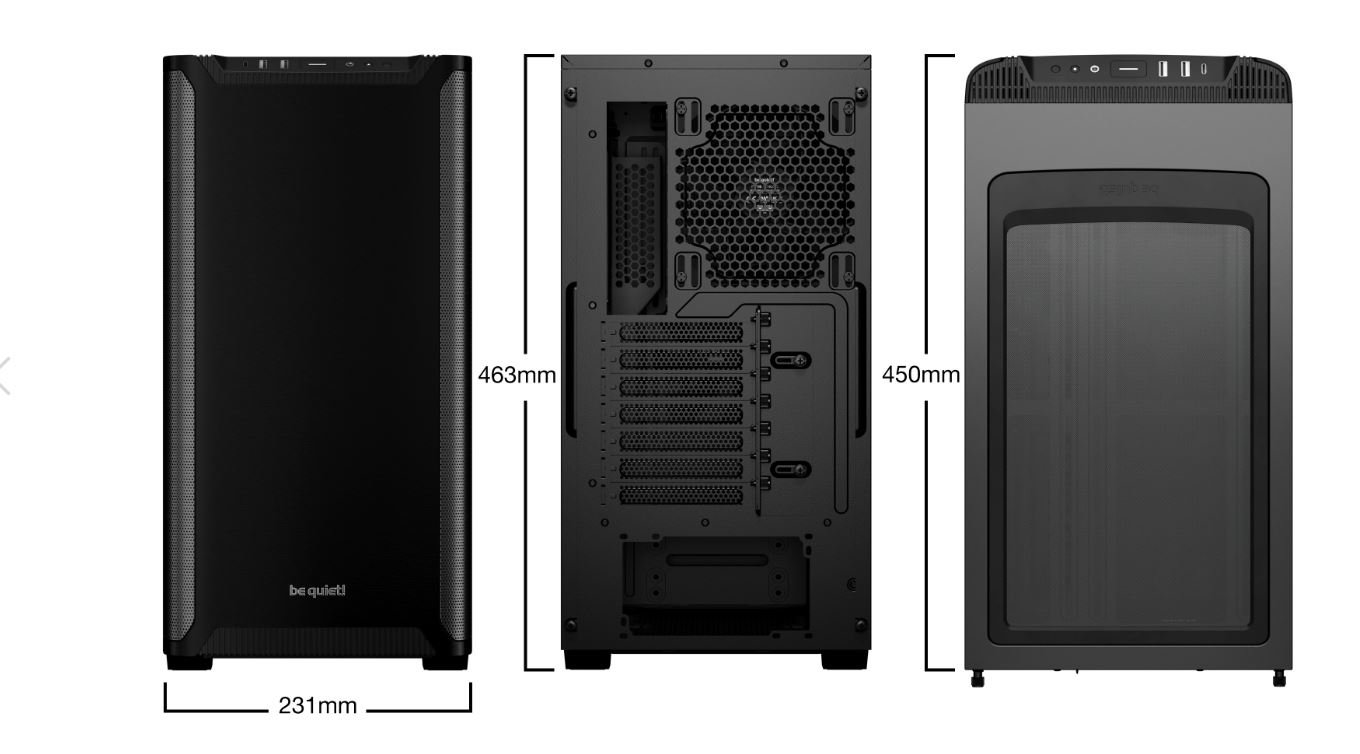

Case size excl. stands (L x W x H), (mm)	450 x 231 x 449
Case size incl. stands (L x W x H), (mm)	450 x 231 x 463
Volume (l)	39.2
PSU form factor	ATX PS/2
Net weight (kg)	6.7
Expansion slots	7

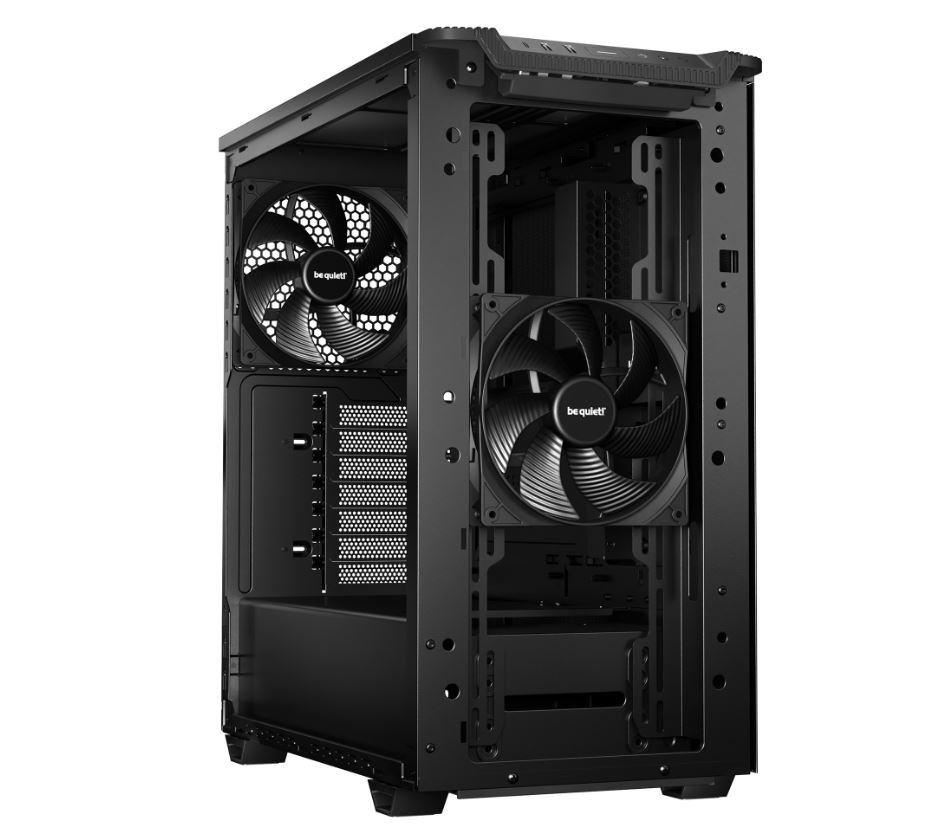

Pre-installed fans
Fan at top	-
Fan at front	1x Pure Wings 3 140mm PWM
Fan at side	-
Fan at rear	1x Pure Wings 3 140mm PWM
Fan at bottom	-
Dimensions (L x W x H), (mm)	Front: 140 x 25 x 140 / Rear: 140 x 25 x 140
Fan speed at 100% PWM / 12V (rpm)	1200
Airflow at 100% PWM / 12V (CFM / m3/h)	57.4 / 97.5
Air Pressure at 100% PWM / 12V (mm H2O)	0.96
Noise level at 100% PWM / 12V (dB(A))	21.9
Voltage range (V DC)	5 - 13.2
Input power (W)	3.6
Input current (A)	0.06
Connector	4-pin PWM
Lifespan (h / 25°C)	80,000
Fan controller	-

Maximum fan installation
Maximum fans	6
Top (mm)	2x 140 / 2x 120
Front (mm)	2x 140 / 3x 120
Side (mm)	-
Rear (mm)	1x 140 / 1x 120
Bottom (mm)	-
PSU shroud	-

Optional radiator installation
Top (mm)	120 / 240
Front (mm)	120 / 140 / 240 / 280 / 360
Side (mm)	-
Rear (mm)	120 / 140
Bottom (mm)	-

PSU compatibility
Maximum dimensions excl. bottom fan (mm)	180
Maximum dimensions incl. bottom fan (mm)	180

Graphics card
HDD cage (in height of graphics card) installed (mm)	368
HDD cage (in height of graphics card) removed (mm)	368
Maximum PCIe slots with vertical graphics card (pcs.)	5

Drive bay capacity
5.25 bays (pcs.)	-
3.5 slots (scope of delivery)	2
3.5 slots (max.)	2
2.5 slots (scope of delivery)	5
2.5 slots (max.)	5

Cooling
Max.construction height of CPU cooler unit (mm)	178
Airflow channel	-

Lighting
LED illumination	-
LEDs (pcs.)	-
LED type	-
LEDs synchronizable with controller/motherboard	-

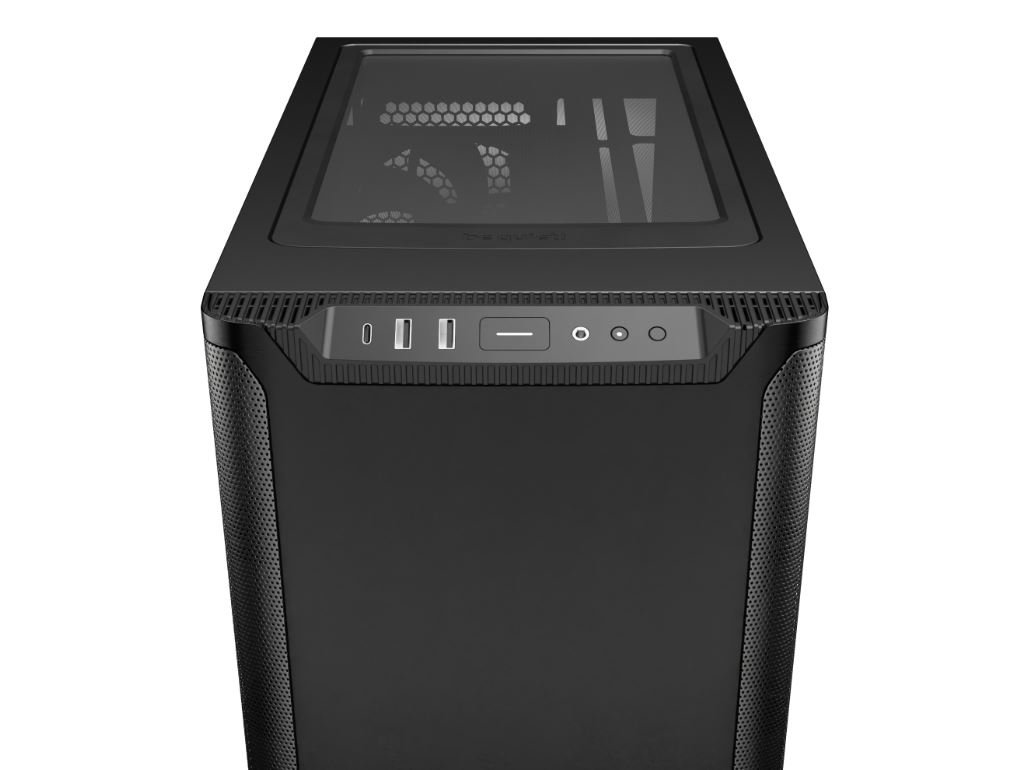

I/O Panel
USB 3.2 Gen. 2 Type C	1
USB 3.2 Type A	2
USB 2.0	-
HD Audio I/O	Mic + Audio
Qi charger / Quick Charging Option (W)	-

Insulation and damping
Top panel insulation mats	-
Front panel insulation mats	-
Side panel insulation mats	✓
Anti-vibration decoupled HDD	✓
Anti-vibration decoupled fan	✓
Anti-vibration decoupled PSU	✓
Anti-vibration decoupled motherboard-tray	-

Scope of delivery
Screw set (Drives/Motherboard)	✓
Additional standoffs (pcs.)	1
SSD bracket for PSU shroud	-
LED strips (pcs.)	-
Cable ties (pcs.)	12
Screw box	-
VGA holder	-
VGA holder for inverted layout	-
Mesh Front Panel	-
ODD Bracket	-
Fan / Radiator bracket for multi mounting panel	-
