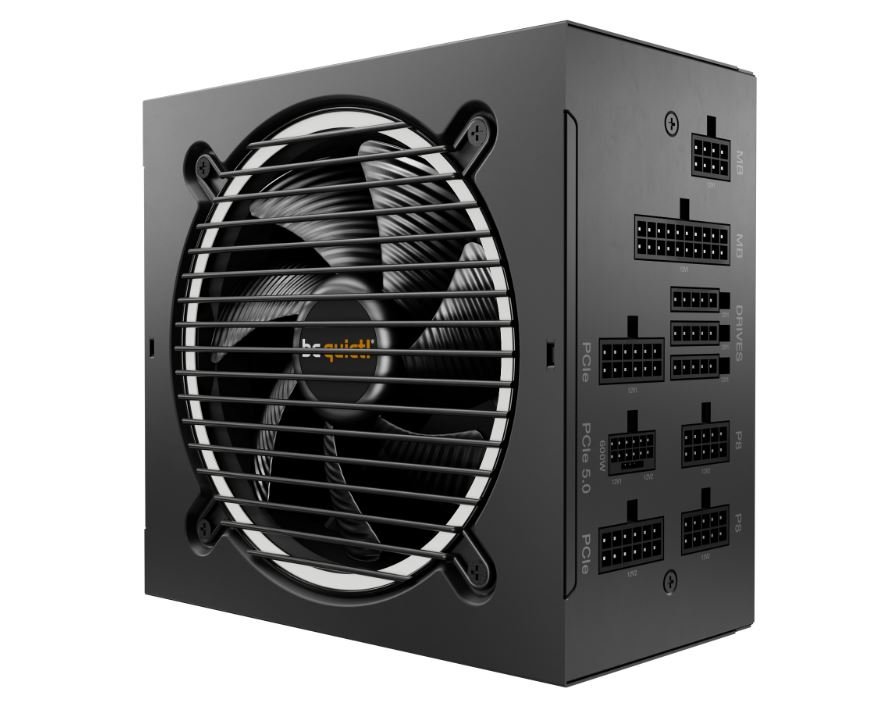

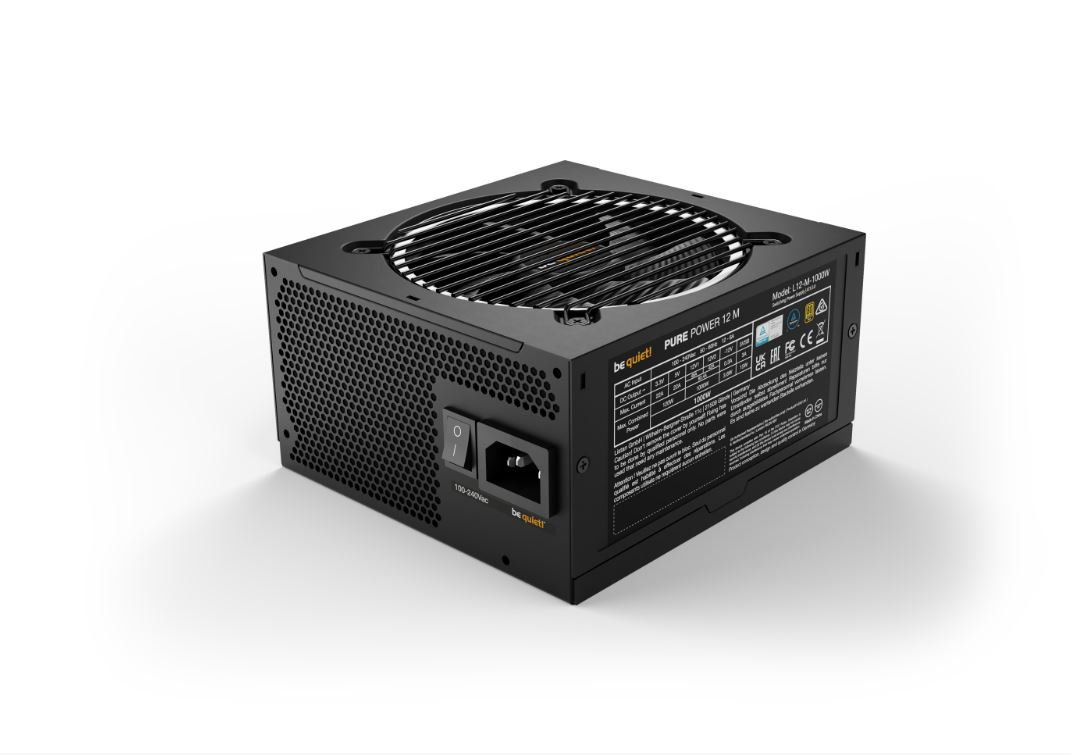

Power Up Your Rig with Whisper-Quiet Dominance: be quiet! Pure Power 12 M 1000W

Unleash the full potential of your high-end system with the be quiet! Pure Power 12 M 1000W. This ATX 3.0 certified powerhouse delivers peerless dependability and exceptional quiet operation, making it the ideal foundation for your gaming PC or demanding workstation.

Experience the best of both worlds: uncompromising power and near-silent performance.

Here's why the Pure Power 12 M 1000W is the smart choice:

• Future-Proof Performance: Fully compliant with ATX 3.0 and ready for the latest PCIe 5.0 graphics cards with a dedicated 600W 12VHPWR connector. It also supports current-gen GPUs with four 6+2 pin connectors.
• 80 PLUS Gold Efficiency: Achieve up to 93.1% efficiency, saving you money on your electricity bill while generating less heat and noise.
• Whisper-Quiet Cooling: Enjoy incredibly silent operation thanks to the high-quality, temperature-controlled 120mm be quiet! fan.
• Rock-Solid Stability: Benefit from advanced LLC technology for enhanced voltage regulation and unwavering stability, even under heavy loads.
• Maximum Build Flexibility: The fully modular cable design allows you to connect only the cables you need, reducing clutter and improving airflow.
• Dual 12V Rails: Engineered with two strong 12V rails to provide ample and stable power to your critical components.
• Peace of Mind: Backed by a 10-year manufacturer's warranty, you can trust in the long-lasting reliability of be quiet! engineering.

Stop compromising on silence for power. The be quiet! Pure Power 12 M 1000W offers the ultimate combination of exceptional performance, future-proof compatibility, and virtually silent operation. Upgrade your system today!

be quiet! Pure Power 12 M 1000W Specifications

General Specifications:

• Model Name: Pure Power 12 M 1000W
• Continuous Power: 1000 Watts
• Peak Power: 1050 Watts
• Form Factor: ATX12V Version 3.0
• EPS 12V Version: 2.92
• Topology: Advanced LLC resonant converter with Synchronous Rectification (SR) and DC-to-DC conversion for independent voltage regulation.
• Digital Control: Not digitally controlled.

Input Characteristics:

• Input Voltage: 100 - 240 Volts AC (Alternating Current)
• Input Frequency: 50 - 60 Hertz
• Input Current: 12 Amps at 100V AC, 6 Amps at 240V AC
• Power Factor Correction (PFC): Active PFC with a power factor of >0.98 at 100% load.
• Modern Standby Compatibility: Yes, supports modern standby for improved energy efficiency and faster system wake-up.
• Power Consumption in Standby: Less than 0.1 Watts.

Output Characteristics:

• +3.3V: 20A (Maximum Load)
• +5V: 20A (Maximum Load)
• +12V: 83.3A (Maximum Load)
• -12V: 0.3A (Maximum Load)
• +5Vsb: 3A (Maximum Load)
• Maximum Combined Power +3.3V and +5V: 130 Watts
• Maximum Combined Power +12V: 1000 Watts

Efficiency:

• 80 PLUS Certification: 80 PLUS Gold certified, achieving high energy efficiency under various loads.
• Efficiency at 20% Load: Typically > 90% at 230V AC
• Efficiency at 50% Load: Typically > 93% at 230V AC
• Efficiency at 100% Load: Typically > 90% at 230V AC

Cooling:

• Fan: High-quality 120mm cooling fan with temperature-controlled fan speed for optimal cooling and quiet operation.

Protection Circuits:

• Over Current Protection (OCP)
• Over Voltage Protection (OVP)
• Under Voltage Protection (UVP)
• Short Circuit Protection (SCP)
• Over Power Protection (OPP)
• Over Temperature Protection (OTP)

Reliability:

• Average Lifetime: >100,000 hours at 25°C ambient temperature.
• Operating Temperature: Up to 40°C.

Physical Characteristics:

• Dimensions (L x W x H): Approximately 160mm (6.3 inches) x 150mm (5.9 inches) x 86mm (3.4 inches)
• Item Dimensions (L"xW"xH"): 12 x 9 x 4 inches (This likely refers to the packaging dimensions.)
• Weight: 7.1 lbs (approximately 3.22 kg)

Connectors:

• 1 x 20+4 pin ATX motherboard connector
• 2 x 4+4 pin EPS/ATX12V CPU connectors
• 4 x 6+2 pin PCIe connectors
• 6 x SATA connectors
• 4 x PATA connectors

Warranty:

• 10-year manufacturer's warranty.
