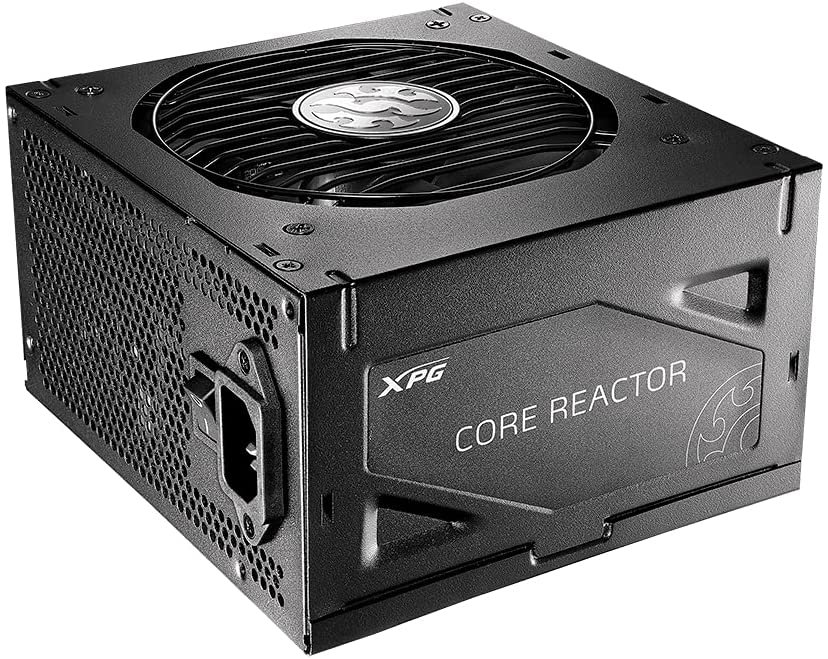

The XPG CORE REACTOR is a modular, 80 Plus Gold power supply unit equipped with 100% Japanese capacitors. Combined with Line Level Control (LLC) resonant topology, it is power-efficient, reliable and makes creating a tidy build easy.
80 Plus Gold Certified

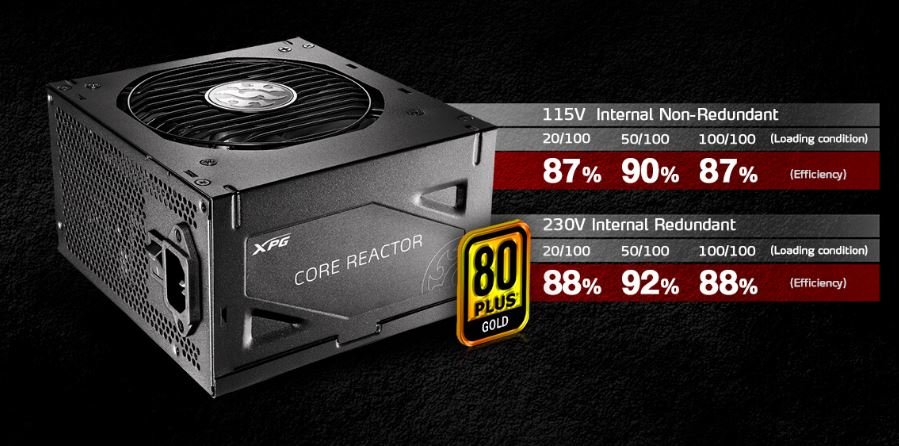

The 80 Plus Gold certified XPG CORE REACTOR gives you 90% efficiency at 50% load. It comes in 650W, 750W, and 850W for different needs.
Cybenetics LAMBA / ETA Certified
XPG CORE REACTOR SERIES is certified by Cybenetics for its efficiency and noise level, scoring at the top of its category in both ETA and LAMBDA standards.
For more information on XPG CORE REACTORâ€™s Cybenetics certifications, please visit XPG CORE REACTOR SERIES PSU - Cybenetics Labs â€“ PSU Efficiency & Noise Level Certifications.
Intelligent fan-curve provides near-quiet operations, even when at full power load. The fan control starts at a low 3.3v, 660rpm Â± 10%, and remains at this speed until surpassing 50% load, prolonging the lifespan of the fan and the power supply unit.

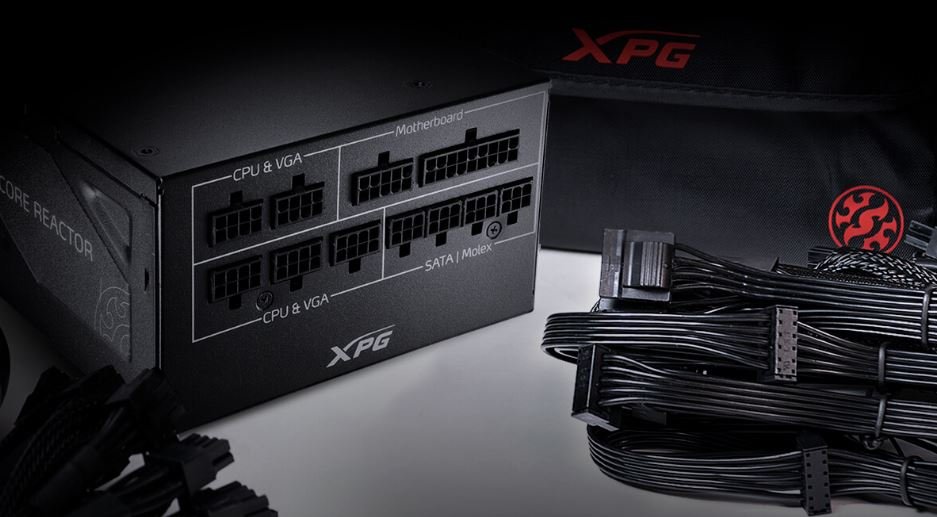

Compact and Modular
The XPG CORE REACTOR is compact in size due to the combination of high-quality components, a well-thought-out layout, and a new manufacturing process. What's more, its modular design reduces cable clutter and simplifies system building.
Premium Japanese Capacitators
Equipped with All 105Â°C Japanese capacitors, the XPG CORE REACTOR provides you with reliability and stability. The XPG CORE REACTORâ€™s DC voltage is maintained within Â±2% and reduces ripple and noise by up to 35% for enhanced dependability.
The XPG CORE REACTOR comes with an array of protection mechanisms for peace of mind and backed by a 10-year warranty.
Over Current Protection (OCP)
Over Voltage Protection (OVP)
Under Voltage Protection (UVP)
Over Power Protection (OPP)
Short Circuit Protection (SCP)
Over Temperature Protection (OTP)
No Load Operation (NLO)
Surge & Inrush Protection (SIP)
Dimensions (L x W x H)
150 x 140 x 86mm
80 PLUS RATING
Intel ATX 12V V2.52
OCP / OVP / UVP / OPP / SCP / OTP / NLO / SIP
CE / UKCA / CB / FCC (IC) / EAC / CCC / TUV / cTUVus / RCM / NOM / BSMI / KC
FDB (Fluid Dynamic Bearing)
Noise Level @ 20% : 11.2dB(A)
Noise Level @ 50% : 850W : 11.3dB(A) / 750W : 11.3dB(A) / 650W : 11.2dB(A)
Noise Level @ 100% : 850W : 24.7dB(A) / 750W : 22.7dB(A) / 650W : 22.3dB(A)
100K hours at full load

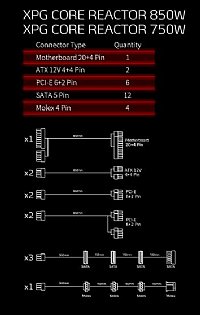

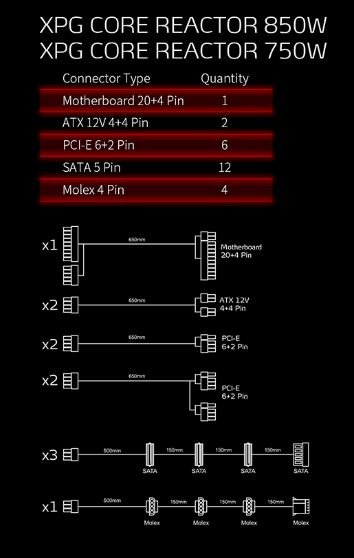

ATX 24 Pin Connector
EPS 8 (4+4) Pin Connector
850W : 2 / 750W : 2 / 650W : 2
Peripheral 4 Pin Connector
PCI-E 6+2 Pin Connector
850W : 6 / 750W : 6 / 650W : 4
