SKU: CEV-9060

Video Editing PC i5 13600KF to 5.1Ghz 14 Core, 32GB RAM, 500GB NVMe SSD, 2TB HDD, Win 11 Pro, Quadro T1000 w/4GB, WiFi CEV-9060

Designed to work with Solidworks, IronCAD, SprutCAM and many others. Designers and engineers can create models with larger numbers of components and more complex assemblies. Support for up to four 4K displays provides for an expansive desktop enabling designers to work with multiple apps simultaneously. - Editors can work in real time with HDR content and up to 5K full resolution. Artists working with 3D models or 2D imagery can realize better performance with assets stored in dedicated high performance graphics memory. Create and play back ultra-high quality HDR content with H.264/HEVC encode and decode engines. Quadro T1000 supports displays at up to 5K resolution. - Architects can create larger models, viewing 2D and 3D designs and plans, interacting with them in real time with no lag. Urban designers can create models with more detail and complexity.
Product Details


System Spec's

  • Intel 13th Generation Core i5 13600KF  to 5.1 GHz Turbo Processor - 14-Core - Intel® Turbo Boost Max Technology 3.0 Frequency - Intel® Gaussian & Neural Accelerator 3.0 - Intel® Thread Director - Inte® Deep Learning Boost (Intel® DL Boost) - Intel® Speed Shift Technology - Intel® Hyper-Threading Technology - Intel® Virtualization Technology (VT-x) - Intel® Virtualization Technology for Directed I/O (VT-d) - Enhanced Intel SpeedStep® Technology - Thermal Monitoring Technologies
  • Noctua Premium Air Cooler
  • ASUS Z790M Plus DDR4 MATX Motherboard LGA 1700- Intel® Z790 Chipset
  • Expansion Slots - 4.  1 x PCIe 5.0/4.0/3.0 x16 slot, 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode), 2 x PCIe 3.0 x1 slots
  • Storage Support - M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports
  • Maximum Memory: 128 GB
  • Audio - Realtek - 7.1-Channel High Definition Audio
  • Total Number of USB Ports: 10. REAR - 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A)  FRONT - 1 x USB 3.0, 1 x USB 2.0
  • Network Ports: 1 x Intel® 1Gb Ethernet
  • Wireless AC 1300
  • Supports Bluetooth 4.2
  • 32 GB DDR4 3200MHz RAM (upgradeable to 128GB)
  • NVIDIA® Quadro® T1000 with 4GB GDDR6 Memory  The NVIDIA Turing architecture provides significant performance improvements with NVIDIA T1000, resulting in more than 50% graphics performance, compared to the previous generation P1000. Ultra-fast GDDR6 graphics memory technology provides twice the memory bandwidth of the previous generation. Based on state-of-the-art 12nm FFN (FinFET NVIDIA) high-performance manufacturing process customized for NVIDIA to incorporate 896 CUDA cores, the NVIDIA T1000 GPU is the most powerful single slot professional solution for CAD, DCC, financial service industry (FSI) and visualization professionals in general looking to reach excellence performance in a compact and efficient form factor. The Turing GPU architecture enables the biggest leap in computer real-time graphics rendering since NVIDIA's invention of programmable shaders in 2001.
  • Video Ports: 4 Mini DisplayPort (includes 4 mDP to DP adapter) Supports up to 4 Monitors
  • Quadro cards are certified with a broad range of sophisticated professional applications, tested by leading workstation manufacturers, and backed by a global team of support specialists. This gives you the peace of mind to focus on doing your best work. Whether your developing revolutionary products or telling spectacularly vivid visual stories, Quadro gives you the performance to do it brilliantly.
  • Video Ports: 4 Mini DisplayPort 7680 x 4320 at 60 Hz  Max Displays4x at 5K | 5120 x 2880 at 60 Hz
  • 500GB Kingston Solid State Drive - M.2 2280 Internal - PCI Express NVMe (PCI Express NVMe 4.0 x4) 3500/2100 MB/s
  • 2TB 7200 RPM Hard Disk
  • Windows 11 Professional
  • Keyboard & Mouse
  • Fractal Design Focus G White -Contemporary ATX case design accommodates high-performance components with smart and efficient space utilization for a compact footprint - Filtered front, top and base air intakes maintain a dust-free environment - Two preinstalled Fractal Design Silent Series LL 120mm White LED fans. Six total fan positions for high-airflow capability . Filtered front, top and base air intakes for a dust free interior
  • 650w Bronze Power Supply
  • 48 Hour Testing & Burn-in
  • 36 Month Parts & Labor Depot Limited Warranty



Video Editing PC
Video Editing PC i5 13600KF to 5.1Ghz 14 Core, 32GB RAM, 500GB NVMe SSD, 2TB HDD, Win 11 Pro, Quadro T1000 w/4GB, WiFi CEV-9060
Video Editing PC
Video Editing PC i5 13600KF to 5.1Ghz 14 Core, 32GB RAM, 500GB NVMe SSD, 2TB HDD, Win 11 Pro, Quadro T1000 w/4GB, WiFi CEV-9060
Video Editing PC
Video Editing PC i5 13600KF to 5.1Ghz 14 Core, 32GB RAM, 500GB NVMe SSD, 2TB HDD, Win 11 Pro, Quadro T1000 w/4GB, WiFi CEV-9060
Video Editing PC
Video Editing PC i5 13600KF to 5.1Ghz 14 Core, 32GB RAM, 500GB NVMe SSD, 2TB HDD, Win 11 Pro, Quadro T1000 w/4GB, WiFi CEV-9060
Video Editing PC
Video Editing PC i5 13600KF to 5.1Ghz 14 Core, 32GB RAM, 500GB NVMe SSD, 2TB HDD, Win 11 Pro, Quadro T1000 w/4GB, WiFi CEV-9060
Video Editing PC
Video Editing PC i5 13600KF to 5.1Ghz 14 Core, 32GB RAM, 500GB NVMe SSD, 2TB HDD, Win 11 Pro, Quadro T1000 w/4GB, WiFi CEV-9060
Video Editing PC
Video Editing PC i5 13600KF to 5.1Ghz 14 Core, 32GB RAM, 500GB NVMe SSD, 2TB HDD, Win 11 Pro, Quadro T1000 w/4GB, WiFi CEV-9060
Video Editing PC
Video Editing PC i5 13600KF to 5.1Ghz 14 Core, 32GB RAM, 500GB NVMe SSD, 2TB HDD, Win 11 Pro, Quadro T1000 w/4GB, WiFi CEV-9060
Video Editing PC
Video Editing PC i5 13600KF to 5.1Ghz 14 Core, 32GB RAM, 500GB NVMe SSD, 2TB HDD, Win 11 Pro, Quadro T1000 w/4GB, WiFi CEV-9060
Video Editing PC
Video Editing PC i5 13600KF to 5.1Ghz 14 Core, 32GB RAM, 500GB NVMe SSD, 2TB HDD, Win 11 Pro, Quadro T1000 w/4GB, WiFi CEV-9060
Video Editing PC
Video Editing PC i5 13600KF to 5.1Ghz 14 Core, 32GB RAM, 500GB NVMe SSD, 2TB HDD, Win 11 Pro, Quadro T1000 w/4GB, WiFi CEV-9060
Video Editing PC
Video Editing PC i5 13600KF to 5.1Ghz 14 Core, 32GB RAM, 500GB NVMe SSD, 2TB HDD, Win 11 Pro, Quadro T1000 w/4GB, WiFi CEV-9060

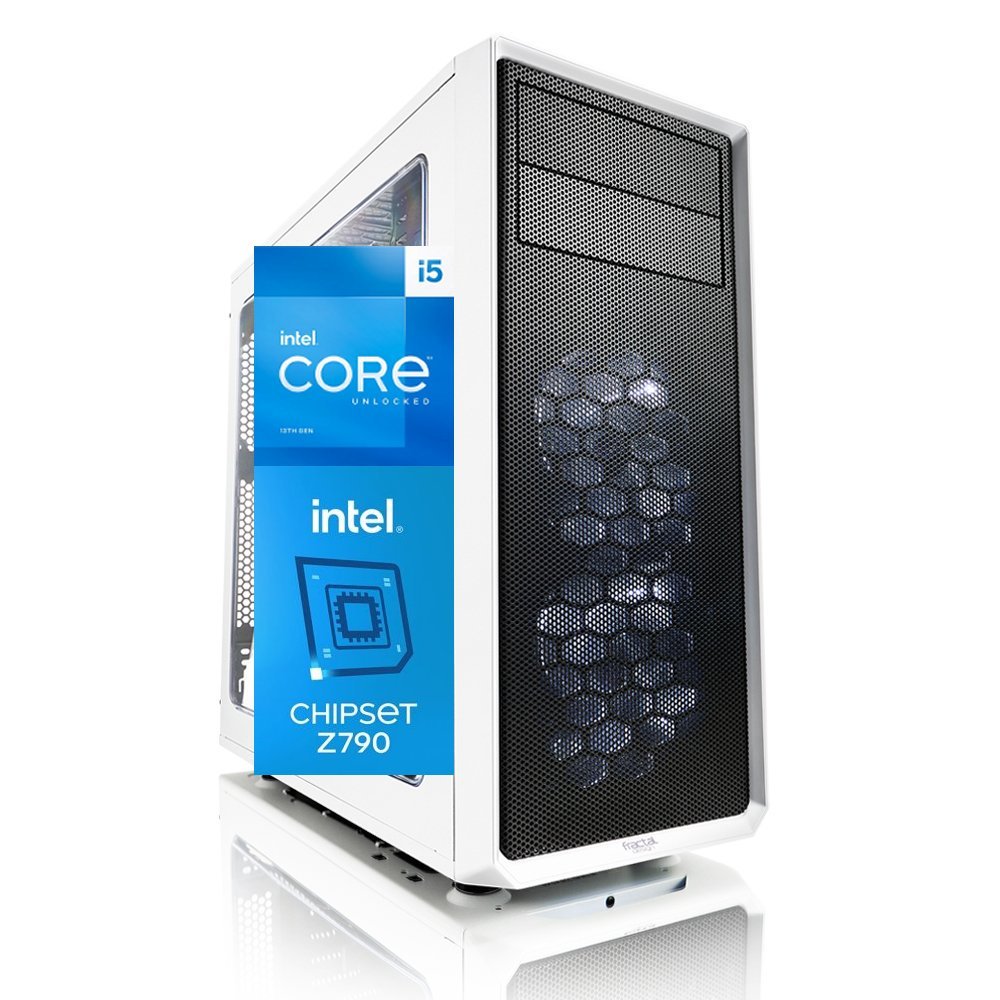

(Click to see larger image and other views)
List Price: $1,699.99
Price: $1,549.99
You Save: $150.00 (9%)
You have 500 characters left. Do not use HTML. You have 150 characters left. Do not use HTML.
Customization Available:: Basic Customization
# of Monitors Supported: 4
Interfaces/Ports: mDP 1.4 (4)
Video Chipset: Quadro T1000
Chipset: Intel Z790
CPU Socket: LGA 1700
Case Size: Mid Tower
Memory Size: 32GB
Memory Speed: 3200
Wattage: 650w Bronze
