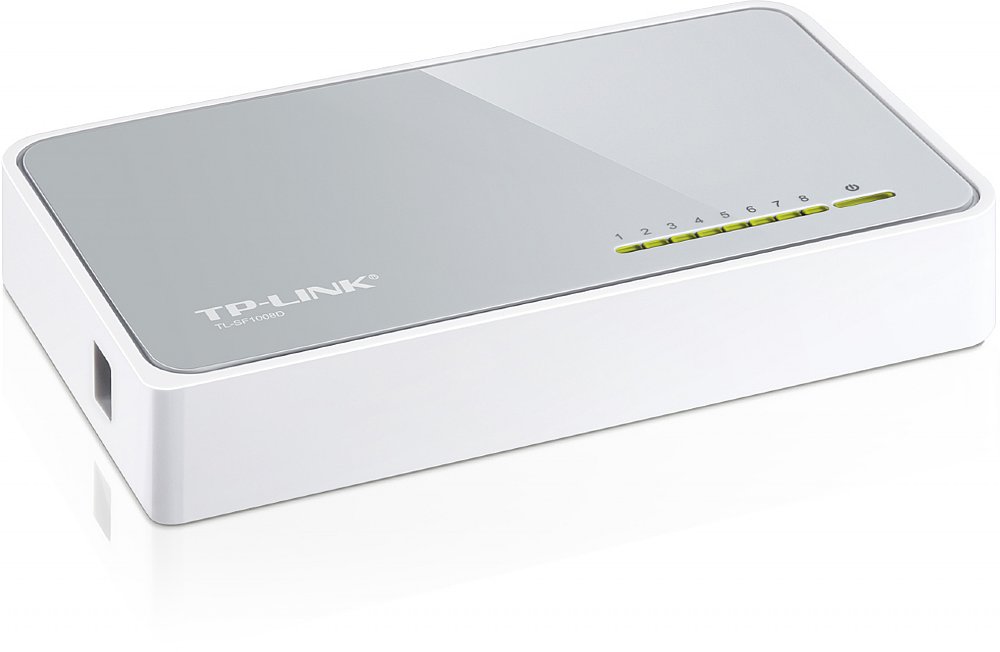

TP-LINK TL-SF1008D 8-port 10/100Mbps Desktop Switch

Brand Name:   TP-LINK

Product Model:   TL-SF1008D

Product Name:   TL-SF1008D 8- port mini Desktop Swtich

Marketing Information:

TL-SF1005D Fast Ethernet Switch provides 8 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. The Switch is Plug-and-Play and each port can be used as general ports or Uplink ports and can be simply plugged into a server, a hub or a switch.

Product Type:   Ethernet Switch

Interfaces/Ports

Total Number of Network Ports:   8

Number of Network (RJ-45) Ports:   8

Port/Expansion Slot Details:   8 x Fast Ethernet Network

Media & Performance

Ethernet Technology:   Fast Ethernet

Network Technology:   10/100Base-TX

Network & Communication

Layer Supported:   2

Physical Characteristics

Form Factor:   Desktop

Form Factor:   Wall Mountable

Height:   1.1"

Width:   5.5"

Depth:   3.4"

Miscellaneous

Additional Information:

Features:

CSMA/CD

TCP/IP

Supports IEEE802.3x flow control for Full Duplex mode and back pressure for Half Duplex mode

Supports MAC address auto-learning and auto-aging

LED indicators for monitoring power, link, activity
