High-compatibility version of NH-D15
Compared to the award-winning NH-D15, the S-version uses an off-set, asymmetrical layout and a single instead of dual NF-A15 fans. This allows the NH-D15S to provide state-of-the-art heatsink performance while maintaining superior RAM and PCIe compatibility.
Excellent RAM compatibility
Thanks to its recessed lower fins, the Noctua NH-D15S CPU cooler provides 65mm clearance for tall memory heatsinks, making it compatible with most high-end modules on the market. As the lower fins are recessed on both sides of the heatsink, compatibility is excellent not only on LGA115x and AMD, but also on LGA2011 where there are RAM slots on both sides of the socket.
Asymmetrical layout for better PCIe compatibility
As many current motherboards have the top PCIe x16 slot sitting close to the socket, bigger heatsinks tend to block it. Due to its asymmetrical layout, the fin-stack of the NH-D15S is off-set towards the upper edge of the motherboard when installed in standard orientation. This allows it to clear the top PCIe x16 slot on most current µATX and ATX motherboards.*
NF-A15 140mm fan
Complying with Noctua's AAO standard and featuring sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A15 has quickly built up a reputation as one of the best 140mm fans on the market.
Using the supplied extra fan clips, the Noctua NH-D15S 140mm CPU cooler can be upgraded with either a second round-frame 140mm fan with 120mm mounting holes (such as the NF-A15) for maximum performance or a common 120mm fan (such as the NF-F12) for improving performance while maintaining compatibility with RAM modules of up to 45mm height.
PWM support and Low-Noise Adaptor
The NF-A15 premium fan supplied with the NH-D15S supports PWM for convenient automatic speed control through the motherboard. In addition, the maximum fan speed can be reduced from 1500 to 1200rpm using the supplied Low-Noise Adaptor for even quieter operation.
Excellent component cooling
Extending below the fin-stacks, the large NF-A15 fan not only contributes to the superb CPU cooling capabilities of the NH-D15S but also provides massive airflow over surrounding motherboard components and heatsinks, thus ensuring excellent component cooling performance.
SecuFirm2 mounting system
Noctua's SecuFirm2 mounting systems have become synonymous with quality, safety and ease of use. Supporting Intel LGA1200, LGA115x (LGA1150, LGA1151, LGA1155, LGA1156), LGA2011 (LGA2011-0 & LGA2011-3), LGA2066 and AMD (AM4 (since 2019), AM3(+), AM2(+), FM1, FM2(+)), the SecuFirm2â„¢ mounting included with the NH-D15S guarantees perfect contact pressure and maximum convenience on all current sockets.
Compatibility with past and future sockets
Compatibility with past and future sockets
Complying with the open SecuFirm standard, the NH-D15S can be made compatible with the older LGA1366 and LGA775 sockets using the optional NM-I3 mounting kit, which is provided by Noctua free of charge. If technically possible, Noctua will also provide upgrade kits for future sockets.
NT-H1 thermal compound
Having received more than 100 awards and recommendations from hardware journalists around the world, Noctua's NT-H1 is a proven professional grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability.
6-year manufacturers warranty
Noctua products are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the supplied NF-A15 features an MTTF rating of more than 150,000 hours and the entire NH-D15S package comes with a full 6-year manufacturers warranty.
Socket compatibility Intel LGA1700 (included since Q2 2022, older coolers require NM-i17xx-MP83), LGA1200, LGA1156, LGA1155, LGA1151, LGA1150, LGA2066, LGA2011-0, LGA2011-3 (Square ILM) & AMD AM4, AM5 (included since 2019, older coolers require NM-AM4)

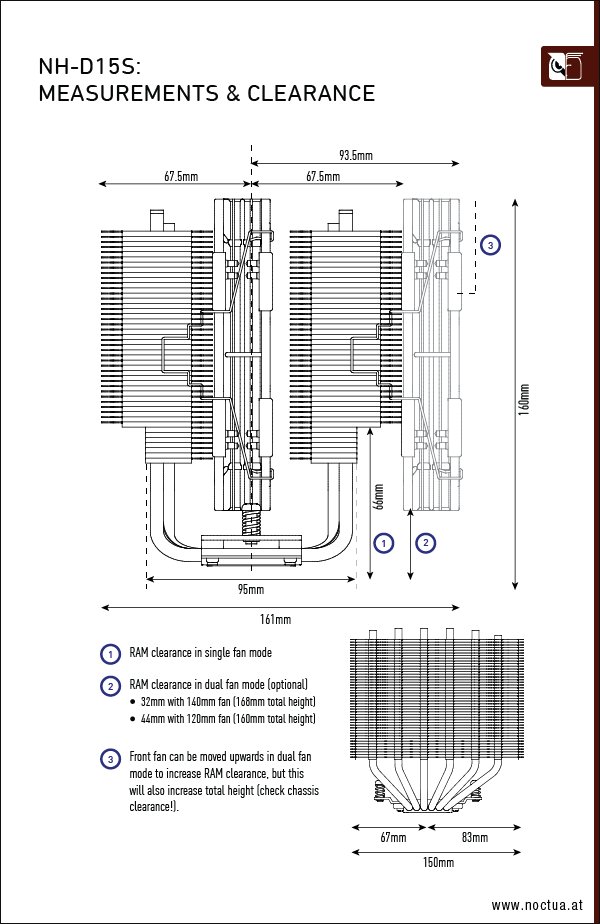

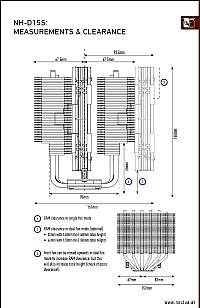

Height (without fan) 160 mm
Width (without fan) 150 mm
Depth (without fan) 135 mm
Height (with fan) 160 mm
Width (with fan) 150 mm
Depth (with fan) 135 mm
Weight (with fan) 1150 g
Material Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Max. TDP see NSPR
Fan compatibility 140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25

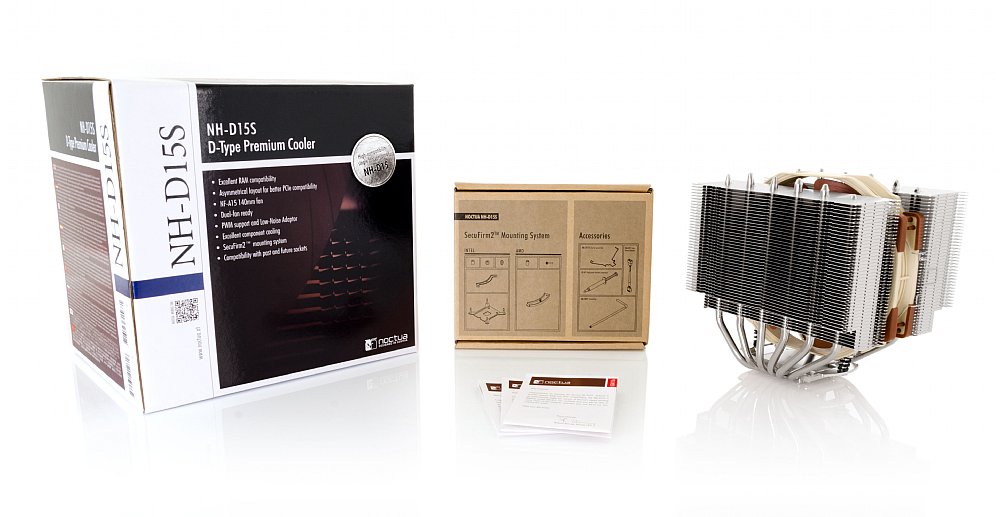

Scope of delivery
1x NF-A15 PWM premium fan
Low-Noise Adaptor (L.N.A.)
Fan clips for second fan
NT-H1 high-grade thermal compound
SecuFirm2â„¢ Mounting Kit
Noctua Metal Case-Badge
Warranty 6 Years
Model 1x Noctua NF-A15 PWM
Max. rotational speed (+/- 10%) 1500 RPM
Max. rotational speed with L.N.A. (+/- 10%) 1200 RPM
Min. rotational speed @ 20% PWM (+/-20%) 300 RPM
Max. airflow 140,2 m³/h
Max. airflow with L.N.A. 115,5 m³/h
Max. acoustical noise 24,6 dB(A)
Max. acoustical noise with L.N.A. 19,2 dB(A)
Input power (max.) 1,56 W
Voltage range 12 V
MTTF > 150.000 h
