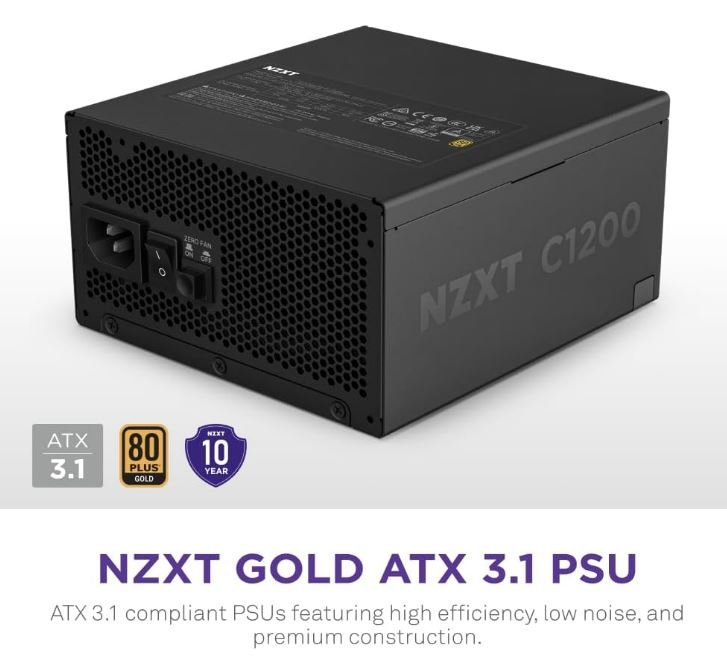

NZXT PS PA-2G2BB-US 1200W ATX3.1 80Plus Gold Fully Modular Black

Ready to unleash the full potential of your high-end PC build? The NZXT C1200 Gold ATX 3.1 PSU is engineered to deliver unwavering power with exceptional efficiency and whisper-quiet operation.

Power Your Future: Compliant with the latest ATX 3.1 standard, this 1200W powerhouse ensures rock-solid stability and robust power spike resistance for even the most demanding CPUs and future NVIDIA® GeForce RTXâ„¢ 50 Series graphics cards, thanks to its durable, heat-resistant 12V-2x6 connector delivering up to 600W.

Silence When It Matters: Experience near-silent performance with the intelligent Zero Fan Mode, which keeps the 135mm fluid dynamic bearing fan completely off until you exceed 50% load. When needed, the fan operates quietly to keep things cool.

Built to Last: We use only 100% premium Japanese capacitors, guaranteeing superior hold-up time and minimal ripple noise for reliable and stable power delivery you can count on.

Clean and Efficient Builds: The fully modular design allows you to connect only the cables you need, eliminating clutter and maximizing airflow within your case for a cleaner and cooler system. Its compact form factor provides even more room for cable management and improved airflow.

Peace of Mind Included: Backed by a comprehensive 10-year warranty, the NZXT C1200 Gold PSU reflects our commitment to high-quality construction and rigorous testing.

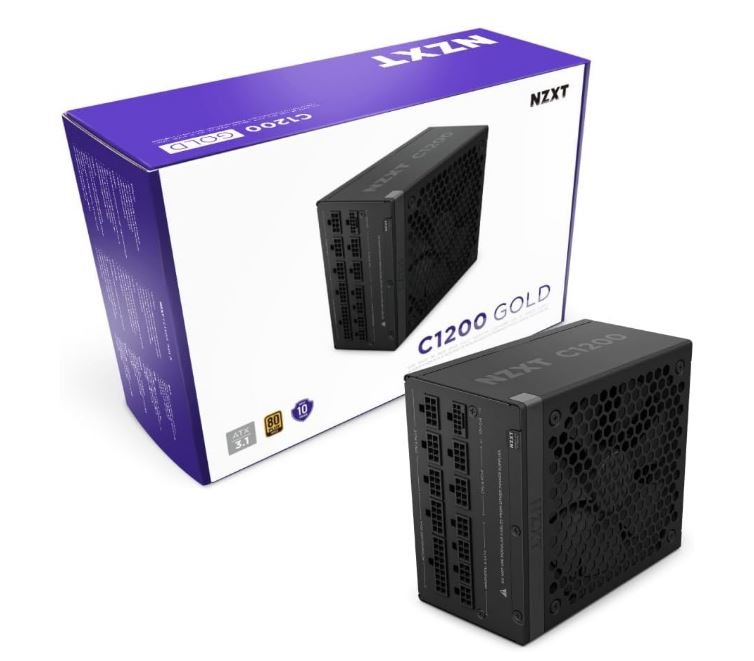

What's in the Box: Everything you need for a seamless installation, including a full set of modular cables and mounting hardware.

Don't compromise on power or silence. Elevate your build with the NZXT C1200 Gold ATX 3.1 PSU today!

Technical Specifications

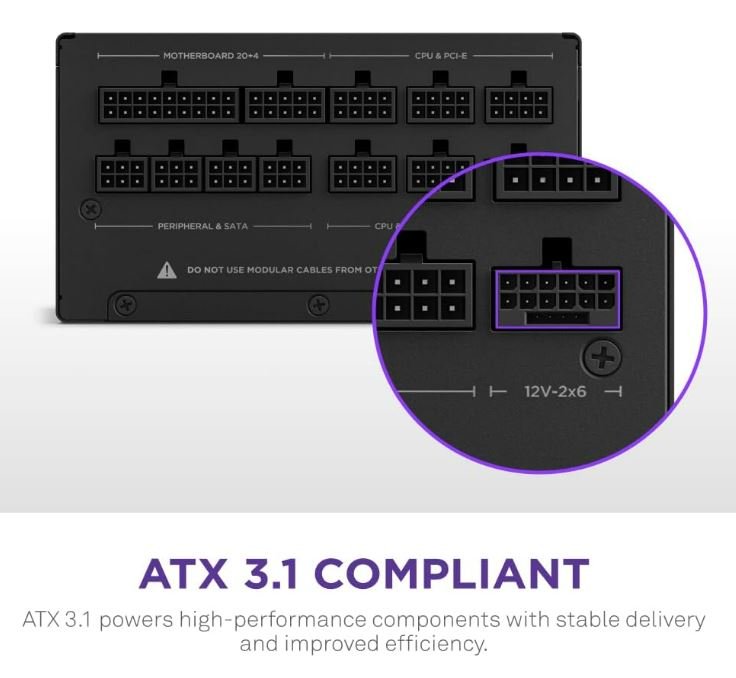

Connectors

• Motherboard: 1 x 24-pin ATX
• CPU: 1 x 4+4-pin, 1 x 8-pin
• Graphics Card (PCIe): 3 x 6+2-pin, 1 x 16-pin (12+4) 12V-2x6
• SATA: 12 connectors
• Peripherals (Molex/etc.): 4 connectors

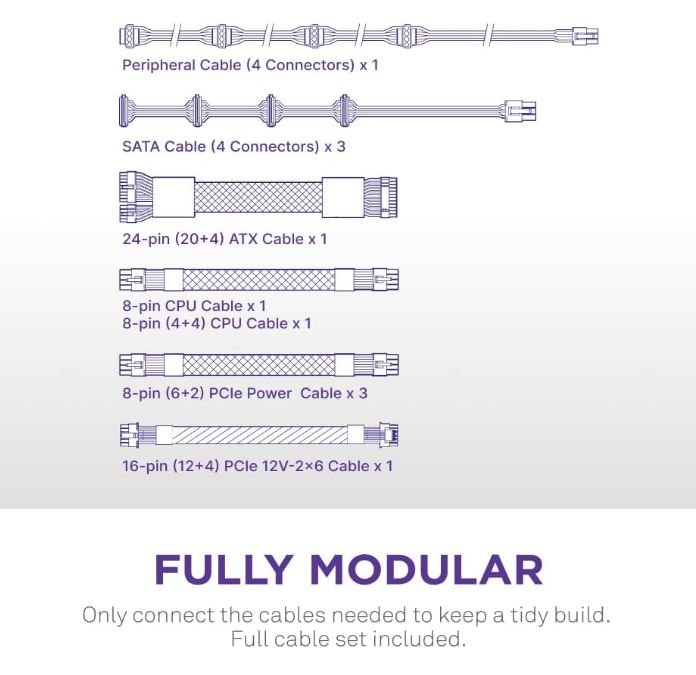

Included Cable Details

• 24-pin ATX Power Cable: 600mm length, with nylon sleeving
• 4+4-pin CPU Power Cable: 700mm length, with nylon sleeving
• 8-pin CPU Power Cable: 700mm length, with nylon sleeving
• 6+2-pin PCIe Power Cable: 650mm length, with nylon sleeving
• 16-pin (12+4) 12V-2x6 PCIe Cable: 650mm length, with nylon sleeving
• SATA Cables: Multiple cables, each with a 500mm connector and an additional 150mm connector.
• Peripherals Cables: Multiple cables, each with a 500mm connector and an additional 150mm connector.

Power Input

• Standard: 100 - 240Vac, 14A, 50Hz-60Hz
• China & South Korea: 200 - 240Vac, 7A, 50Hz-60Hz

Power Output

Efficiency

• 80 Plus Gold Certified
• Efficiency at 115Vac Input:
  • 10% Load: 85%
  • 20% Load: 90.1%
  • 50% Load: 91.6%
  • 100% Load: 88.7%

Electrical Protection

• OVP: Overvoltage Protection
• UVP: Undervoltage Protection
• SCP: Short Circuit Protection
• OTP: Over Temperature Protection
• OPP: Overpower Protection
• OCP: Overcurrent Protection
• Power Factor Correction: Active, with a PF of 0.99
