Brand: MSI
SKU: MB17B660-PROB660MAD4

MSI PRO B660M-A DDR4 Desktop Motherboard - Intel B660 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - Micro ATX

Interfaces/Ports: 2 DisplayPort & 2 HDMI
Chipset: Intel B660
CPU Socket: LGA 1700
# of Memory Slots: 4
Brand: MSI
Memory Technology: DDR4 Support
UPC/EAN: 824142278086
Form Factor: ATX
Core i5, Core i7, Core i9, Core i3 Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - HDMI - DisplayPort - 4 x SATA Interfaces
Product Details
General Information
Manufacturer:   MSI
Manufacturer Part Number:   PROB660MAD4
Manufacturer Website Address:   www.msi.com
Brand Name:   MSI
Product Series:   PRO
Product Model:   PRO B660M-A DDR4
Product Name:   PRO B660M-A DDR4 Desktop Motherboard
Marketing Information:
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.


Product Type:   Desktop Motherboard
Processor & Chipset
Chipset Manufacturer:   Intel
Chipset Model:   B660
Total Processor Supported:   1
Processor Socket:   Socket LGA-1700
Processor Generation Supported:   12th Gen
Processor Supported:   Core i3
Processor Supported:   Core i5
Processor Supported:   Core i7
Processor Supported:   Core i9
Memory
Number of Memory Slots:   4
Memory Form Factor:   DIMM
Memory Form Factor:   UDIMM
Maximum Memory Supported:   128 GB
Memory Technology:   DDR5 SDRAM
Memory Speed Supported:   2133 MHz
Memory Speed Supported:   2666 MHz
Memory Speed Supported:   3200 MHz
Memory Speed Supported:   3600 MHz
Memory Speed Supported:   4000 MHz
Memory Speed Supported:   4800 MHz
Intel Optane Memory Ready:   Yes
I/O Controller
Controller Type:   Serial ATA/600
RAID Supported:   Yes
RAID Levels:   0
RAID Levels:   1
RAID Levels:   10
RAID Levels:   5
Video
Onboard Video:   CPU Dependent Video
Audio
Audio Channels:   7.1
Network & Communication
2.5Gigabit Ethernet:   Yes
I/O Expansions
Number of Total Expansion Slots:   3
Total Number of PCI Express Slots:   3
Number of PCI Express x1 Slots:   1
Number of PCI Express x16 Slots:   2
Interfaces/Ports
Total Number of USB Ports:   6
Number of USB 2.0 Ports:   2
Number of USB 3.2 Gen 1 Ports:   2
Number of USB 3.2 Gen 2 Type-A Ports:   2
HDMI:   Yes
DisplayPort:   Yes
Number of Network (RJ-45) Ports:   1
Onboard Interfaces
Number of SATA Interfaces:   4
Number of M.2 Interfaces:   2
Total Number of Onboard USB Ports:   7
Number of Onboard USB 2.0 Ports:   4
Number of Onboard USB 3.2 Ports:   3
Physical Characteristics
Form Factor:   Micro ATX
Width:   9.6"
Depth:   9.6"
Miscellaneous
Brand Compatibility:   Intel
PRO B660M-A DDR4
MSI PRO B660M-A DDR4 Desktop Motherboard - Intel B660 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - Micro ATX
PRO B660M-A DDR4
MSI PRO B660M-A DDR4 Desktop Motherboard - Intel B660 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - Micro ATX
PRO B660M-A DDR4
MSI PRO B660M-A DDR4 Desktop Motherboard - Intel B660 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - Micro ATX
PRO B660M-A DDR4
MSI PRO B660M-A DDR4 Desktop Motherboard - Intel B660 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - Micro ATX
PRO B660M-A DDR4
MSI PRO B660M-A DDR4 Desktop Motherboard - Intel B660 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - Micro ATX
PRO B660M-A DDR4
MSI PRO B660M-A DDR4 Desktop Motherboard - Intel B660 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - Micro ATX

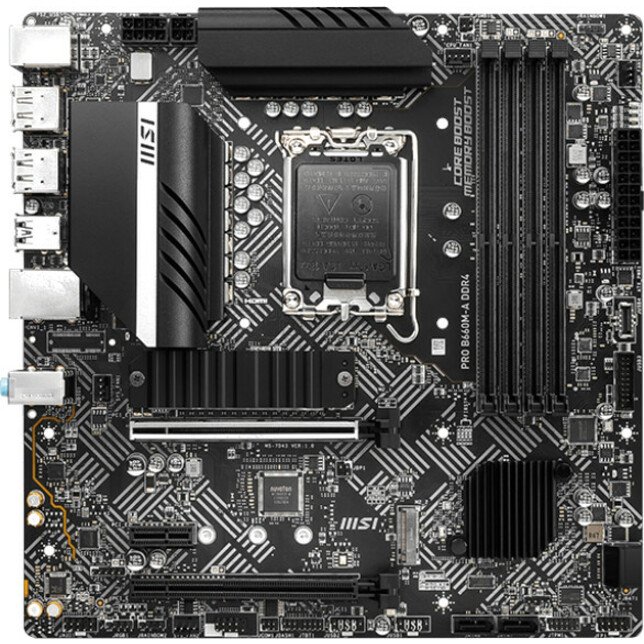

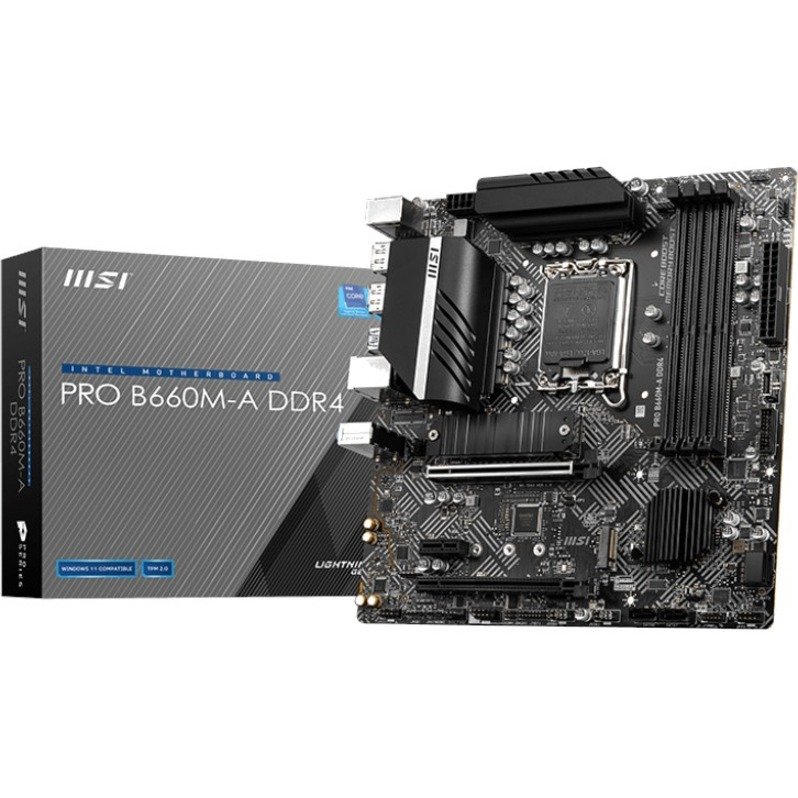

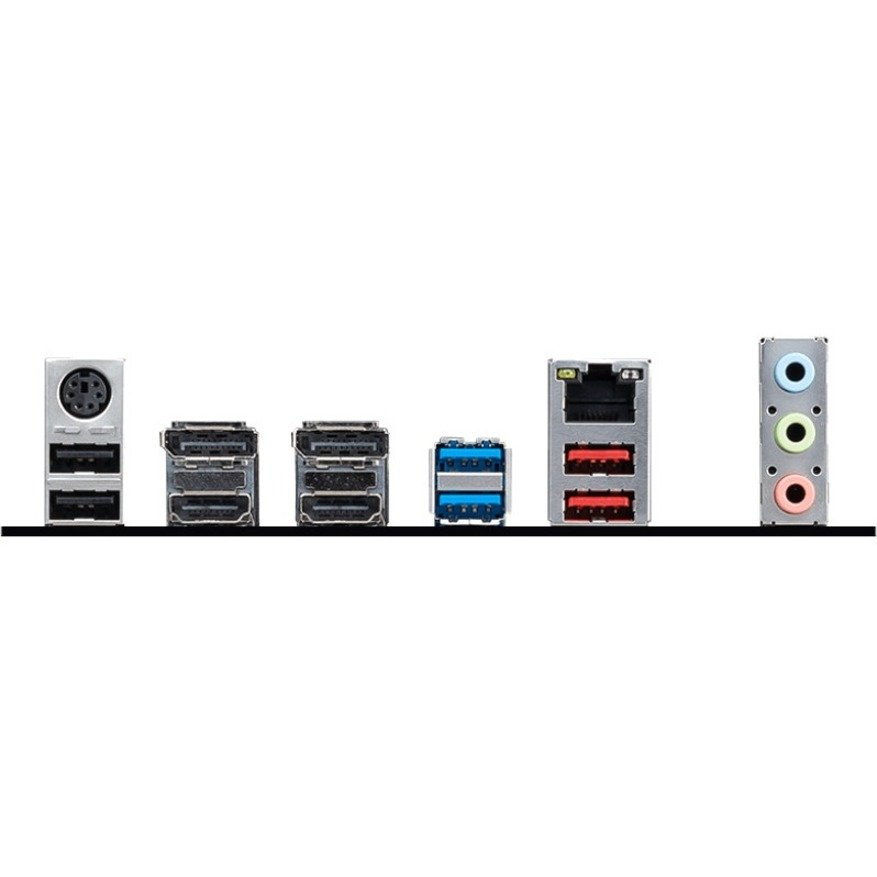

(Click to see larger image and other views)
