General Information
Manufacturer: MSI
Manufacturer Part Number: B760TAMAWIFI
Manufacturer Website Address: www.msi.com
Brand Name: MSI
Product Line: MAG
Product Model: B760 TOMAHAWK WIFI
Product Name: MAG B760 TOMAHAWK WIFI Gaming Desktop Motherboard
Marketing Information:
The MAG B760 Tomahawk Wifi fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
Product Type: Gaming Desktop Motherboard
Processor & Chipset
Chipset Manufacturer: Intel
Chipset Model: B760
Total Processor Supported: 1
Processor Socket: Socket LGA-1700
Processor Generation Supported: 12th Gen
Processor Generation Supported: 13th Gen
Processor Supported: Celeron
Processor Supported: Core
Processor Supported: Pentium Gold
Memory
Number of Memory Slots: 4
Memory Form Factor: UDIMM
Memory Form Factor: DIMM
Maximum Memory Supported: 128 GB
Memory Technology: DDR5 SDRAM
Memory Speed Supported: 5400 MHz
Memory Speed Supported: 5600 MHz
Memory Speed Supported: 5800 MHz
Memory Speed Supported: 6000 MHz
Memory Speed Supported: 6600 MHz
Memory Speed Supported: 4800 MHz
Memory Speed Supported: 5000 MHz
Memory Speed Supported: 5200 MHz
Memory Speed Supported: 6200 MHz
Memory Speed Supported: 6400 MHz
Memory Speed Supported: 6800 MHz
Memory Speed Supported: 7000 MHz
I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0
RAID Levels: 1
RAID Levels: 10
RAID Levels: 5
Video
Onboard Video: CPU Dependent Video
Audio
Audio Channels: 7.1
Network & Communication
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.3
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax
I/O Expansions
Number of Total Expansion Slots: 3
PCI Express Standard: PCI Express 5.0
PCI Express Standard: PCI Express 3.0
PCI Express Standard: PCI Express 4.0
Total Number of PCI Express Slots: 3
Number of PCI Express x1 Slots: 1
Number of PCI Express x16 Slots: 2

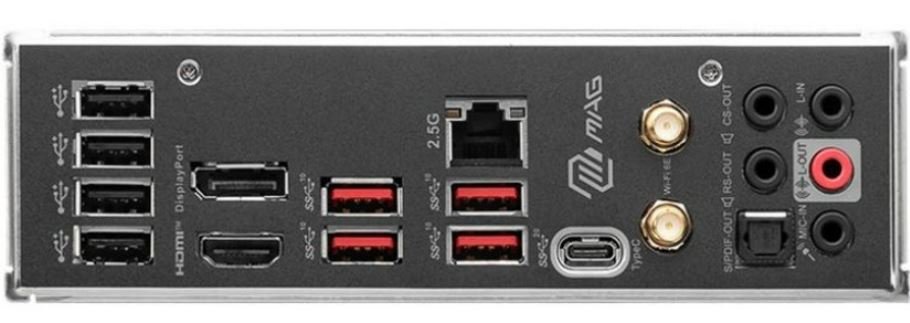

Interfaces/Ports
Total Number of USB Ports: 9
Number of USB 2.0 Ports: 4
Number of USB 3.2 Gen 2 Type-A Ports: 4
S/PDIF: Yes
HDMI: Yes
HDMI Version: 2.1
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Onboard Interfaces
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 3
Total Number of Onboard USB Ports: 7
Number of Onboard USB 2.0 Ports: 4
Physical Characteristics
Form Factor: ATX
Width: 12"
Depth: 9.6"
Miscellaneous
Package Contents:
MAG B760 TOMAHAWK WIFI Gaming Desktop Motherboard
Quick Installation Guide
SATA Cable
EZ M.2 Clip
Cable Stickers
Wi-Fi Antenna
European Union Regulatory Notice
Brand Compatibility: Intel
Country of Origin: China
Warranty
Limited Warranty: 3 Year
