Brand: MSI
SKU: MB17D5B760M-B760MPROVCWIFI-B

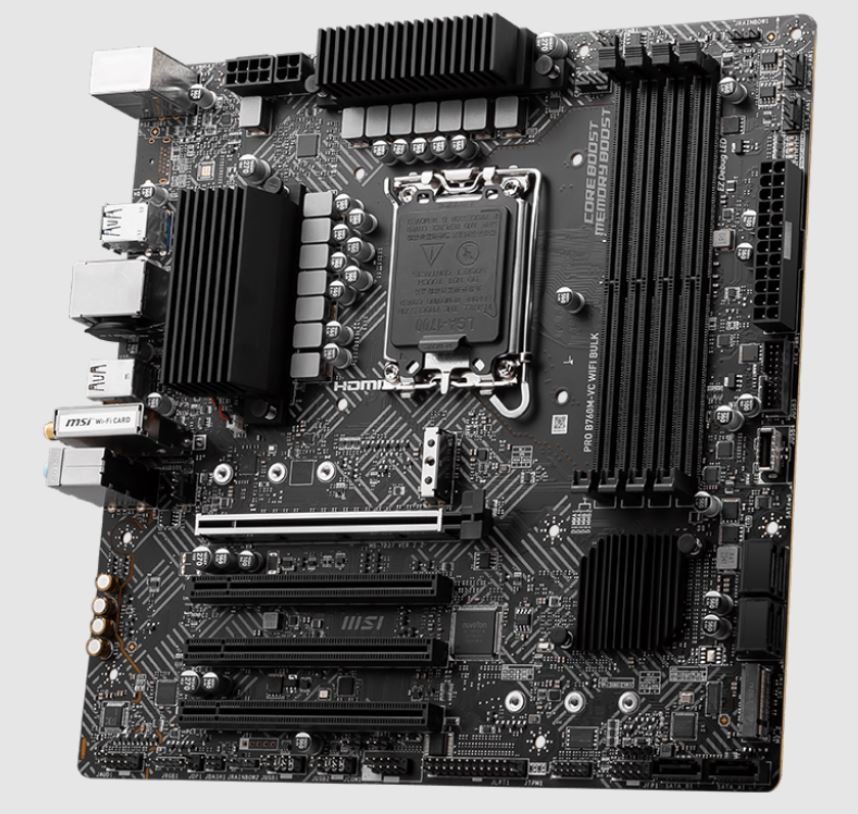

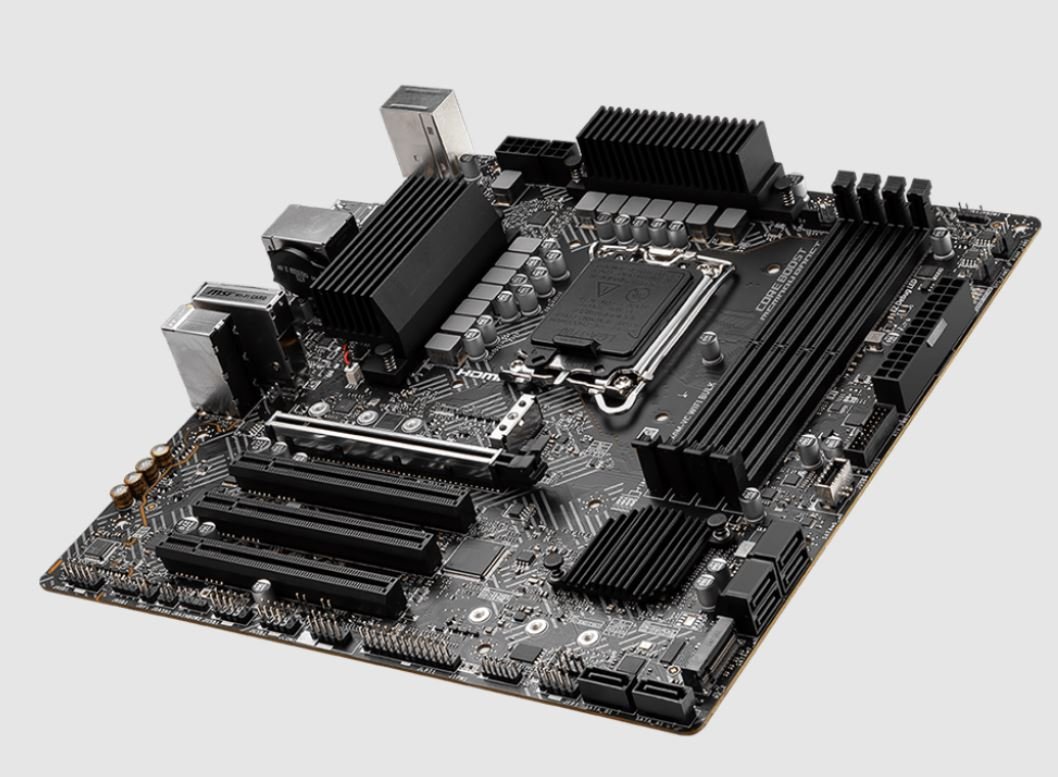

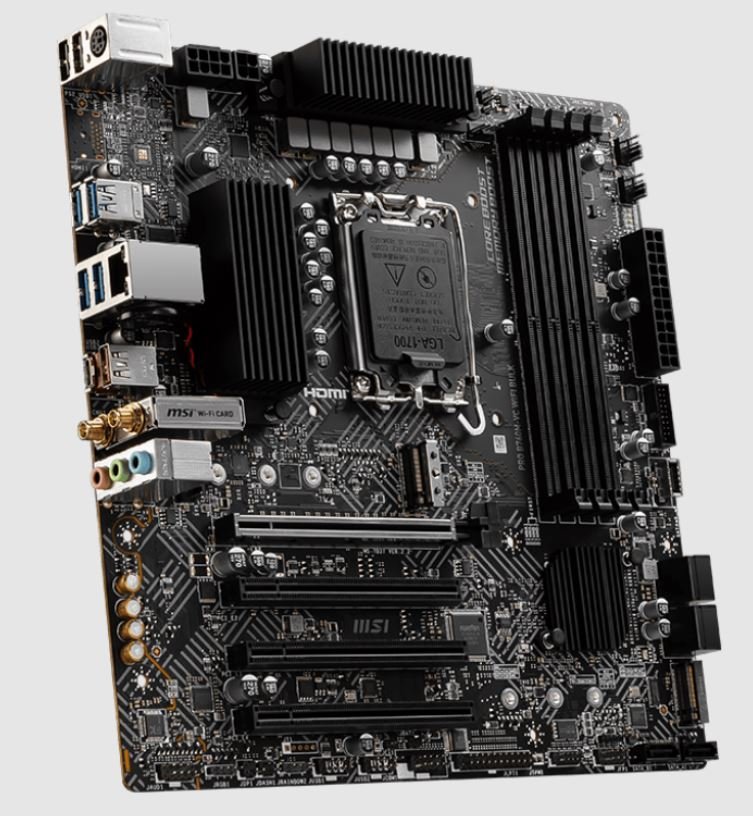

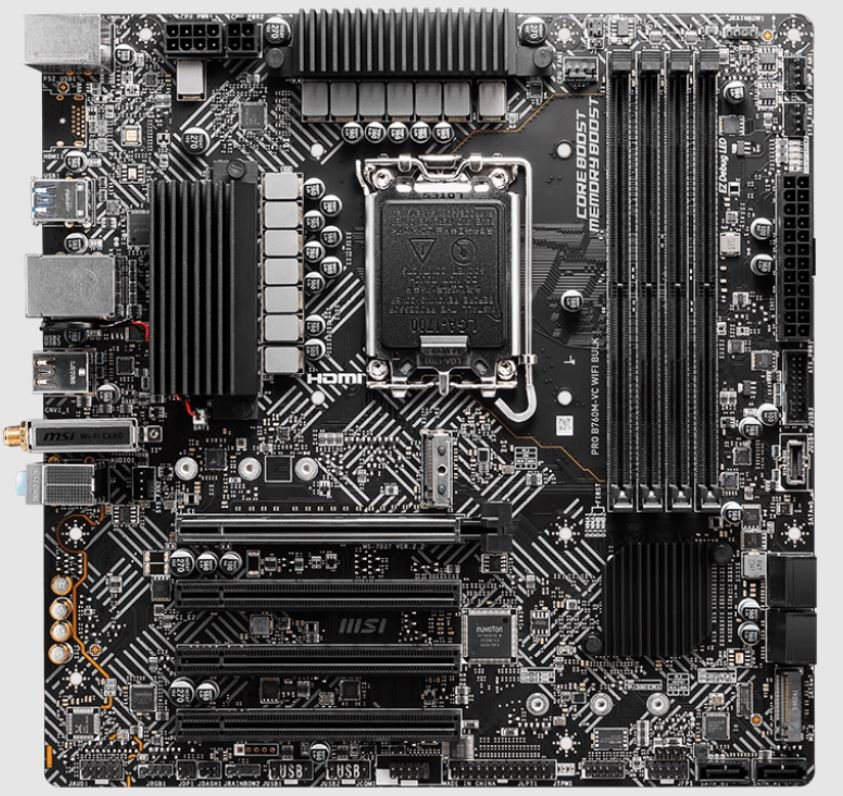

MSI B760M-VC WIFI 6 DDR5 Micro ATX LGA-1700 Gaming Motherboard

Interfaces/Ports: No onboard video ports
Chipset: Intel B760
CPU Socket: LGA 1700
# of Memory Slots: 4
Brand: MSI
Memory Technology: DDR5
UPC/EAN: 824142364543
Form Factor: MATX
256 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - Yes - IEEE 802.11 a/b/g/n/ac/ax - 6 x SATA Interfaces
Product Details

PRO B760M-VC WIFI BULK

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket

Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)

Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost

Premium Thermal Solution: MOSFET thermal pads rated for 7W/mK and additional choke thermal pads are built for high-performance system and non-stop gaming experience

High-Quality PCB: 6-layer PCB made by 2oz thickened copper

Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2

Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds

2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

AUDIO BOOST: Reward your ears with studio-grade sound quality for the most immersive gaming experience


CHIPSETINTEL B760

CPUSupport Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors

LGA 1700

MEMORY4x DDR5, Maximum Memory Capacity 256GB

Memory Support DDR5 4800 MHz (by JEDEC & POR)

Max. overclocking frequency:

• 1DPC 1R Max speed up to 6200+ MHz

• 1DPC 2R Max speed up to 5200+ MHz

• 2DPC 1R Max speed up to 4000+ MHz

• 2DPC 2R Max speed up to 4000+ MHz


Supports Intel® XMP 3.0 OC

Supports Dual-Controller Dual-Channel mode

Supports non-ECC, un-buffered memory

AUDIORealtek® ALC897 Codec

7.1-Channel High Definition Audio

STORAGE2x M.2 (Qty)

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices

M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

6x SATA 6G (Qty)

*SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

LANRealtek® 8125BG 2.5Gbps LAN

SLOT4x PCI-E x16 slot (Qty)

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)

RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

*SATA_A1 & SATA_B1 do not support RAID function.

USB2x USB 2.0 (Rear)

4x USB 2.0 (Front)

4x USB 5Gbps Type A (Rear)

2x USB 5Gbps Type A (Front)

1x USB 5Gbps Type C (Front)

1x USB 10Gbps Type A (Rear)

1x USB 10Gbps Type C (Rear)

WIRELESS LAN & BLUETOOTHIntel® Wi-Fi 6E

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax


Supports Bluetooth® 5.3, FIPS, FISMA


* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.

INTERNAL IO1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x CPU Fan

1x Pump Fan

2x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Printer Port (JLPT)

1x Com Port (JCOM)

1x Tuning Controller connector(JDASH)

2x Addressable RGB LED connector(JRAINBOW)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

LED FEATURE4x EZ Debug LED

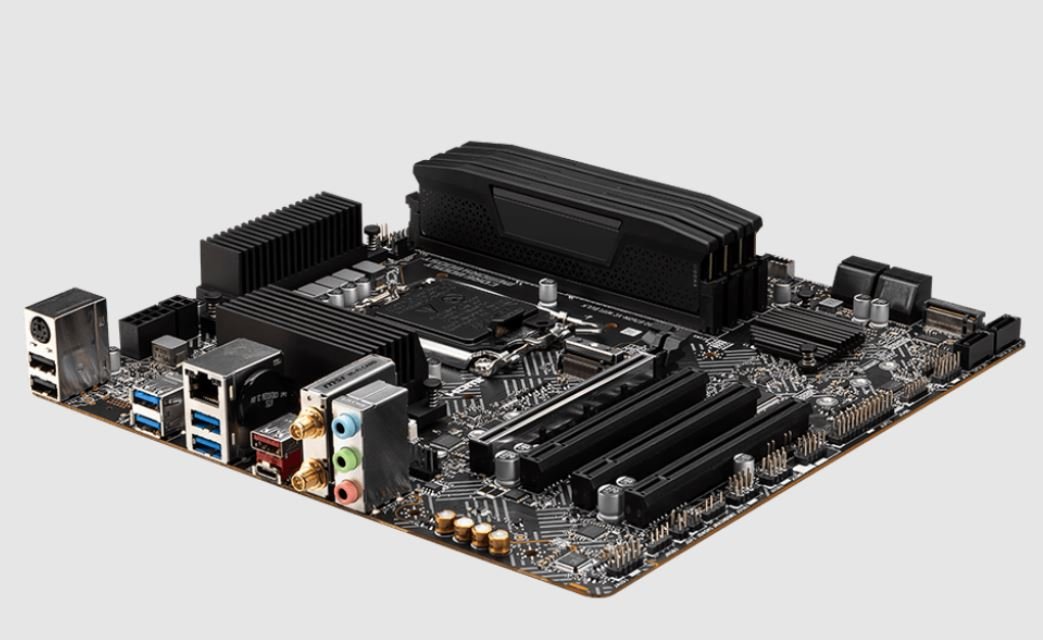

BACK PANEL PORTS

Keyboard / Mouse

2.5G LAN

USB 3.2 Gen 2 10Gbps (Type-A)

Wi-Fi / Bluetooth

Audio Connectors

USB 2.0

USB 3.2 Gen 1 5Gbps (Type-A)

USB 3.2 Gen 2 10Gbps (Type-C)


OPERATING SYSTEMSupport for Windows® 11 64-bit, Windows® 10 64-bit

PCB INFOmATX

243.84mmx243.84mm

Weight: 4 lbs
B760MAWIFI
MSI B760M-VC WIFI 6 DDR5 Micro ATX LGA-1700 Gaming Motherboard
B760MAWIFI
MSI B760M-VC WIFI 6 DDR5 Micro ATX LGA-1700 Gaming Motherboard
B760MAWIFI
MSI B760M-VC WIFI 6 DDR5 Micro ATX LGA-1700 Gaming Motherboard
B760MAWIFI
MSI B760M-VC WIFI 6 DDR5 Micro ATX LGA-1700 Gaming Motherboard
B760MAWIFI
MSI B760M-VC WIFI 6 DDR5 Micro ATX LGA-1700 Gaming Motherboard
B760MAWIFI
MSI B760M-VC WIFI 6 DDR5 Micro ATX LGA-1700 Gaming Motherboard
(Click to see larger image and other views)
List Price: $169.99
Price: $114.99
You Save: $55.00 (32%)
