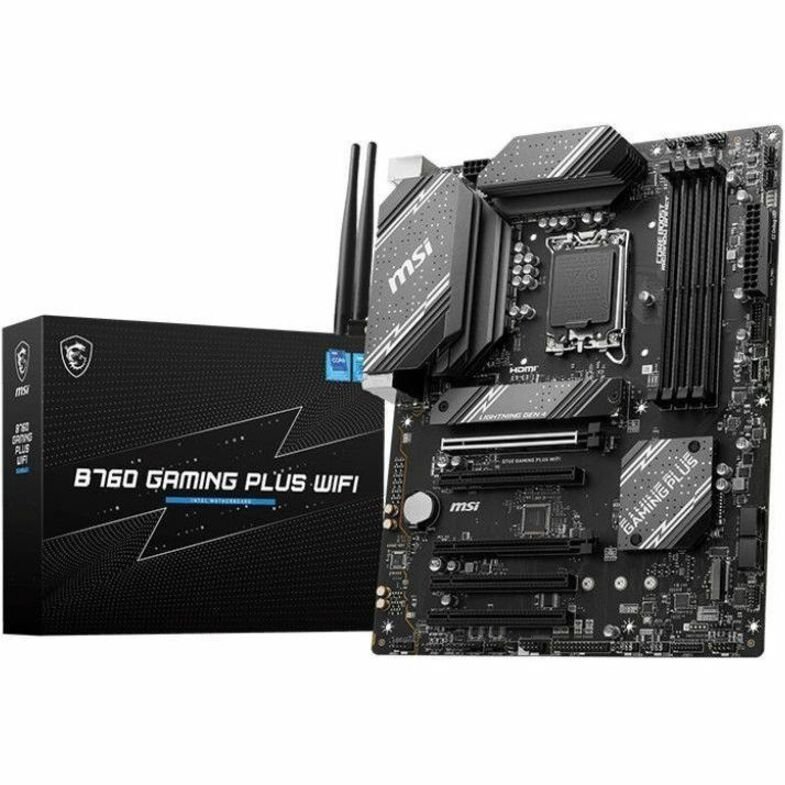

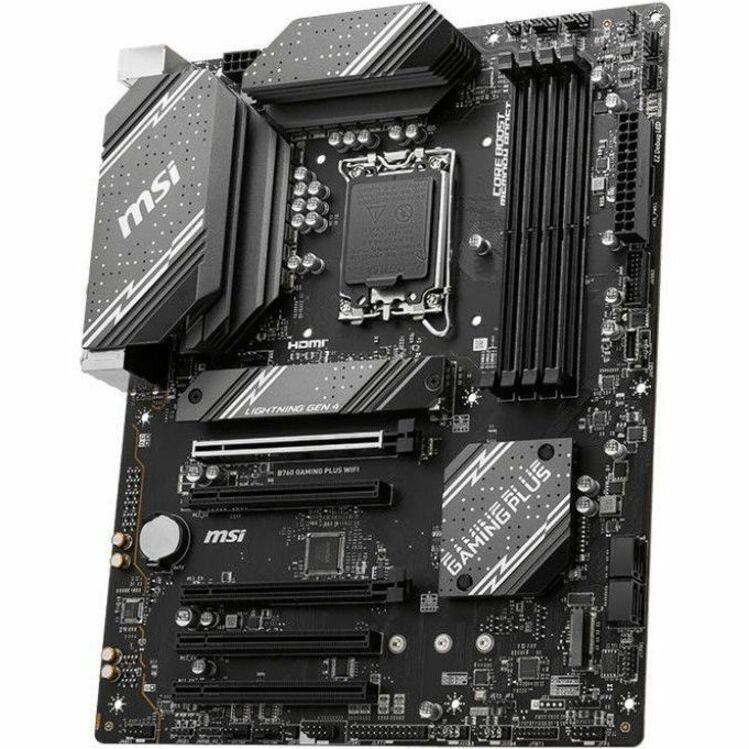

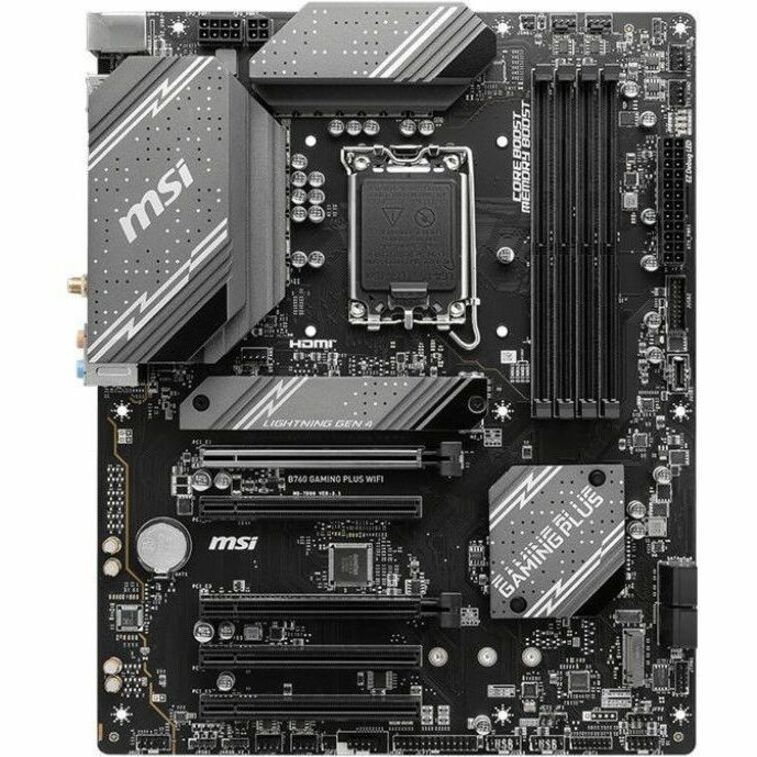

MSI B760 PLUS WIFI DDR5 Gaming Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - ATX

General Information

Manufacturer:   MSI

Manufacturer Part Number:   B760GPWIFI

Manufacturer Website Address:   www.msi.com

Brand Name:   MSI

Product Model:   B760 GAMING PLUS WIFI

Product Name:   B760 GAMING PLUS WIFI Gaming Desktop Motherboard

Marketing Information:

Experience lightning-fast speeds and unparalleled performance with the B760GPWIFI motherboard. Designed for gamers, professionals, and enthusiasts, this cutting-edge motherboard delivers seamless multitasking, unrivaled connectivity, and a customizable, immersive computing experience.

Product Type:   Gaming Desktop Motherboard

Processor & Chipset

Chipset Manufacturer:   Intel

Chipset Model:   B760

Total Processor Supported:   1

Processor Socket:   Socket LGA-1700

Processor Generation Supported:   12th Gen

Processor Generation Supported:   13th Gen

Processor Supported:   Celeron

Processor Supported:   Core

Processor Supported:   Pentium Gold

Memory

Number of Memory Slots:   4

Memory Form Factor:   UDIMM

Memory Form Factor:   DIMM

Maximum Memory Supported:   192 GB

Memory Technology:   DDR5 SDRAM

Memory Speed Supported:   4800 MHz

Memory Speed Supported:   6000 MHz

Memory Speed Supported:   6200 MHz

Memory Speed Supported:   6600 MHz

Memory Speed Supported:   6800 MHz

Memory Speed Supported:   5000 MHz

Memory Speed Supported:   5200 MHz

Memory Speed Supported:   5400 MHz

Memory Speed Supported:   5600 MHz

Memory Speed Supported:   5800 MHz

Memory Speed Supported:   6400 MHz

I/O Controller

Controller Type:   Serial ATA/600

RAID Supported:   Yes

RAID Levels:   0

RAID Levels:   1

RAID Levels:   10

RAID Levels:   5

Video

Onboard Video:   CPU Dependent Video

Audio

Audio Channels:   7.1

Network & Communication

Bluetooth:   Yes

Bluetooth Standard:   Bluetooth 5.3

Gigabit Ethernet:   Yes

2.5Gigabit Ethernet:   Yes

Wireless LAN:   Yes

Wireless LAN Standard:   IEEE 802.11 a/b/g/n/ac/ax

I/O Expansions

Number of Total Expansion Slots:   5

PCI Express Standard:   PCI Express 3.0

PCI Express Standard:   PCI Express 4.0

Total Number of PCI Express Slots:   5

Number of PCI Express x16 Slots:   5

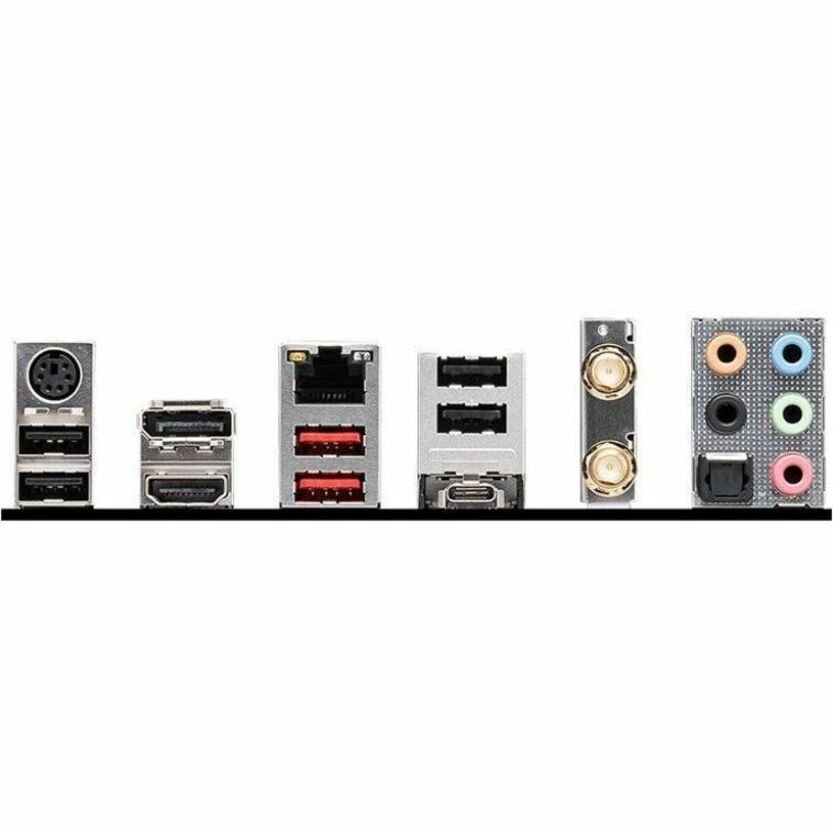

Interfaces/Ports

Total Number of USB Ports:   7

Number of USB 2.0 Ports:   4

Number of USB 3.2 Gen 2 Type-A Ports:   2

Number of USB 3.2 Gen 2 Type-C Ports:   1

S/PDIF:   Yes

HDMI:   Yes

HDMI Version:   2.1

DisplayPort:   Yes

Number of Network (RJ-45) Ports:   1

Onboard Interfaces

Number of SATA Interfaces:   4

Number of M.2 Interfaces:   2

Total Number of Onboard USB Ports:   7

Number of Onboard USB 2.0 Ports:   4

Physical Characteristics

Form Factor:   ATX

Width:   12"

Depth:   9.6"

Miscellaneous

Package Contents:

B760 GAMING PLUS WIFI Gaming Desktop Motherboard

wi-fi antenna

Sata Cables

M.2 Screw/Stand off Set

I/O Shield

Quick Installation Guide

European Union Regulatory Notice

Brand Compatibility:   Intel
