SKU: MBAM5B650-B650MDS3H

Gigabyte B650M DS3H Gaming Desktop Motherboard - AMD B650 Chipset - Socket AM5 - Micro ATX

Ryzen Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 4 x SATA Interfaces
Product Details
General Information
Manufacturer:   GIGABYTE Technology, Inc
Manufacturer Part Number:   B650M DS3H
Manufacturer Website Address:   www.gigabyte.us
Brand Name:   Gigabyte
Product Model:   B650M DS3H
Product Name:   B650M DS3H Gaming Desktop Motherboard
Marketing Information:
PERSONALIZATION

GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.

ULTRA DURABLE

GIGABYTE Ultra Durable design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.


Product Type:   Gaming Desktop Motherboard
Processor & Chipset
Chipset Manufacturer:   AMD
Chipset Model:   B650
Total Processor Supported:   1
Processor Socket:   Socket AM5
Processor Supported:   Ryzen
Memory
Number of Memory Slots:   4
Memory Form Factor:   DIMM
Memory Form Factor:   UDIMM
Maximum Memory Supported:   128 GB
Memory Technology:   DDR5 SDRAM
Memory Speed Supported:   5200 MHz
Memory Speed Supported:   6000 MHz
Memory Speed Supported:   6400 MHz
Memory Speed Supported:   4800 MHz
Memory Speed Supported:   5600 MHz
Memory Speed Supported:   6200 MHz
I/O Controller
Controller Type:   Serial ATA/600
RAID Supported:   Yes
RAID Levels:   0
RAID Levels:   10
RAID Levels:   1
Video
Onboard Video:   CPU Dependent Video
Audio
Audio Channels:   7.1
Network & Communication
Gigabit Ethernet:   Yes
2.5Gigabit Ethernet:   Yes
I/O Expansions
Number of Total Expansion Slots:   2
PCI Express Standard:   PCI Express 4.0
PCI Express Standard:   PCI Express 3.0
Total Number of PCI Express Slots:   2
Number of PCI Express x16 Slots:   2
Interfaces/Ports
Total Number of USB Ports:   8
Number of USB 2.0 Ports:   4
Number of USB 3.2 Gen 1 Ports:   2
Number of USB 3.2 Gen 2 Type-A Ports:   1
Number of USB 3.2 Gen 2 Type-C Ports:   1
HDMI:   Yes
DisplayPort:   Yes
Number of Network (RJ-45) Ports:   1
Onboard Interfaces
Number of SATA Interfaces:   4
Number of M.2 Interfaces:   2
Total Number of Onboard USB Ports:   7
Number of Onboard USB 2.0 Ports:   4
Physical Characteristics
Form Factor:   Micro ATX
Width:   9.6"
Depth:   9.6"
Miscellaneous
Brand Compatibility:   AMD
B650MDS3H
Gigabyte B650M DS3H Gaming Desktop Motherboard - AMD B650 Chipset - Socket AM5 - Micro ATX
B650MDS3H
Gigabyte B650M DS3H Gaming Desktop Motherboard - AMD B650 Chipset - Socket AM5 - Micro ATX
B650MDS3H
Gigabyte B650M DS3H Gaming Desktop Motherboard - AMD B650 Chipset - Socket AM5 - Micro ATX
B650MDS3H
Gigabyte B650M DS3H Gaming Desktop Motherboard - AMD B650 Chipset - Socket AM5 - Micro ATX

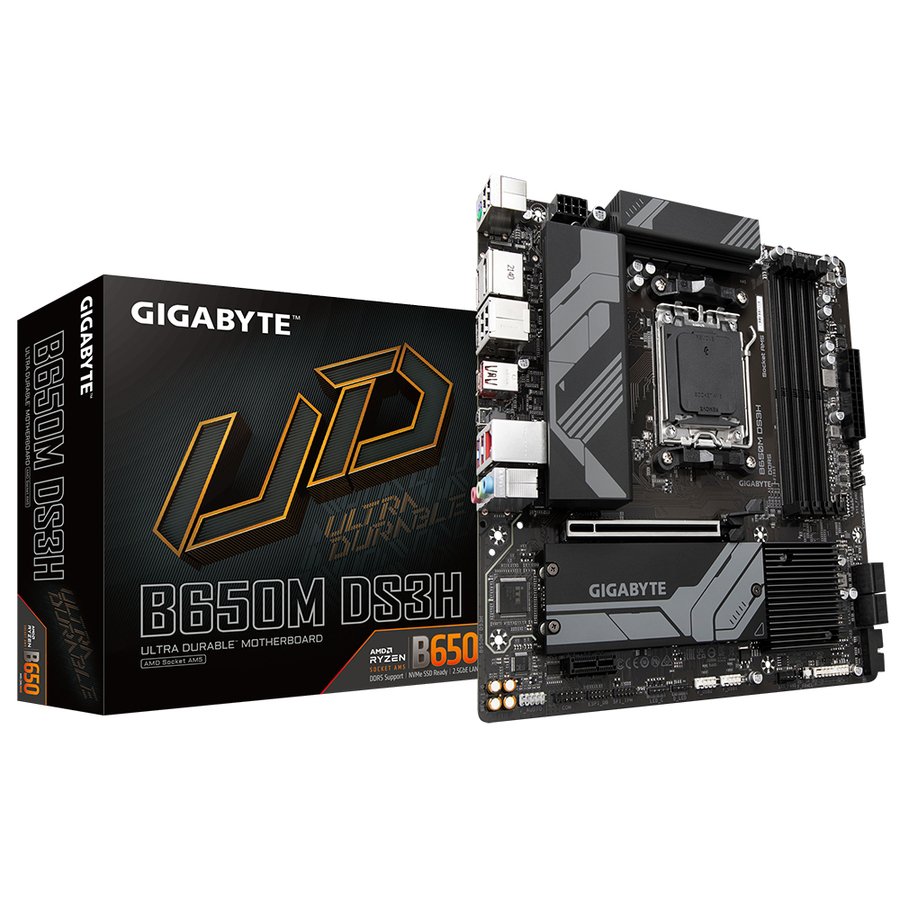

(Click to see larger image and other views)
List Price: $199.99
Price: $179.99
You Save: $20.00 (10%)
