General Information
Manufacturer: Corsair
Manufacturer Part Number: CW-9060047-WW
Manufacturer Website Address: www.corsair.com/us/
Brand Name: Corsair
Product Line: iCUE
Product Model: H115i

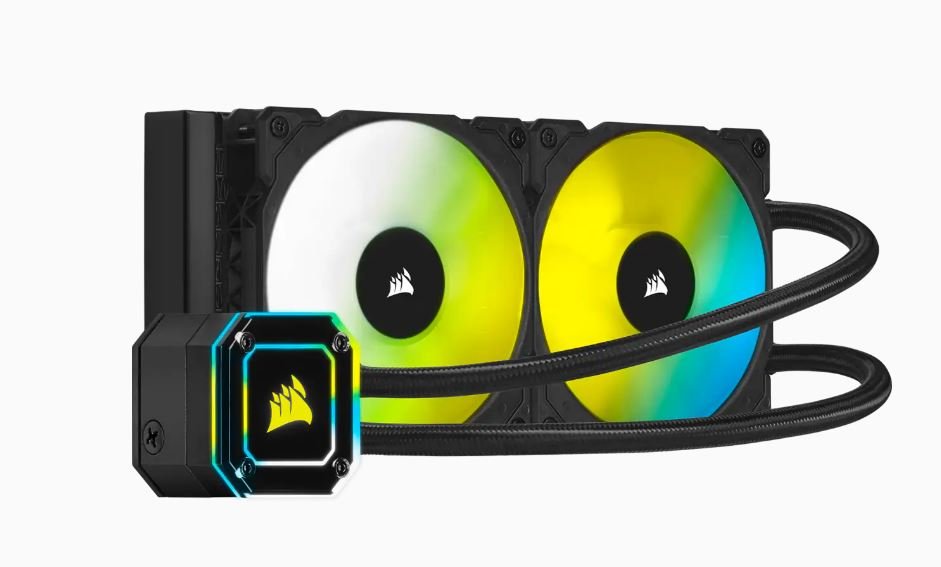

Product Name: iCUE H115i Elite Capellix Liquid CPU Cooler
Marketing Information:

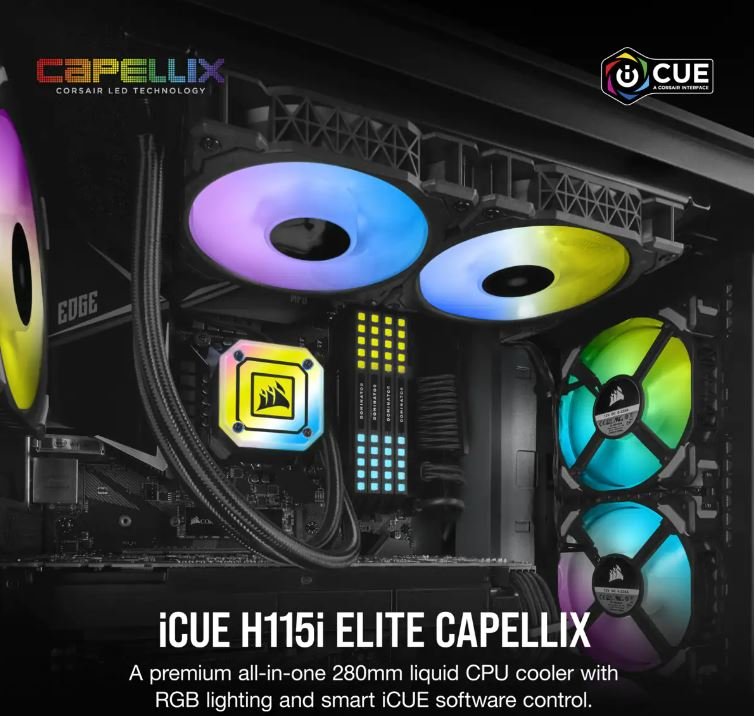

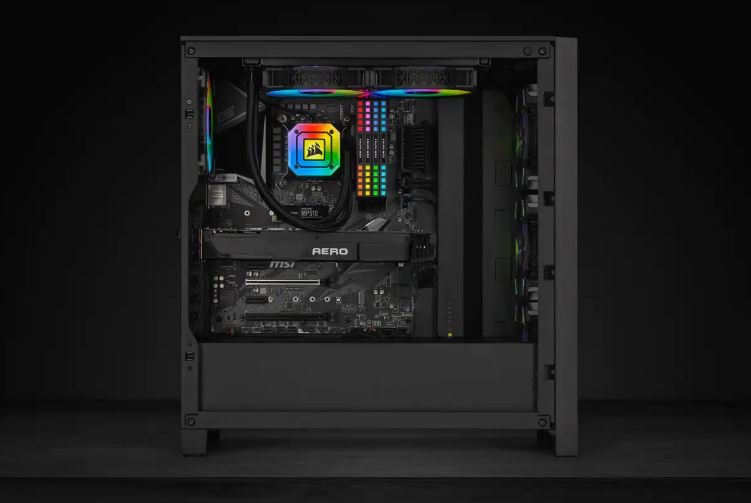

iCUE H115i ELITE CAPELLIX
PUT THE SPOTLIGHT ON YOUR COOLING

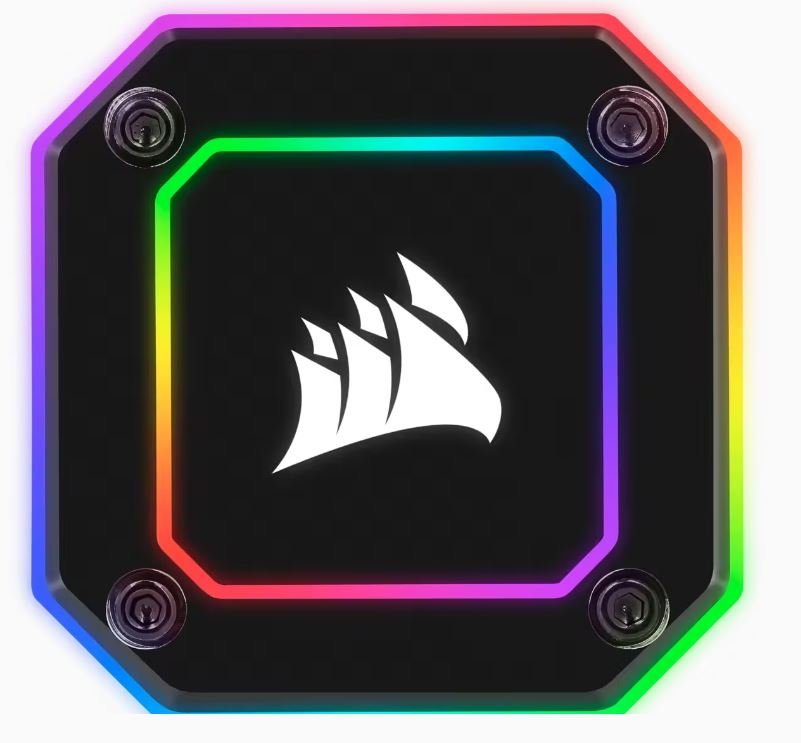

HIGH-PERFORMANCE RGB PUMP HEAD

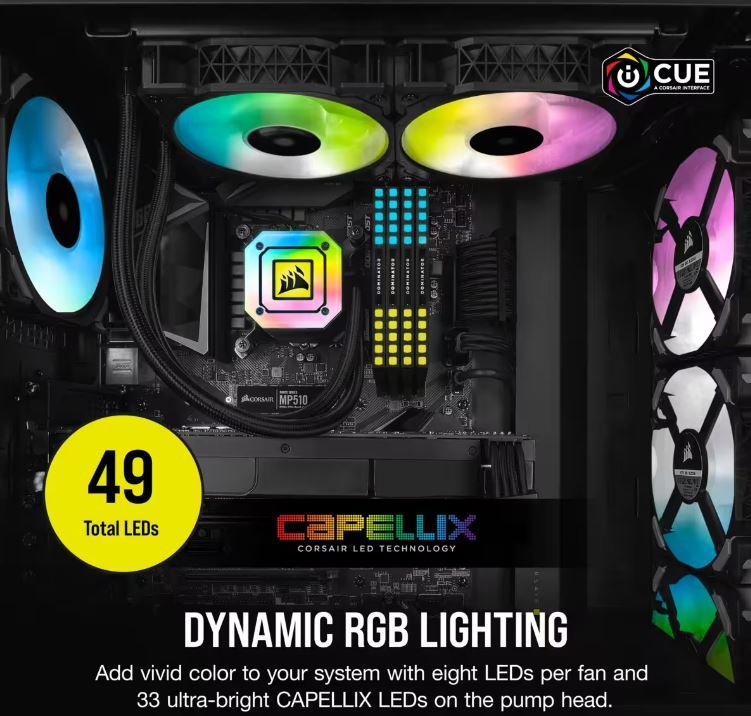

The ELITE CAPELLIX cooler pump head houses 33 ultra-bright CAPELLIX RGB LEDs to go along with its RGB fans. When you add powerful, low-noise cooling to the mix, your system will look great and will run even better.

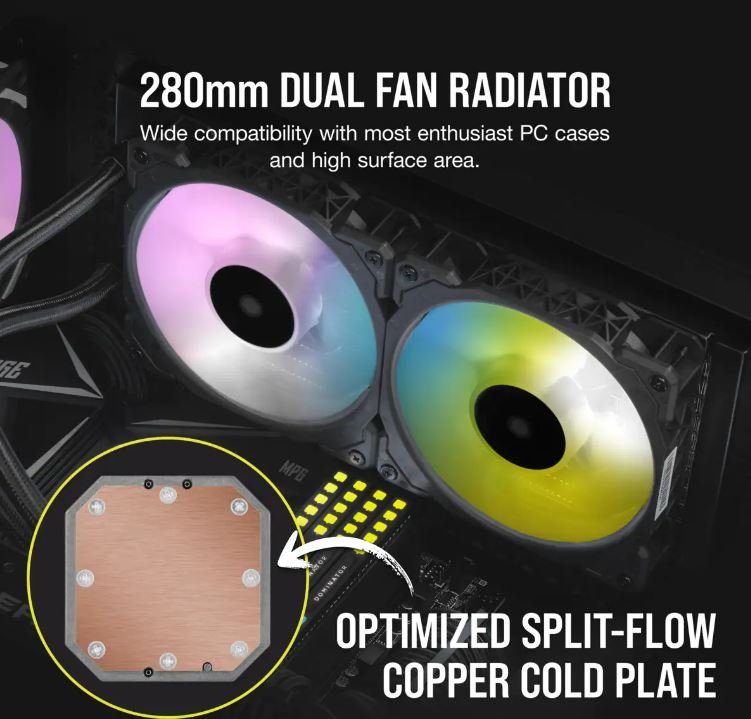

SPLIT-FLOW COPPER COLD PLATE
An optimal cold plate design and a high-density stack of 128 micro-skived fins-per-inch provides highly efficient cooling at all loads.

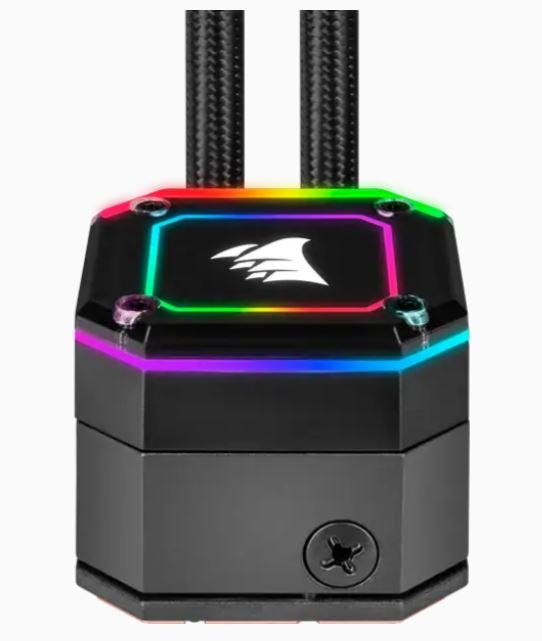

LOW-NOISE CENTRIFUGAL PUMP
Delivers a flow rate of up to 0.82L/min while generating less than 20 dBA, for extreme cooling with low noise.
CHANGE UP YOUR LOOK
Each ELITE CAPELLIX CPU cooler includes two separate pump caps. The pre-installed pump cap is a stylish, glossy black, while the alternate pump cap is more transparent to let your CAPELLIX LEDs shine through.
TURN ANY CASE INTO A SMART CASE
Harness the power of iCUE with the included iCUE Commander CORE to control the fan speed and RGB lighting for the included ML RGB fans, with the potential to control additional CORSAIR RGB fans, up to a total of six.
POWERFUL CORSAIR iCUE SOFTWARE
Adjust fan and pump speeds, control and synchronize your cooler's RGB lighting with all iCUE-compatible devices, and monitor CPU and coolant temperatures, all from a single intuitive interface.

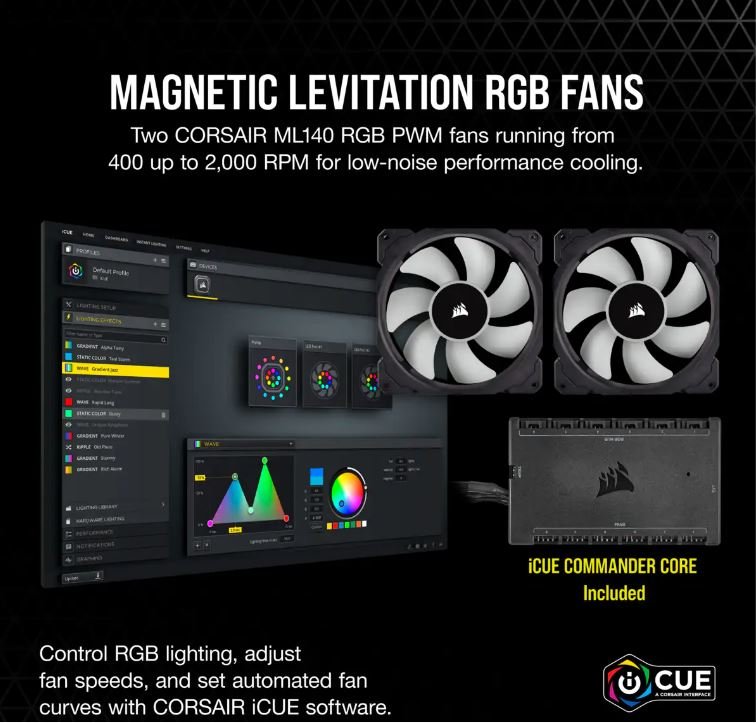

MAGNETIC LEVITATION RGB FANS
CORSAIR ML RGB Series PWM fans deliver powerful airflow for extreme CPU cooling performance, with eight RGB LEDs per fan.
ZERO RPM MODE
Zero RPM cooling profiles in CORSAIR iCUE software allow fans to stop entirely at low temperatures, eliminating fan noise.
AVAILABLE IN THREE SIZES AND PERFORMANCE LEVELS
240mm (H100i) for great compatibility, 360mm (H150i) for high cooling performance, and 280mm (H115i) for a great mix of both.
EASY TO INSTALL
Modular, tool-free mounting bracket for quick and painless installation on all modern Intel and AMD sockets.
Product Type: Cooling Fan/Radiator/Pump
Fan Information
Number of Fans: 2
Fan Bearing Type: Magnetic Levitation
Fan Speed (Max): 2000 rpm
Maximum Airflow: 725.6 gal/min
Noise Levels (A-Weighted): 36 dB(A)
LED Color: RGB
Heatsink Information
Cooler Type: Liquid Cooler
Compatible Intel Socket: B LGA-1366
Compatible Intel Socket: H3 LGA-1150
Compatible Intel Socket: H LGA-1156
Compatible Intel Socket: H2 LGA-1155
Compatible Intel Socket: H4 LGA-1151
Compatible Intel Socket: LGA-1200
Compatible Intel Socket: R LGA-2011
Compatible Intel Socket: R4 LGA-2066
Compatible AMD Socket: AM2 PGA-940
Compatible AMD Socket: TR4
Compatible AMD Socket: AM3 PGA-941
Compatible AMD Socket: AM4
Compatible AMD Socket: sTRX4
Physical Characteristics
Radiator Material: Aluminum
Material Details:
Copper Plate
Rubber Tubing
Maximum Fan Diameter: 5.51"
Fan Diameter Details:
2 x 140mm

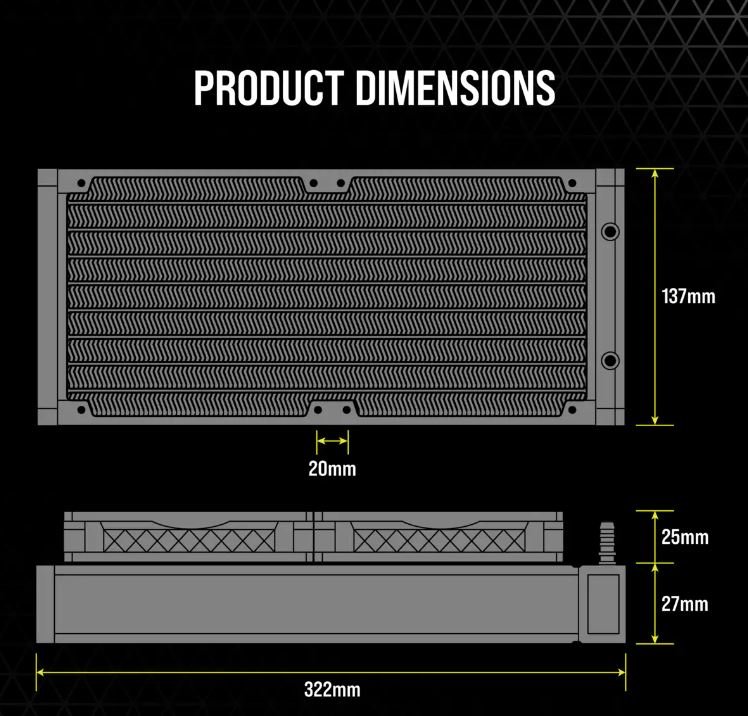

Radiator Height: 12.68"
Radiator Width: 5.39"
Radiator Depth: 1.06"
Fan Height: 0.98"
Fan Width: 5.51"
Miscellaneous

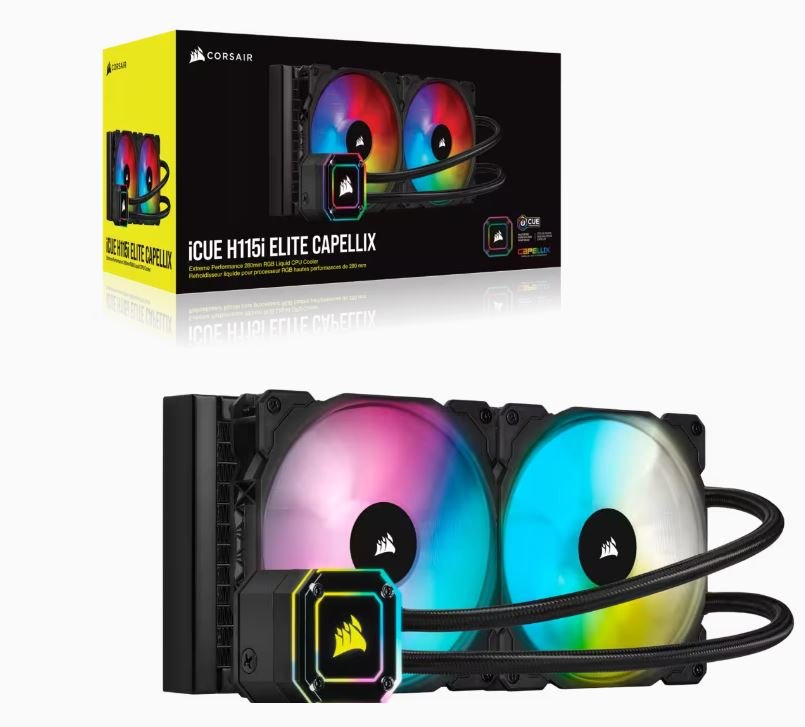

Package Contents:
iCUE H115i Elite Capellix Liquid CPU Cooler
Two Separate Pump Caps
iCUE Commander CORE
Compatibility:
AMD Processors:
Ryzen Threadripper
Ryzen
Phenom II
Athlon II
FX
A-Series
Opteron
Sempron
Athlon 64
Intel Processors:
Core i9
Core i7
Core i5
Core i3
Pentium
Celeron
Application/Usage: Processor
Application/Usage: Case
Country of Origin: China
Warranty
Limited Warranty: 5 Year
