Manufacturer Part Number: CP-9020200-NA
Manufacturer Website Address: www.corsair.com/us/
Brand Name: Corsair
Product Series: RMx
Product Model: RPS0124

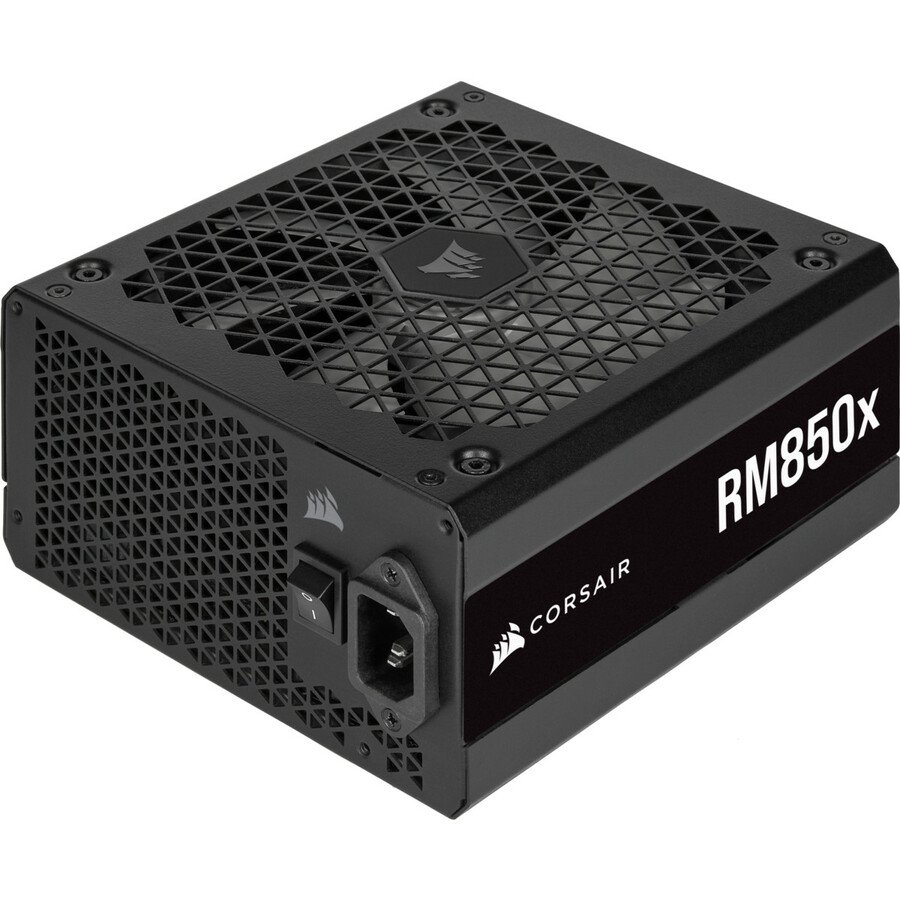

Product Name: RMx Series RM850x - 850 Watt 80 PLUS Gold Fully Modular ATX PSU
MAGNETIC LEVITATION COOLING MEETS HIGH EFFICIENCY
CORSAIR RMx Series fully modular power supplies are built with the highest quality components to deliver 80 PLUS Gold efficient power to your PC with the cooling power of potent Magnetic Levitation fans.
135MM MAGNETIC LEVITATION FAN
Utilizes a magnetic levitation bearing and custom engineered rotors for high performance, low bearing noise, and superior reliability.
With upwards of 90% peak efficiency, RMx produces less noise and less heat, which means less time worrying and more time gaming.

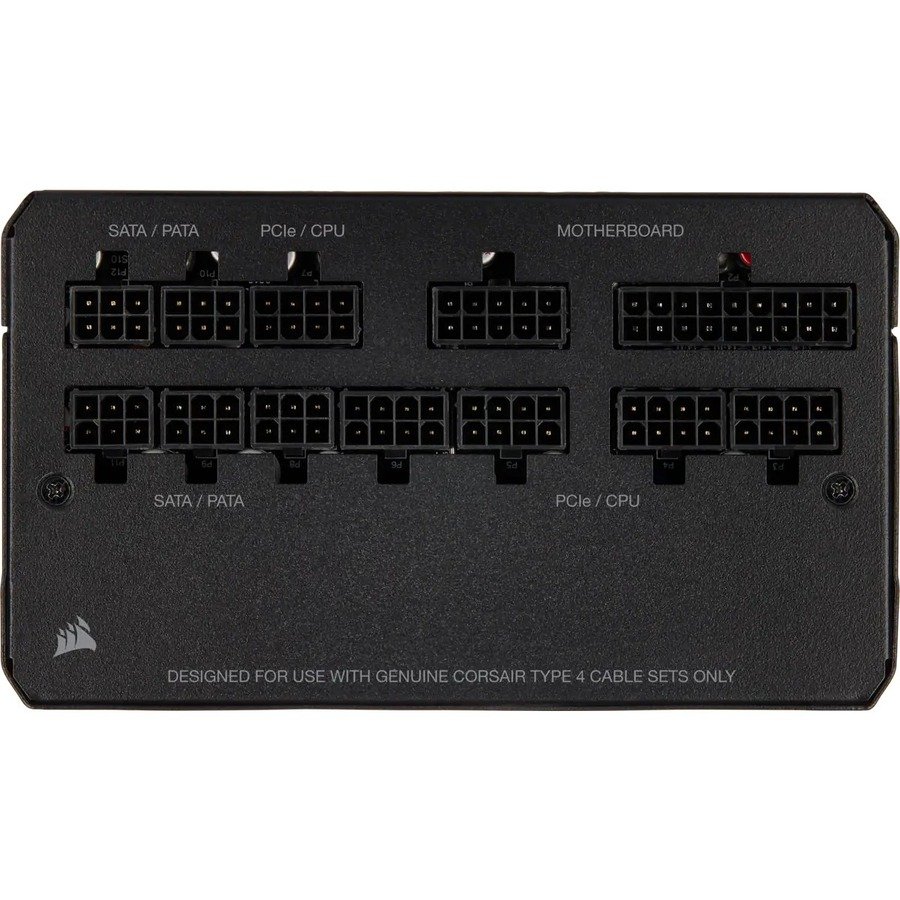

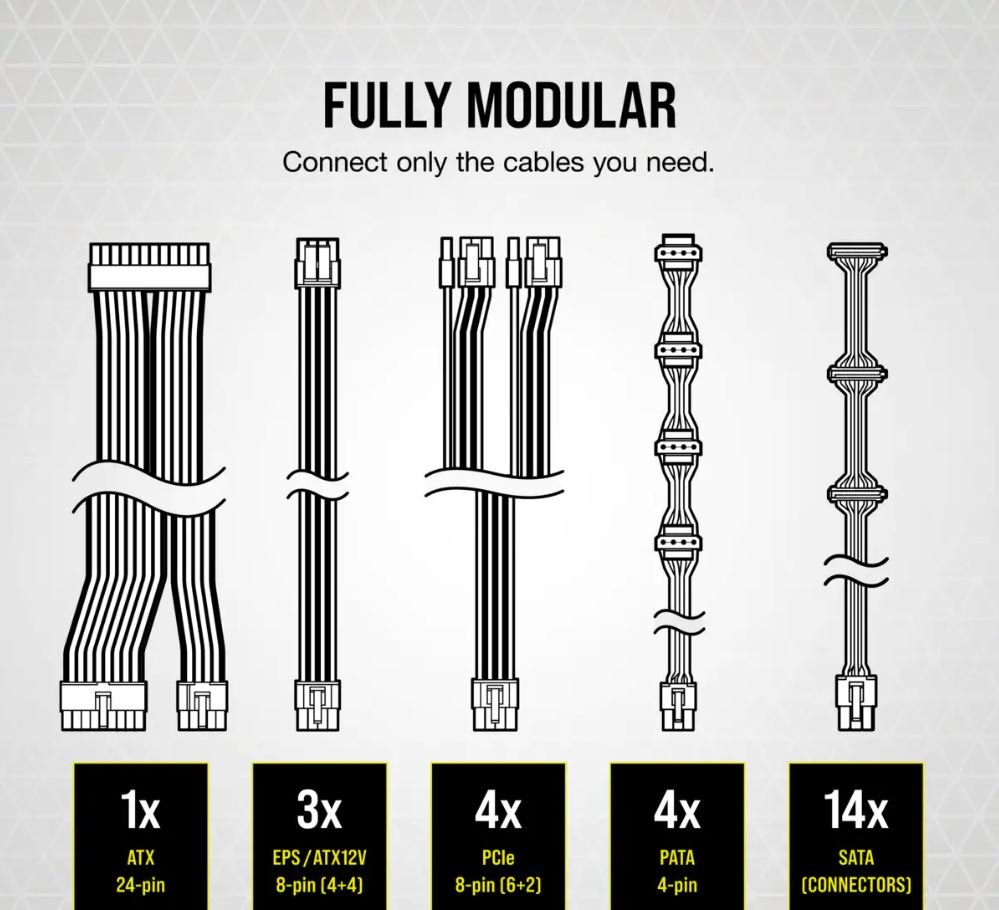

FULLY MODULAR WITH MULTIPLE EPS12V CONNECTORS
Completely modular cables means you only connect the cables your system needs, and the wide range of included cables adds broad compatibility with modern graphics cards and motherboards.
Also compatible with the 12-pin GPU Power Cable for the hottest new GPUs.

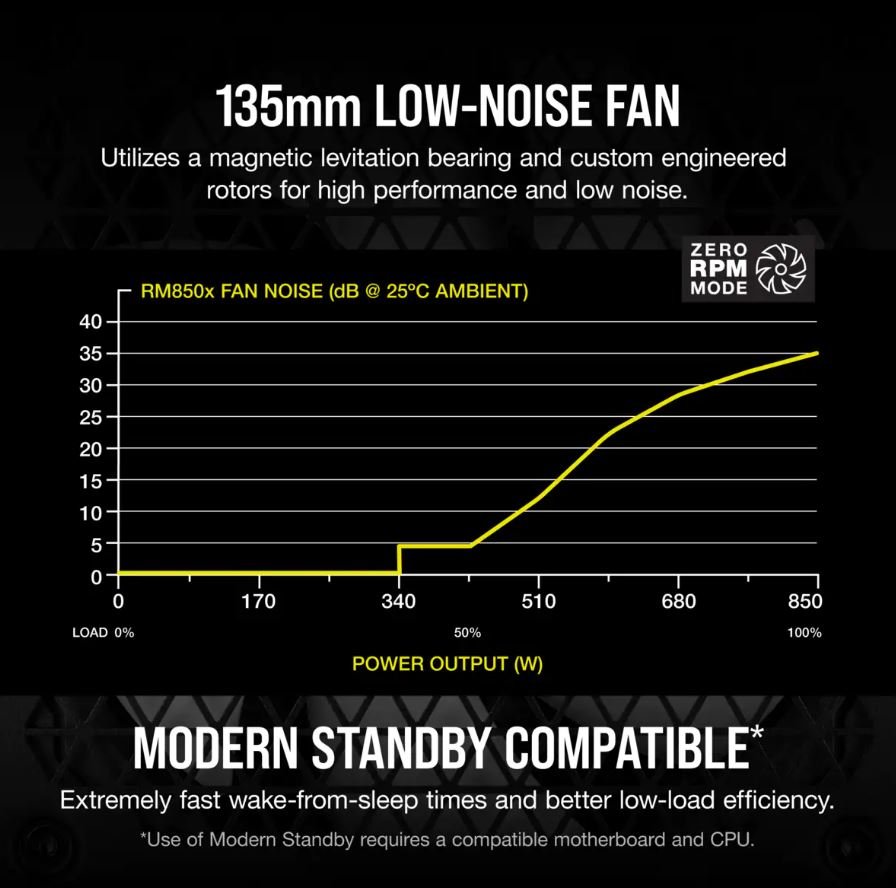

ZERO RPM FAN MODE
At low and medium loads the cooling fan switches off entirely for near-silent operation, but once the action picks up, the fan activates, ensuring critical component temps stay in check.
TECHNOLOGY AND RELIABILITY
For consistent, reliable power and superb electrical performance, each RMx Series power supply features a robust resonant LLC topology with DC-DC conversion, and 105°C rated 100% Japanese electrolytic capacitors. With precise timings, RMx supports Microsoft Modern Standby, ensuring extremely fast wake-from-sleep times and better low-load efficiency.
Product Type: Power Supply
Specification Compliance: ATX12V/EPS12V
Number of Fans: 1
Output Voltage: -12 V DC @ 0.3 A
Output Voltage: 3.3 V DC @ 25 A
Output Voltage: 5 V @ 3 A
Output Voltage: 12 V DC @ 70.8 A
Output Voltage: 5 V DC @ 25 A
Output Power: 850 W
Form Factor: Internal
Weight (Approximate): 3.75 lb
RMx Series RM850x - 850 Watt 80 PLUS Gold Fully Modular ATX PSU
RMx Series ATX Power Supply
AC Power Cord
Environmentally Friendly: Yes
Environmental Certification: 80 Plus Gold
Country of Origin: Vietnam

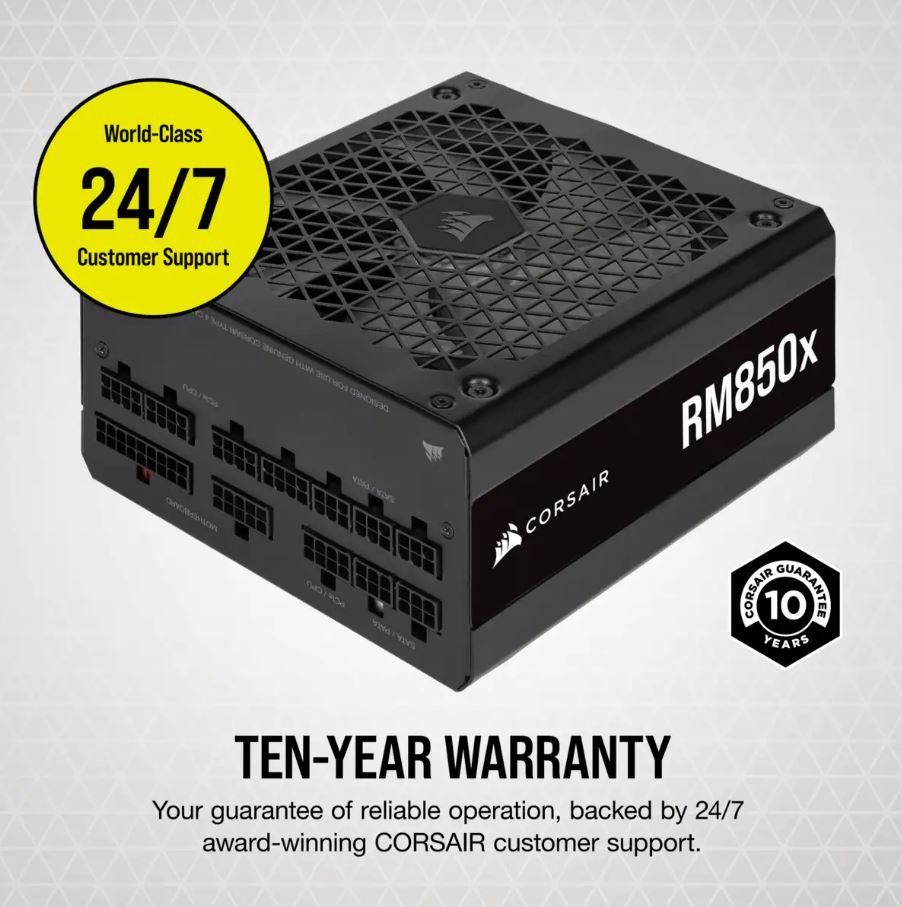

Limited Warranty: 10 Year
