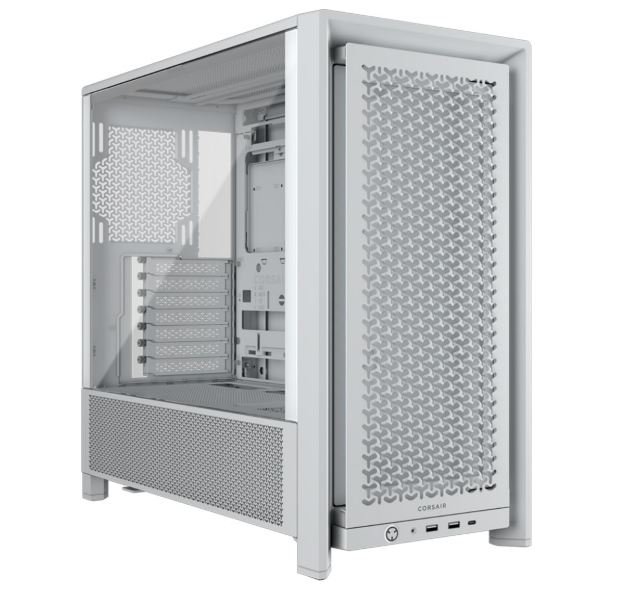

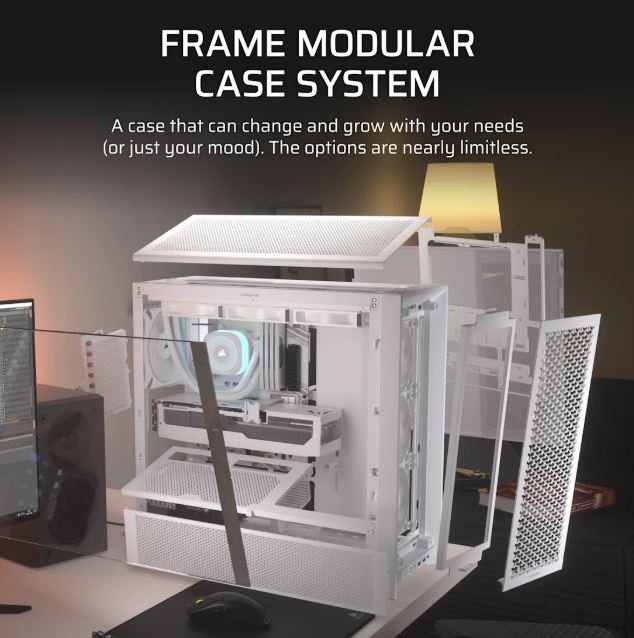

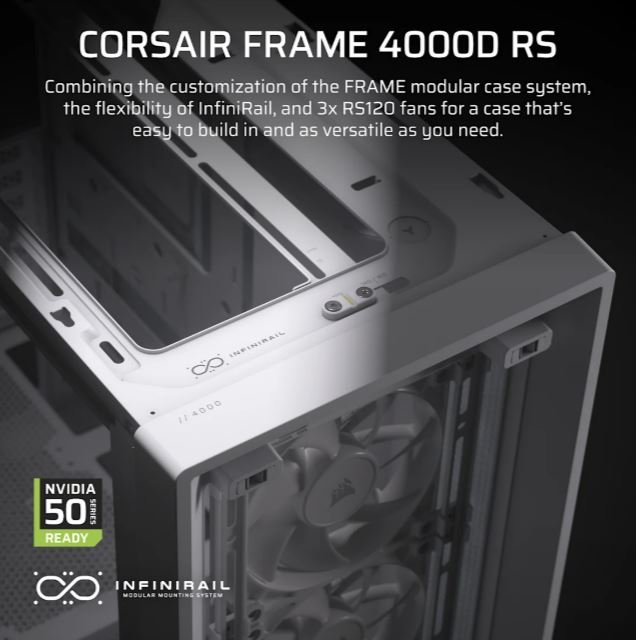

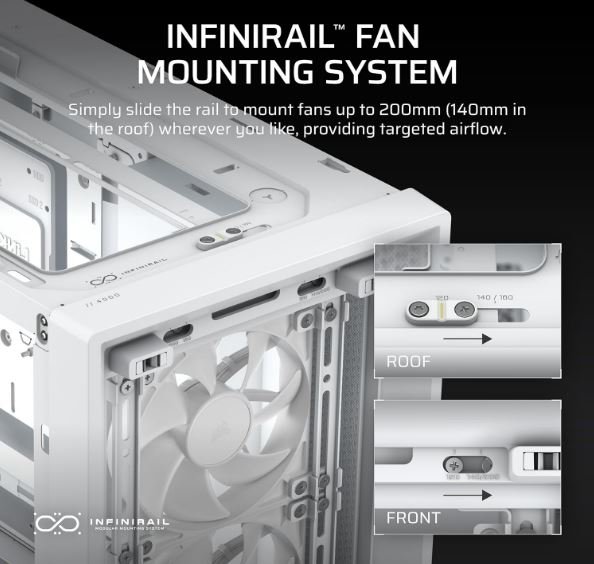

Ready to build the PC of your dreams? The CORSAIR FRAME 4000D RS Modular Mid-Tower PC Case is your ultimate canvas! Experience next-level customization with its fully-modular design, giving you unparalleled flexibility in component placement. Say goodbye to frustrating fan installations thanks to the innovative InfiniRailâ„¢ Fan Mounting System, making building easier than ever.

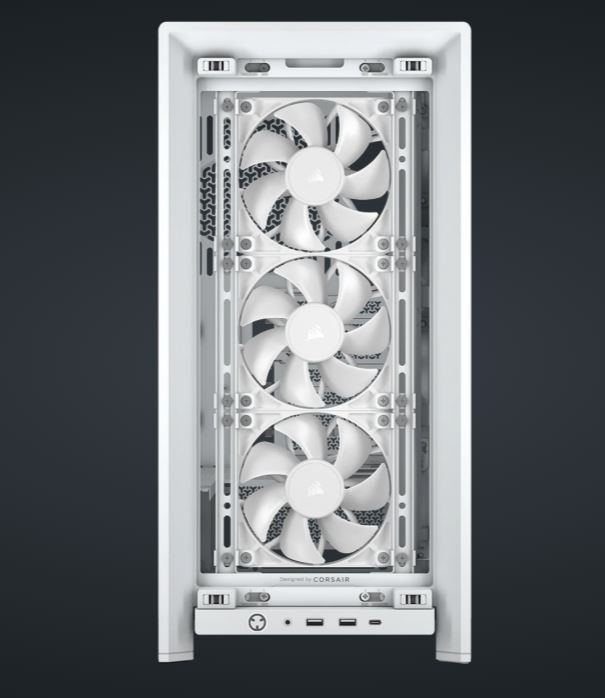

This spacious mid-tower comes equipped with three high-performance RS120 fans to keep your system cool under pressure. Planning a liquid-cooled beast? The 4000D RS boasts dual 360mm radiator support, offering exceptional cooling potential. We've even included a GPU anti-sag stabilization arm to protect your valuable graphics card. And for those embracing the latest technology, the FRAME 4000D RS is compatible with reverse connector motherboards for a cleaner, more streamlined build.
Unleash your creativity and build without limits. Get the CORSAIR FRAME 4000D RS today!
Tech Specs
General
Case Type: Mid-Tower
Color: White

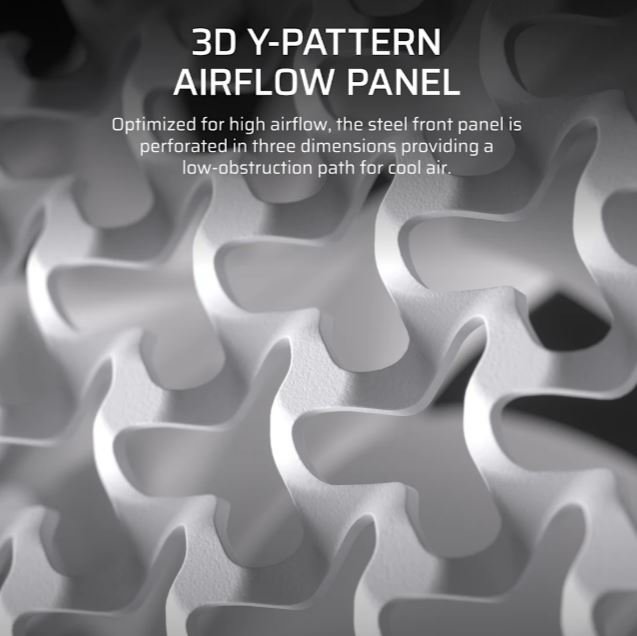

Materials: Steel, Tempered Glass, 3D-Y Airflow Steel, Plastic
Side Panels: Left (Tempered Glass), Right (Steel)
Dust Filtration: Yes
Cable Routing Space: 37mm
Motherboard Compatibility
Supported Form Factors: Mini-ITX, Micro-ATX, ATX, E-ATX (up to 305mm x 277mm)
Reverse Connector Motherboard Support: Yes
Expansion
Expansion Slots: 7 Horizontal or 3 Vertical (requires separate riser card for vertical GPU mounting)
Internal 3.5" Drive Bays: 2
Internal 2.5" Drive Bays: 4
Cooling Compatibility
Maximum GPU Length: 430mm
Maximum CPU Cooler Height: 170mm

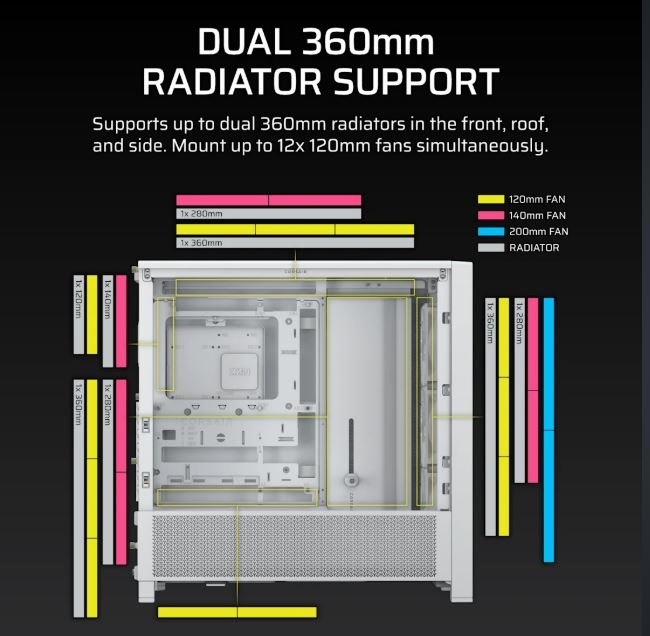

Radiator Support
Top: 360mm, 280mm, 240mm
Front: 360mm, 280mm, 240mm
Bottom: None
Side: 360mm, 280mm, 240mm
Rear: 140mm, 120mm
Compatible Liquid Coolers (Examples)
List: H60, H100, H115, H150, NAUTILUS, TITAN
Fan Support
Top: 3x 120mm or 2x 140mm
Front: 3x 120mm, 2x 140mm, or 2x 200mm
Bottom: 2x 120mm
Side: 3x 120mm or 2x 140mm
Rear: 1x 120mm or 1x 140mm
Included Fans: RS Series (details on size and quantity not specified)
Power Supply
Supported Type: ATX
Maximum PSU Length: 220mm

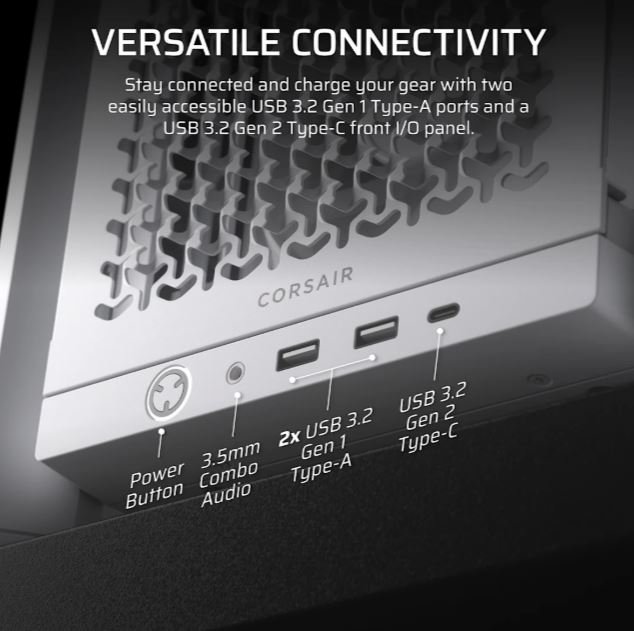

Front Panel I/O
USB 3.2 Gen 2 Type-C: 1x
USB 3.2 Gen 1 Type-A: 2x
Audio Input/Output: 1x (Headphone/Microphone Combo Jack)
Front Panel Motherboard Connections
HD Audio: 1x
USB 3.2 Gen 1: 1x
USB 3.2 Gen 2 Type-E: 1x
Front Panel Connector (F_PANEL): 1x

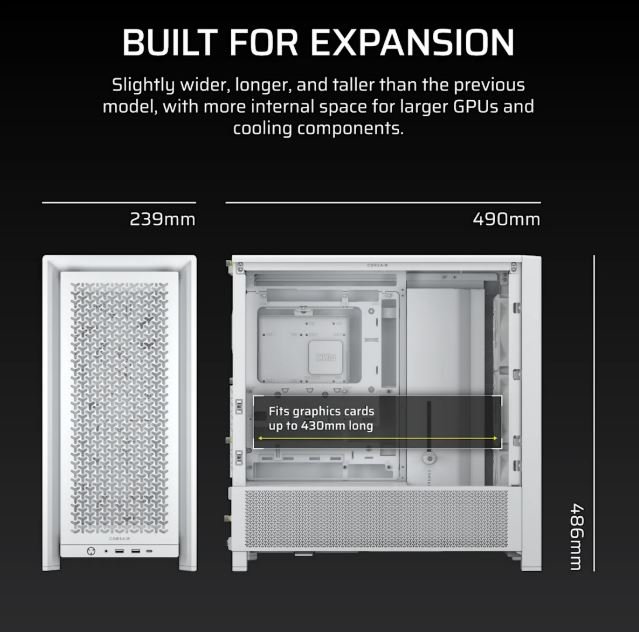

Physical Specifications
Height: 486mm
Length: 490mm
Width: 239mm
Weight: 10.38 kg
Other
Case Window: Tempered Glass
Case Warranty: 2 Year
RapidRoute Included: No
Vertical Mount Support: Yes (Riser Card Sold Separately)
