CORSAIR RMx Shift 1200W Power Supply General Information
Manufacturer Part Number: CP-9020254-NA
Manufacturer Website Address: www.corsair.com/us/
Brand Name: Corsair
Product Line: RMx SHIFT
Product Model: RPS0162
Product Name: RM1200x Shift 80 Plus Gold Fully Modular ATX Power Supply
CORSAIR RMx Shift Marketing Information:
RMx SHIFT SERIESâ„¢ | RM1200x POWER SUPPLY | SIDE CONNECTOR INTERFACE FOR EASIER BUILDING | A PSU THAT'S ON YOUR SIDE | NO MORE FUMBLING AROUND | SIDE MOUNTED CONNECTIONS
An innovative patent-pending side PSU panel with modular connections lets you comfortably plug cables into the side face of the PSU, making it easier to connect and manage your cables than ever before.
ON THE CUTTING-EDGE | ATX 3.0 CERTIFIED
The ATX 3.0 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, RMx SHIFT Series PSUs are formally certified for ATX 3.0 compliance.
PCIe 5.0 12VHPWR GPU cables included for use with modern graphics cards such as the NVIDIA® GeForce RTXâ„¢ 40 Series.

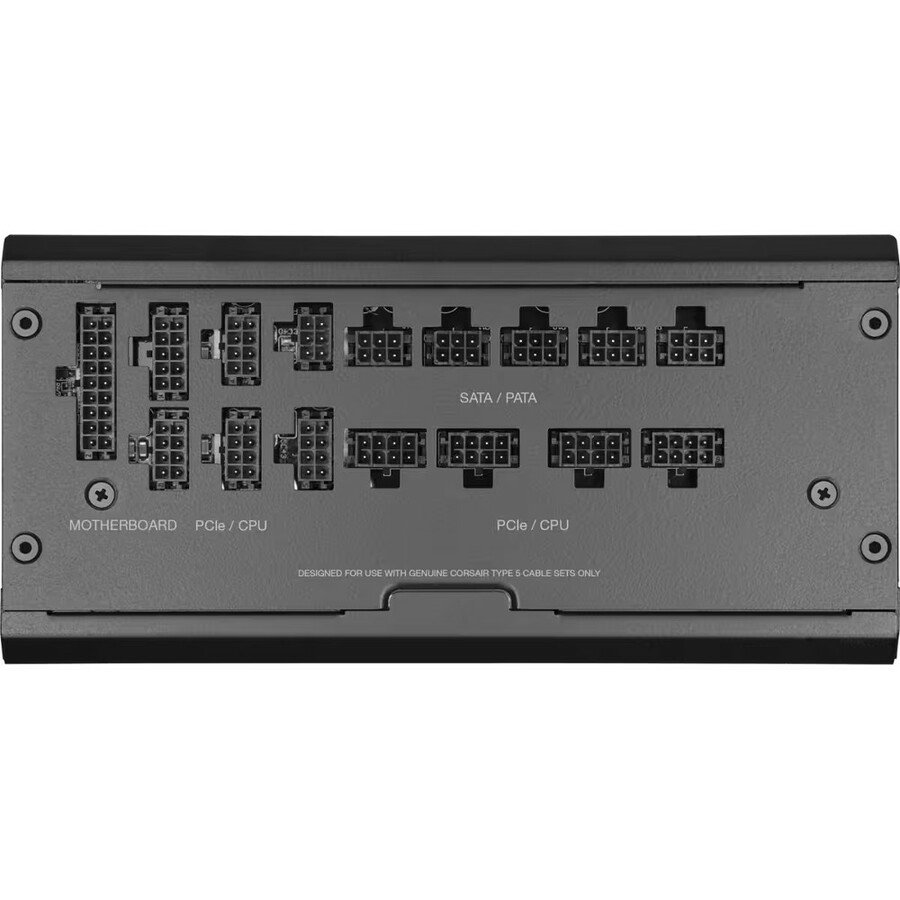

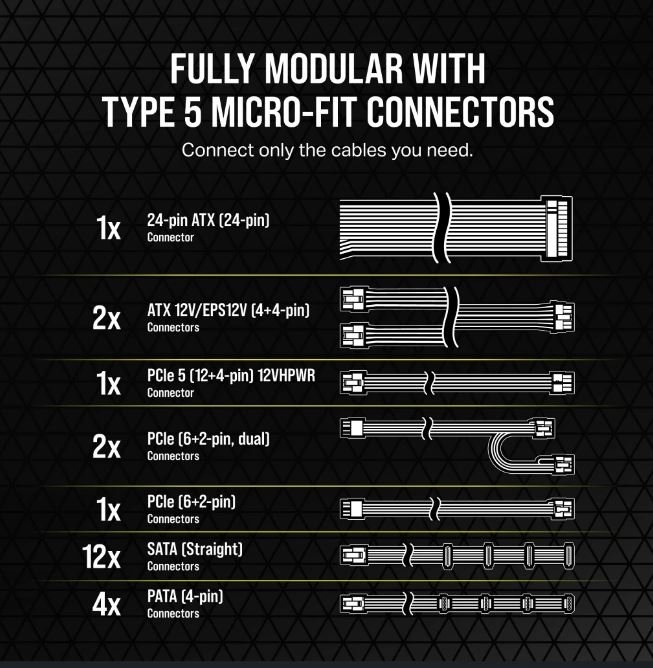

FULLY MODULAR | CORSAIR TYPE 5 MICRO-FIT CONNECTORS
Fully modular, CORSAIR Type 5 Gen 1 micro-fit PSU cables, so you only connect the cables your system needs while taking up less space.

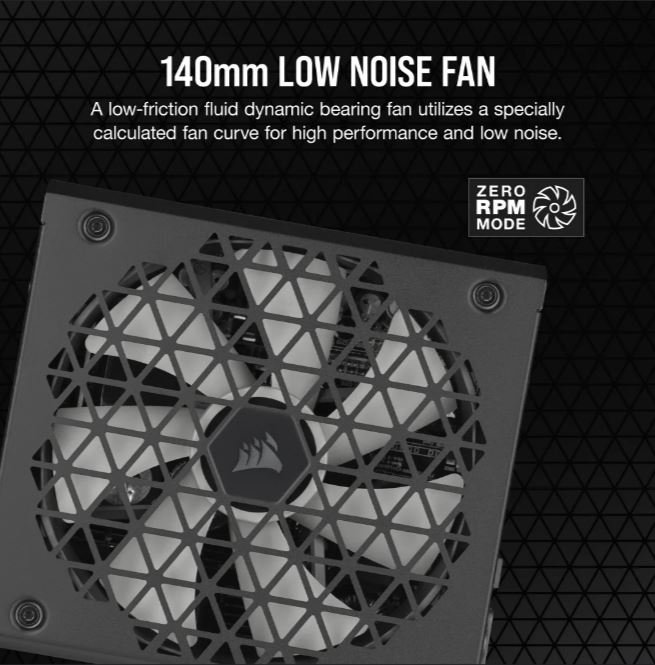

140mm FAN WITH ZERO RPM MODE SUPPORT
A low-friction, fluid dynamic bearing 140mm fan with Zero RPM mode support ensures your PSU runs cool while staying virtually silent when not under high load.

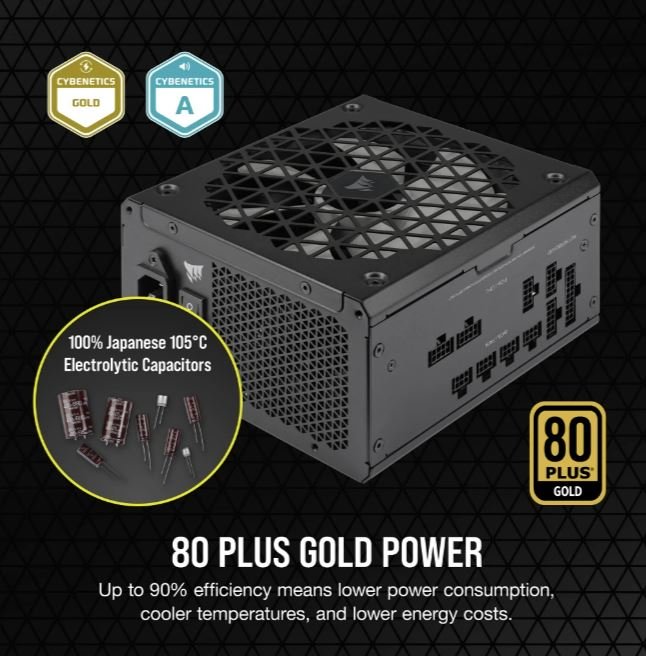

80 PLUS GOLD CERTIFIED
Steady power output at up to 90% efficiency, and Cybenetics-certified for lower power consumption, less noise, and cooler temperatures.
Built with 100% Industrial-grade, 105°C-rated Japanese electrolytic capacitors for unwavering power and reliability.
The CORSAIR Shift 1200W PSU and cables will fit in any PC case that supports ATX PSU format and is at least 210mm (8.3") wide. The PSU must also be accessible from the side when mounted in the case.
Our award-winning service means you can enjoy your gear worry-free.
UNITE YOUR SETUP
CORSAIR iCUE software brings your entire setup together, creating a fully immersive ecosystem with intuitive control.
Product Type: Power Supply
CORSAIR RMx Shift 1200W Power Supply Technical Information
Specification Compliance: EPS 2.92
Specification Compliance: ATX 3.0
Number of Fans: 1
NVIDIA SLI Supported: Yes
Number of +12V Rails: 1
Output Voltage: 12 V DC @ 100 A
Output Voltage: 5 V DC @ 20 A
Output Voltage: 5 V DC @ 3 A
Output Voltage: 3.3 V DC @ 20 A
Output Power: 1200 W
Form Factor: Internal
Weight (Approximate): 4.40 lb
Environmentally Friendly: Yes
Environmental Certification: 80 Plus Gold
Country of Origin: Vietnam
CORSAIR Shift 1200W PSU Warranty
Limited Warranty: 10 Year
