General Information
Manufacturer: ASUS Computer International
Manufacturer Part Number: ROGSTRIXB760-IGAMINGWIFI
Manufacturer Website Address: usa.asus.com
Brand Name: Asus ROG
Product Line: Strix
Product Model: B760-I GAMING WIFI

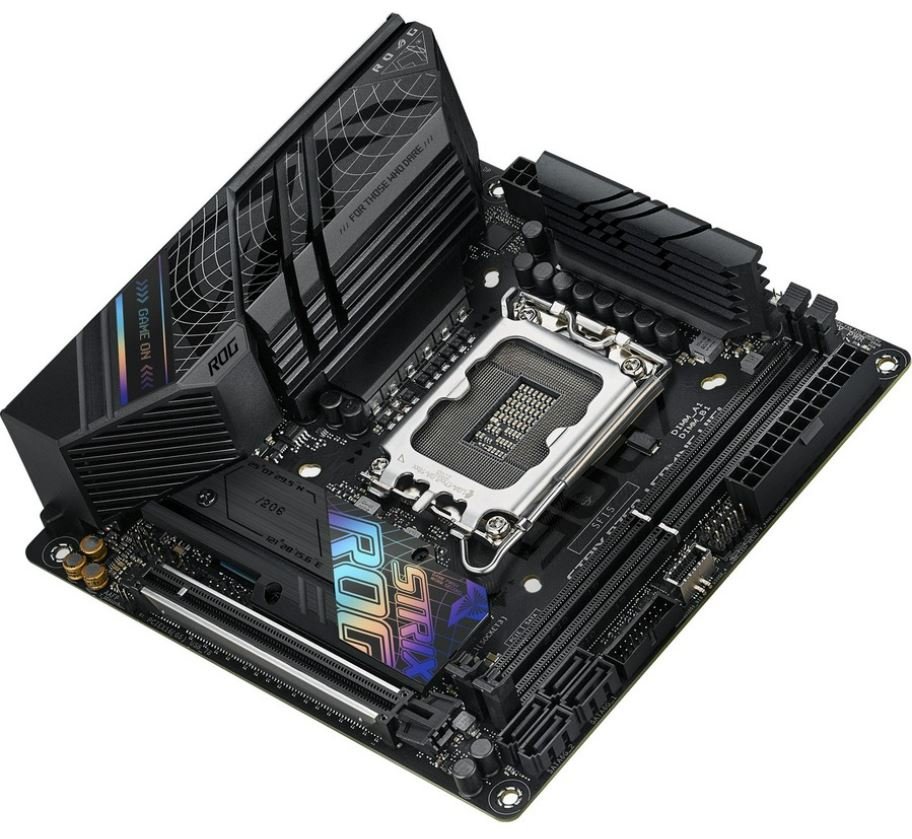

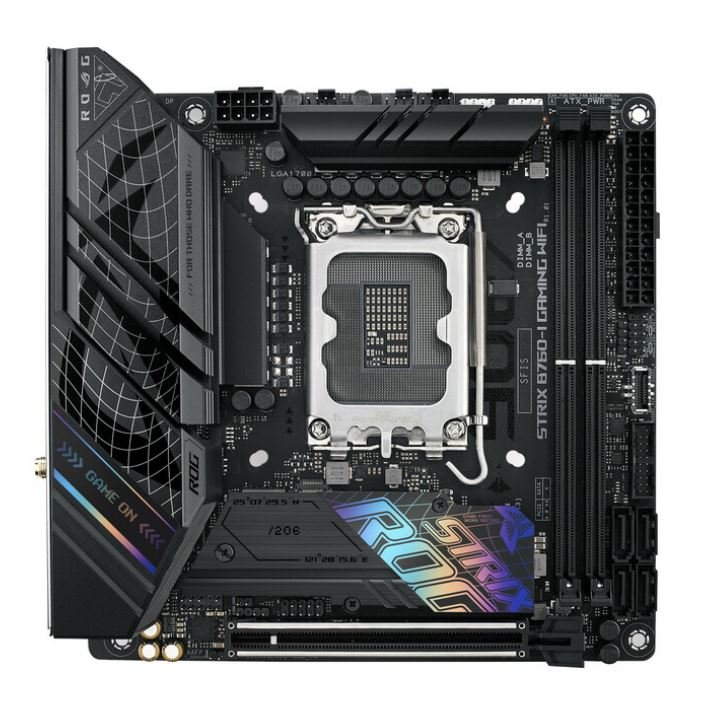

Product Name: STRIX B760-I GAMING WIFI Gaming Desktop Motherboard
Marketing Information:
Let your rig run wild with the ROG Strix B760-I, a feisty foundation for your next SFF build. Boasting hyperfast DDR5 memory, low-latency WiFi 6E networking, and a future-ready PCIe 5.0 slot, it sets you up for savage speeds, all while giving you incredible 13th Gen support thanks to its powerful VRM and thermal solution.
M.2 Q-LATCH
The innovative Q-Latch makes it easy to install or remove an SSD from an M.2 slot. The design employs a simple locking mechanism to secure the drive, eliminating the need for a traditional screw.
ALL-ROUND PERFORMANCE
Bulking up where it counts, the ROG Strix B760-I bears an octet of power stages mounted with a hefty cooling array to give you all the fury of Raptor Lake. To pack on the FPS, the PCIe 5.0 slot is primed for the mightiest graphics card you can fit your chassis, and the memory slots can handle dizzying DDR5 speeds.
POWER ARCHITECTURE
8 + 1 power stages each rated to 80A deliver ample current to drive the most powerful Intel 13th Gen processors through any workload with ease.
ALLOY CHOKES AND DURABLE CAPACITORS
High-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.
EIGHT-LAYER PCB
A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability.
LEADING CONNECTIVITY
Massive throughput flows through the ROG Strix B760-I via advanced networking adapters and high-bandwidth USB connectors, allowing you to rip through games with no interference, and crystal clear on-board audio keeps you immersed in the experience.
The x16 expansion slot is ready for the future with incredible PCIe 5.0 bandwidth, and it is protected with a SafeSlot retention bracket to support the bulk of the latest graphics cards. Zippy storage comes courtesy of the pair of PCIe 4.0 M.2 slots, one under the front-side heatsink, and the other positioned on the back to save space.
PLAY IN STYLE
The black shrouds and PCB of the Strix B760-I pair well with most products from the diverse ROG ecosystem, all while making your build distinct with a dash of polychromatic contrast.
UNDENIABLY ROG STRIX
In compact builds with a vertically-mounted graphics card, the ROG Strix B760-I keeps a low profile, as only the top of a wavy grid decal is likely to peek through. But if the build has a bit more space, a pair of bold pastel insignias give some colorful flair amid the otherwise stealthy fascia.
SOFTWARE UTILITIES
Customize your rig through a suite of intuitive software and firmware utilities that let you maximize performance and tweak your experience to your liking.
TWO-WAY AI NOISE CANCELATION
This utility leverages a massive deep-learning database to reduce over 5 million types of background noise from incoming or outgoing audio, helping ensure crystal-clear communication in games or calls
Product Type: Gaming Desktop Motherboard
Processor & Chipset
Chipset Manufacturer: Intel
Chipset Model: B760
Total Processor Supported: 1
Processor Socket: Socket LGA-1700
Processor Generation Supported: 12th Gen
Processor Generation Supported: 13th Gen
Processor Supported: Celeron
Processor Supported: Core
Processor Supported: Pentium Gold
Memory
Number of Memory Slots: 2
Memory Form Factor: UDIMM
Memory Form Factor: DIMM
Maximum Memory Supported: 64 GB
Memory Technology: DDR5 SDRAM
Memory Speed Supported: 5200 MHz
Memory Speed Supported: 5400 MHz
Memory Speed Supported: 6000 MHz
Memory Speed Supported: 6200 MHz
Memory Speed Supported: 6400 MHz
Memory Speed Supported: 7466 MHz
Memory Speed Supported: 4800 MHz
Memory Speed Supported: 5000 MHz
Memory Speed Supported: 5600 MHz
Memory Speed Supported: 5800 MHz
Memory Speed Supported: 6600 MHz
Memory Speed Supported: 6800 MHz
Memory Speed Supported: 7000 MHz
Memory Speed Supported: 7200 MHz
Memory Speed Supported: 7600 MHz
I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0
RAID Levels: 10
RAID Levels: 5
RAID Levels: 1
Video
Onboard Video: CPU Dependent Video
Audio
Audio Channels: 7.1
Network & Communication
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.3
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax
I/O Expansions
Number of Total Expansion Slots: 1
PCI Express Standard: PCI Express 5.0
Total Number of PCI Express Slots: 1
Number of PCI Express x16 Slots: 1

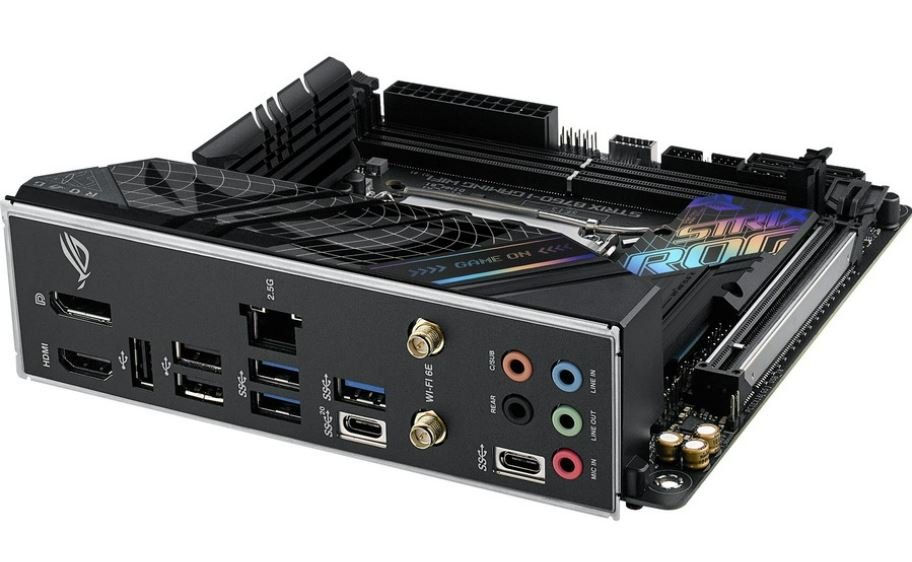

Interfaces/Ports
Total Number of USB Ports: 8
Number of USB 3.2 Gen 1 Type-A Ports: 3
S/PDIF: Yes
HDMI: Yes
HDMI Version: 2.1
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Onboard Interfaces
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 5
Number of Onboard USB 2.0 Ports: 2
Physical Characteristics
Form Factor: Mini ITX
Width: 6.7"
Depth: 6.7"
Miscellaneous
Package Contents:
STRIX B760-I GAMING WIFI Gaming Desktop Motherboard
Cables
2 x SATA 6Gb/s cables
1 x ROG USB2.0 splitter cable
1 x Panel cable
1 x Thermal pad for M.2
1 x ASUS Wi-Fi moving antennas
1 x Cable ties package
1 x M.2 Rubber Package
2 x Screw packages for M.2 SSD
1 x M.2 bracket
1 x ROG key chain
1 x ROG STRIX stickers
1 x ROG STRIX thank you card
1 x User manual
Brand Compatibility: Intel
