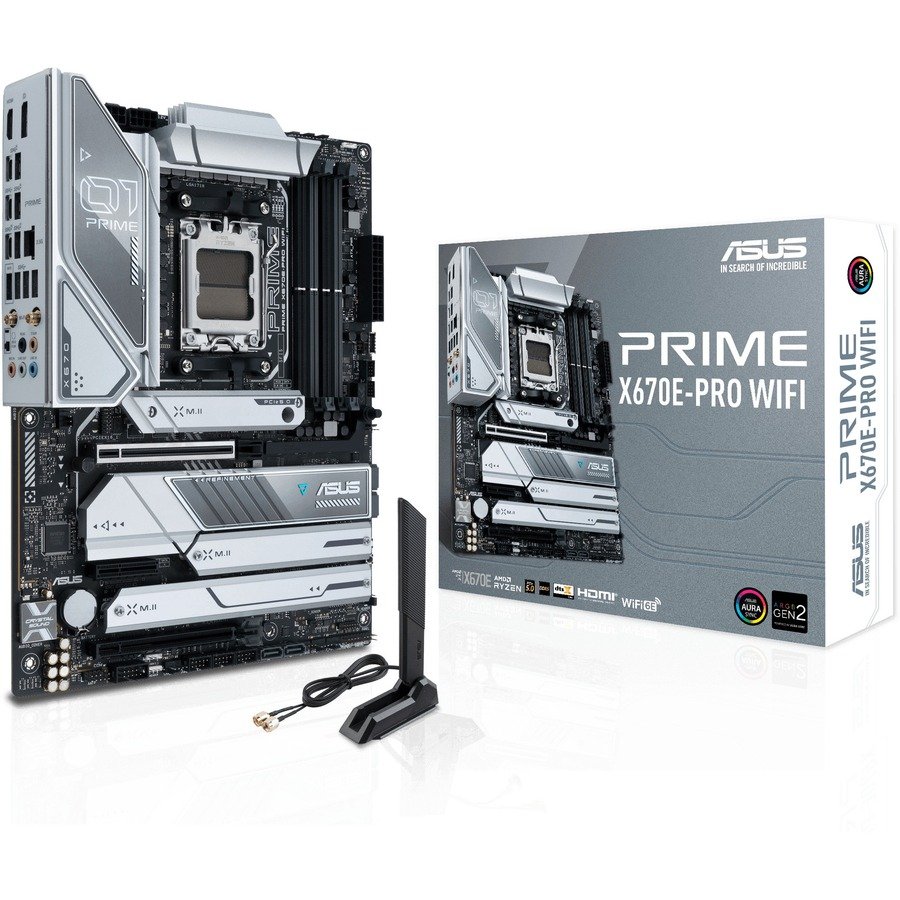

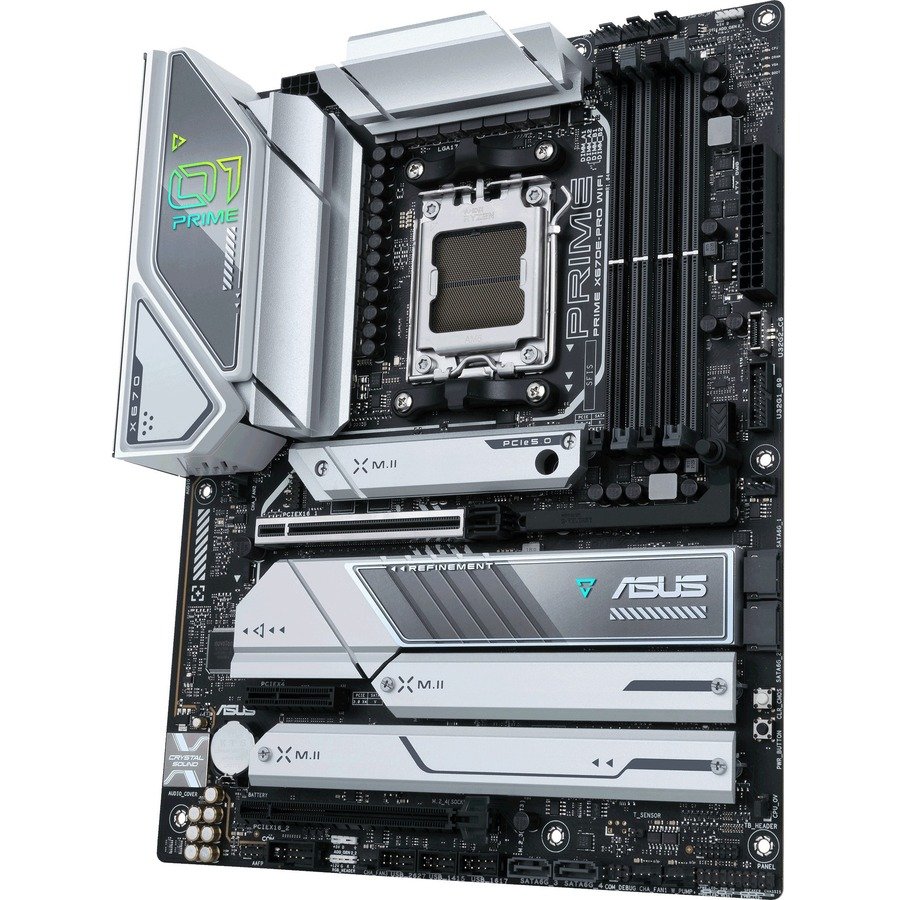

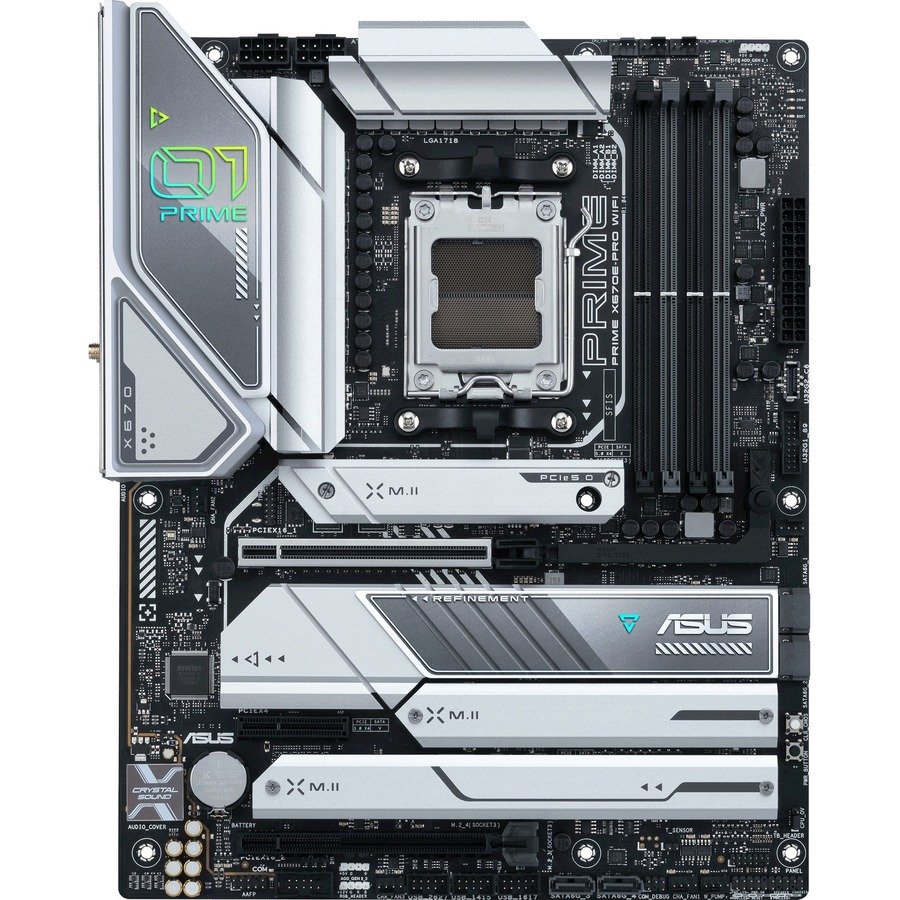

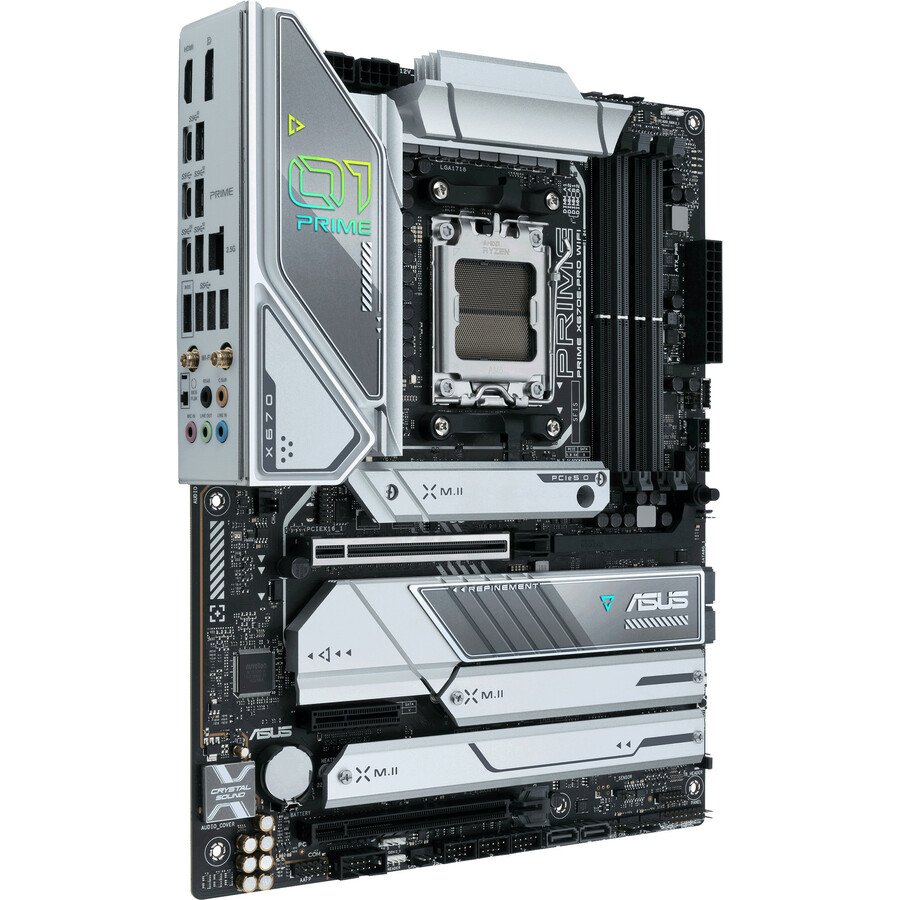

Asus Prime X670E-PRO WIFI Desktop Motherboard - AMD X670 Chipset - Socket AM5 - ATX

General Information

Manufacturer:   ASUS Computer International

Manufacturer Part Number:   PRIMEX670E-PROWIFI

Manufacturer Website Address:   usa.asus.com

Brand Name:   Asus

Product Line:   Prime

Product Model:   X670E-PRO WIFI

Product Name:   Prime X670E-PRO WIFI Desktop Motherboard

Marketing Information:

ASUS Prime series motherboards are expertly engineered to unleash the full potential of the latest AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME X670E-PRO WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

The ASUS PRIME X670E-PRO WIFI offers this all in a sleek, futuristic-looking package centered around a spaceship design aesthetic, with a silver-toned nameplate and chipset cover.

Product Type:   Desktop Motherboard

Processor & Chipset

Chipset Manufacturer:   AMD

Chipset Model:   X670

Total Processor Supported:   1

Processor Socket:   Socket AM5

Processor Supported:   Ryzen 7

Memory

Number of Memory Slots:   4

Memory Form Factor:   UDIMM

Memory Form Factor:   DIMM

Maximum Memory Supported:   128 GB

Memory Technology:   DDR5 SDRAM

Memory Speed Supported:   4800 MHz

Memory Speed Supported:   5600 MHz

Memory Speed Supported:   6000 MHz

Memory Speed Supported:   6200 MHz

Memory Speed Supported:   6400 MHz

Memory Speed Supported:   5000 MHz

Memory Speed Supported:   5200 MHz

Memory Speed Supported:   5400 MHz

Memory Speed Supported:   5800 MHz

I/O Controller

Controller Type:   Serial ATA/600

RAID Supported:   Yes

RAID Levels:   0

RAID Levels:   1

RAID Levels:   10

Video

Onboard Video:   CPU Dependent Video

Audio

Audio Channels:   7.1

Network & Communication

Bluetooth:   Yes

Gigabit Ethernet:   Yes

2.5Gigabit Ethernet:   Yes

Wireless LAN:   Yes

Wireless LAN Standard:   IEEE 802.11 a/b/g/n/ac/ax

I/O Expansions

Number of Total Expansion Slots:   3

Total Number of PCI Express Slots:   3

Number of PCI Express x4 Slots:   1

Number of PCI Express x16 Slots:   2

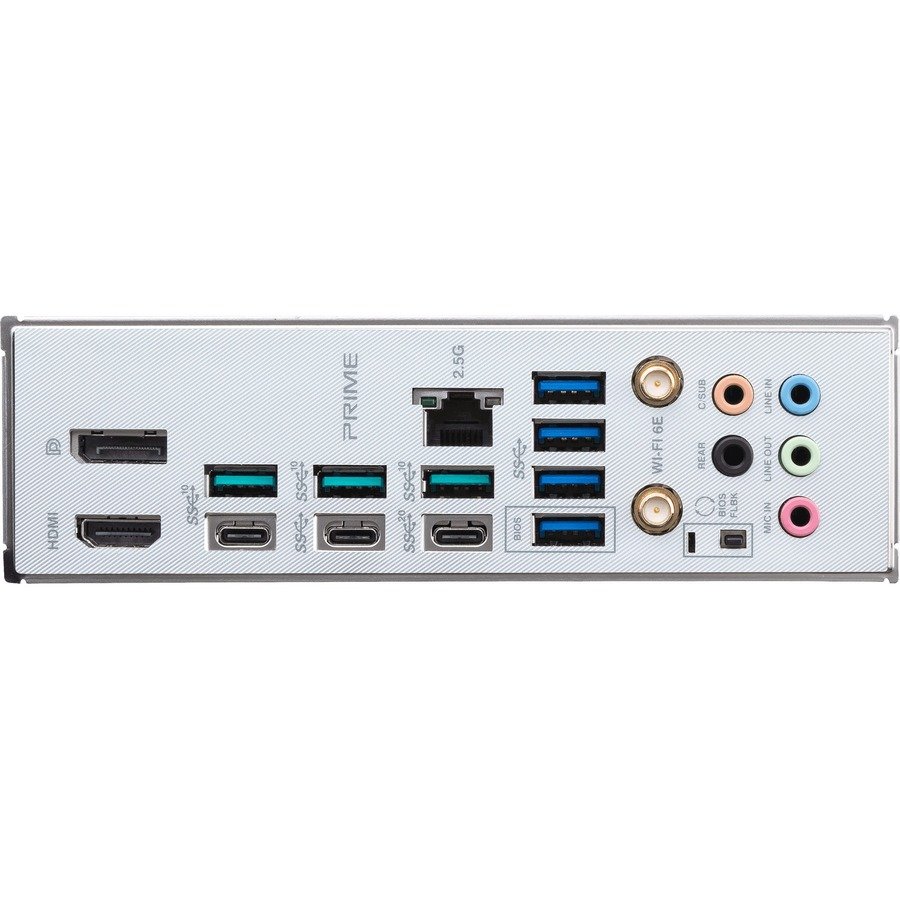

Interfaces/Ports

Total Number of USB Ports:   10

Number of USB 3.2 Ports:   10

Number of USB 3.2 Gen 1 Ports:   4

Number of USB 3.2 Gen 2 Type-A Ports:   3

VGA:   Yes

HDMI:   Yes

DisplayPort:   Yes

Thunderbolt:   Yes

Onboard Interfaces

Total Number of Onboard USB Ports:   9

Number of Onboard USB 2.0 Ports:   6

Number of Onboard USB 3.2 Ports:   3

Power Description

Frequency:   4.50 GHz

Physical Characteristics

Form Factor:   ATX

Width:   12"

Depth:   9.6"

Miscellaneous

Package Contents:

Prime X670E-PRO WIFI Desktop Motherboard

2 x SATA 6Gb/s cables

1 x ASUS Wi-Fi moving antenna

2 x Rubber packages for M.2

2 x Screw packages for M.2 SSD

1 x Q-connector

1 x User guide
