Brand: ASUS
SKU: MB18B860-PRIME B860-PLUS WIFI

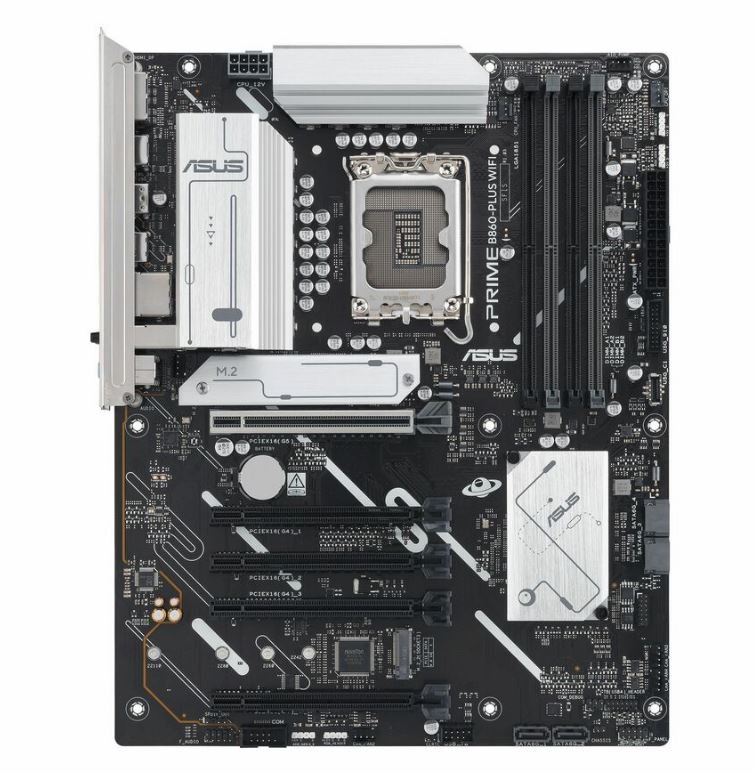

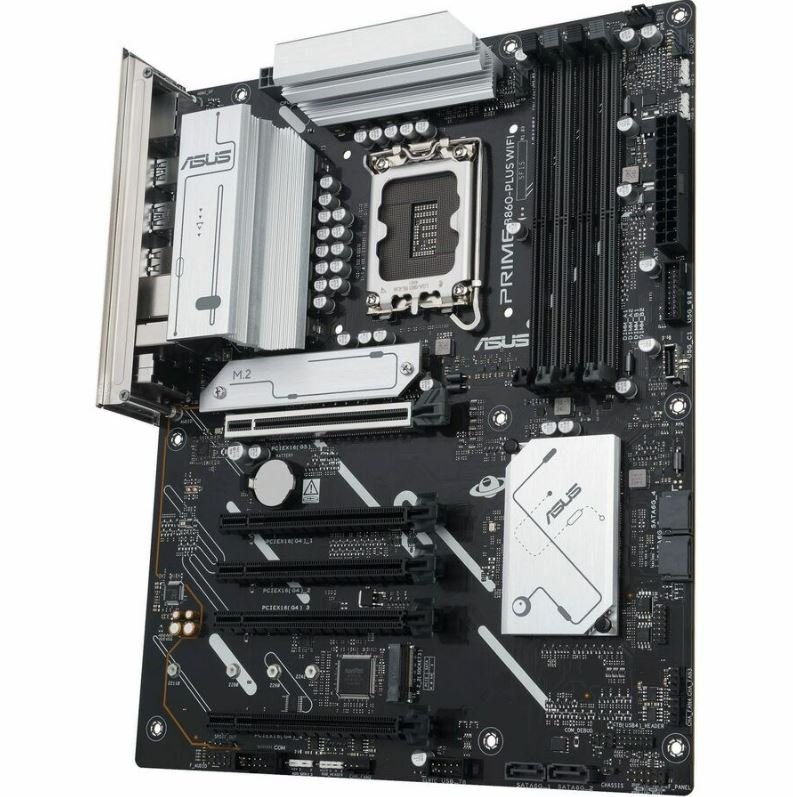

Asus Prime B860-PLUS WIFI Desktop Motherboard - Intel B860 Chipset - Socket LGA-1851 - ATX

Interfaces/Ports: DisplayPort & HDMI
Chipset: Intel B860
CPU Socket: LGA 1851
# of Memory Slots: 4
CPU Generation: 15th Generation
Brand: ASUS
Memory Technology: DDR5
UPC/EAN: 197105814691
Form Factor: ATX

ASUS PRIME B860-PLUS WIFI

Future-proof your build with the ASUS PRIME B860-PLUS WIFI motherboard! Designed for the latest Intel Core Ultra processors (LGA-1851), this ATX board boasts blazing-fast DDR5 support (up to 256GB), robust power delivery, and intelligent AI features. Enjoy seamless connectivity with dual Ethernet (Gigabit + 2.5G), integrated Wi-Fi 6E, HDMI/DisplayPort, and ample SATA ports. Get ready for next-gen performance and AI capabilities!

Product Details

Master the Power of AI with the ASUS PRIME B860-PLUS WIFI!

Ready for the future of computing? The ASUS PRIME B860-PLUS WIFI motherboard is expertly engineered to harness the full potential of the latest Intel Core Ultra Processors (Series 2). This ATX powerhouse delivers a robust foundation for your next-gen PC build, offering exceptional performance, intelligent AI features, and seamless connectivity.

Experience Uncompromising Performance:

  • Built for Core Ultra: Fully compatible with the newest Intel LGA-1851 socket processors, ensuring you're ready for cutting-edge performance.
  • Blazing-Fast DDR5: Supports up to 256GB of DDR5 SDRAM across four DIMM slots, delivering lightning-fast memory speeds for demanding tasks and applications.
  • Robust Power Design: Featuring an 8+1+1+1 power stage configuration (80A per stage), this motherboard provides stable and efficient power delivery, maximizing the performance and stability of even high-core-count CPUs.

Intelligent AI Solutions at Your Fingertips:

  • Advanced AI PC-Ready: Designed to handle demanding AI applications, empowering you to explore the latest advancements in artificial intelligence.
  • ASUS AI Advisor: Your personal technical expert! This intuitive feature guides you through the functionality and advanced features of your ASUS motherboard, making optimization simple and straightforward.

Seamless Connectivity for the Modern World:

  • Dual Ethernet: Enjoy the flexibility of both Gigabit Ethernet and ultra-fast 2.5Gigabit Ethernet for lag-free online gaming, smooth streaming, and rapid file transfers.
  • Integrated Wi-Fi 6E: Experience the latest generation of wireless connectivity with IEEE 802.11ax (Wi-Fi 6E), delivering incredible speeds, lower latency, and improved network efficiency.
  • Versatile Display Options: Connect your high-resolution displays with both HDMI and DisplayPort outputs.
  • Ample Storage: Four SATA 6Gb/s interfaces provide plenty of connectivity for your traditional hard drives and SSDs.

Everything You Need to Get Started:

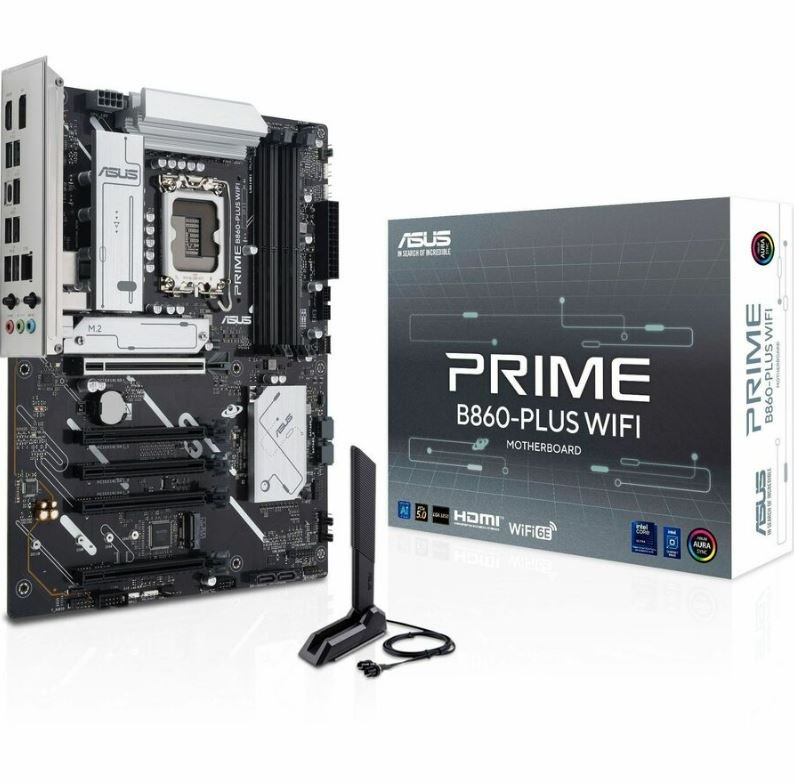

The ASUS PRIME B860-PLUS WIFI comes complete with:

  • PRIME B860-PLUS WIFI Desktop Motherboard
  • 2 x SATA 6Gb/s cables
  • 1 x ASUS WiFi Q-Antenna for optimal wireless signal
  • 1 x M.2 rubber package and screw package for easy SSD installation
  • 1 x Quick start guide

Build your AI-powered future today with the ASUS PRIME B860-PLUS WIFI motherboard!



Product Type: Desktop Motherboard

Technical Information

AI-powered: Yes

Processor & Chipset

Chipset Manufacturer: Intel

Chipset Model: B860

Total Processor Supported: 1

Processor Socket: Socket LGA-1851

Processor Supported: Core Ultra

Memory

Number of Memory Slots: 4

Memory Form Factor: DIMM, UDIMM

Maximum Memory Supported: 256 GB

Memory Technology: DDR5 SDRAM

Memory Speed Supported: 8666 MHz

I/O Controller

Controller Type: Serial ATA/600

RAID Supported: Yes

RAID Levels: 0, 1, 5, 10

Video

Onboard Video: CPU Dependent Video

Audio

Audio Channels: 7.1

Network & Communication

Bluetooth: Yes

Bluetooth Standard: Bluetooth 5.3

Gigabit Ethernet: Yes

2.5Gigabit Ethernet: Yes

Wireless LAN: Yes

Wireless LAN Standard: IEEE 802.11ax

I/O Expansions

Total Number of Expansion Slots: 5

PCI Express Standard: PCI Express 5.0, PCI Express 4.0

Total Number of PCI Express Slots: 5

Number of PCI Express x16 Slots: 5

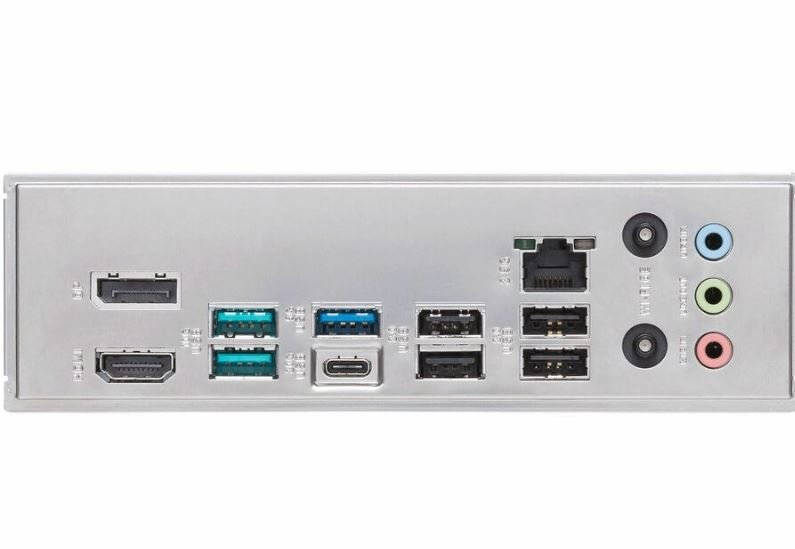

Interfaces/Ports

Total Number of USB Ports: 8

HDMI: Yes

HDMI Version: 2.1

DisplayPort: Yes

Number of Network (RJ-45) Ports: 1

Thunderbolt: Yes

Number of Thunderbolt 4 Ports: 2

Onboard Interfaces

Number of SATA Interfaces: 4

Number of M.2 Interfaces: 2

Total Number of Onboard USB Ports: 5

Number of Onboard USB 2.0 Ports: 2

Onboard S/PDIF Header: Yes

Physical Characteristics

Form Factor: ATX

Width: 12"

Depth: 9.6"

Miscellaneous

Package Contents: PRIME B860-PLUS WIFI Desktop Motherboard, 2 x SATA 6Gb/s cables, 1 x ASUS WiFi Q-Antenna, 1 x M.2 rubber package, 1 x Screw package for M.2 SSD, 1 x Quick start guide

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 3 Year

Weight: 5 lbs
