Brand: ASUS
SKU: MB17D5B760-PRIMEB760MAAX

ASUS PRIME B760M-A AX WIFI 6 DDR5 LGA 1700 mATX

Interfaces/Ports: 2 HDMI, 1 DisplayPort
Chipset: Intel B760
CPU Socket: LGA 1700
# of Memory Slots: 4
Brand: ASUS
Memory Technology: DDR5
UPC/EAN: 197105079007
Form Factor: MATX
Core, Pentium Gold, Celeron Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 6 x SATA Interfaces
Product Details
General Information
Manufacturer:   ASUS Computer International
Manufacturer Part Number:   PRIME B760M-A AX
Manufacturer Website Address:   usa.asus.com
Brand Name:   Asus
Product Line:   Prime
Product Model:   PRIME B760M-A AX
Product Name:   PRIME B760M-A AX Desktop Motherboard
Marketing Information:
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Coreâ„¢ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-A AX provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

FLEXIBILITY

Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

Intelligent Control

UEFI BIOS

Intelligent Control

ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

All-Around Energy Efficiency

The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

COOLING
PRIME B760 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

M.2 Heatsink

M.2 heatsink wards off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws, and these removable captive screws help reduce risk of drops or loss during heatsink removal.

PERFORMANCE

The PRIME B760 series are built to handle the high core counts and bandwidth demands of 13th Gen Intel® Coreâ„¢ Processors. ASUS B760 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.

Robust Power Design

Stable power is essential to extract every last bit of performance out of Intel® processors. The PRIME B760M-A AX is geared to cater to the demands of these high-core-count CPUs.

ProCool Connector

Proprietary connectors augment the motherboard's link to the PSU with 8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors


Product Type:   Desktop Motherboard
Processor & Chipset
Chipset Manufacturer:   Intel
Chipset Model:   B760
Total Processor Supported:   1
Processor Socket:   Socket LGA-1700
Processor Generation Supported:   12th Gen
Processor Generation Supported:   13th Gen
Processor Supported:   Celeron
Processor Supported:   Core
Processor Supported:   Pentium Gold
Memory
Number of Memory Slots:   4
Memory Form Factor:   DIMM
Memory Form Factor:   UDIMM
Maximum Memory Supported:   128 GB
Memory Technology:   DDR5 SDRAM
Memory Speed Supported:   5000 MHz
Memory Speed Supported:   5400 MHz
Memory Speed Supported:   5600 MHz
Memory Speed Supported:   5800 MHz
Memory Speed Supported:   6000 MHz
Memory Speed Supported:   6600 MHz
Memory Speed Supported:   7200 MHz
Memory Speed Supported:   4800 MHz
Memory Speed Supported:   5200 MHz
Memory Speed Supported:   6200 MHz
Memory Speed Supported:   6400 MHz
Memory Speed Supported:   6800 MHz
Memory Speed Supported:   7000 MHz
I/O Controller
Controller Type:   Serial ATA/600
RAID Supported:   Yes
RAID Levels:   0
RAID Levels:   1
RAID Levels:   10
RAID Levels:   5
Video
Onboard Video:   CPU Dependent Video
Audio
Audio Channels:   7.1
Network & Communication
Bluetooth:   Yes
Bluetooth Standard:   Bluetooth 5.2
Gigabit Ethernet:   Yes
2.5Gigabit Ethernet:   Yes
Wireless LAN:   Yes
Wireless LAN Standard:   IEEE 802.11 a/b/g/n/ac/ax
I/O Expansions
Number of Total Expansion Slots:   4
PCI Express Standard:   PCI Express 4.0
Total Number of PCI Express Slots:   4
Number of PCI Express x16 Slots:   4

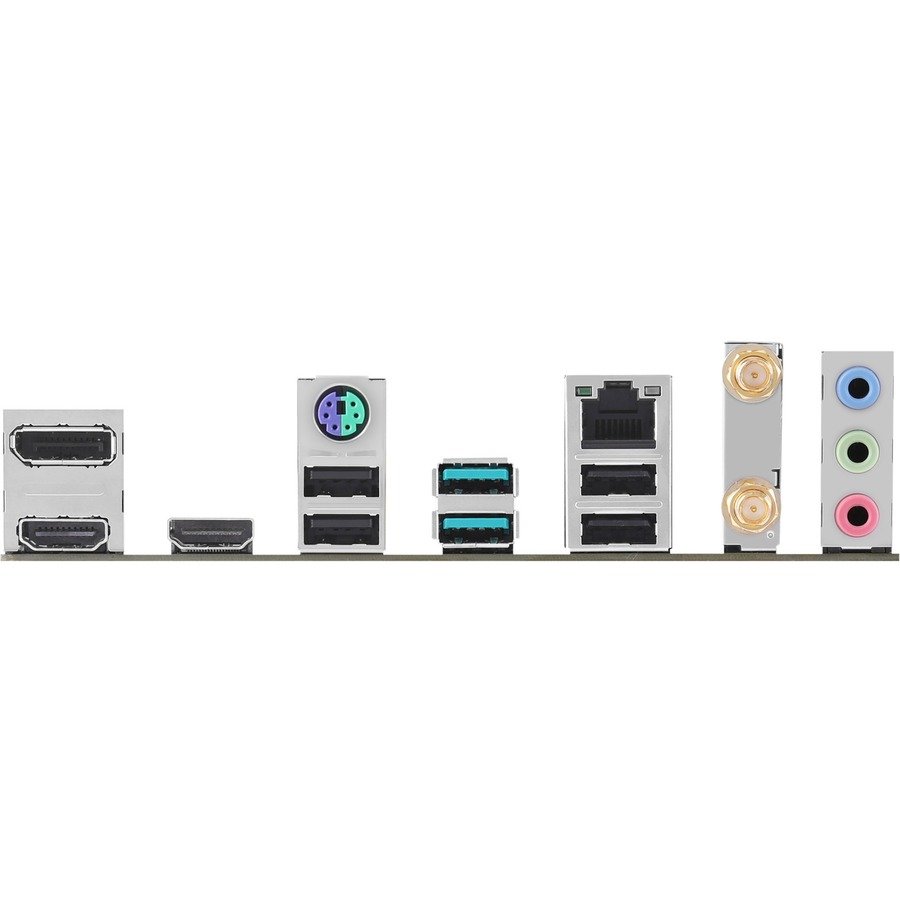

Interfaces/Ports
Total Number of USB Ports:   6
Number of USB 3.2 Gen 2 Type-A Ports:   2
HDMI:   Yes
HDMI Version:   2.1
DisplayPort:   Yes
Number of Network (RJ-45) Ports:   1

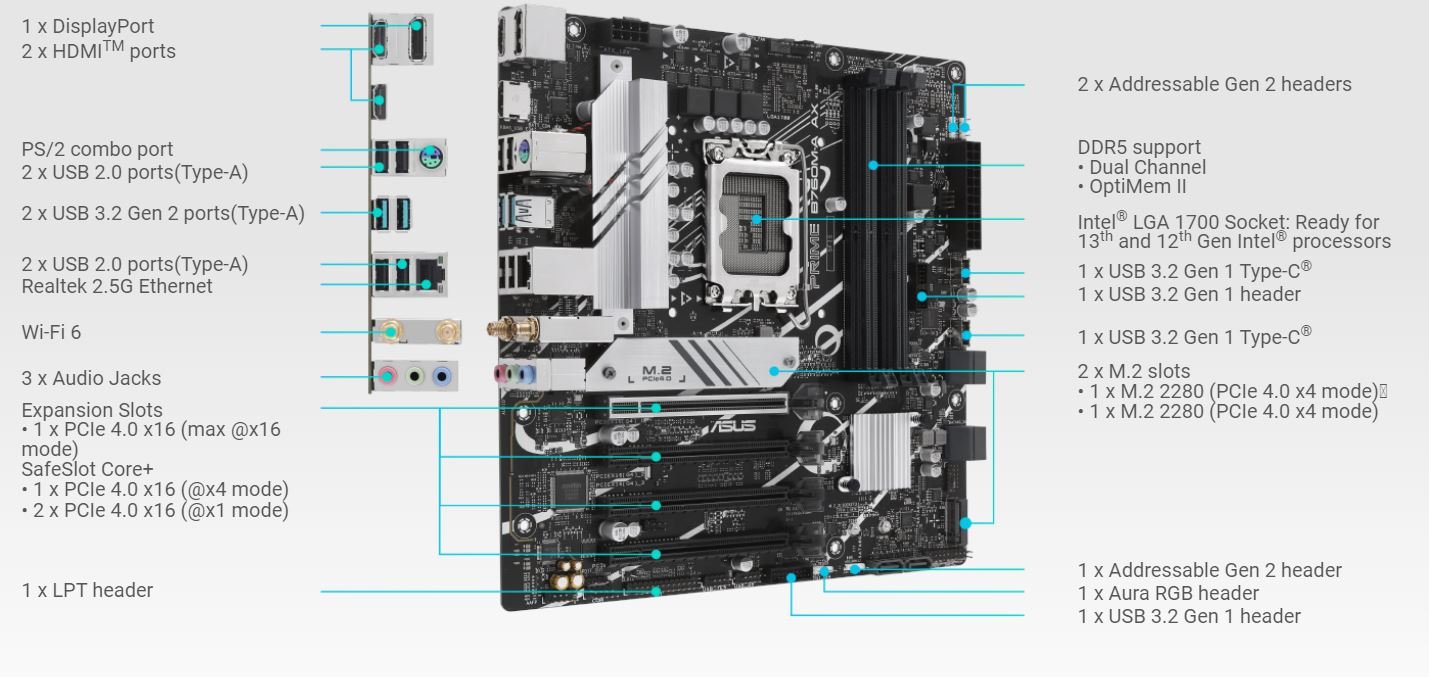

Onboard Interfaces
Number of SATA Interfaces:   6
Number of M.2 Interfaces:   2
Total Number of Onboard USB Ports:   10
Number of Onboard USB 2.0 Ports:   4
Onboard S/PDIF Header:   Yes
Physical Characteristics
Form Factor:   Micro ATX
Width:   9.6"
Depth:   9.6"
Miscellaneous

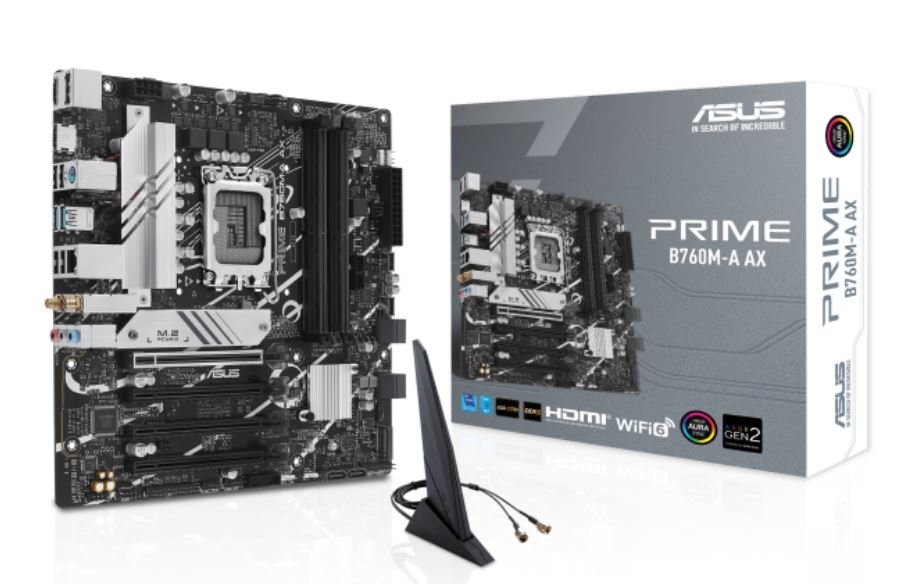

Package Contents:
PRIME B760M-A AX Desktop Motherboard
2 x SATA 6Gb/s cables
1 x ASUS Wi-Fi moving antennas
1 x I/O Shield
1 x M.2 Rubber Package
1 x Screw package for M.2 SSD
1 x User guide

Brand Compatibility:   Intel
Weight: 4 lbs
