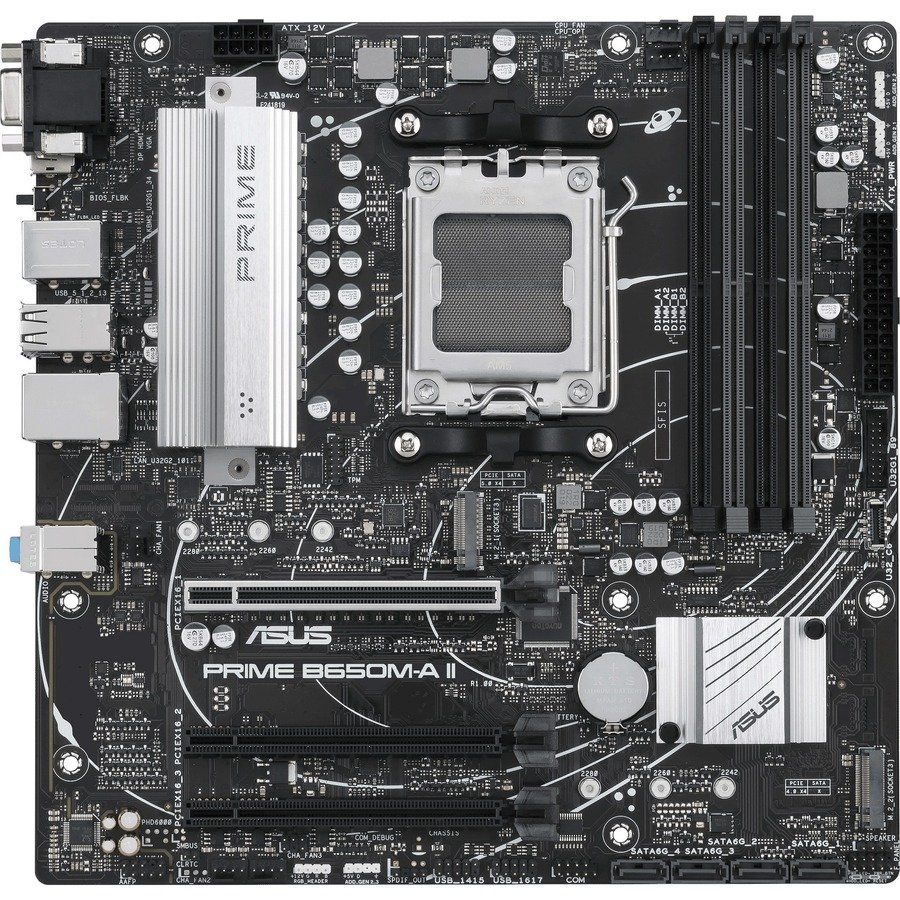

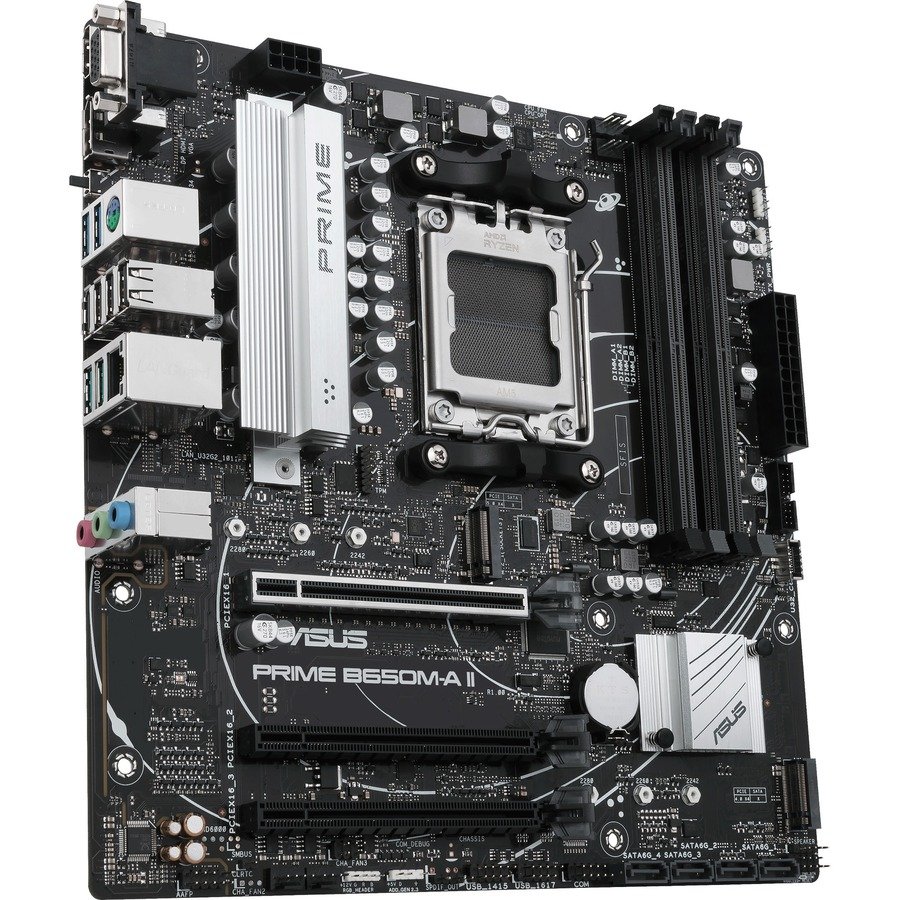

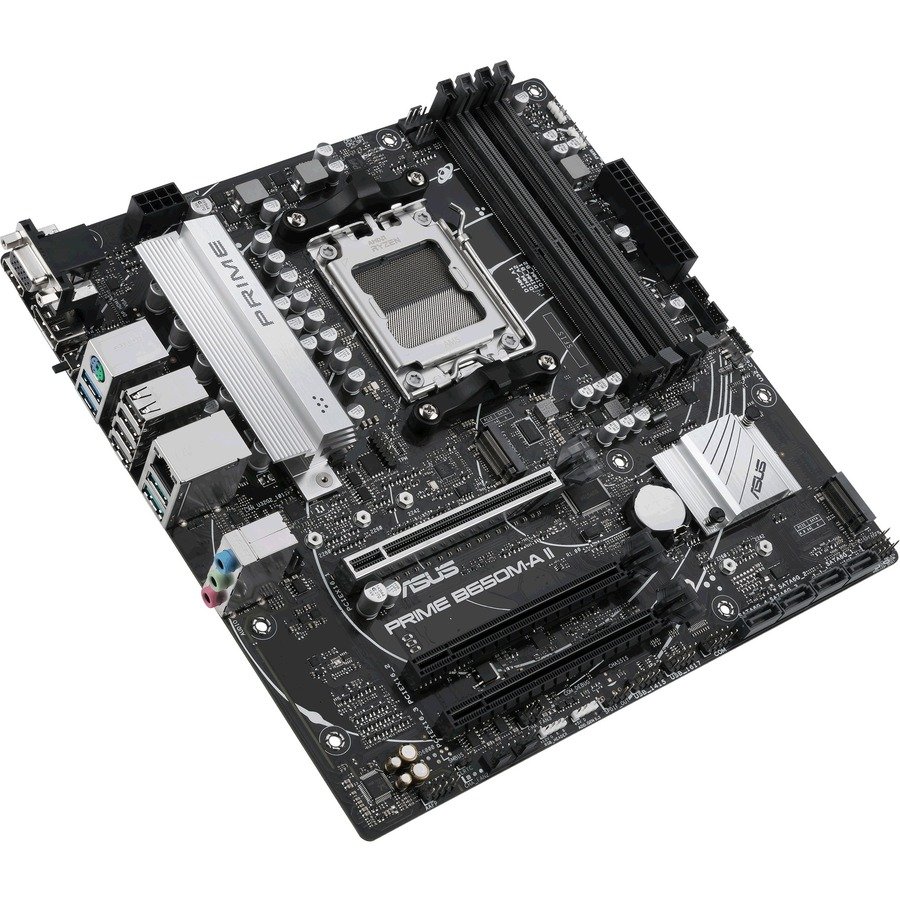

ASUS PRIME B650M-A II-CSM Desktop Motherboard - AMD B650 Chipset - Socket AM5 - Micro ATX

General Information

Manufacturer:   ASUS Computer International

Manufacturer Part Number:   PRIME B650M-A II-CSM

Manufacturer Website Address:   usa.asus.com

Brand Name:   Asus

Product Line:   Prime

Product Model:   B650M-A II-CSM

Product Name:   PRIME B650M-A II-CSM Gaming Desktop Motherboard

Marketing Information:

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B650M-A II-CSM provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

ASUS Corporate Stable Model

ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.

ASUS Control Center Express

ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.

Optimize IT endpoint management

Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely

Automate IT maintenance

Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility

Securely manage all of endpoints

Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices

FLEXIBILITY

Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B650 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

CPU Performance Boost

AMD Precision Boost Overdrive(PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher.

All-Around Energy Efficiency

The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

Product Type:   Gaming Desktop Motherboard

Processor & Chipset

Chipset Manufacturer:   AMD

Chipset Model:   B650

Total Processor Supported:   1

Processor Socket:   Socket AM5

Processor Supported:   Ryzen 7

Memory

Number of Memory Slots:   4

Memory Form Factor:   DIMM

Memory Form Factor:   UDIMM

Maximum Memory Supported:   128 GB

Memory Technology:   DDR5 SDRAM

Memory Speed Supported:   5200 MHz

Memory Speed Supported:   5400 MHz

Memory Speed Supported:   5800 MHz

Memory Speed Supported:   6000 MHz

Memory Speed Supported:   6200 MHz

Memory Speed Supported:   6400 MHz

Memory Speed Supported:   4800 MHz

Memory Speed Supported:   5000 MHz

Memory Speed Supported:   5600 MHz

I/O Controller

Controller Type:   Serial ATA/600

RAID Supported:   Yes

RAID Levels:   0

RAID Levels:   10

RAID Levels:   1

Video

Onboard Video:   CPU Dependent Video

Audio

Audio Channels:   7.1

Network & Communication

Gigabit Ethernet:   Yes

2.5Gigabit Ethernet:   Yes

I/O Expansions

Number of Total Expansion Slots:   3

PCI Express Standard:   PCI Express 4.0

PCI Express Standard:   PCI Express 5.0

Total Number of PCI Express Slots:   3

Number of PCI Express x16 Slots:   3

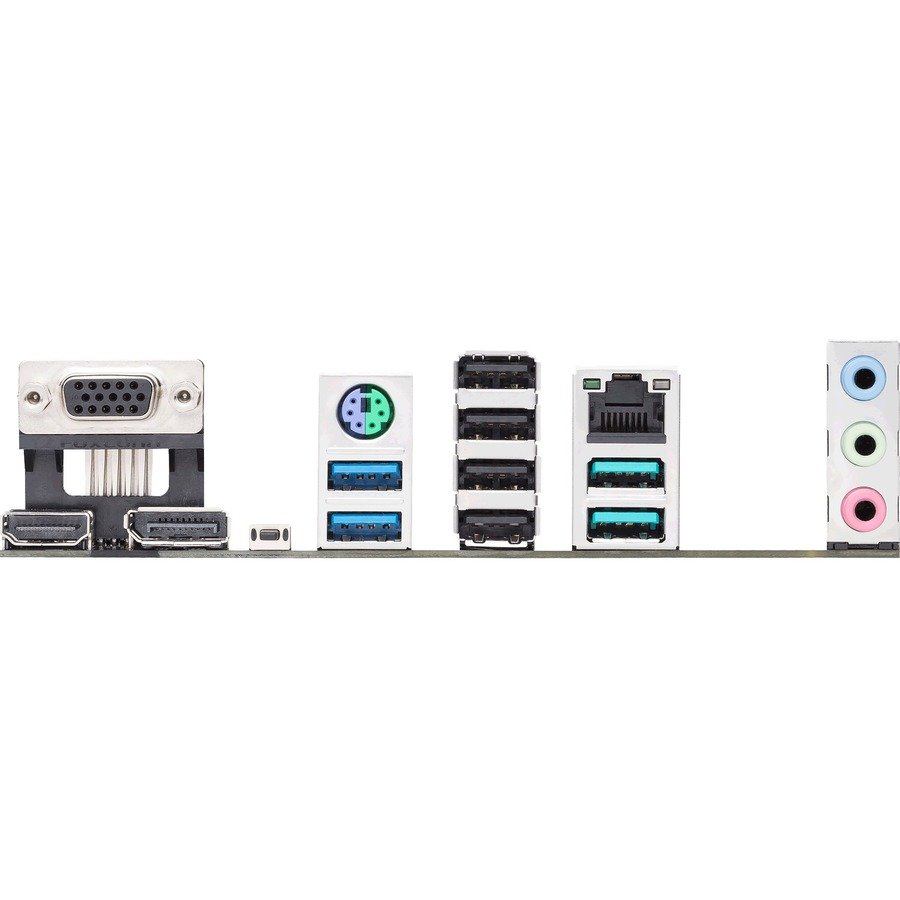

Interfaces/Ports

Total Number of USB Ports:   8

Number of USB 3.2 Gen 1 Type-A Ports:   2

Number of USB 3.2 Gen 2 Type-A Ports:   2

S/PDIF:   Yes

VGA:   Yes

HDMI:   Yes

HDMI Version:   2.1

DisplayPort:   Yes

Number of Network (RJ-45) Ports:   1

Onboard Interfaces

Number of SATA Interfaces:   4

Number of M.2 Interfaces:   2

Total Number of Onboard USB Ports:   7

Number of Onboard USB 2.0 Ports:   4

Physical Characteristics

Form Factor:   Micro ATX

Width:   9.6"

Depth:   9.6"

Miscellaneous

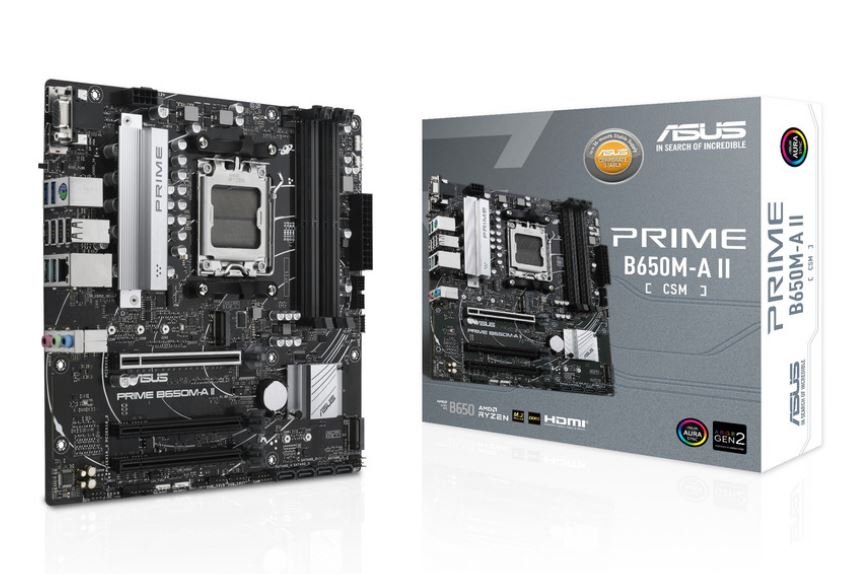

Package Contents:

PRIME B650M-A II-CSM Gaming Desktop Motherboard

2 x SATA 6Gb/s cables

1 x I/O Shield

1 x Screw Package for M.2 SSD

1 x User guide

Brand Compatibility:   AMD

Warranty

Limited Warranty:   3 Year
