Brand: ASUS
SKU: MBAM5B650-PRIME B650M-A AX II

ASUS PRIME B650M-A AX II WiFi 6 mATX AM5

Interfaces/Ports: HDMI, DisplayPort, & VGA
Chipset: AMD B650
CPU Socket: AM5
CPU Socket: AM5
# of Memory Slots: 4
Brand: ASUS
Memory Technology: DDR5
UPC/EAN: 197105020481
Form Factor: MATX
Ryzen 7 Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 8 x SATA Interfaces
Product Details
General Information
Manufacturer:   ASUS Computer International
Manufacturer Part Number:   PRIME B650M-A AX II
Manufacturer Website Address:   usa.asus.com
Brand Name:   Asus
Product Line:   Prime
Product Model:   B650M-A AX II
Product Name:   PRIME B650M-A AX II Gaming Desktop Motherboard
Marketing Information:
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B650M-A AX II provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

FLEXIBILITY

Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B650 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

CPU Performance Boost

AMD Precision Boost Overdrive(PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher.

All-Around Energy Efficiency

The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

Flexible Cooling Controls

ASUS Fan Xpert 2+ software provides comprehensive control over fans. An Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.

Precise Digital Power Control

The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.

UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.

Advanced Tuning for Serious Tweakers

An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

Quick and Simple Setup

EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings - all to help you get your rig up and running in no time.


Product Type:   Gaming Desktop Motherboard
Processor & Chipset
Chipset Manufacturer:   AMD
Chipset Model:   B650
Total Processor Supported:   1
Processor Socket:   Socket AM5
Processor Supported:   Ryzen 7
Memory
Number of Memory Slots:   4
Memory Form Factor:   UDIMM
Memory Form Factor:   DIMM
Maximum Memory Supported:   128 GB
Memory Technology:   DDR5 SDRAM
Memory Speed Supported:   4800 MHz
Memory Speed Supported:   5600 MHz
Memory Speed Supported:   6000 MHz
Memory Speed Supported:   6200 MHz
Memory Speed Supported:   5000 MHz
Memory Speed Supported:   5200 MHz
Memory Speed Supported:   5400 MHz
Memory Speed Supported:   5800 MHz
Memory Speed Supported:   6400 MHz
I/O Controller
Controller Type:   Serial ATA/600
RAID Supported:   Yes
RAID Levels:   0
RAID Levels:   1
RAID Levels:   10
Audio
Audio Channels:   7.1
Network & Communication
Bluetooth:   Yes
Bluetooth Standard:   Bluetooth 5.2
Gigabit Ethernet:   Yes
2.5Gigabit Ethernet:   Yes
Wireless LAN:   Yes
Wireless LAN Standard:   IEEE 802.11 a/b/g/n/ac/ax
I/O Expansions
Number of Total Expansion Slots:   4
PCI Express Standard:   PCI Express 5.0
PCI Express Standard:   PCI Express 4.0
Total Number of PCI Express Slots:   4
Number of PCI Express x16 Slots:   4

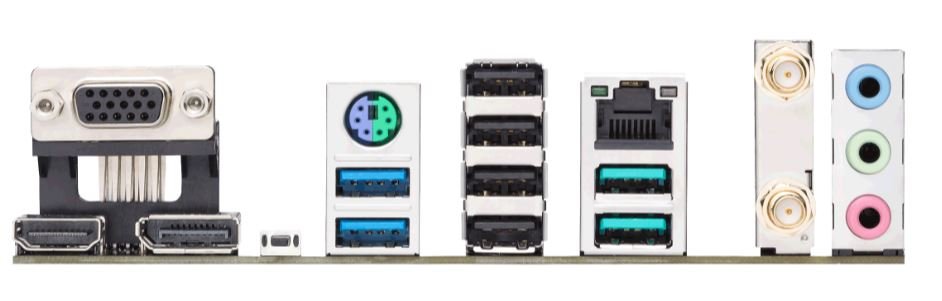

Interfaces/Ports
Total Number of USB Ports:   8
Number of USB 3.2 Gen 1 Type-A Ports:   2
Number of USB 3.2 Gen 2 Type-A Ports:   2
S/PDIF:   Yes
VGA:   Yes
HDMI:   Yes
HDMI Version:   2.1
DisplayPort:   Yes
Number of Network (RJ-45) Ports:   1
Onboard Interfaces
Number of SATA Interfaces:   8
Number of M.2 Interfaces:   2
Total Number of Onboard USB Ports:   7
Number of Onboard USB 2.0 Ports:   4
Physical Characteristics
Form Factor:   Micro ATX
Width:   9.6"
Depth:   9.6"
Miscellaneous

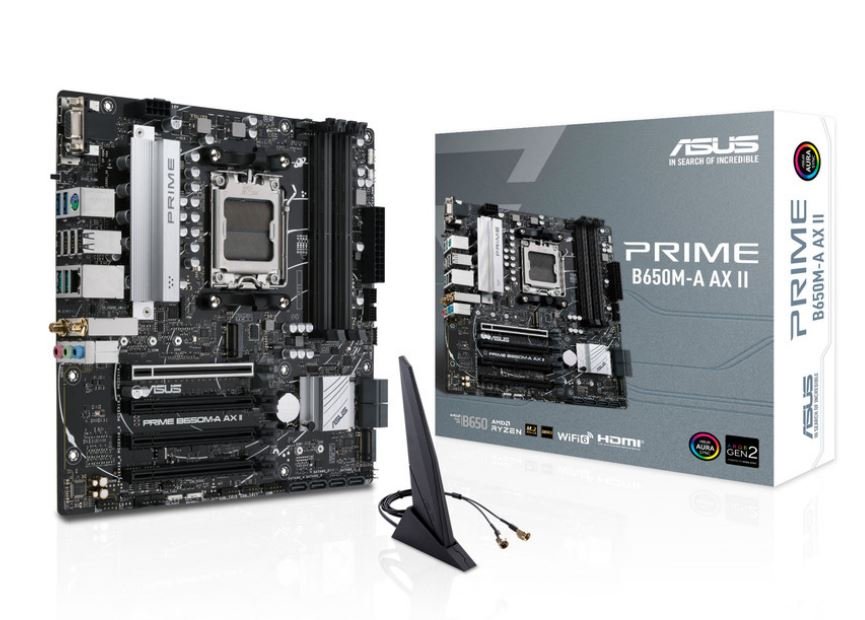

Package Contents:
PRIME B650M-A AX II Gaming Desktop Motherboard
2 x SATA 6Gb/s cables
1 x ASUS Wi-Fi moving antennas
1 x I/O Shield
1 x Screw Package for M.2 SSD
1 x User guide

Brand Compatibility:   AMD
Environmentally Friendly:   Yes
Environmental Certification:   RoHS
Warranty
Limited Warranty:   3 Year
Weight: 4 lbs
PRIME B650M-A AX II
ASUS PRIME B650M-A AX II WiFi 6 mATX AM5
PRIME B650M-A AX II
ASUS PRIME B650M-A AX II WiFi 6 mATX AM5
PRIME B650M-A AX II
ASUS PRIME B650M-A AX II WiFi 6 mATX AM5
PRIME B650M-A AX II
ASUS PRIME B650M-A AX II WiFi 6 mATX AM5
PRIME B650M-A AX II
ASUS PRIME B650M-A AX II WiFi 6 mATX AM5
PRIME B650M-A AX II
ASUS PRIME B650M-A AX II WiFi 6 mATX AM5
(Click to see larger image and other views)
List Price: $219.99
Price: $174.99
You Save: $45.00 (20%)
