Brand: ASUS
SKU: MB17-PRIME Z790M-PLUS D4

ASUS MB PRIME Z790M-PLUS D4 Z790 LGA1700 Max128GB DDR4 mATX

Interfaces/Ports: DisplayPort & HDMI
Chipset: Intel Z790
CPU Socket: LGA 1700
# of Memory Slots: 4
Brand: ASUS
Memory Technology: DDR4 Support
UPC/EAN: 195553936682
Form Factor: MATX
Intel Z790 Chipset - Socket LGA-1700 - Micro ATX - Core, Pentium Gold, Celeron Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 4 x SATA
Product Details

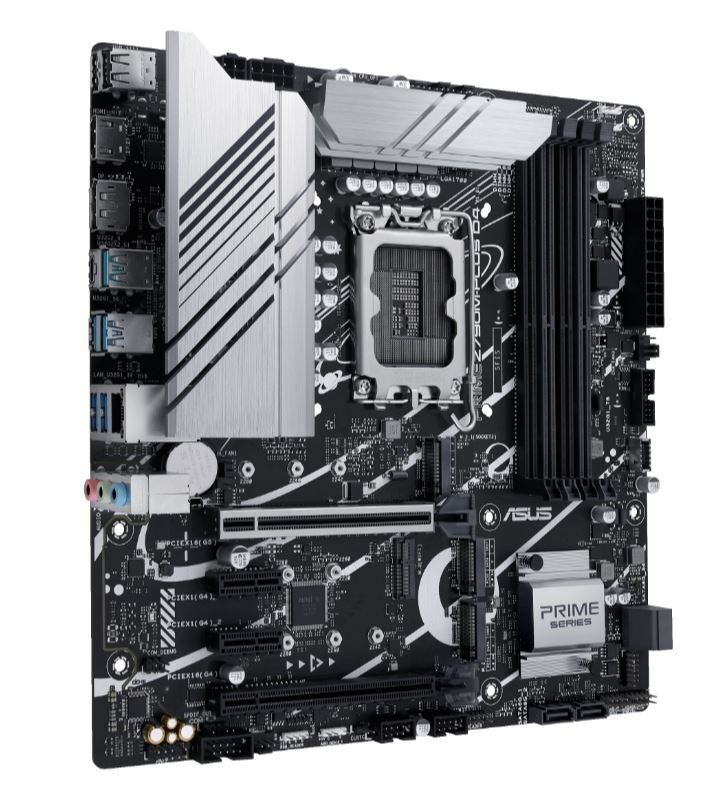

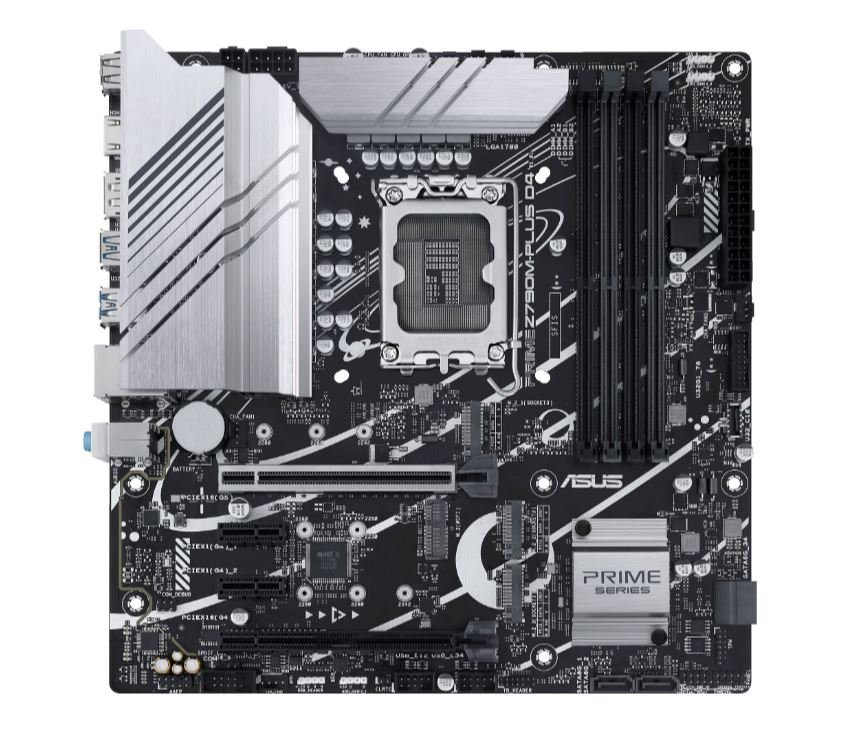

Asus Prime Z790M-PLUSD4 Gaming Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - Micro ATX - Core, Pentium Gold, Celeron Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 4 x SATA Interfaces
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Coreâ„¢ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790M-PLUS D4 provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

FLEXIBILITY

Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME Z790M-PLUS D4 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

Intelligent Control

ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans

All-Around Energy Efficiency

The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

COOLING
PRIME Z790M-PLUS D4 motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

VRM Heatsinks and Thermal Pads

The extensive surface area of the massive heatsinks cover the VRMs and chokes to improve heat dissipation. Together with specially engineered thermal pads, they improve heat transfer from the MOSFETs and chokes for better cooling performance.

Multiple Temperature Sources

Each header can dynamically reference three thermal sensors. Fan Xpert 4 allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

AIO Pump Header

A dedicated PWM/DC header for self-contained water-cooling setups.

Spec:

Audio
Audio Channels7.1
Network & Communication
Gigabit EthernetYes
Video
Onboard VideoCPU Dependent Video
Miscellaneous

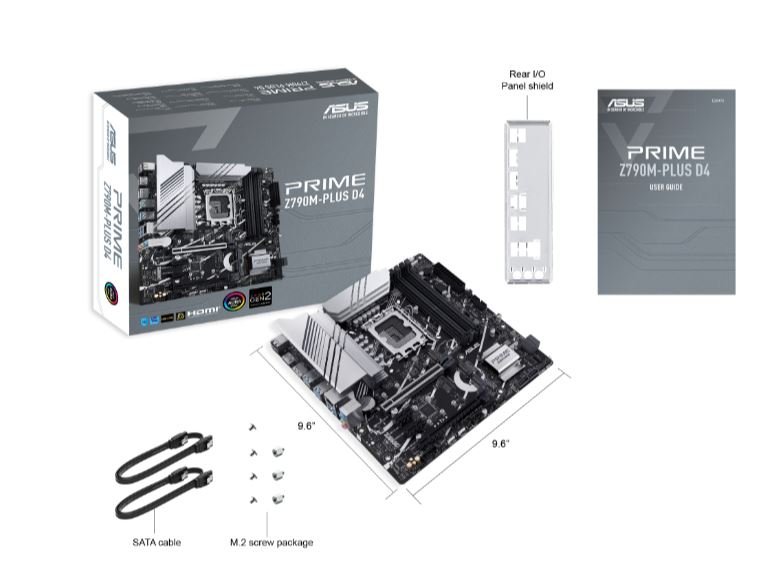

Package Contents
PRIME Z790M-PLUSD4 Gaming Desktop Motherboard
2 x SATA 6Gb/s Cables
1 x I/O Shield
2 x Screw packages for M.2 SSD
1 x User Guide
Brand CompatibilityIntel
Physical Characteristics
Form FactorMicro ATX
Width9.6"
Depth9.6"
Onboard Interfaces
Number of SATA Interfaces4
Total Number of Onboard USB Ports7
Number of Onboard USB 2.0 Ports4
Number of M.2 Interfaces3
I/O Controller
RAID Levels10
5
1
0
Controller TypeSerial ATA/600
RAID SupportedYes
I/O Expansions
Number of PCI Express x1 Slots2
Number of Total Expansion Slots4
Number of PCI Express x16 Slots2
PCI Express StandardPCI Express 4.0
PCI Express 5.0
Total Number of PCI Express Slots4

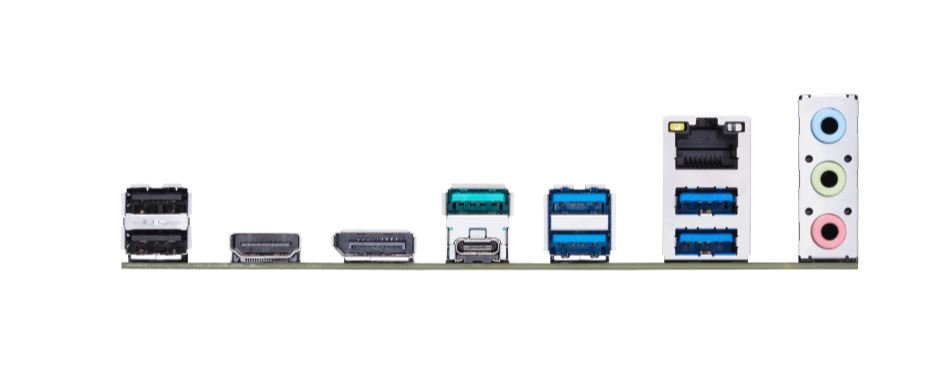

Interfaces/Ports
HDMIYes
Number of Network (RJ-45) Ports1
DisplayPortYes
Total Number of USB Ports8
ThunderboltYes
Number of USB 3.2 Gen 2 Type-A Ports1
General Information
Product TypeGaming Desktop Motherboard
Manufacturer Part NumberPRIMEZ790M-PLUSD4
Manufacturer Website Addresshttp://usa.asus.com
ManufacturerASUS Computer International
Product ModelZ790M-PLUSD4
Product NamePRIME Z790M-PLUSD4 Gaming Desktop Motherboard
Product LinePrime
Brand NameAsus
Processor & Chipset
Processor SupportedCeleron
Core
Pentium Gold
Total Processor Supported1
Processor SocketSocket LGA-1700
Chipset ManufacturerIntel
Chipset ModelZ790
Processor Generation Supported13th Gen
12th Gen
Memory
Maximum Memory128 GB
128 GB
Memory TechnologyDDR4 SDRAM
Number of Memory Slots4
Memory Form FactorUDIMM
DIMM
Memory Speed Supported5000 MHz
5066 MHz
5133 MHz
5333 MHz
2133 MHz
2400 MHz
2666 MHz
4800 MHz
4700 MHz
4600 MHz
4500 MHz
4400 MHz
4133 MHz
4266 MHz
4000 MHz
2133 MHz
2800 MHz
2933 MHz
3000 MHz
3200 MHz
3333 MHz
3400 MHz
3466 MHz
3600 MHz
3733 MHz
3866 MHz
4000 MHz
4133 MHz
4266 MHz
4400 MHz
4500 MHz
4600 MHz
4700 MHz
4800 MHz
5000 MHz
5066 MHz
5133 MHz
5333 MHz
2400 MHz
2666 MHz
2800 MHz
2933 MHz
3000 MHz
3200 MHz
3333 MHz
3400 MHz
3466 MHz
3600 MHz
3733 MHz
3866 MHz

PRIME Z790M-PLUS D4
ASUS MB PRIME Z790M-PLUS D4 Z790 LGA1700 Max128GB DDR4 mATX
PRIME Z790M-PLUS D4
ASUS MB PRIME Z790M-PLUS D4 Z790 LGA1700 Max128GB DDR4 mATX
PRIME Z790M-PLUS D4
ASUS MB PRIME Z790M-PLUS D4 Z790 LGA1700 Max128GB DDR4 mATX
PRIME Z790M-PLUS D4
ASUS MB PRIME Z790M-PLUS D4 Z790 LGA1700 Max128GB DDR4 mATX
PRIME Z790M-PLUS D4
ASUS MB PRIME Z790M-PLUS D4 Z790 LGA1700 Max128GB DDR4 mATX
PRIME Z790M-PLUS D4
ASUS MB PRIME Z790M-PLUS D4 Z790 LGA1700 Max128GB DDR4 mATX
PRIME Z790M-PLUS D4
ASUS MB PRIME Z790M-PLUS D4 Z790 LGA1700 Max128GB DDR4 mATX
(Click to see larger image and other views)
List Price: $219.99
Price: $189.99
You Save: $30.00 (14%)
