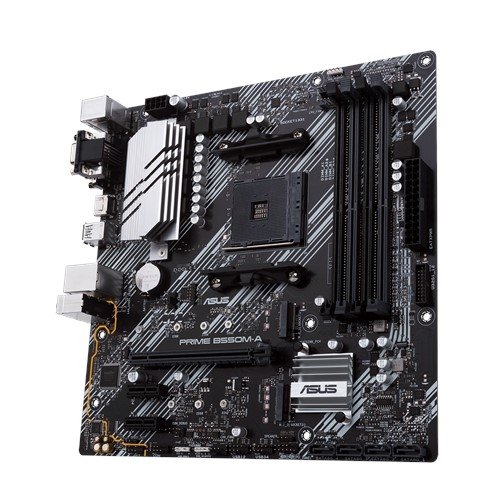

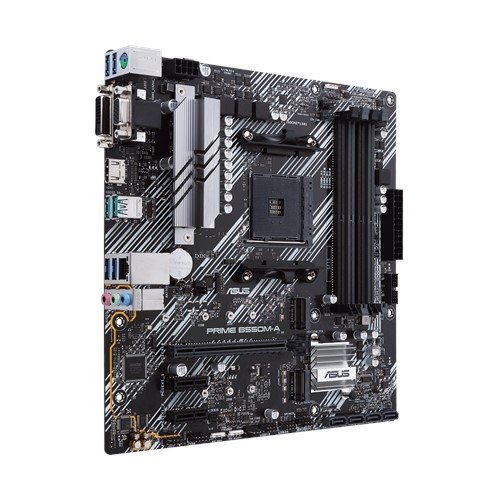

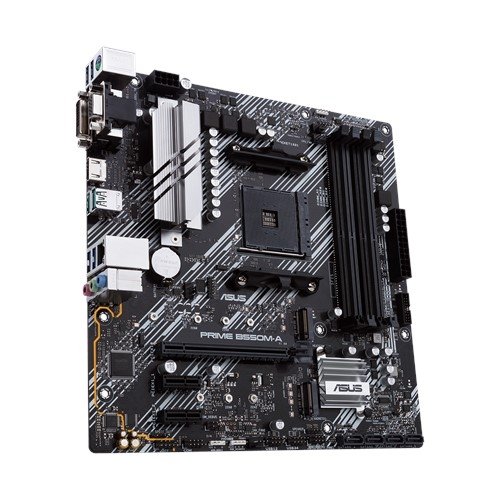

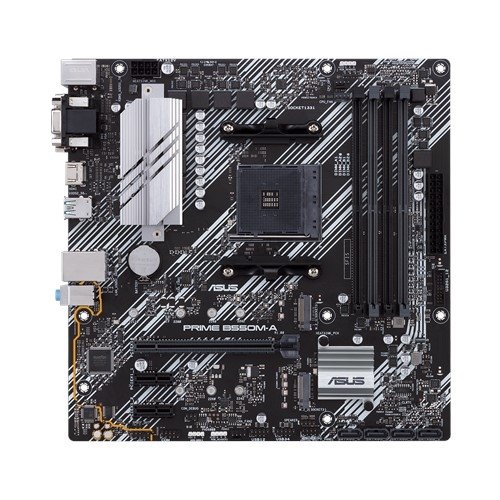

ASUS MB PRIME B550M-A CSM AMD Socket AM4 Ryzen B550 D-Sub DVI-D HDMI mATX

PRIME B550M-A/CSM
ASUS MB PRIME B550M-A CSM AMD Socket AM4 Ryzen B550 D-Sub DVI-D HDMI mATX
PRIME B550M-A/CSM
ASUS MB PRIME B550M-A CSM AMD Socket AM4 Ryzen B550 D-Sub DVI-D HDMI mATX
PRIME B550M-A/CSM
ASUS MB PRIME B550M-A CSM AMD Socket AM4 Ryzen B550 D-Sub DVI-D HDMI mATX
PRIME B550M-A/CSM
ASUS MB PRIME B550M-A CSM AMD Socket AM4 Ryzen B550 D-Sub DVI-D HDMI mATX
PRIME B550M-A/CSM
ASUS MB PRIME B550M-A CSM AMD Socket AM4 Ryzen B550 D-Sub DVI-D HDMI mATX
PRIME B550M-A/CSM
ASUS MB PRIME B550M-A CSM AMD Socket AM4 Ryzen B550 D-Sub DVI-D HDMI mATX
PRIME B550M-A/CSM
ASUS MB PRIME B550M-A CSM AMD Socket AM4 Ryzen B550 D-Sub DVI-D HDMI mATX
PRIME B550M-A/CSM
ASUS MB PRIME B550M-A CSM AMD Socket AM4 Ryzen B550 D-Sub DVI-D HDMI mATX
PRIME B550M-A/CSM
ASUS MB PRIME B550M-A CSM AMD Socket AM4 Ryzen B550 D-Sub DVI-D HDMI mATX
PRIME B550M-A/CSM
ASUS MB PRIME B550M-A CSM AMD Socket AM4 Ryzen B550 D-Sub DVI-D HDMI mATX
(Click to see larger image and other views)
Product Details
AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ Processors
Comprehensive cooling: VRM heatsink, PCH heatsink, and Fan Xpert 2+
Ultrafast connectivity: Dual M.2, PCIe 4.0, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A
Aura Sync RGB: Onboard addressable Gen 2 header for RGB LED strips, easily synced with Aura Sync-capable hardware

ASUS PRIME B550M-A/CSM Detail Specifications
CPU
Build in AMD AM4 Socket 3rd Gen AMD Ryzen Processors
Refer to www.asus.com for CPU support list
Chipset
AMD B550
Memory
3rd Gen AMD Ryzen Processors
4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
Next Generation AMD Ryzen PRO Processors
4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphic 1 x D-Sub
1 x DVI-D
1 x HDMI 2.1(4K at 60HZ)
Expansion Slots
3rd Gen AMD Ryzen Processors
1 x PCIe 4.0 x16 (x16 mode)
AMD B550 Chipset
2 x PCIe 3.0 x1
Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
3rd Gen AMD Ryzen Processors :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
AMD B550 Chipset :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
LAN
Realtek RTL8111H 1Gb Ethernet
Audio
Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
- LED-illuminated design
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
USB Ports
Rear USB Port ( Total 6 )
2 x USB 3.2 Gen 2 port(s)(2 x Type-A)
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
Front USB Port ( Total 6 )
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
4 x USB 2.0 port(s)(4 x Type-A)
Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 2+
- EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Special Features
ASUS 5X PROTECTION III
- ASUS DIGI+ VRM
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot Core
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
AURA Sync
- Standard RGB headers
- Addressable Gen 2 RGB header
ASUS Lighting Control

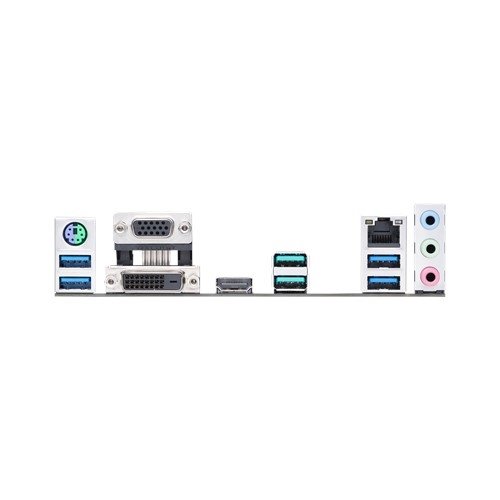

Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A)
4 x USB 3.2 Gen 1 (blue) Type-A
3 x Audio jack(s)
Internal I/O Ports
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
2 x Aura RGB Strip Headers
1 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA and PCIe 4.0 x4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA and PCIE 3.0 x 4 mode)
1 x SPI TPM header
4 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
1 x Speaker connector
Accessories
1 x ACC Express Activation Key Card
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
User manual
1 x M.2 SSD screw package(s)
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PXE
Operating System
Windows 10 64-bit
Form Factor
mATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Item Dimension (L"xW"xH")
11 x 11 x 3

Weight
3 lbs

Warranty Information
3 Years



SKU: MBAM4-PRIME B550M-A/CSM
Brand: ASUS
ASUS PRIME B550M-A/CSM Ryzen micro ATX motherboard with dual M.2, PCIe 4.0, 1 Gb Ethernet, HDMI/D-Sub/DVI, SATA 6 Gbps, USB 3.2 Gen 2 Type-A, and Aura Sync RGB headers support
Chipset: B550
CPU Type: AM4
# of Memory Slots: 4
Brand: ASUS
Memory Technology: DDR4 Support
Form Factor: MATX
List Price: $149.99
Price: $119.99
You Save: $30.00 (20%)
