Manufacturer: ASUS Computer International
Manufacturer Part Number: DUAL-RTX3060-O8G
Manufacturer Website Address: usa.asus.com
Brand Name: Asus
Product Line: Dual
Product Model: DUAL-RTX3060-O8G

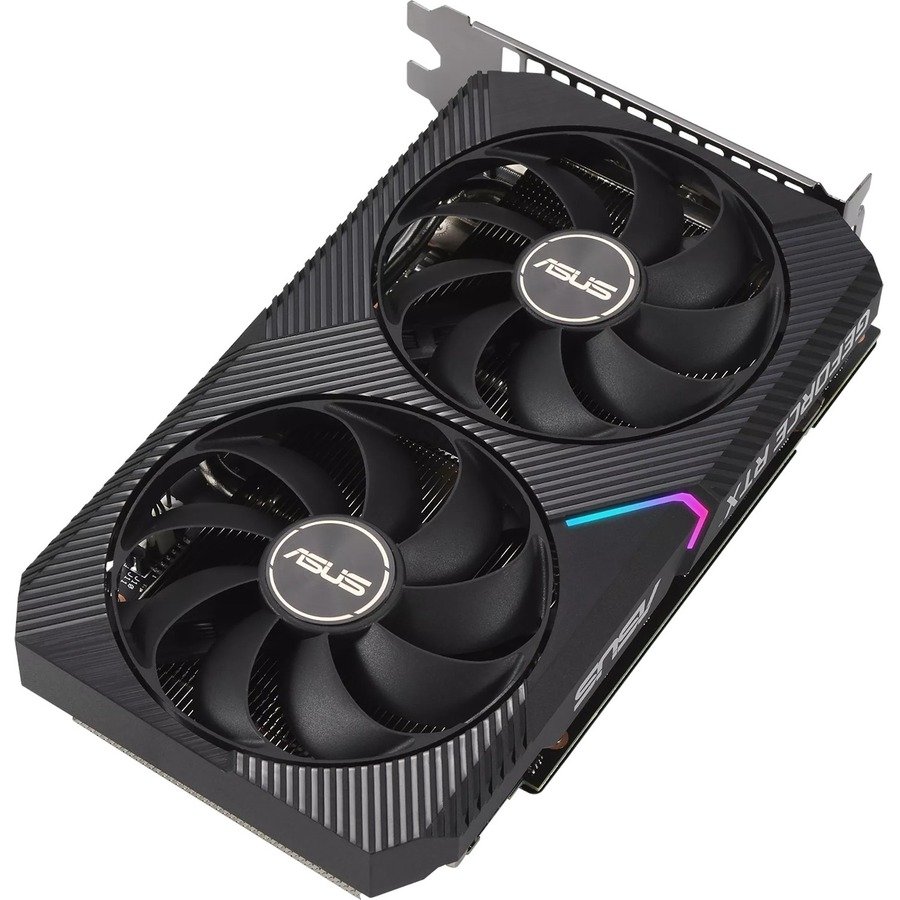

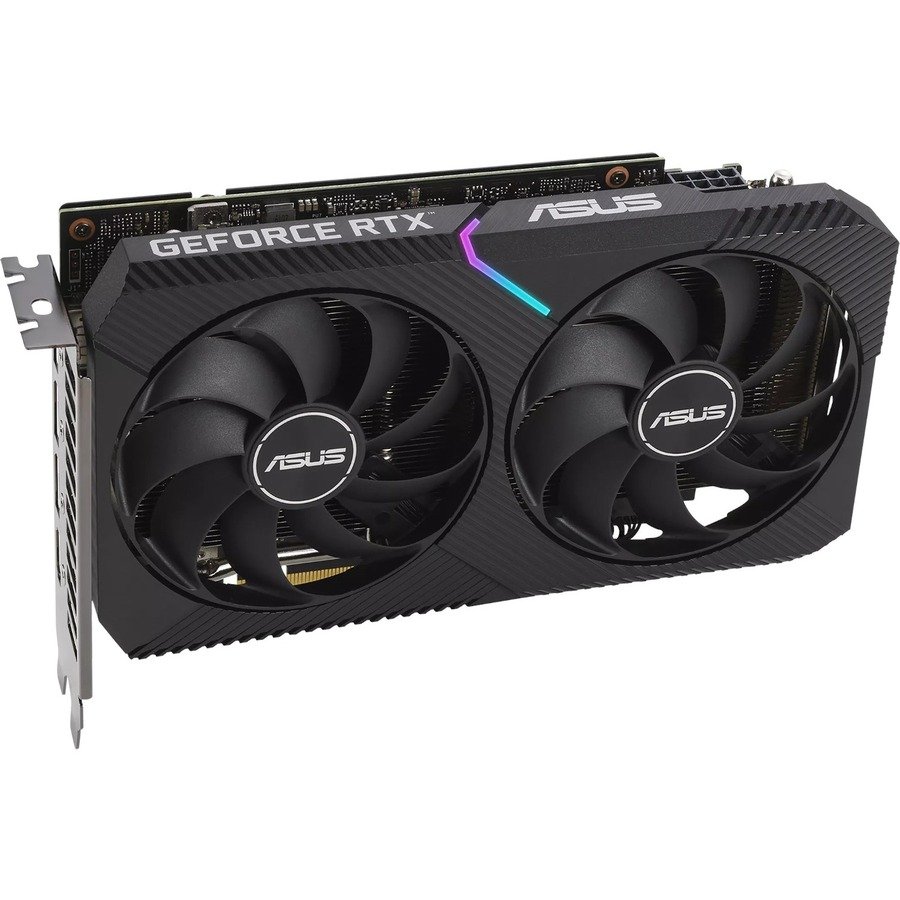

Product Name: Dual GeForce RTX 3060 OC Edition 8GB GDDR6 Graphic Card
ASUS Dual GeForce RTXTM 3060 OC Edition 8GB GDDR6 with two powerful Axial-tech fans and a 2-slot design for broad compatibility
NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world's fastest, most efficient GPUs, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. These cores deliver a massive boost in game performance and all-new AI capabilities.
OC edition: Boost Clock 1867 MHz (OC Mode)/1837 MHz(Default Mode)
Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
A 2-slot design maximizes compatibility and cooling efficiency for superior performance in small chassis.
0dB Technology lets you enjoy light gaming in relative silence.
2x Fans. 2x Fun.
Featuring the latest NVIDIA® Ampere architecture, ASUS Dual GeForce RTXâ„¢ 3060 fuses dynamic thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards - including two Axial-tech fans for maximizing airflow to the heatsink - are packed into the 20 cm long, 2-slot card, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.
COOLING | Axial-tech Fan DesignBetter, faster, stronger
Two tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure.
0dB Technology Quiet intelligence
To eliminate unnecessary noise, a stop mode halts all fans when the GPU temp falls below 50 degrees and power consumption is low.
2-slot Design Sink your heat into this
A carefully designed shroud, heatsink, and heatpipe layout allows the two Axial-tech fans to leverage chassis side-panel ventilation and deliver thermal performance that belies the card's size.
ENGINEERING | Auto-Extreme TechnologyPrecision automated manufacturing
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.
Product Type: Graphic Card
API Supported: OpenGL 4.6
Number of Monitors Supported: 4
Maximum Digital Display Resolution: 7680 x 4320
CUDA Cores: 3584
Processor & Chipset
Chipset Manufacturer: NVIDIA
Chipset Line: GeForce
Chipset Series: RTX
Chipset Model: RTX 3060
GPU Boost Clock: 1.87 GHz
Standard Memory: 8 GB
Memory Technology: GDDR6
Bus Width: 128 bit
Host Interface: PCI Express 4.0

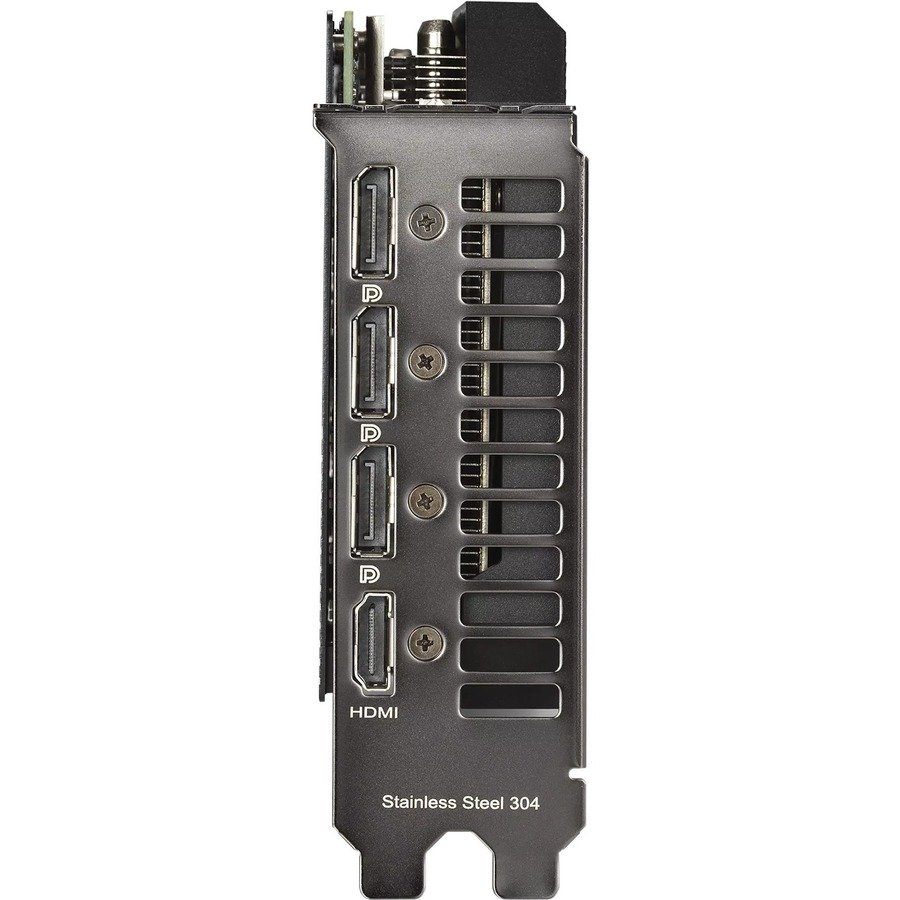

Number of DisplayPort Outputs: 3
Number of HDMI Outputs: 1
Power Supply Wattage: 650 W
Power Connector: 1x 8-pin
Slot Space Required: Dual
Form Factor: Plug-in Card
Cooler Type: Fan Cooler

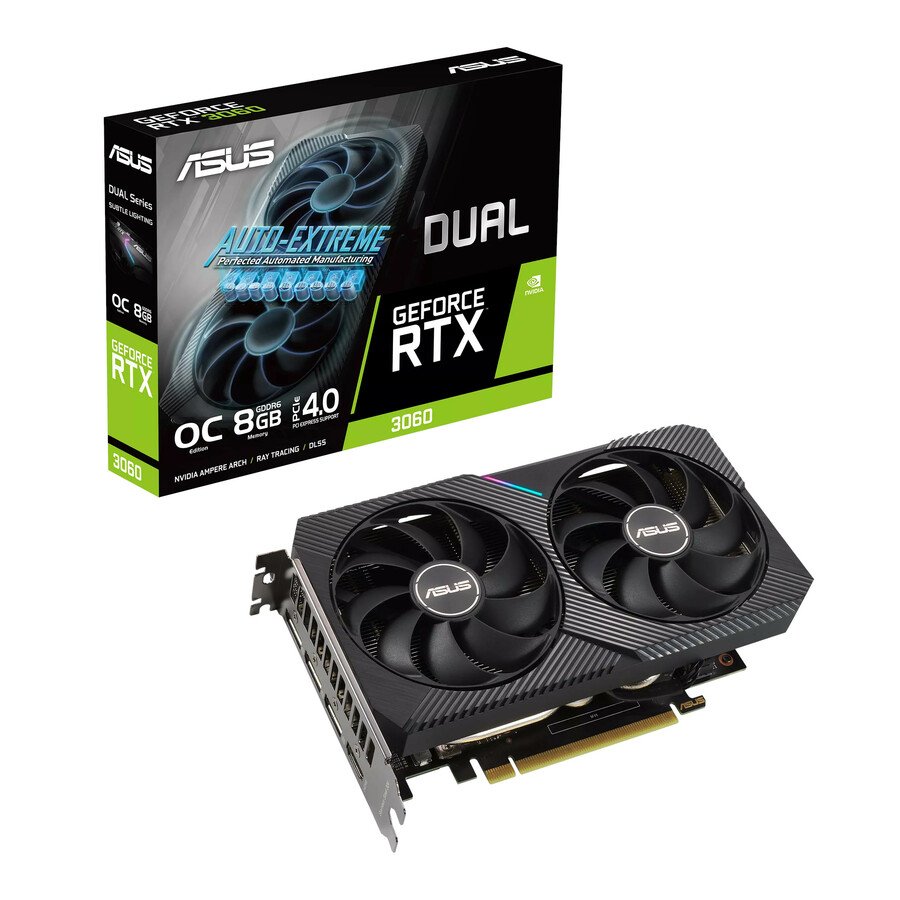

Dual GeForce RTX 3060 OC Edition 8GB GDDR6 Graphic Card
1 x Collection Card
1 x Speedsetup Manual
Platform Supported: PC
Environmentally Friendly: Yes
Environmental Certification: RoHS
Limited Warranty: 36 Month
