Brand: ASUS
SKU: MBAM5-ROG Strix X670E-E GAMING WIFI

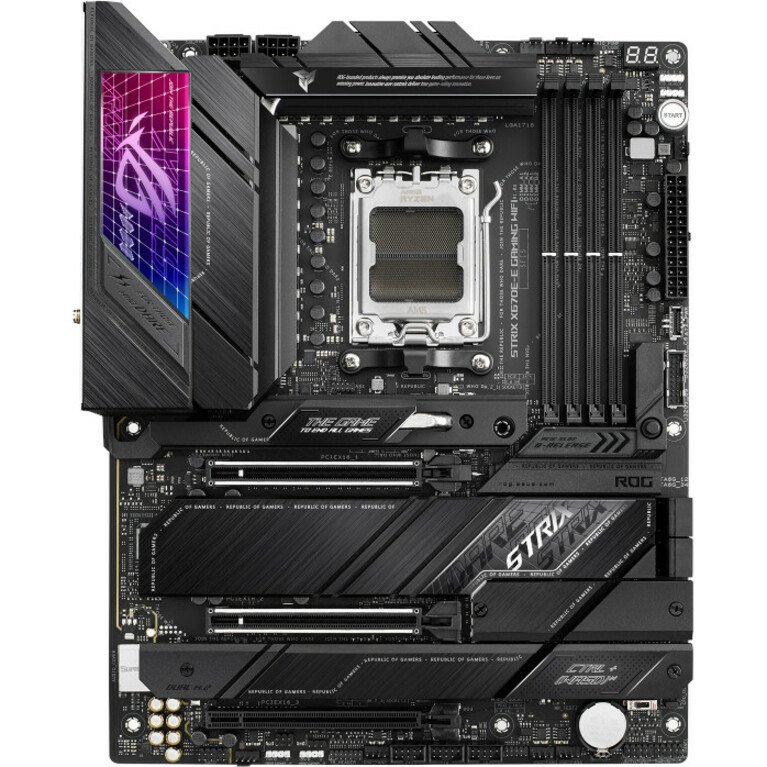

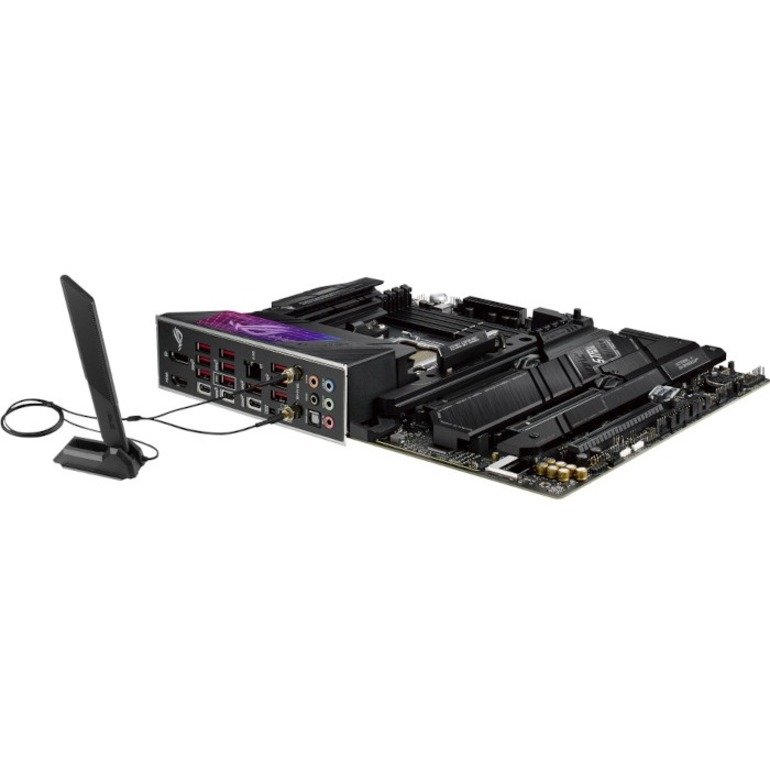

Asus ROG Strix X670E-E GAMING WIFI Gaming Desktop Motherboard - AMD X670 Chipset - Socket AM5 - ATX

Interfaces/Ports: HDMI, DisplayPort
Chipset: AMD X670E
CPU Socket: AM5
CPU Socket: AM5
# of Memory Slots: 4
Brand: ASUS
Memory Technology: DDR5
UPC/EAN: 195553891707
Form Factor: ATX
Ryzen 5, Ryzen 7, Ryzen 9 Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 4 x SATA Interfaces
Product Details
General Information
Manufacturer:   ASUS Computer International
Manufacturer Part Number:   ROGSTRIXX670E-EGAMINGWIFI
Manufacturer Website Address:   usa.asus.com
Brand Name:   Asus ROG
Product Line:   Strix
Product Model:   X670E-E GAMING WIFI
Product Name:   Strix X670E-E GAMING WIFI Gaming Desktop Motherboard
Marketing Information:
ROG STRIX X670E-E GAMING WIFI

The ROG Strix X670E-E Gaming WiFi is perched at the top of the series, packing robust power delivery and exclusive ROG overclocking tools to max out the stats of AMD Ryzenâ„¢ 7000 Series processors. PCIe 5.0 support extends to the furthest reaches of chipset capabilities, and an additional beefy heatsink is prepped to keep even the fastest M.2 drives chilled. With leading performance, the latest connectivity, and DIY-friendly features that span from hardware installation to system setup, this Strix beast grips AM5 and effortlessly soars to victory.

DIY-FRIENDLY FEATURES | PCIE® SLOT Q-RELEASE

A physical button unlocks the first PCIe slot's security latch with a simple press, greatly simplifying the process of removing a PCIe card from the motherboard when it's time to upgrade to a new GPU or add-in card.

M.2 Q-LATCH

The innovative Q-Latch makes it easy to install or remove an SSD from an M.2 slot. The design employs a simple locking mechanism to secure the drive, eliminating the need for a traditional screw.

CLR CMOS BUTTON

The Clr CMOS button quickly resets BIOS settings to factory default. It can also be used to reboot the PC if incorrect BIOS settings have been selected.

BIOS FLASHBACKâ„¢

BIOS FlashBackâ„¢ is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed.

Q-CODE

An on-board display shows diagnostic codes, providing a valuable reference for troubleshooting common boot problems and hardware issues.

START BUTTON

This convenient button removes the need to manually jump hard-to-reach pins during testing and troubleshooting.

ALL-ROUND PERFORMANCE

From power delivery, to PCIe 5.0 support, I/O, and on-board cooling, the Strix X670E-E fully flexes AM5 and infuses AMD Ryzenâ„¢ 7000 Series processors with additional agility to plough through every task.

PCIE 5.0

Blazing fast storage is at your command with three PCIE 5.0 M.2 slots and one PCIE 4.0 M.2 slot. Push speeds even further, create a mirrored backup, or both; NVMe and SATA RAID configurations (0/1/10) are available through AMD RAID Xpert2. PCIe 5.0 support also extends to two x16 extension slots, which include SafeSlot to support heavy graphics cards and Q-release (top slot only) for easy upgrades.

LEADING CONNECTIVITIY

The ROG Strix X670E-E Gaming WiFi delivers a plethora of internal and external connectivity for low-latency networking and ultrafast data transfers. Those perks are joined by an advanced audio solution that allows you to pick out the smallest cues and home in on your opponents.


Product Type:   Gaming Desktop Motherboard
Processor & Chipset
Chipset Manufacturer:   AMD
Chipset Model:   X670
Total Processor Supported:   1
Processor Socket:   Socket AM5
Processor Supported:   Ryzen 5
Processor Supported:   Ryzen 7
Processor Supported:   Ryzen 9
Memory
Number of Memory Slots:   4
Memory Form Factor:   DIMM
Memory Form Factor:   UDIMM
Maximum Memory Supported:   128 GB
Memory Technology:   DDR5 SDRAM
Memory Speed Supported:   5000 MHz
Memory Speed Supported:   5400 MHz
Memory Speed Supported:   5600 MHz
Memory Speed Supported:   5800 MHz
Memory Speed Supported:   4800 MHz
Memory Speed Supported:   5200 MHz
Memory Speed Supported:   6000 MHz
Memory Speed Supported:   6200 MHz
Memory Speed Supported:   6400 MHz
I/O Controller
Controller Type:   Serial ATA/600
RAID Supported:   Yes
RAID Levels:   0
RAID Levels:   1
RAID Levels:   10
Video
Onboard Video:   CPU Dependent Video
Audio
Audio Channels:   7.1
Network & Communication
Bluetooth:   Yes
Bluetooth Standard:   Bluetooth 5.2
2.5Gigabit Ethernet:   Yes
Wireless LAN:   Yes
Wireless LAN Standard:   IEEE 802.11 a/b/g/n/ac/ax
I/O Expansions
Number of Total Expansion Slots:   3
PCI Express Standard:   PCI Express 5.0
PCI Express Standard:   PCI Express 4.0
Total Number of PCI Express Slots:   3
Number of PCI Express x16 Slots:   3
Interfaces/Ports
Total Number of USB Ports:   13
Number of USB 3.2 Ports:   1
Number of USB 3.2 Gen 2 Type-A Ports:   10
Number of USB 3.2 Gen 2 Type-C Ports:   2
S/PDIF:   Yes
HDMI:   Yes
HDMI Version:   2.1
DisplayPort:   Yes
Number of Network (RJ-45) Ports:   1
Onboard Interfaces
Number of SATA Interfaces:   4
Number of M.2 Interfaces:   4
Total Number of Onboard USB Ports:   9
Number of Onboard USB 2.0 Ports:   6
Number of Onboard USB 3.2 Ports:   3
Physical Characteristics
Form Factor:   ATX
Width:   12"
Depth:   9.6"
Miscellaneous
Package Contents:
Strix X670E-E GAMING WIFI Gaming Desktop Motherboard
2 x SATA 6Gb/s Cables
1 x Thermal Pad for M.2
1 x ASUS Wi-Fi Moving Antennas
1 x Cable Ties Pack
1 x Massive M.2 Heatsink
1 x M.2 Q-Latch package for M.2 backplate
1 x M.2 Q-Latch package
1 x ROG Graphics Card Holder
2 x Rubber Packages for M.2
1 x Rubber Package for M.2 backplate
1 x ROG key Chain
1 x ROG Strix Sticker
1 x ROG Strix Thank You Card
1 x User Guide

Brand Compatibility:   AMD
Environmentally Friendly:   Yes
Environmental Certification:   RoHS
Warranty
Limited Warranty:   3 Year
Weight: 6 lbs
ROG Strix X670E-E GAMING WIFI
Asus ROG Strix X670E-E GAMING WIFI Gaming Desktop Motherboard - AMD X670 Chipset - Socket AM5 - ATX
ROG Strix X670E-E GAMING WIFI
Asus ROG Strix X670E-E GAMING WIFI Gaming Desktop Motherboard - AMD X670 Chipset - Socket AM5 - ATX
ROG Strix X670E-E GAMING WIFI
Asus ROG Strix X670E-E GAMING WIFI Gaming Desktop Motherboard - AMD X670 Chipset - Socket AM5 - ATX
ROG Strix X670E-E GAMING WIFI
Asus ROG Strix X670E-E GAMING WIFI Gaming Desktop Motherboard - AMD X670 Chipset - Socket AM5 - ATX
(Click to see larger image and other views)
List Price: $569.99
Price: $494.99
You Save: $75.00 (13%)
Reserved for System orders.
