XPG CORE REACTOR 850W Modular PC Power Supply Gold Certified

General Information

Manufacturer:   ADATA Technology Co., Ltd

Manufacturer Part Number:   COREREACTOR850G-BKCUS

Manufacturer Website Address:   www.adata.com/us/

Brand Name:   XPG

Product Line:   CORE REACTOR

Product Name:   CORE REACTOR Modular PC Power Supply (850W)

Marketing Information:

80 Plus Gold Certified

The 80 Plus Gold certified XPG CORE REACTOR Modular PC Power Supply (850W) gives you 90% efficiency at 50% load. It comes in 650W, 750W, and 850W for different needs.

Intelligent Fan-Curve

Intelligent fan-curve provides near-quiet operations, even when at full power load. The fan control starts at a low 3.3v, 660rpm ± 10%, and remains at this speed until surpassing 50% load, prolonging the lifespan of the fan and the power supply unit.

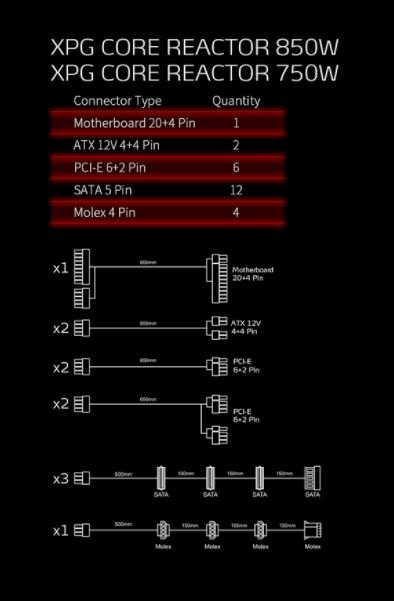

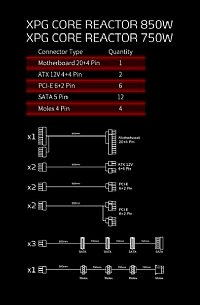

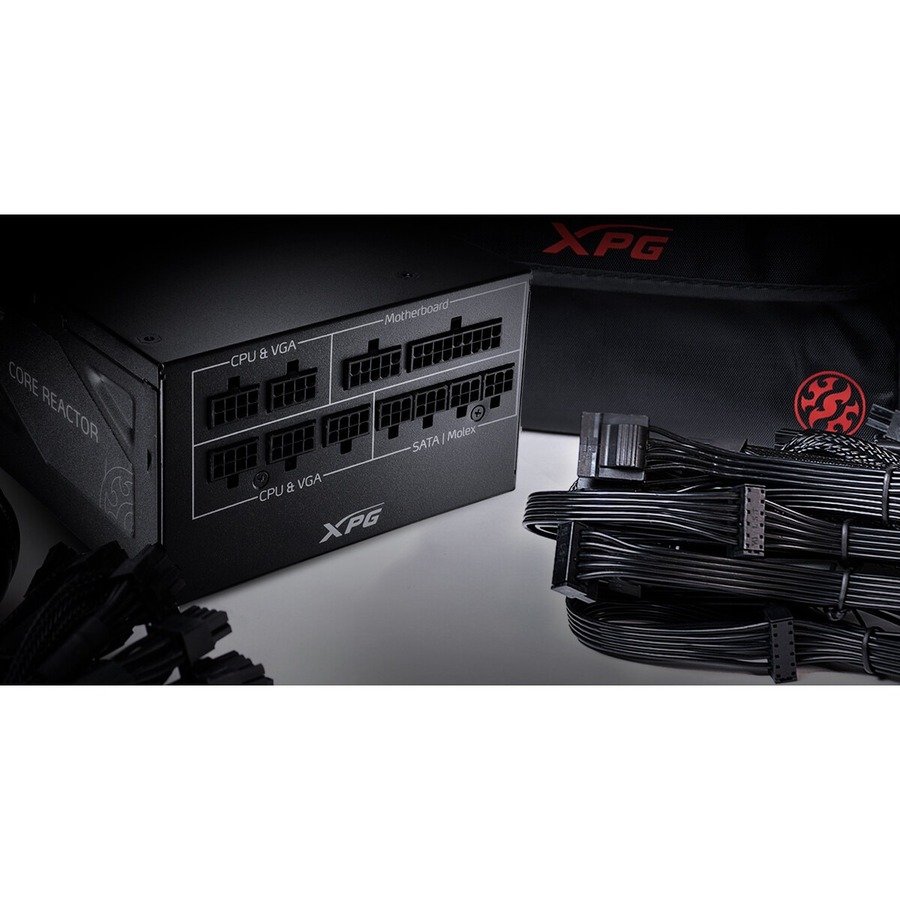

Compact and Modular

The XPG CORE REACTOR is compact in size due to the combination of high-quality components, a well-thought-out layout, and a new manufacturing process. What's more, its modular design reduces cable clutter and simplifies system building.

Premium Japanese Capacitators

Equipped with All 105°C Japanese capacitors, the XPG CORE REACTOR provides you with reliability and stability. The XPG CORE REACTOR's DC voltage is maintained within ±2% and reduces ripple and noise by up to 35% for enhanced dependability.

Industrial-Grade Protection

The XPG CORE REACTOR comes with an array of protection mechanisms for peace of mind and backed by a 10-year warranty.

Over Current Protection (OCP)

Over Voltage Protection (OVP)

Under Voltage Protection (UVP)

Over Power Protection (OPP)

Short Circuit Protection (SCP)

Over Temperature Protection (OTP)

No Load Operation (NLO)

Surge & Inrush Protection (SIP)

Product Type:   Power Supply

Technical Information

Specification Compliance:   ATX12V/EPS12V

Efficiency:   90%

Number of Fans:   1 fan(s)

Modular:   Yes

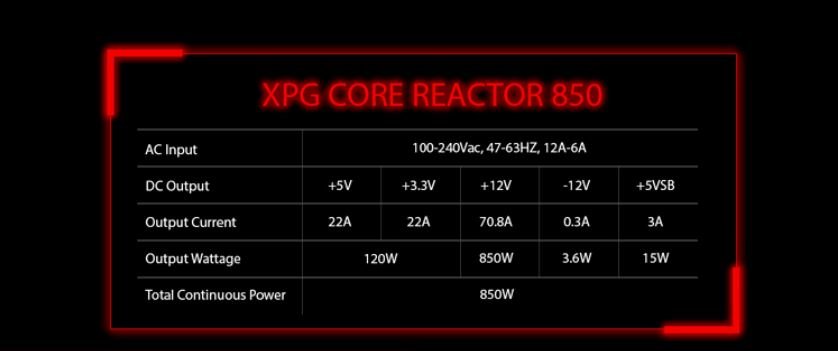

Power Description

Output Power:   850 W

Physical Characteristics

Form Factor:   Internal

Miscellaneous

Environmentally Friendly:   Yes

Environmental Certification:   80 Plus Gold

Country of Origin:   Taiwan

Warranty

Limited Warranty:   10 Year
