Seasonic Power Supply SSR-500GB3 500W 80+ Bronze ATX 12V with 120mm Double Ball Bearing Fan

SSR-500GB3
Seasonic Power Supply SSR-500GB3 500W 80+ Bronze ATX 12V with 120mm Double Ball Bearing Fan
SSR-500GB3
Seasonic Power Supply SSR-500GB3 500W 80+ Bronze ATX 12V with 120mm Double Ball Bearing Fan
SSR-500GB3
Seasonic Power Supply SSR-500GB3 500W 80+ Bronze ATX 12V with 120mm Double Ball Bearing Fan
SSR-500GB3
Seasonic Power Supply SSR-500GB3 500W 80+ Bronze ATX 12V with 120mm Double Ball Bearing Fan

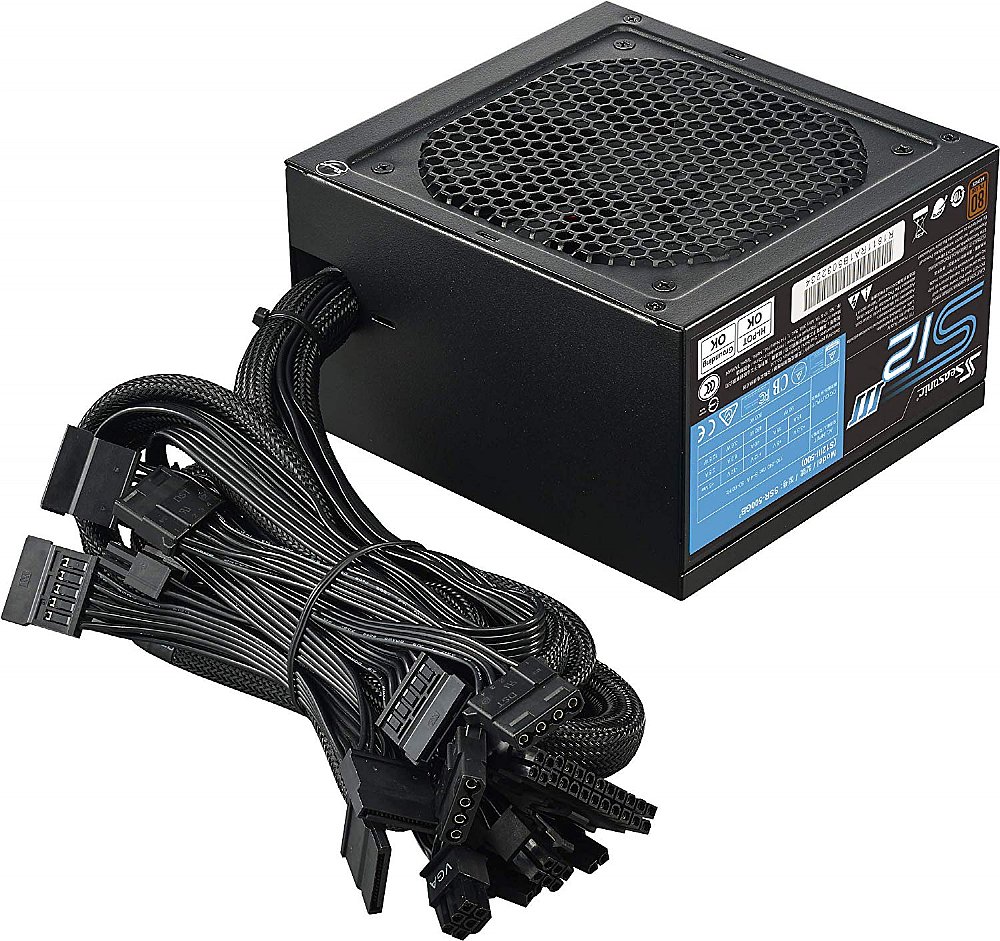

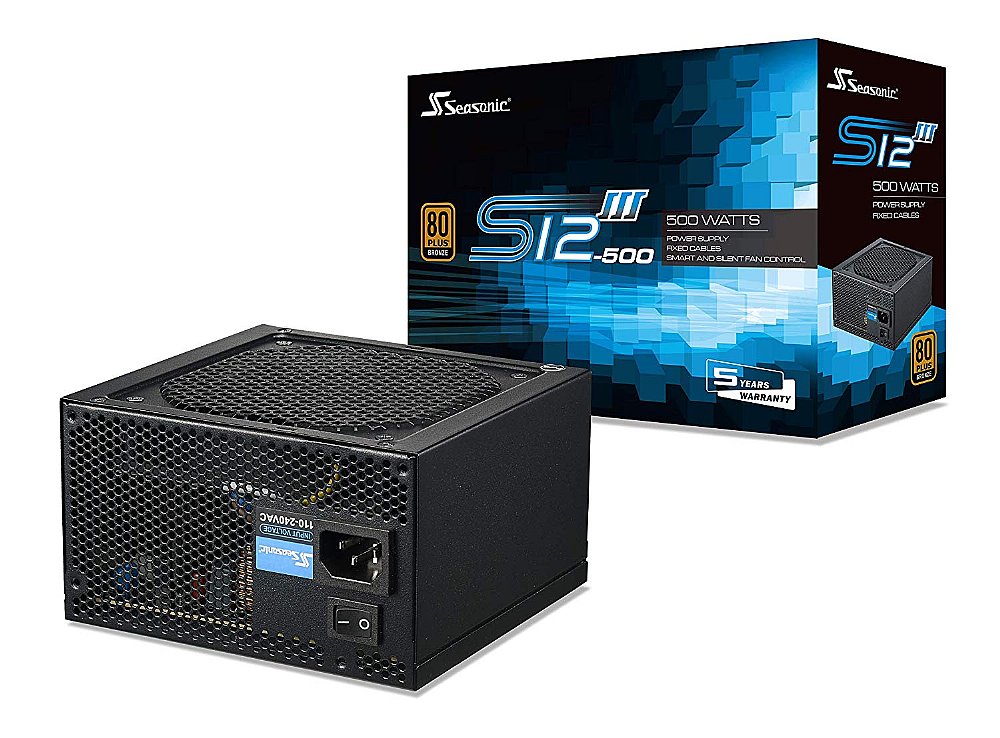

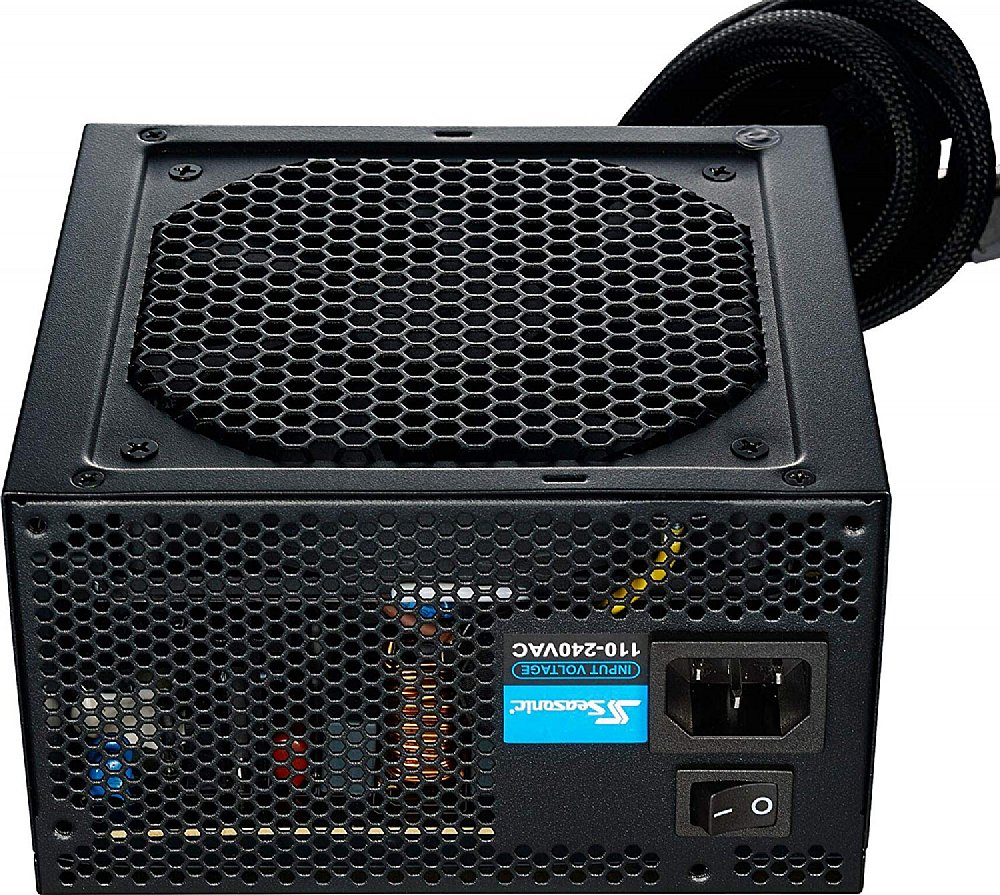

(Click to see larger image and other views)
Product Details
The S12III Bronze Series is available in the standard ATX Form Factor and in wattages that are most common for a PC system. The Seasonic S12III-Series achieves 80 PLUS® Bronze standard of providing at least 82 %, 85 % and 82 % power usage efficiency at 20 %, 50 % and 100 % operating loads, respectively. This efficiency, combined with Active Power Factor Correction, enables the S12III Bronze series power supplies to lessen energy waste, which translates into savings on the costs of energy costs for its users. In addition to being greatly efficient, the S12III units utilize the LLC resonant converter design, and the industryâ€â„˘s leading Smart and Silent Fan Control (S2FC).
80 PLUS®BRONZE
The 80 PLUS® Bronze certification indicates that a high percentage of the electricity is converted into useful power, therefore there is less heat lost and more money saved on the electricity bill.
The 80 PLUS® Bronze certification guarantees greater than 82 %, 85 % and 82 % efficiency at 20 %, 50 % and 100 % operating loads, respectively. Sea Sonicâ€â„˘s Bronze Series is an economical choice with great performance and high built-in value.
S2FC - SMART AND SILENT FAN CONTROL
The intelligent thermal circuit feature is designed to find the optimal balance between the necessity to cool the components and the need to run the power supply in the most silent manner possible.
FEATURE SUMMARY
â€Â˘ 80 PLUS® Bronze certified
â€Â˘ Fixed cables
â€Â˘ Tight Voltage Regulation
â€Â˘ S2FC - Smart and Silent Fan Control
â€Â˘ Gold plated connectors

SKU: PSA500NM-SSR-500GB3
Weight: 5 lbs
Technical Specifications: 80PLUS Bronze - Form Factor Intel ATX 12 V - Fan Information Fan Size 120 mm Fan Control Seasonic S2FC Fan Bearing Sleeve bearing - Life Expectancy 30,000 hours at 40oC, 15 % - 65 % RH - Cable Information Modularity Fixed cable Cable type Flat black cables - Electrical Features Operating Temperature 40oC MTBF at 25oC, excl. fan 100,000 hours AC Input Full Range Protection OPP, OVP, UVP, SCP- Safety and Environmental Safety and EMC cTUVus, TUV, Gost-R, CB , BSMI, CCC, CE, FCC, C-tick Environmental Compliance Energy Star, RoHS, WEEE, REACH - Power Output AC Input Voltage: 110 V - 240 V Current: 8 A - 4 A Frequency: 50 Hz - 60 Hz Rail +3.3 V Maximum Power 20 A 100 W Rail +5 V Maximum Power 20 A 100 W Rail +12 V Maximum Power 40 A 480 W Rail -12 V Maximum Power 0.3 A 3.6 W Rail +5 VSB Maximum Power 2.5 A 12.5 W Total continuous power 500 W - CABLES Connector Main Power (24/20 pins) Connector Count 1 Cable Length 1 x 550 mm - attached Connector CPU (8/4 pins) Connector Count 1 Cable Length 1 x 600 mm - 8/4 pins attached Connector PCIe (8/6 pins) Connector Count 2 Cable Length 1 x 550 + 150 mm - 8/6 pins attached Connector SATA Connector Count 4 Cable Length 2 x 400 + 120 mm - attached Connector Peripheral Connector Count 3 Cable Length 1 x 450 + 120 + 120 mm - attached Connector Floppy Connector Count 1 Cable Length 1 x 120 mm - end connector of the peripheral cable- Item Dimension (L"xW"xH") 6 x 6 x 4 Weight 4.75 LB Warranty Information 5 years
Brand: Seasonic
List Price: $69.99
Price: $61.99
You Save: $8.00 (11%)
