Brand: Samsung
SKU: M.2P4-MZ-V8V500B/AM

Samsung Solid State Drive MZ-V8V500B/AM 980 500GB Retail Read/write 3100/2600/s

Drive Type: NVMe M.2
Brand: Samsung
Storage Capacity: 500GB NVMe M.2 SSD
UPC/EAN: 887276437200
Genuine PCIe 3.0 NVMe speed (up to 3,100/2,600MB/s for read/write speed) Space-saving and compact M.2 2280 form factor
Product Details

General Feature
Product Type
980 PCIe 3.0 NVMe SSD 500GB

Family Line
980 PCIe 3.0 NVMe SSD

Capacity
500GB

Interface
PCIe Gen 3.0 x4, NVMe 1.4

Dimension (WxHxD)

80.15 x 2.38 x 22.15 (mm)

Performance
Speed
Read/write speeds up to: 3,100/2,600MB/s

Encryption
AES 256-bit Full Disk Encryption, TCG/Opal V2.0, Encrypted Drive (IEEE1667)

Type
Interface
PCIe Gen 3.0 x4, NVMe 1.4

Usage Application
Client PCs

Storage
Capacity
500GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)

Key Features
Sequential Read Speed
Up to 3,100 MB/s * Performance may vary based on system hardware & configuration

Sequential Write Speed
Up to 2,600 MB/s * Performance may vary based on system hardware & configuration

Cache Memory

HMB(Host Memory Buffer)

Trim Support
Supported

S.M.A.R.T. Support
Supported

GC (Garbage Collection)
Auto Garbage Collection Algorithm

WWN Support

Not supported

Device Sleep Mode Support
Yes

NVMe
PCIe 3.0

General
Average Power Consumption (system level)
*Average: 4.3 W* Actual power consumption may vary depending on system hardware & configuration

Power consumption (Idle)
Max. 45 mW * Actual power consumption may vary depending on system hardware & configuration

Reliability (MTBF)
1.5 Million Hours Reliability (MTBF)

Environmental Specs
Shock
1,500 G & 0.5 ms (Half sine)

Form Factor
Product
M.2 2280

Warranty
Product
* Limited warranty up to 5 years or up to the TBW for each capacity ***For more information on the warranty, please visit www.samsung.com/support

MZ-V8V500B/AM

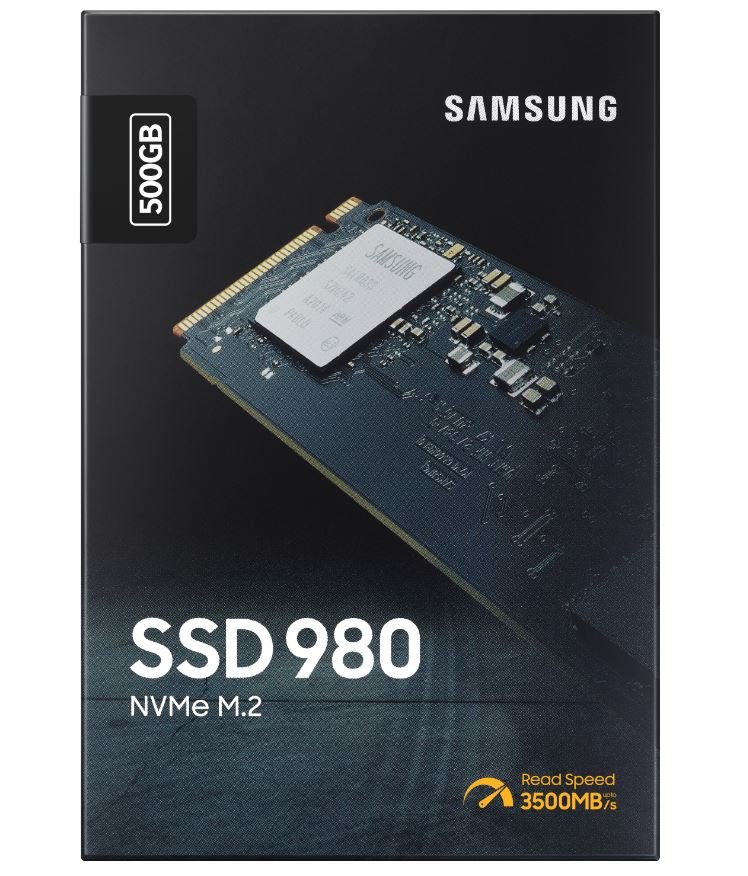

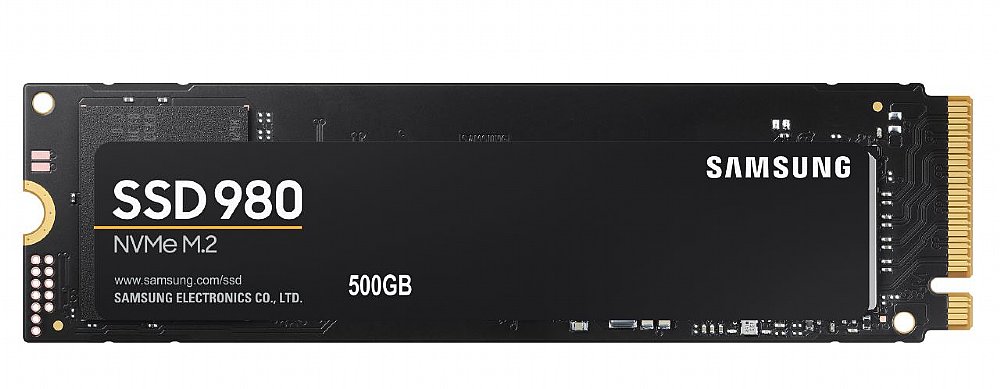

Samsung Solid State Drive MZ-V8V500B/AM 980 500GB Retail Read/write 3100/2600/s
MZ-V8V500B/AM
Samsung Solid State Drive MZ-V8V500B/AM 980 500GB Retail Read/write 3100/2600/s
MZ-V8V500B/AM
Samsung Solid State Drive MZ-V8V500B/AM 980 500GB Retail Read/write 3100/2600/s
(Click to see larger image and other views)
List Price: $89.99
Price: $61.99
You Save: $28.00 (31%)
