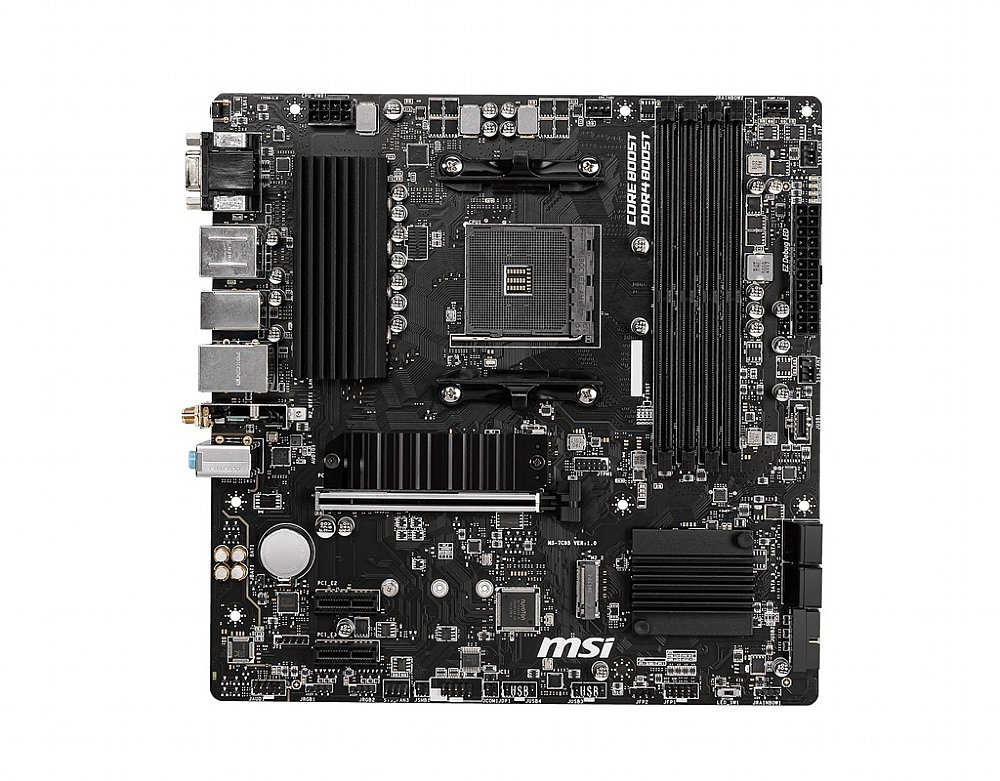

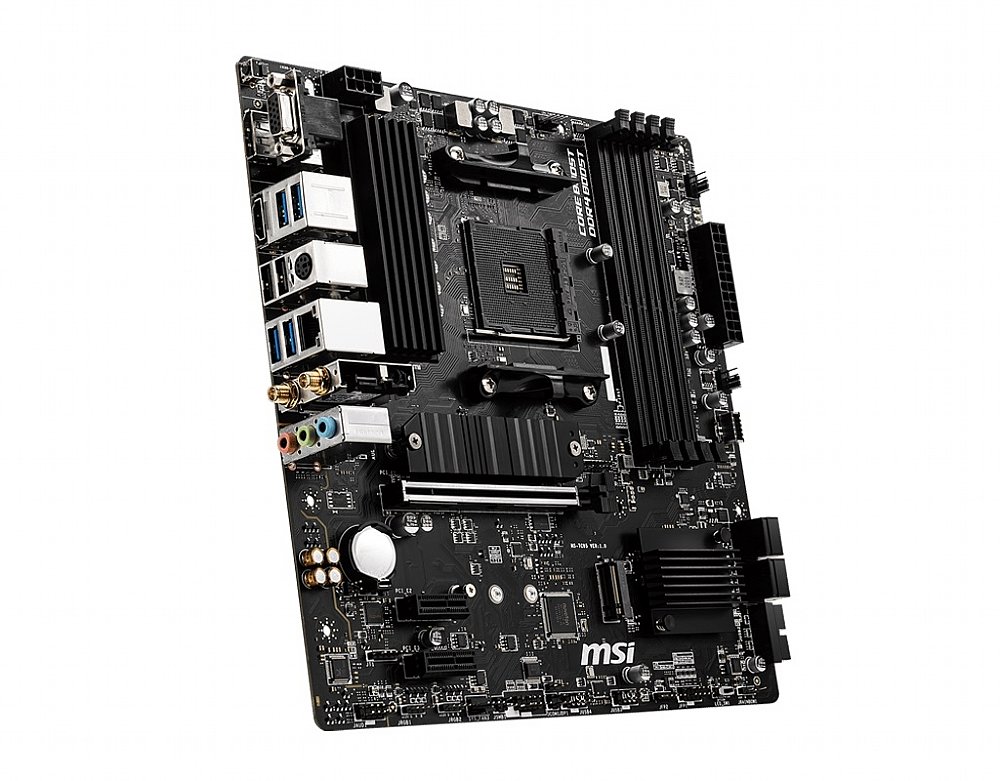

MSI WIFI Motherboard B550MPVDHWIFI B550 PRO-VDH WIFI AMD Socket AM4 B550 128GB DDR4 MATX

MSI B550 PRO-VDH WIFI
MSI WIFI Motherboard B550MPVDHWIFI B550 PRO-VDH WIFI AMD Socket AM4 B550 128GB DDR4 MATX
MSI B550 PRO-VDH WIFI
MSI WIFI Motherboard B550MPVDHWIFI B550 PRO-VDH WIFI AMD Socket AM4 B550 128GB DDR4 MATX
MSI B550 PRO-VDH WIFI
MSI WIFI Motherboard B550MPVDHWIFI B550 PRO-VDH WIFI AMD Socket AM4 B550 128GB DDR4 MATX
MSI B550 PRO-VDH WIFI
MSI WIFI Motherboard B550MPVDHWIFI B550 PRO-VDH WIFI AMD Socket AM4 B550 128GB DDR4 MATX
MSI B550 PRO-VDH WIFI
MSI WIFI Motherboard B550MPVDHWIFI B550 PRO-VDH WIFI AMD Socket AM4 B550 128GB DDR4 MATX
(Click to see larger image and other views)
Product Details
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

M.2 SHIELD FROZR
Worlds fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.

FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked â€Ëœkeep-out-zoneâ€â„¢ allows for easy and safe installation and a perfect fit.

NEXT-GEN INTEL® WI-FI AC & BLUETOOTH
This next-generation Intel® Wi-Fi / Bluetooth solution delivers AC speeds up to 433Mbps without any cable limitation.

PCB WITH 2OZ THICKENED COPPER
An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking.


Detail Specifications
CPU
Supports AM4 socket 3rd Gen AMD Ryzen processors, and future AMD Ryzen processors with BIOS update


CHIPSET
AMD B550 Chipset

MEMORY
4x DDR4 memory slots, support up to 128GB 1
Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE
1DPC 1R max speed 4400 MHZ
1DPC 2R max speed 3733 MHZ
2DPC 1R max speed 3866 MHZ
2DPC 2R max speed 3466 MHZ
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory
Supports un-buffered memory
Please refer www.msi.com for more information on compatible memory.
See supported memory

EXPANSION SLOT
1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1
2x PCIe 3.0 x1 slots
The supported specification depends on installed processor.
ONBOARD GRAPHICS
1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1
1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1
1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1 2
Maximum shared memory of 16 GB
Available for the processor with integrated graphics. Graphics specifications may vary depending on the CPU installed.
STORAGE
AMD B550 Chipset
4x SATA 6Gb/s ports
2x M.2 slots (Key M)
M2_1 slot (from AMD Processor)
Supports PCIe 4.0/ 3.0 x4 1
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
M2_2 slot (from AMD B550 chipset)
Supports PCIe 3.0x4
Supports 2242/ 2260/ 2280 storage devices
The supported specification depends on installed processor.
RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB
AMD B550 Chipset
3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor
4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
AUDIO
Realtek® ALC892 Codec
7.1-Channel High Definition Audio
LAN
1x Realtek® 8111HN Gigabit LAN controller
WIRELESS LAN & BLUETOOTH®
Intel® Dual Band Wireless-AC 3168
Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps speed.
Supports Dual Mode Bluetooth 2.1,2.1+EDR,3.0,4.0,BLE,4.2
INTERNAL CONNECTORS
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
3x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Serial port connector
1x Chassis Intrusion connector
2x 4-pin RGB LED connectors
2x 3-pin RAINBOW LED connectors
1xTPM module connector
1x Clear CMOS jumper

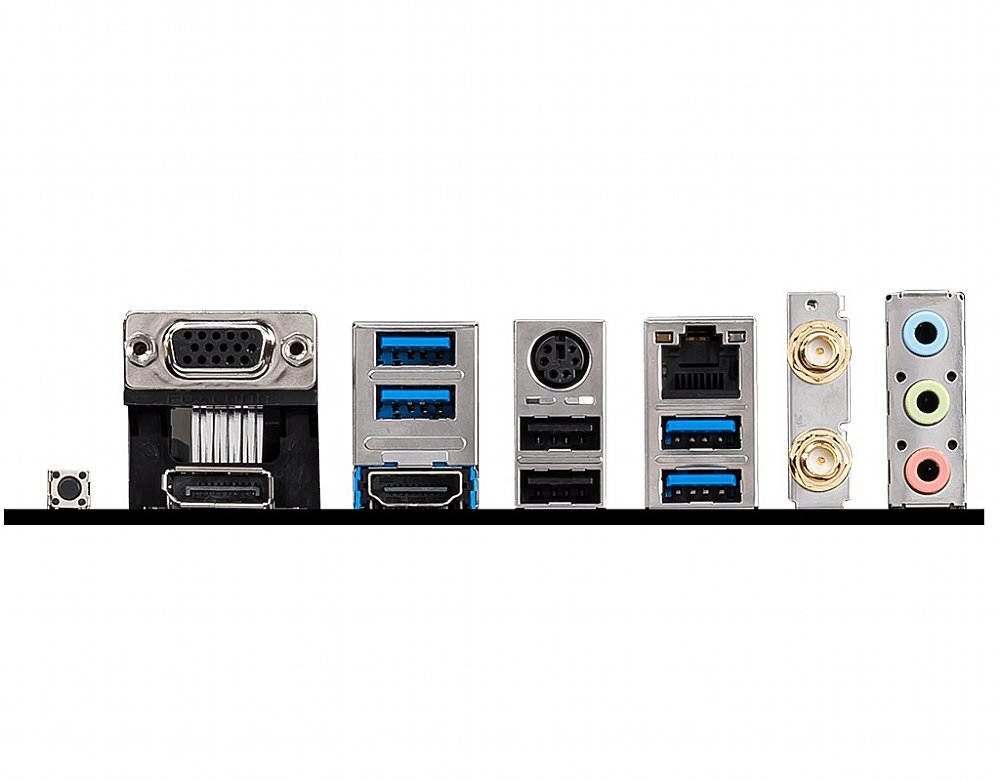

BACK PANEL PORTS
VGA
USB 3.2 Gen 1 5Gbps Type-A
Keyboard / Mouse
LAN
Flash BIOS Button
DisplayPort
HDMI
USB 2.0
USB 3.2 Gen 1 5Gbps Type-A
Wi-Fi Antenna connectors
3x Audio jacks
B550M PRO-VDH WIFI
DIMENSIONS
Micro-ATX Form Factor
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
MOUNTING
8 mounting holes
SKU: MBAM4MSI-B550MPVDHWIFI
Weight: 3 lbs 4 ozs
Brand: MSI
AMD Socket AM4 - CPU (MAX SUPPORT) Support for 3rd Gen AMD RyzenTM processors and future AMD RyzenTM processors with BIOS update- CHIPSET AMD B550 Chipset
Chipset: B550
CPU Type: AM4
# of Memory Slots: 4
Brand: MSI
Memory Technology: DDR4 Support
Form Factor: MATX
List Price: $154.99
Price: $119.99
You Save: $35.00 (23%)
