Brand: MSI
SKU: MB17-PROZ690AWIFI

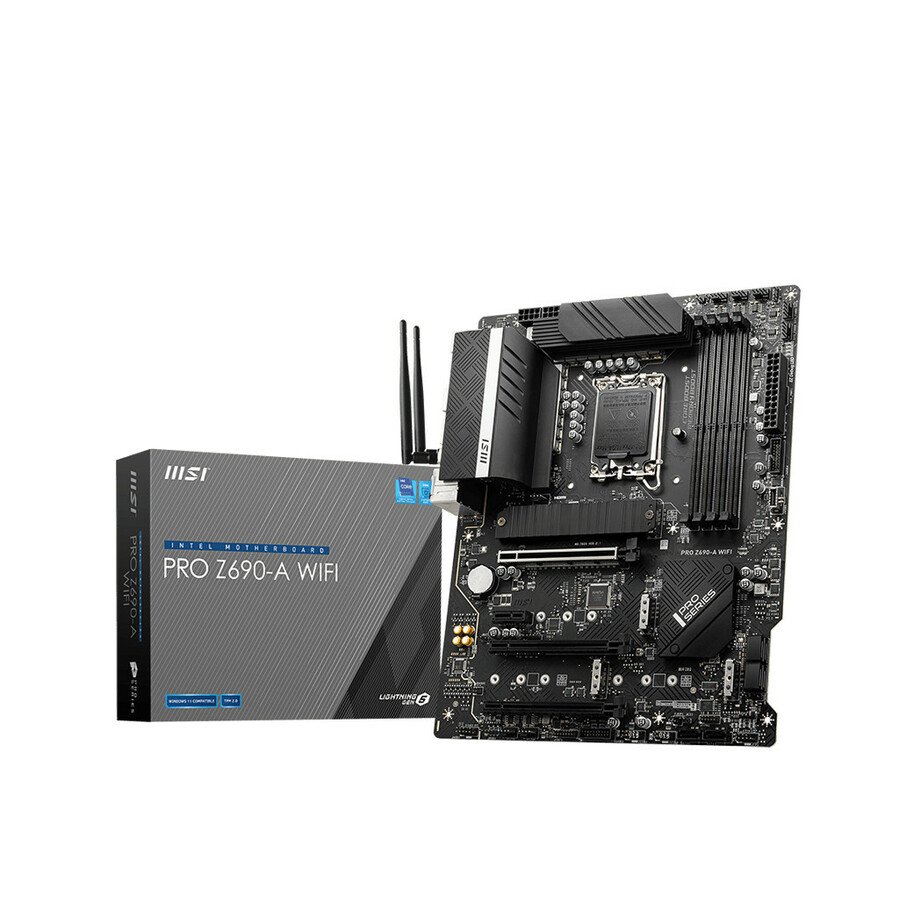

MSI Motherboard PROZ690AWIFI PRO Z690-A WIFI Z690 Socket1700 Max128GB DDR5 PCI Express ATX

Interfaces/Ports: DisplayPort & HDMI
Chipset: Intel Z690
CPU Socket: LGA 1700
# of Memory Slots: 4
Brand: MSI
Memory Technology: DDR5
UPC/EAN: 824142270370
Form Factor: ATX
Pentium Gold, Celeron, Core i5, Core i7, Core i9 Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 6 x SATA Interfaces
Product Details
General Information
Manufacturer:   MSI
Manufacturer Part Number:   PROZ690AWIFI
Manufacturer Website Address:   www.msi.com
Brand Name:   MSI
Product Series:   PRO
Product Model:   Z690-A WIFI
Product Name:   PRO Z690-A WIFI Desktop Motherboard
Marketing Information:
PRO SERIES

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.


Product Type:   Desktop Motherboard
Processor & Chipset
Chipset Manufacturer:   Intel
Chipset Model:   Z690
Total Processor Supported:   1
Processor Socket:   Socket LGA-1700
Processor Generation Supported:   12th Gen
Processor Supported:   Core i5
Processor Supported:   Core i7
Processor Supported:   Pentium Gold
Processor Supported:   Celeron
Processor Supported:   Core i9
Multi GPU Supported:   CrossFire
Memory
Number of Memory Slots:   4
Memory Form Factor:   DIMM
Memory Form Factor:   UDIMM
Maximum Memory Supported:   128 GB
Memory Technology:   DDR5 SDRAM
Memory Speed Supported:   4800 MHz
Memory Speed Supported:   6400 MHz
Memory Speed Supported:   4000 MHz
Memory Speed Supported:   5400 MHz
Intel Optane Memory Ready:   Yes
I/O Controller
Controller Type:   Serial ATA/600
RAID Supported:   Yes
RAID Levels:   0
RAID Levels:   1
RAID Levels:   10
RAID Levels:   5
Video
Onboard Video:   CPU Dependent Video
Audio
Audio Channels:   7.1
Network & Communication
Bluetooth:   Yes
2.5Gigabit Ethernet:   Yes
Wireless LAN:   Yes
Wireless LAN Standard:   IEEE 802.11 a/b/g/n/ac/ax
I/O Expansions
Number of Total Expansion Slots:   4
Total Number of PCI Express Slots:   4
Number of PCI Express x4 Slots:   1
Number of PCI Express x16 Slots:   3

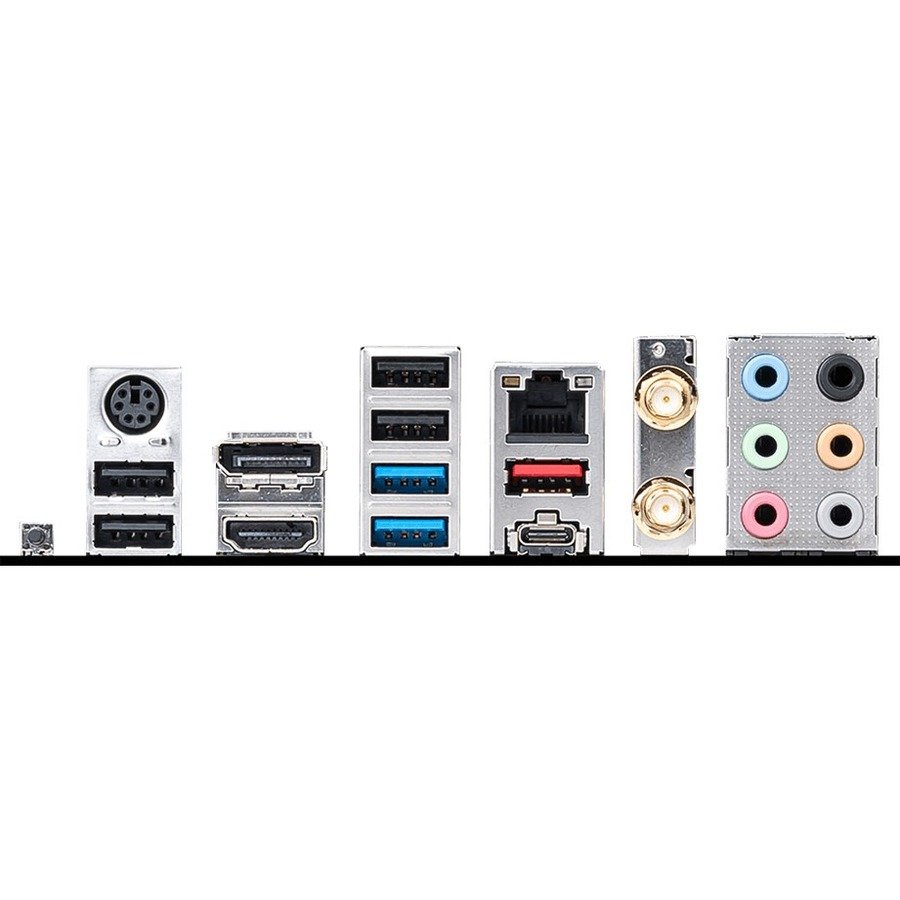

Interfaces/Ports
Total Number of USB Ports:   8
Number of USB 2.0 Ports:   4
Number of USB 3.2 Ports:   1
Number of USB 3.2 Gen 1 Ports:   2
Number of USB 3.2 Gen 2 Type-A Ports:   1
HDMI:   Yes
DisplayPort:   Yes
Number of Network (RJ-45) Ports:   1
Onboard Interfaces
Number of SATA Interfaces:   6
Number of M.2 Interfaces:   4
Total Number of Onboard USB Ports:   9
Number of Onboard USB 2.0 Ports:   4
Number of Onboard USB 3.2 Ports:   5
Physical Characteristics
Form Factor:   ATX
Width:   12"
Depth:   9.6"
Miscellaneous
Package Contents:
PRO Z690-A WIFI Desktop Motherboard
Quick Installation Guide
M.2 Screw / Standoff Sets
2 x M.2 Clips
2 x SATA Cables
Product Registration Card
I/O Shield
Driver DVD
Wi-Fi Antenna

Brand Compatibility:   Intel
Country of Origin:   China
Warranty
Limited Warranty:   3 Year

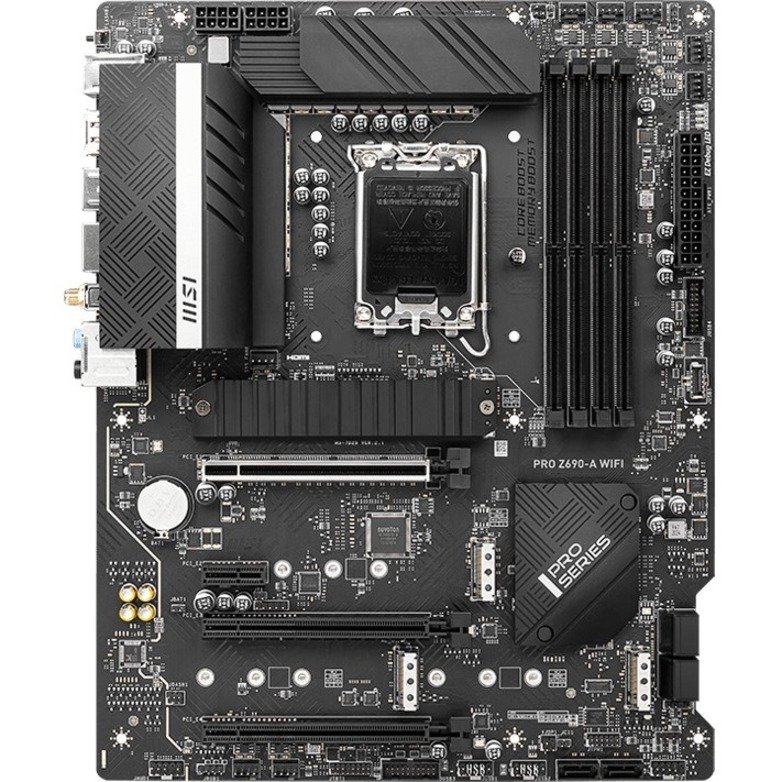

MSI PRO Z690-A WIFI
MSI Motherboard PROZ690AWIFI PRO Z690-A WIFI Z690 Socket1700 Max128GB DDR5 PCI Express ATX
MSI PRO Z690-A WIFI
MSI Motherboard PROZ690AWIFI PRO Z690-A WIFI Z690 Socket1700 Max128GB DDR5 PCI Express ATX
MSI PRO Z690-A WIFI
MSI Motherboard PROZ690AWIFI PRO Z690-A WIFI Z690 Socket1700 Max128GB DDR5 PCI Express ATX
MSI PRO Z690-A WIFI
MSI Motherboard PROZ690AWIFI PRO Z690-A WIFI Z690 Socket1700 Max128GB DDR5 PCI Express ATX
MSI PRO Z690-A WIFI
MSI Motherboard PROZ690AWIFI PRO Z690-A WIFI Z690 Socket1700 Max128GB DDR5 PCI Express ATX
MSI PRO Z690-A WIFI
MSI Motherboard PROZ690AWIFI PRO Z690-A WIFI Z690 Socket1700 Max128GB DDR5 PCI Express ATX
(Click to see larger image and other views)
List Price: $279.99
Price: $229.99
You Save: $50.00 (18%)
