Mini Silent PC Case General Information
Manufacturer: Fractal Design
Manufacturer Part Number: FD-C-POS1M-01
Manufacturer Website Address: www.fractal-design.com
Brand Name: Fractal Design
Product Line: Pop Mini Silent

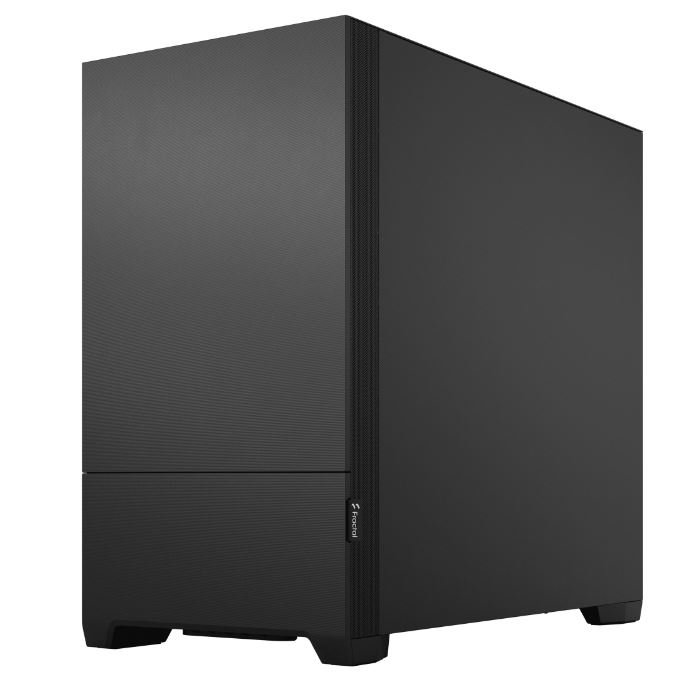

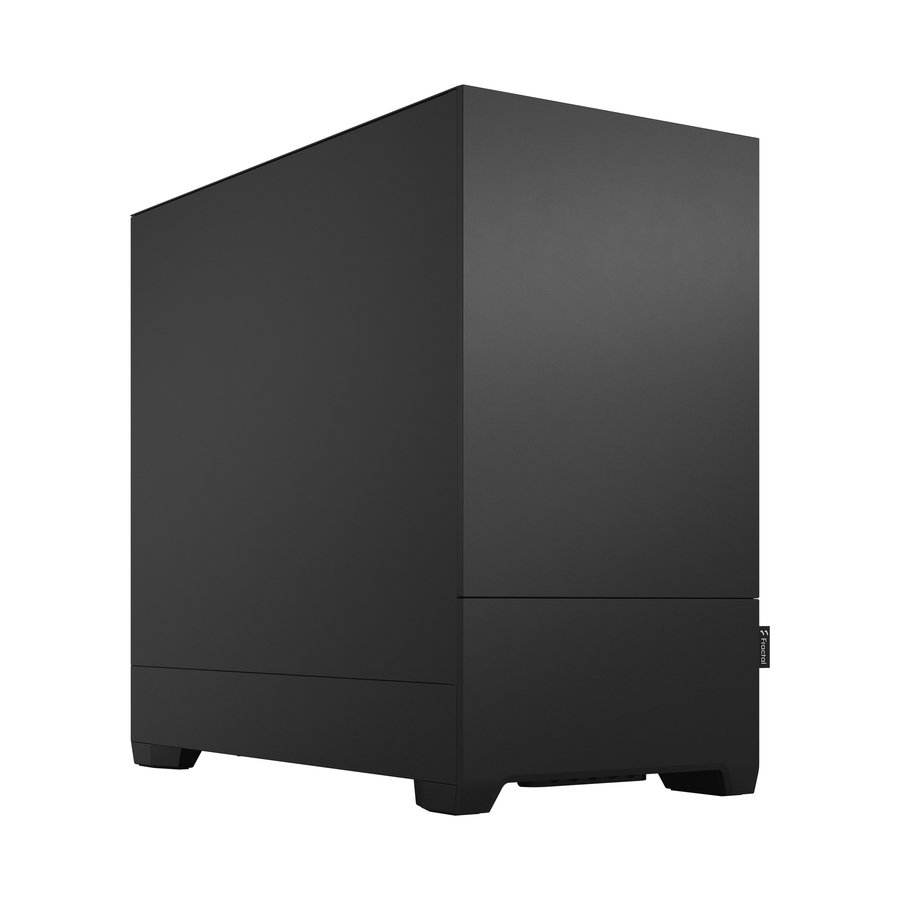

Product Name: Pop Mini Silent Computer Case
Marketing Information:
Simply sleek
Fractal fuse flair with function in the new Pop series of cases that doesn't skimp on aesthetics or flexibility. The Pop Mini Silent PC case offers a sound-damped build in excellent quality and with a modest footprint.
A hidden compartment
Two neatly concealed 5.25” bays with storage drawer and magnetic cover
Product Type: Silent Computer Case
Technical Information
Motherboard Supported: Mini ATX
Motherboard Supported: Mini ITX
Number of Fans Supported: 3
Number of Fans Installed: 2
Installed Fan Size: 4.72"
Bays
Number of External 5.25" Bays: 2
Number of Internal 3.5" Bays: 0
Number of Internal 2.5" Bays: 4
Number of Internal 2.5"/3.5" Bays: 2
Number of Total Expansion Bays: 8
I/O Expansions
Number of Total Expansion Slots: 4
Interfaces/Ports
Total Number of USB Ports: 2
Front USB: Yes
Total Number of Audio In Ports: 1
Front Audio In: Yes
Total Number of Audio Out Ports: 1
Front Audio Out: Yes
Pop Mini Silent PC Case Power Description
Power Supply Installed: No
Number of Power Supplies Supported: 1
Number of Power Supplies Installed: 0
Physical Characteristics
Product Color: Black
Product Material: Steel
Cooler Type: Fan Cooler
Form Factor: Tower
Maximum CPU Cooler Height: 6.69"
Maximum PSU Length: 5.91"
Height: 15.5"
Width: 8.5"
Depth: 17"
Weight (Approximate): 13.62 lb
Miscellaneous
Package Contents:
Pop Mini Silent Computer Case
Accessory Bag
User Manual
Pop Silent Case Warranty
Limited Warranty: 2 Year
Specifications

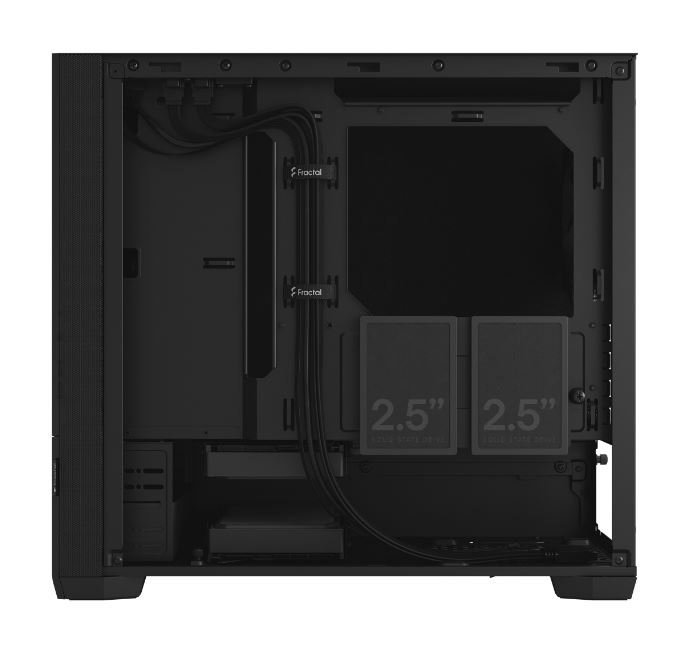

Dedicated 2.5" drive mounts
4 (2 included)
Combined 3.5/2.5†drive mounts
2 (2 Included)
5.25†drive mounts
2
Expansion slots
4

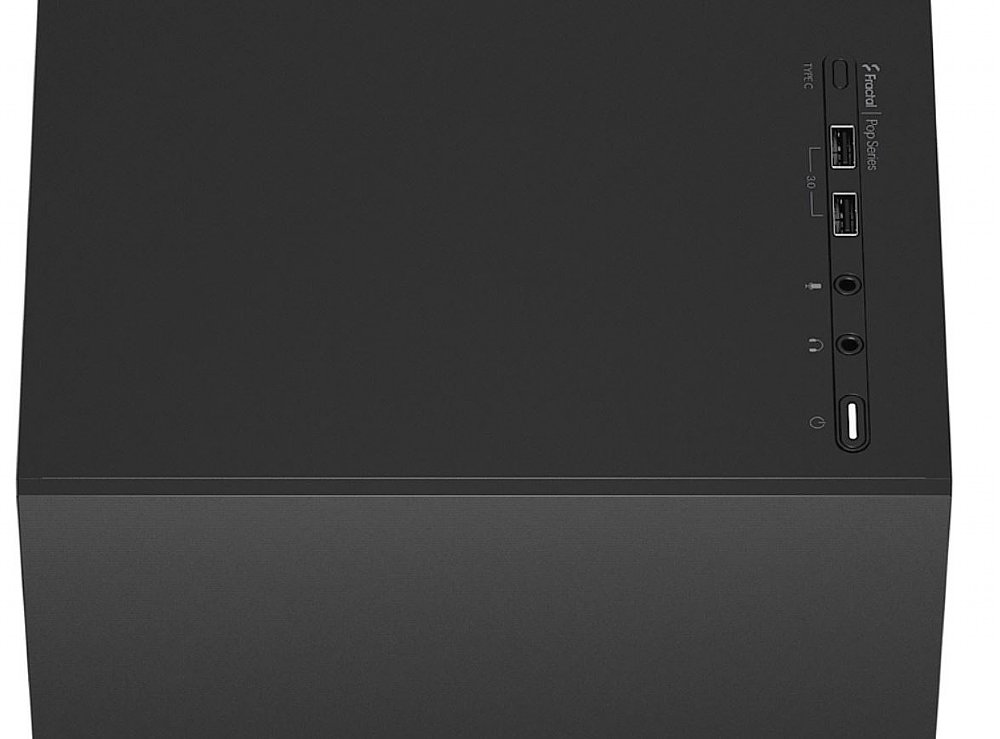

Front interface
2x USB 3.0*, Audio (* USB 3.1 Gen 2 Type-C add-on available separately)
Total fan mounts
3x 120 mm or 1x 140 mm + 1x 120

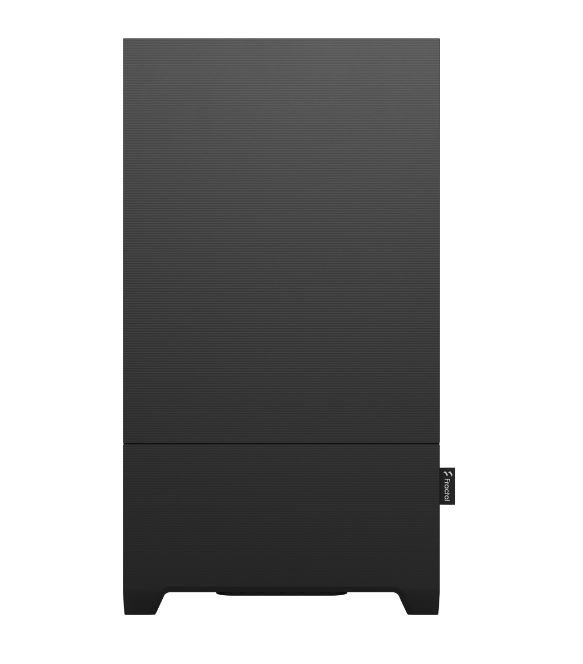

Front fan
2x 120/ 1x 140 mm (2x Aspect 12 included)
Top fan
N/A
Rear fan
1x 120 mm (1x Aspect 12 included)
Bottom fan
N/A
Dust filters
PSU (nylon)
Cable routing grommets
No
Fixed cable ties
Yes, 2 pcs
Captive thumbscrews
HDD brackets, SSD brackets, Side panels
Left side panel
Tempered glass (TG version) or Industrial sound damped steel (Solid version)
Right side panel
Industrial sound damped steel
Compatibility
Motherboard compatibility
mATX / Mini ITX
Power supply type
ATX
PSU max length
150 mm
GPU max length
340 mm with front fan mounted
CPU cooler max height
170 mm
Front radiator
Up to 240 mm
Rear radiator
1x 120 mm
Cable routing space
19 mm
Dimensions
Case dimensions (LxWxH)
432 x 215 x 393 mm
Net weight
6.23 kg (TG version), 6.18kg (Solid version)
Package dimensions (LxWxH)
517 x 293 x 480 mm
