SKU: CNPS-FD-CA-FOCUS-MINI-BK-W

Fractal Design Focus G Mini Black

Case Size: Mini Tower
UPC/EAN: 817301014915
Fans Included/Supported: 2 / 6
Form Factor: MATX, MITX

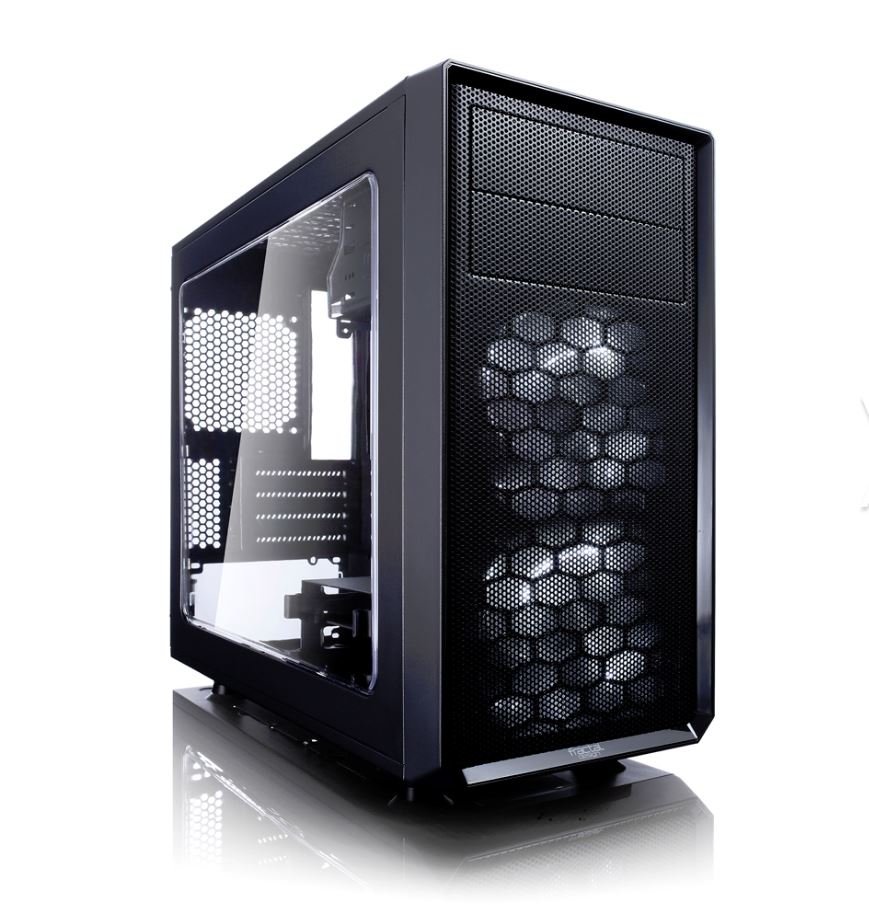

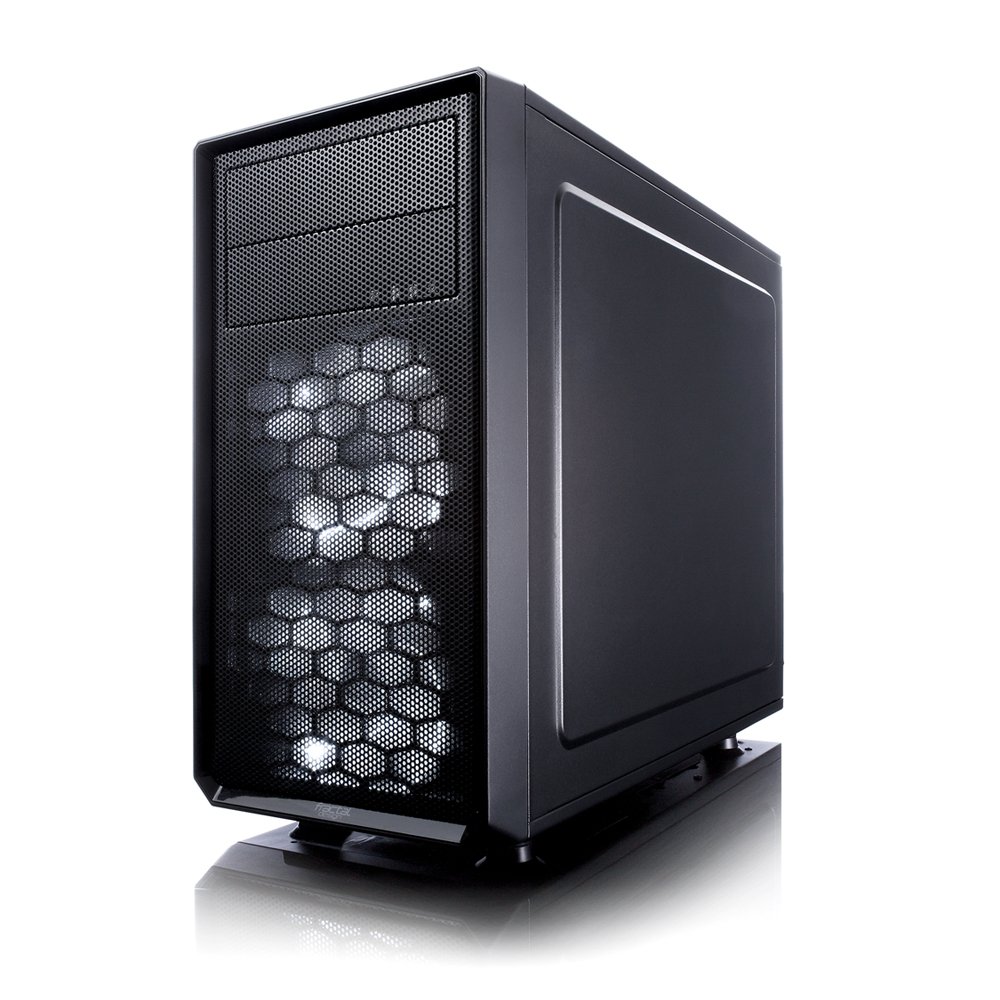

The Fractal Design Focus G Mini MicroATX mini tower case showcases the heart of your system with elegant accents and sophisticated style. Extensive cooling options are available with support for tall CPU heatsink/fan combos and water cooling with multiple dual-fan radiators.
Product Details

The new Focus series from Fractal Design is the cornerstone for your PC build, showcasing the hardware aesthetics at the heart of your system with elegant accents and sophisticated style.

Contemporary Micro ATX case design accommodates high-performance components with smart and efficient space utilization for a compact footprint.

Extensive cooling options are available with support for tall CPU heatsink/fan combos and water cooling with multiple dual-fan radiators.

Filtered front, top and base air intakes maintain a dust-free environment while expert cable management options keep wiring tidy.

With edge-to-edge visibility, clean contemporary styling and two Silent Series LED fans, the Focus Mini makes your hardware the center of attention.
Key features

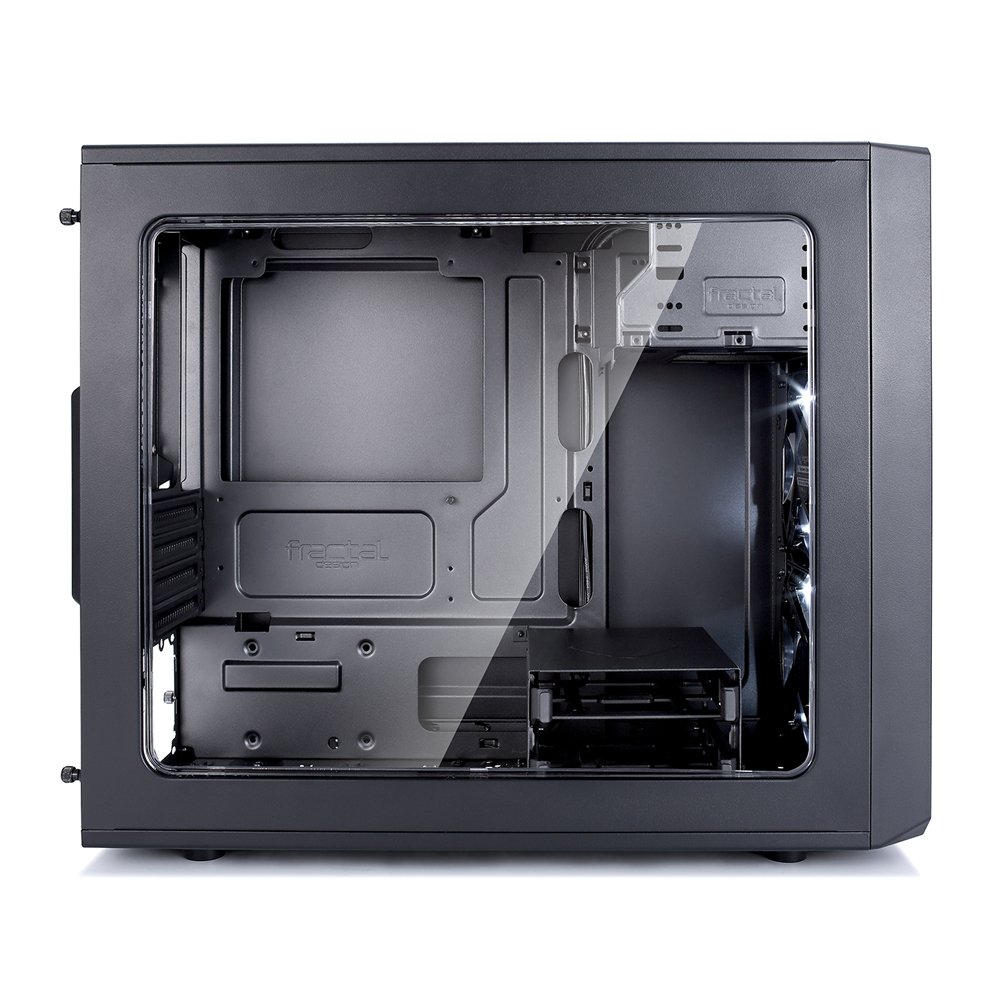

Large windowed side panel

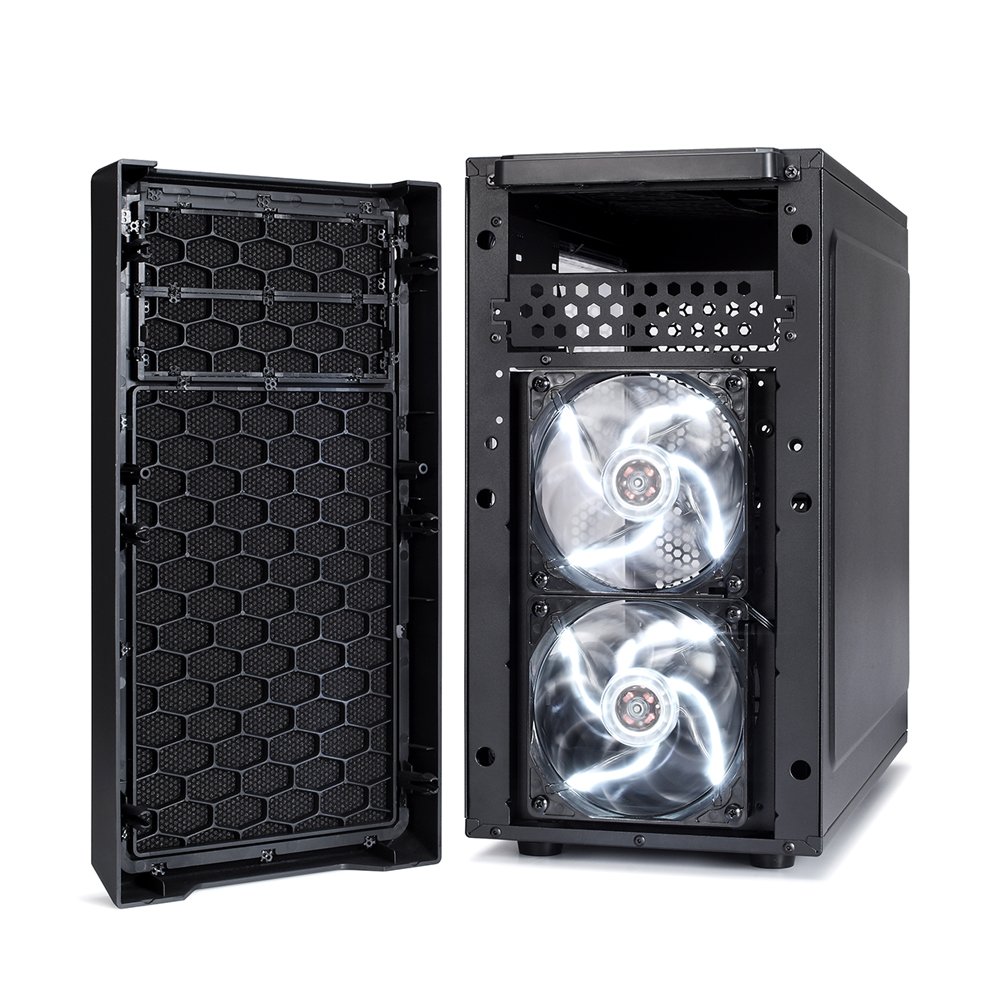

Two preinstalled Fractal Design Silent Series LL 120mm White LED fans
Six total fan positions for high-airflow capability

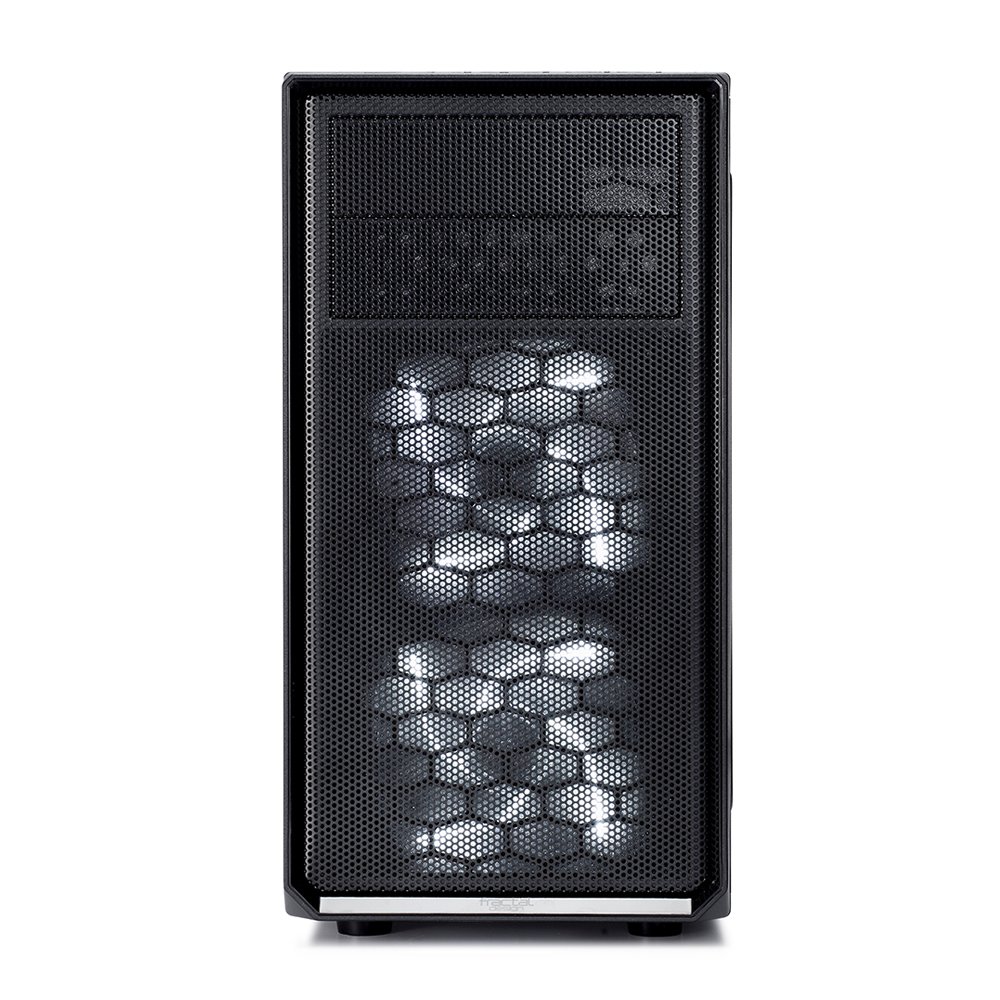

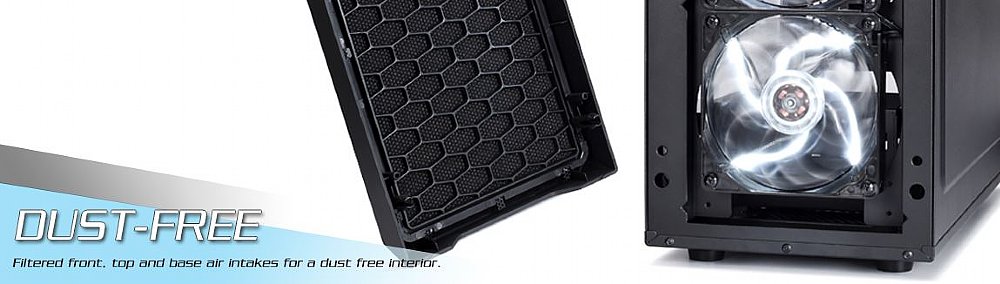

Filtered front, top and base air intakes for a dust free interior
Support for high-profile CPU coolers and multiple radiator configurations

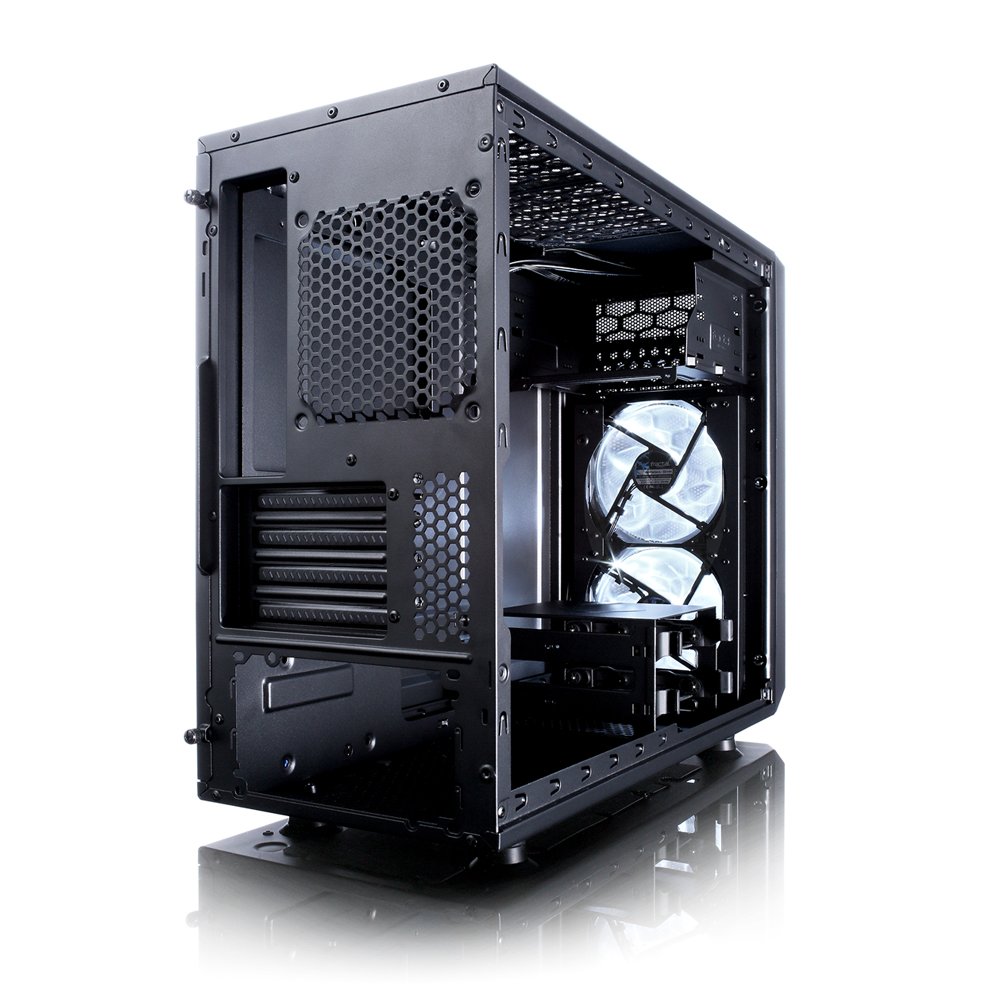

18 - 25 mm of space for cable routing behind the motherboard plate

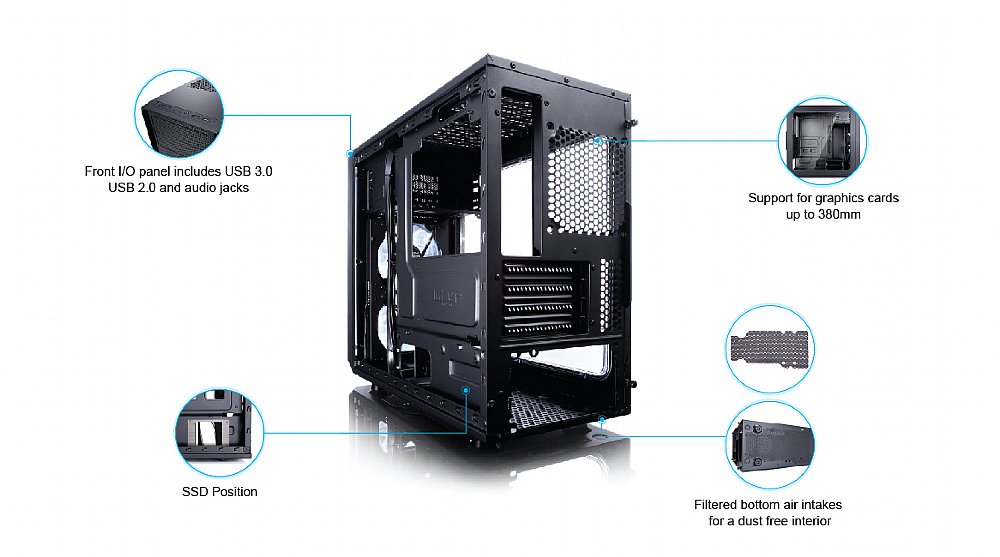

Support for graphics cards up to 380 mm long without compromising hard drive space

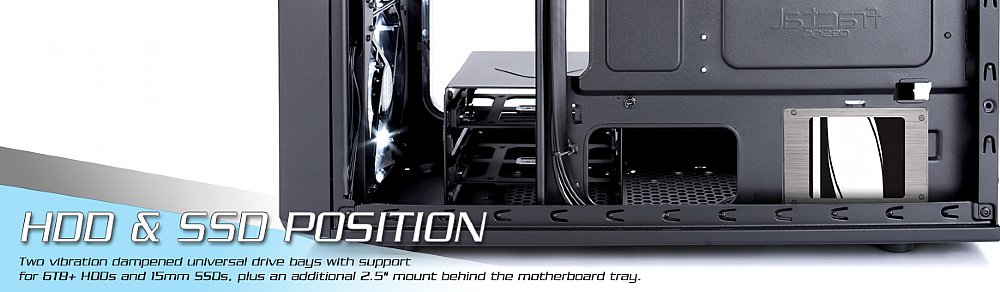

Two vibration dampened universal drive bays with support for6TB+ HDDs and 15mm SSDs, plus an additional 2.5" mount behind the motherboard tray

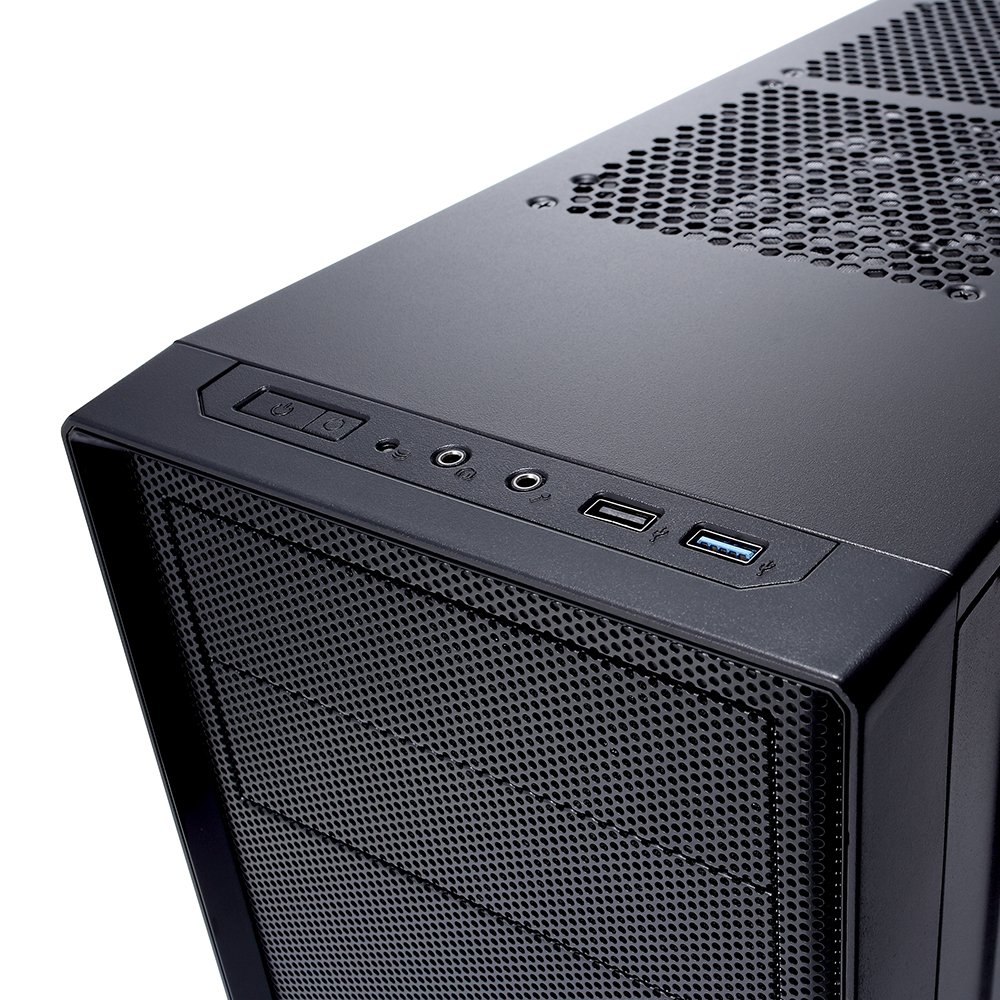

Front I/O panel includes USB 3.0, USB 2.0 and audio jacks
Kensington anti-theft padlock bracket and re-usable ventilated expansion slot covers included
Specification

Colors available
Black
Side panel window
Large
 3.5" or 2.5" Drive capacity
2
Dedicated 2.5" drive capacity
1
Expansion slots
4
Motherboard compatibility
mATX, ITX
Power supply type
ATX
Total fan mounts
6
Front fan
2x 120 or 1x 140 2x Silent Series LL 120mm LED fans included
Top fan
2x 120 or 2x 140
Rear fan
1x 120
Bottom fan
1x 120
Side fan
No
Dust filters
Top fans Bottom fan + PSU Front fans
Front radiator
120/240mm 140mm Limitation: 240 requires that the bottom 5.25" slot is unused
Top radiator
240mm
Rear radiator
120mm (max width 120mm)
Power supply depth limit
Maximum 230mm
Graphics card length limit
380mm
CPU cooler height limit
165mm
Cable routing
18-25 mm space
Cable routing grommets
No
Fixed velcro straps
No
Padlock and Kensington lock support
Yes
Captive thumbscrews
Both side panels
Dimension (WxHxD)
205x383x464 mm
Volume
 32.5 L
Weight
 4.1 kg
