Brand: Corsair
SKU: PSA650M-CP-9020221-NA

Corsair CX-M Series, CX650M, Modular Power Supply, 80 Plus Bronze

Brand: Corsair
UPC/EAN: 840006616528
Internal - 120 V AC, 230 V AC Input - 5 V DC @ 20 A, 3.3 V DC @ 20 A, 12 V DC @ 54 A, -12 V DC @ 0.3 A, 5 V DC @ 3 A Output - 650 W - 1 +12V Rails - 1 Fan(s) - 85% Efficiency
Product Details
Corsair CX650M Power Supply General Information
Manufacturer:   Corsair
Manufacturer Part Number:   CP-9020221-NA
Manufacturer Website Address:   www.corsair.com/us/
Brand Name:   Corsair
Product Series:   CX-M
Product Name:   650 Watt 80 PLUS Bronze Semi Modular ATX PSU
Marketing Information:
CORSAIR CX-M Series Low-Noise Power Supplies with single EPS12V connectors offer semi-modular cabling, a long-lasting rifle bearing fan, and Japanese capacitors for reliable, low-noise operation.

EFFICIENT POWER FOR NEARLY ANY BUILD

CORSAIR CX-M Series Low-Noise Power Supplies offer semi-modular cabling, a long-lasting rifle bearing fan, and Japanese capacitors for reliable, low-noise operation.

TUNED FOR LOW-NOISE OPERATION

A rifle bearing fan ensures longer life than conventional bearings with less noise, letting you focus more on the task at hand, whether it's gaming or work.

SEMI-MODULAR CABLING

Connect only the cables you need for a cleaner build with easy cable management and dual EPS12V connections.

Also compatible with the CORSAIR 12-pin GPU power cable for the hottest new GPUs.

HIGH EFFICIENCY

With upwards of 85% peak efficiency, CX-M produces less noise and less heat, which means less time worrying and more time gaming.

ROBUST DC-DC CONVERSION

For clean, consistent power, each CX-M Series power supply features robust DC-DC conversion and 105°C rated Japanese primary capacitors for unparalleled reliability.

COMPACT SIZE

At just 140mm long, the CX-M Series offers great flexibility in build configurations.

CERTIFICATIONS

The Cybenetics organization measures efficiency and noise levels across the PSU's entire operational range, using more than 1,450 different load combinations.

The "Silver" efficiency rating is defined as >=87% & <89% (depending on input voltage).

The "S+" noise level test is measured in those same configurations to be ?35 dBA & <40 dBA under noise data averaging.

GUARANTEED RELIABILITY

Corsair modular power supply has a five year warranty backed by the CORSAIR global technical support team.


Package Type:   Retail
Product Type:   Power Supply
Technical Information
Specification Compliance:   ATX12V/EPS12V
Efficiency:   85%
Number of Fans:   1
Power Description
Number of +12V Rails:   1
Input Voltage:   230 V AC
Input Voltage:   120 V AC
Output Voltage:   -12 V DC @ 0.3 A
Output Voltage:   5 V DC @ 3 A
Output Voltage:   12 V DC @ 54 A
Output Voltage:   3.3 V DC @ 20 A
Output Voltage:   5 V DC @ 20 A
Output Power:   650 W
Physical Characteristics
Form Factor:   Internal
Miscellaneous
Package Contents:
650 Watt 80 PLUS Bronze Semi Modular ATX PSU
Modular DC Cable Set
AC Power Cable
Warranty & Safety Documentation

Environmentally Friendly:   Yes
Environmental Certification:   80 Plus Bronze
Warranty
Limited Warranty:   5 Year

CP-9020221-NA
Corsair CX-M Series, CX650M, Modular Power Supply, 80 Plus Bronze
CP-9020221-NA
Corsair CX-M Series, CX650M, Modular Power Supply, 80 Plus Bronze
CP-9020221-NA
Corsair CX-M Series, CX650M, Modular Power Supply, 80 Plus Bronze
CP-9020221-NA
Corsair CX-M Series, CX650M, Modular Power Supply, 80 Plus Bronze

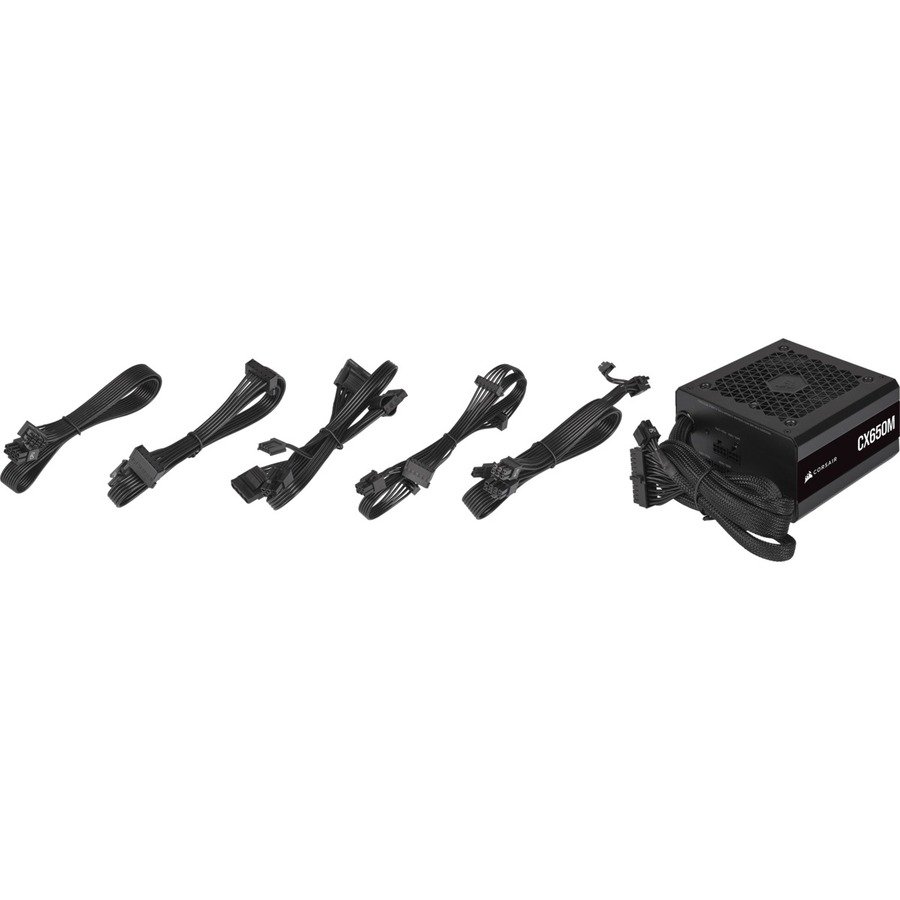

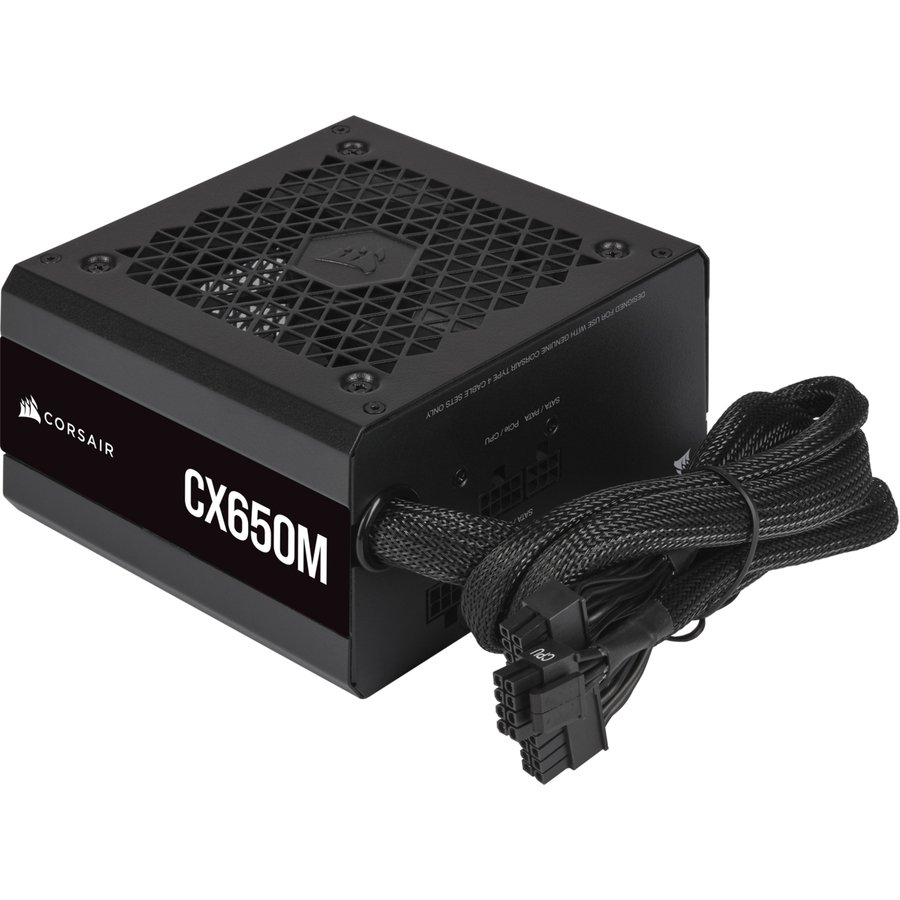

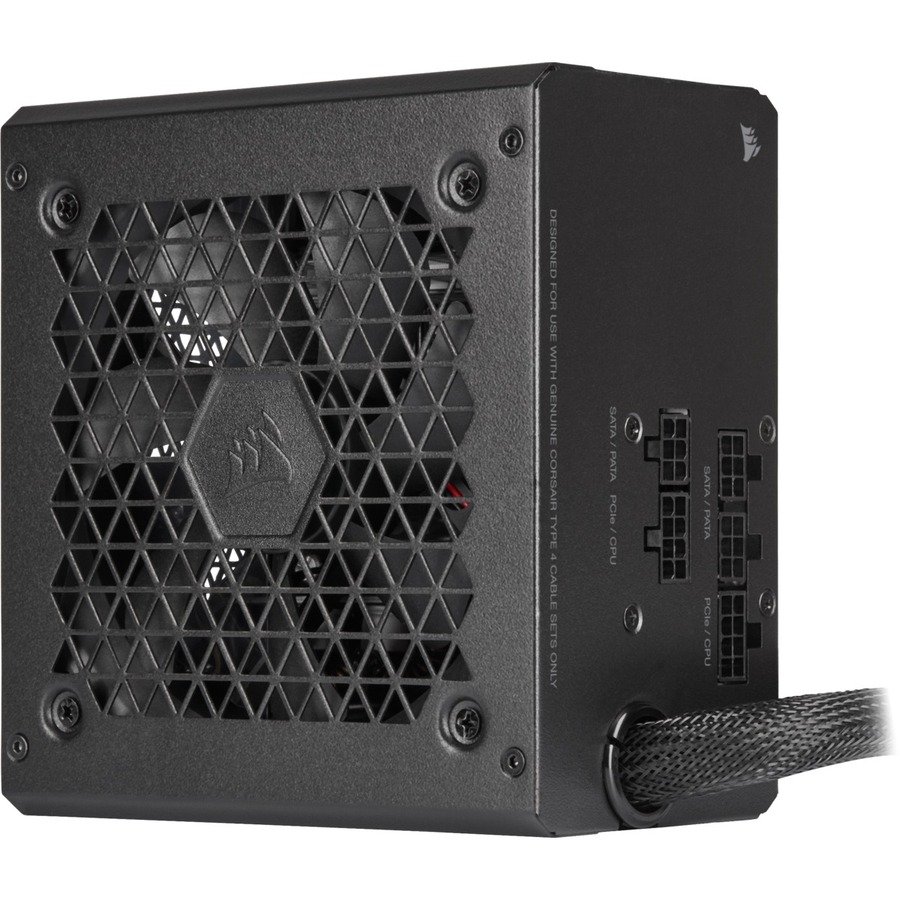

(Click to see larger image and other views)
List Price: $129.99
Price: $84.99
You Save: $45.00 (35%)
