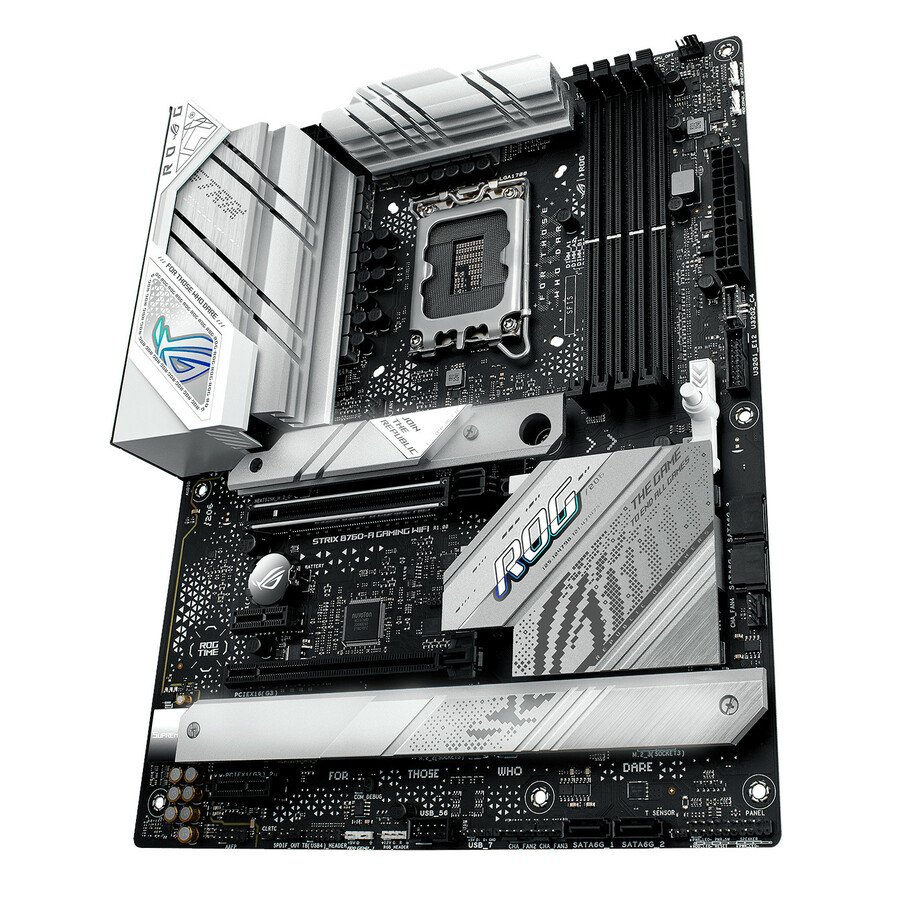

Asus ROG Strix B760-A GAMING WIFI Gaming Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - ATX

General Information

Manufacturer:   ASUS Computer International

Manufacturer Part Number:   ROG STRIX B760-A GAMING WIFI

Manufacturer Website Address:   usa.asus.com

Brand Name:   Asus ROG

Product Line:   Strix

Product Model:   STRIX B760-A GAMING WIFI

Product Name:   STRIX B760-A GAMING WIFI Gaming Desktop Motherboard

Marketing Information:

Just like its formidable sibling, the ROG Strix B760-A Gaming WiFi dishes up a vibrant take on the latest Intel platform, with PCIE 5.0, USB 3.2 GEN 2x2, and cyber-inspired ROG motifs emblazoned on a high-contrast backdrop. But this variant features DDR5, bringing even more bandwidth to the table for games and apps.

DIY-FRIENDLY FEATURES

PCIE® SLOT Q-RELEASE

A physical button unlocks the first PCIe slot's security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it's time to upgrade to a new GPU or other compatible device.

ALL-ROUND PERFORMANCE

The neat aesthetics of the Strix B760-A were no distraction when crafting this motherboard's power delivery and thermal arrays. You'll get a fully fledged gaming experience and then some with this beast

POWER ARCHITECTURE

12 + 1 power stages deliver ample current to drive the most powerful Intel 13th Gen processors through any workload with ease.

ALLOY CHOKES AND DURABLE CAPACITORS

High-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.

SIX-LAYER PCB

A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability.

LEADING CONNECTIVITY

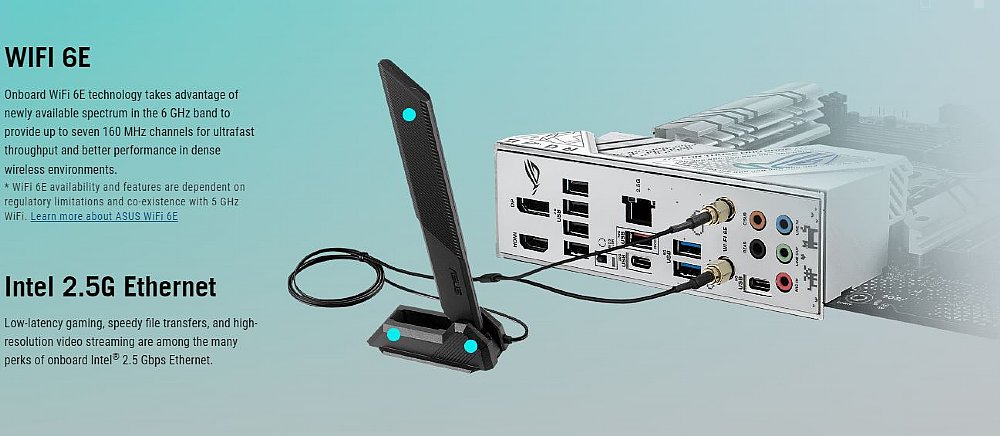

The Strix B760-A is entirely well-connected with high-speed wireless and wired networking, a plethora of USB I/O, and SupremeFX audio to pump crystal-clear sound through speakers or headphones for enhanced immersion

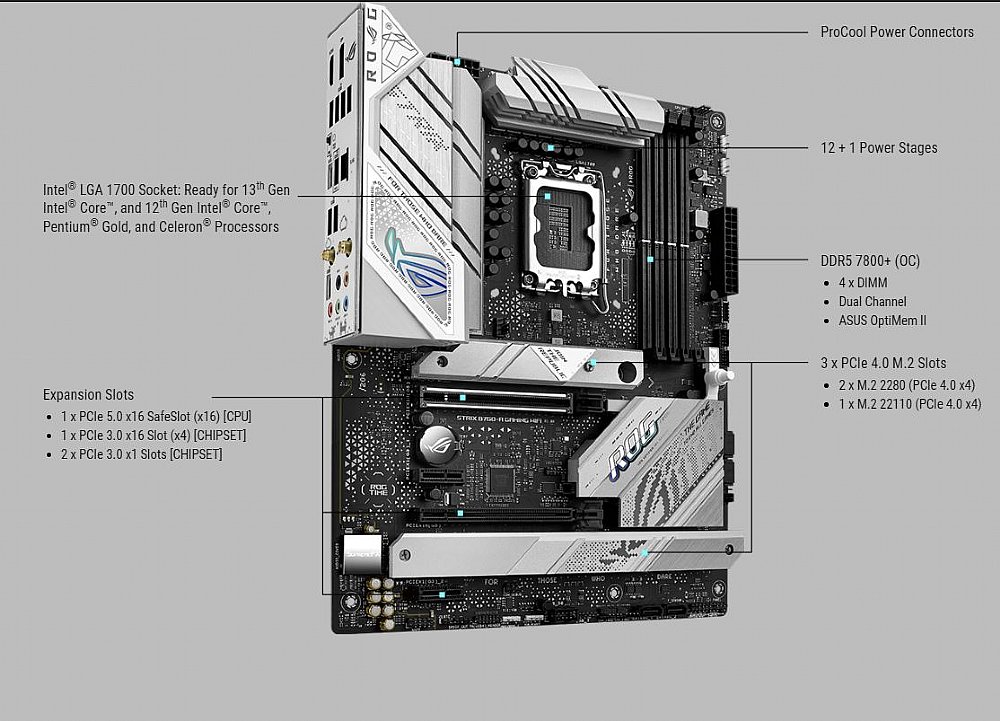

The top PCIe 5.0 x16 SafeSlot is well-equipped for the increased size and bandwidth of next-gen graphics cards. Zippy storage options abound with three PCIe 4.0 M.2 slots, all featuring robust heatsinks to maximize performance.

Product Type:   Gaming Desktop Motherboard

Processor & Chipset

Chipset Manufacturer:   Intel

Chipset Model:   B760

Total Processor Supported:   1

Processor Socket:   Socket LGA-1700

Processor Generation Supported:   12th Gen

Processor Generation Supported:   13th Gen

Processor Supported:   Celeron

Processor Supported:   Core

Processor Supported:   Pentium Gold

Memory

Number of Memory Slots:   4

Memory Form Factor:   UDIMM

Memory Form Factor:   DIMM

Maximum Memory Supported:   128 GB

Memory Technology:   DDR5 SDRAM

Memory Speed Supported:   5400 MHz

Memory Speed Supported:   5600 MHz

Memory Speed Supported:   6000 MHz

Memory Speed Supported:   6200 MHz

Memory Speed Supported:   6600 MHz

Memory Speed Supported:   7400 MHz

Memory Speed Supported:   7600 MHz

Memory Speed Supported:   7800 MHz

Memory Speed Supported:   4800 MHz

Memory Speed Supported:   5000 MHz

Memory Speed Supported:   5200 MHz

Memory Speed Supported:   5800 MHz

Memory Speed Supported:   6400 MHz

Memory Speed Supported:   6800 MHz

Memory Speed Supported:   7000 MHz

Memory Speed Supported:   7200 MHz

I/O Controller

Controller Type:   Serial ATA/600

RAID Supported:   Yes

RAID Levels:   0

RAID Levels:   1

RAID Levels:   10

RAID Levels:   5

Video

Onboard Video:   CPU Dependent Video

Audio

Audio Channels:   7.1

Network & Communication

Bluetooth:   Yes

Bluetooth Standard:   Bluetooth 5.3

Gigabit Ethernet:   Yes

2.5Gigabit Ethernet:   Yes

Wireless LAN:   Yes

Wireless LAN Standard:   IEEE 802.11 a/b/g/n/ac/ax

I/O Expansions

Number of Total Expansion Slots:   4

PCI Express Standard:   PCI Express 5.0

PCI Express Standard:   PCI Express 3.0

Total Number of PCI Express Slots:   4

Number of PCI Express x1 Slots:   2

Number of PCI Express x16 Slots:   2

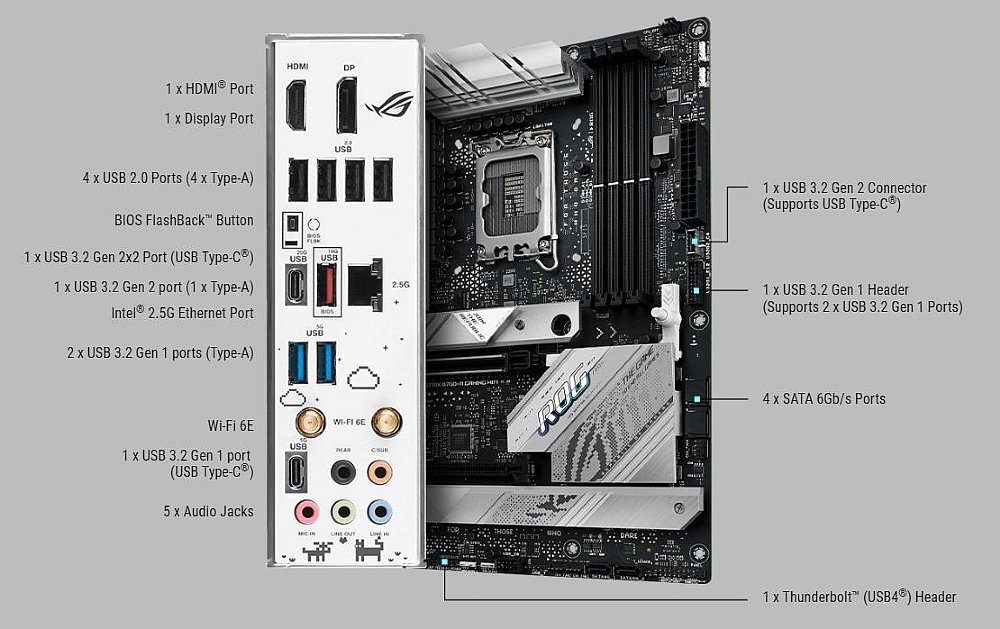

Interfaces/Ports

Total Number of USB Ports:   9

Number of USB 3.2 Gen 1 Type-A Ports:   2

Number of USB 3.2 Gen 2 Type-A Ports:   1

S/PDIF:   Yes

HDMI:   Yes

HDMI Version:   2.1

DisplayPort:   Yes

Number of Network (RJ-45) Ports:   1

Thunderbolt:   Yes

Number of Thunderbolt 4 Ports:   1

Onboard Interfaces

Number of SATA Interfaces:   4

Number of M.2 Interfaces:   3

Total Number of Onboard USB Ports:   6

Number of Onboard USB 2.0 Ports:   3

Physical Characteristics

Form Factor:   ATX

Width:   12"

Depth:   9.6"

Miscellaneous

Package Contents:

STRIX B760-A GAMING WIFI Gaming Desktop Motherboard

2 x SATA 6Gb/s cables

1 x Thermal pad for M.2

1 x ASUS Wi-Fi moving antennas

1 x Cable ties package

1 x M.2 Q-Latch package

1 x ROG key chain

1 x ROG Strix stickers

1 x ROG Strix thank you card

1 x M.2 Rubber Packages

1 x User guide

Brand Compatibility:   Intel

Environmentally Friendly:   Yes

Environmental Certification:   RoHS
