Brand: ASUS
SKU: MB17-PRIME Z790-P WIFI

Asus Prime PRIME Z790-P WIFI Gaming Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - ATX

Interfaces/Ports: DisplayPort & HDMI
Chipset: Intel Z790
CPU Socket: LGA 1700
# of Memory Slots: 4
Brand: ASUS
Memory Technology: DDR5
UPC/EAN: 195553937221
Form Factor: ATX
Core, Pentium Gold, Celeron Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DDR5-7200/PC5-57600 - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 4 x SATA Interfaces
Product Details
Asus Prime PRIME Z790-P WIFI Gaming Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - ATX - Core, Pentium Gold, Celeron Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DDR5-7200/PC5-57600 - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 4 x SATA Interfaces
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Coreâ„¢ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790-P WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

FLEXIBILITY

Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME Z790-P WIFI motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

Intelligent Control

ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

All-Around Energy EfficiencyThe Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

COOLING
PRIME Z790-P WIFI motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

M.2 Heatsink

An M.2 heatsink takes care of the two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers.

SPEC:

Audio
Audio Channels7.1
Video
Onboard VideoCPU Dependent Video
Miscellaneous

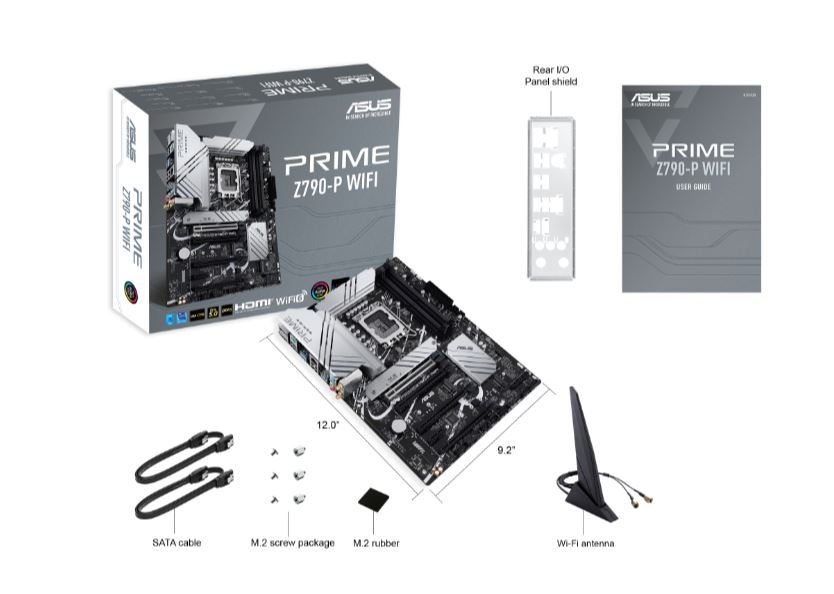

Package Contents
PRIME Z790-P WIFI Gaming Desktop Motherboard
2 x SATA 6Gb/s cables
1 x ASUS Wi-Fi Moving Antenna
1 x Q-connector
2 x M.2 Rubber Packages
1 x Screw Package for M.2 SSD
1 x User Guide
1 x User guide
Brand CompatibilityIntel
Physical Characteristics
Form FactorATX
Width12"
Depth9.6"
Onboard Interfaces
Number of SATA Interfaces4
Total Number of Onboard USB Ports5
Number of Onboard USB 2.0 Ports4
Number of M.2 Interfaces3
Network & Communication
BluetoothYes
Gigabit EthernetYes
Wireless LANYes
Wireless LAN StandardIEEE 802.11 a/b/g/n/ac/ax
2.5Gigabit EthernetYes
I/O Controller
RAID Levels1
5
10
0
Controller TypeSerial ATA/600
RAID SupportedYes
I/O Expansions
Number of PCI Express x1 Slots1
Number of Total Expansion Slots5
Number of PCI Express x16 Slots4
PCI Express StandardPCI Express 5.0
PCI Express 4.0
PCI Express 3.0
Total Number of PCI Express Slots5
Interfaces/Ports
HDMIYes
Number of Network (RJ-45) Ports1
DisplayPortYes
Total Number of USB Ports8
ThunderboltYes
Number of USB 3.2 Gen 2 Type-A Ports1
Number of Thunderbolt 4 Ports1
General Information
Product TypeGaming Desktop Motherboard
Manufacturer Part NumberPRIMEZ790-PWIFI
Manufacturer Website Addresshttp://usa.asus.com
ManufacturerASUS Computer International
Product ModelPRIME Z790-P WIFI
Product NamePRIME Z790-P WIFI Gaming Desktop Motherboard
Product LinePrime
Brand NameAsus
Processor & Chipset
Processor SupportedCore
Celeron
Pentium Gold
Total Processor Supported1
Processor SocketSocket LGA-1700
Chipset ManufacturerIntel
Chipset ModelZ790
Processor Generation Supported13th Gen
12th Gen
Memory
Maximum Memory128 GB
128 GB
Memory TechnologyDDR5 SDRAM
Memory StandardDDR5-7200/PC5-57600
DDR5-7200/PC5-57600
Number of Memory Slots4
Memory Form FactorDIMM
UDIMM
Memory Speed Supported6000 MHz
6800 MHz
4800 MHz
5000 MHz
5200 MHz
5400 MHz
5600 MHz
5800 MHz
7000 MHz
6200 MHz
6400 MHz
6600 MHz
6800 MHz
7000 MHz
4800 MHz
5000 MHz
5200 MHz
5400 MHz
5600 MHz
5800 MHz
6000 MHz
6200 MHz
6400 MHz
6600 MHz
PRIME Z790-P WIFI
Asus Prime PRIME Z790-P WIFI Gaming Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - ATX
PRIME Z790-P WIFI
Asus Prime PRIME Z790-P WIFI Gaming Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - ATX
PRIME Z790-P WIFI
Asus Prime PRIME Z790-P WIFI Gaming Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - ATX
PRIME Z790-P WIFI
Asus Prime PRIME Z790-P WIFI Gaming Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - ATX
PRIME Z790-P WIFI
Asus Prime PRIME Z790-P WIFI Gaming Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - ATX
PRIME Z790-P WIFI
Asus Prime PRIME Z790-P WIFI Gaming Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - ATX
PRIME Z790-P WIFI
Asus Prime PRIME Z790-P WIFI Gaming Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - ATX
(Click to see larger image and other views)
List Price: $259.99
Price: $249.99
You Save: $10.00 (4%)
