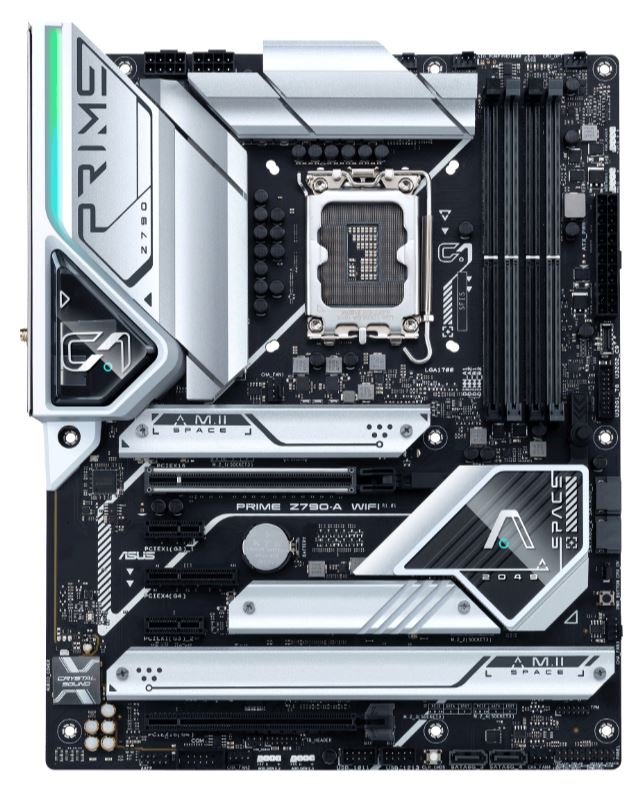

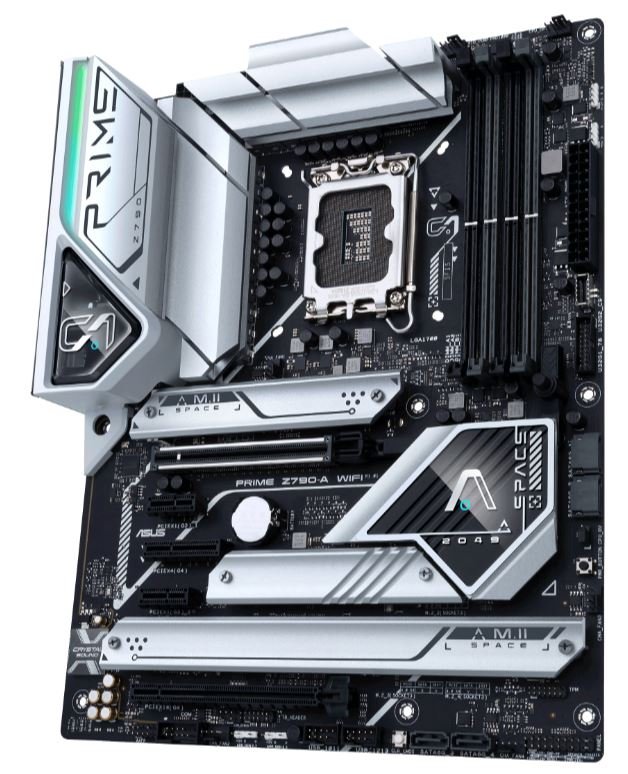

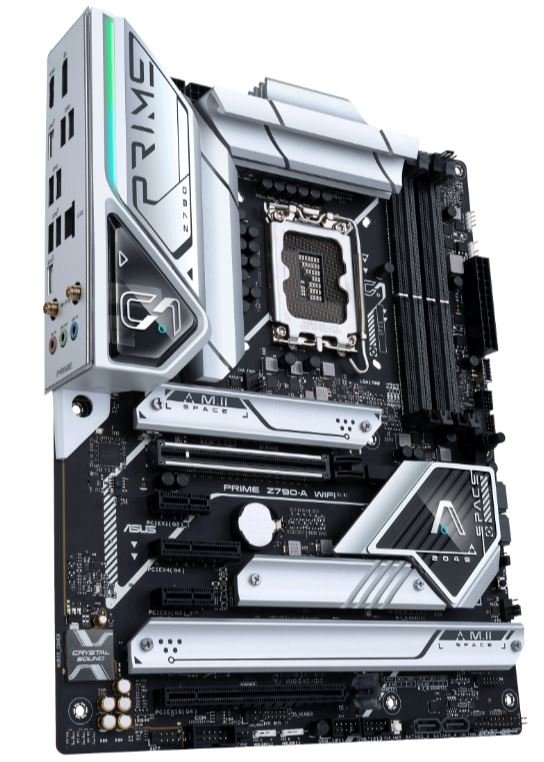

Asus Prime PRIME Z790-A WIFI Gaming Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - ATX

General Information

Manufacturer:   ASUS Computer International

Manufacturer Part Number:   PRIMEZ790-AWIFI

Manufacturer Website Address:   usa.asus.com

Brand Name:   Asus

Product Line:   Prime

Product Model:   PRIME Z790-A WIFI

Product Name:   PRIME Z790-A WIFI Gaming Desktop Motherboard

Marketing Information:

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Coreâ„¢ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790-A WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

The ASUS PRIME Z790-A WIFI offers this all in a sleek, futuristic-looking package centered around a spaceship design aesthetic, with a silver-toned nameplate and chipset cover.

FLEXIBILITY

Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME Z790-A WIFI motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

Intelligent Control

ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

All-Around Energy Efficiency

The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

Product Type:   Gaming Desktop Motherboard

Processor & Chipset

Chipset Manufacturer:   Intel

Chipset Model:   Z790

Total Processor Supported:   1

Processor Socket:   Socket LGA-1700

Processor Generation Supported:   12th Gen

Processor Generation Supported:   13th Gen

Processor Supported:   Celeron

Processor Supported:   Core

Processor Supported:   Pentium Gold

Memory

Number of Memory Slots:   4

Memory Form Factor:   DIMM

Memory Form Factor:   UDIMM

Maximum Memory Supported:   128 GB

Memory Standard:   DDR5-7200/PC5-57600

Memory Technology:   DDR5 SDRAM

Memory Speed Supported:   5200 MHz

Memory Speed Supported:   6000 MHz

Memory Speed Supported:   6200 MHz

Memory Speed Supported:   6400 MHz

Memory Speed Supported:   6600 MHz

Memory Speed Supported:   4800 MHz

Memory Speed Supported:   5000 MHz

Memory Speed Supported:   5400 MHz

Memory Speed Supported:   5600 MHz

Memory Speed Supported:   5800 MHz

Memory Speed Supported:   6800 MHz

Memory Speed Supported:   7000 MHz

I/O Controller

Controller Type:   Serial ATA/600

RAID Supported:   Yes

RAID Levels:   0

RAID Levels:   5

RAID Levels:   1

RAID Levels:   10

Video

Onboard Video:   CPU Dependent Video

Audio

Audio Channels:   7.1

Network & Communication

Bluetooth:   Yes

Bluetooth Standard:   Bluetooth 5.3

Gigabit Ethernet:   Yes

2.5Gigabit Ethernet:   Yes

Wireless LAN:   Yes

Wireless LAN Standard:   IEEE 802.11 a/b/g/n/ac/ax

I/O Expansions

Number of Total Expansion Slots:   5

PCI Express Standard:   PCI Express 4.0

PCI Express Standard:   PCI Express 3.0

PCI Express Standard:   PCI Express 5.0

Total Number of PCI Express Slots:   5

Number of PCI Express x1 Slots:   2

Number of PCI Express x4 Slots:   1

Number of PCI Express x16 Slots:   2

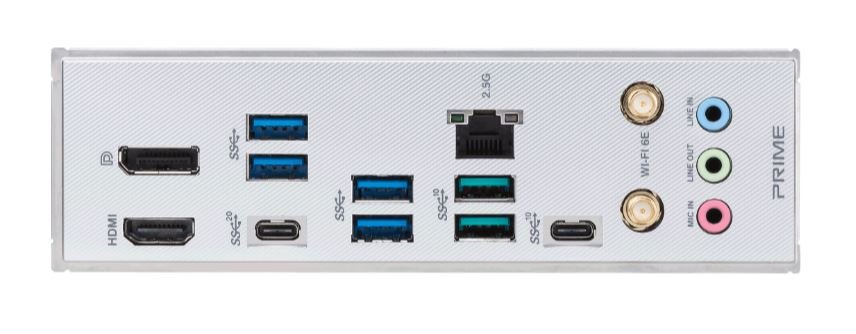

Interfaces/Ports

Total Number of USB Ports:   8

Number of USB 3.2 Gen 1 Type-A Ports:   4

Number of USB 3.2 Gen 2 Type-A Ports:   2

Number of USB 3.2 Gen 2 Type-C Ports:   1

HDMI:   Yes

DisplayPort:   Yes

Number of Network (RJ-45) Ports:   1

Thunderbolt:   Yes

Number of Thunderbolt 4 Ports:   1

Onboard Interfaces

Number of SATA Interfaces:   4

Number of M.2 Interfaces:   4

Total Number of Onboard USB Ports:   4

Number of Onboard USB 2.0 Ports:   4

Physical Characteristics

Form Factor:   ATX

Width:   12"

Depth:   9.6"

Miscellaneous

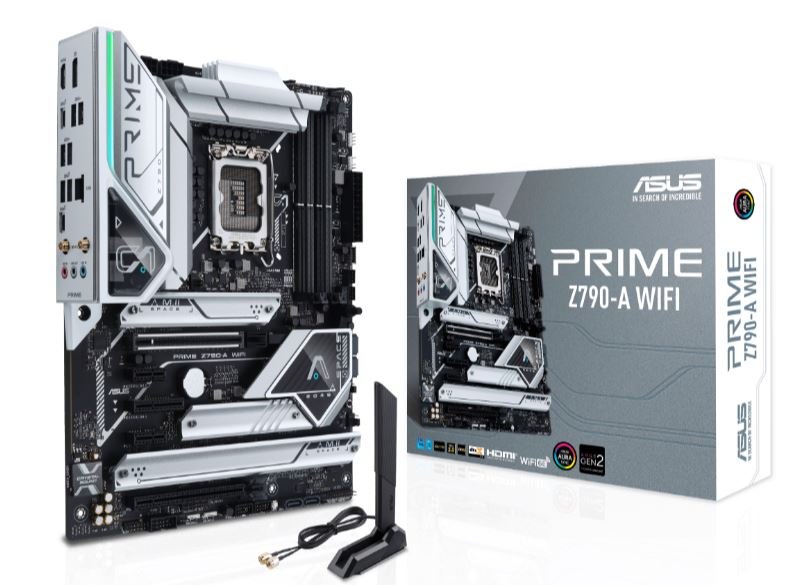

Package Contents:

PRIME Z790-A WIFI Gaming Desktop Motherboard

2 x SATA 6Gb/s cables

1 x ASUS Wi-Fi Moving Antenna

1 x Q-connector

2 x M.2 Rubber Packages

1 x Screw Package for M.2 SSD

1 x User Guide

Brand Compatibility:   Intel
