Brand: ASUS
SKU: MB17D5B760-PRIME B760-PLUS

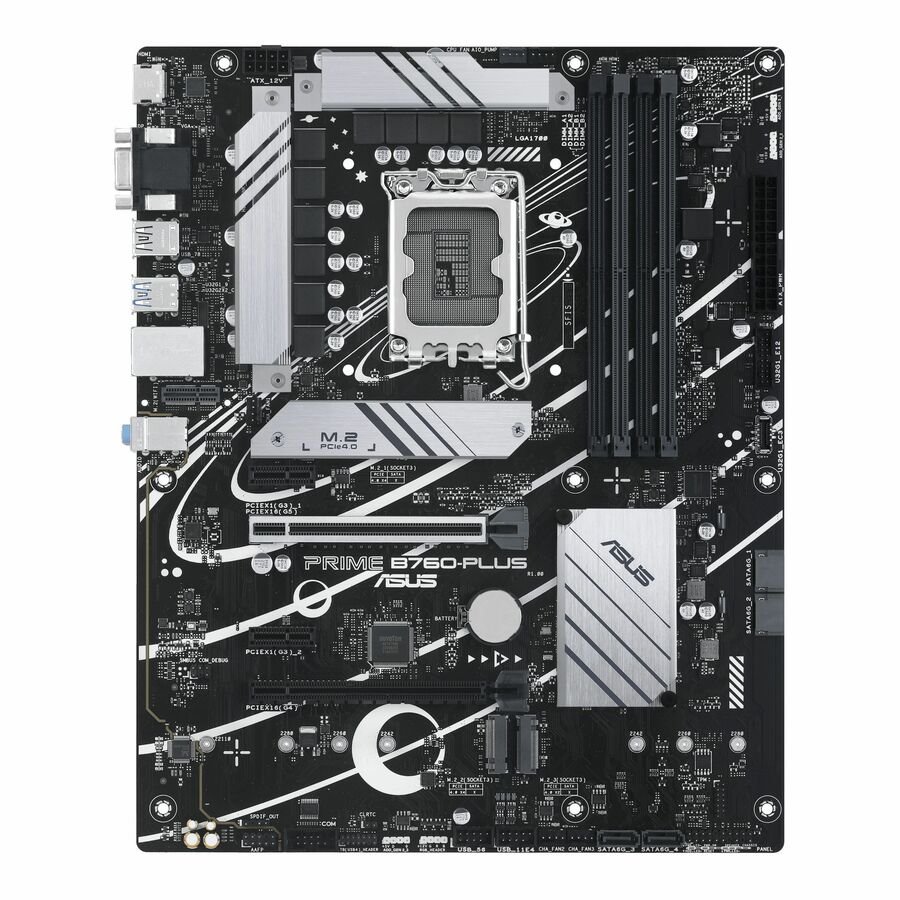

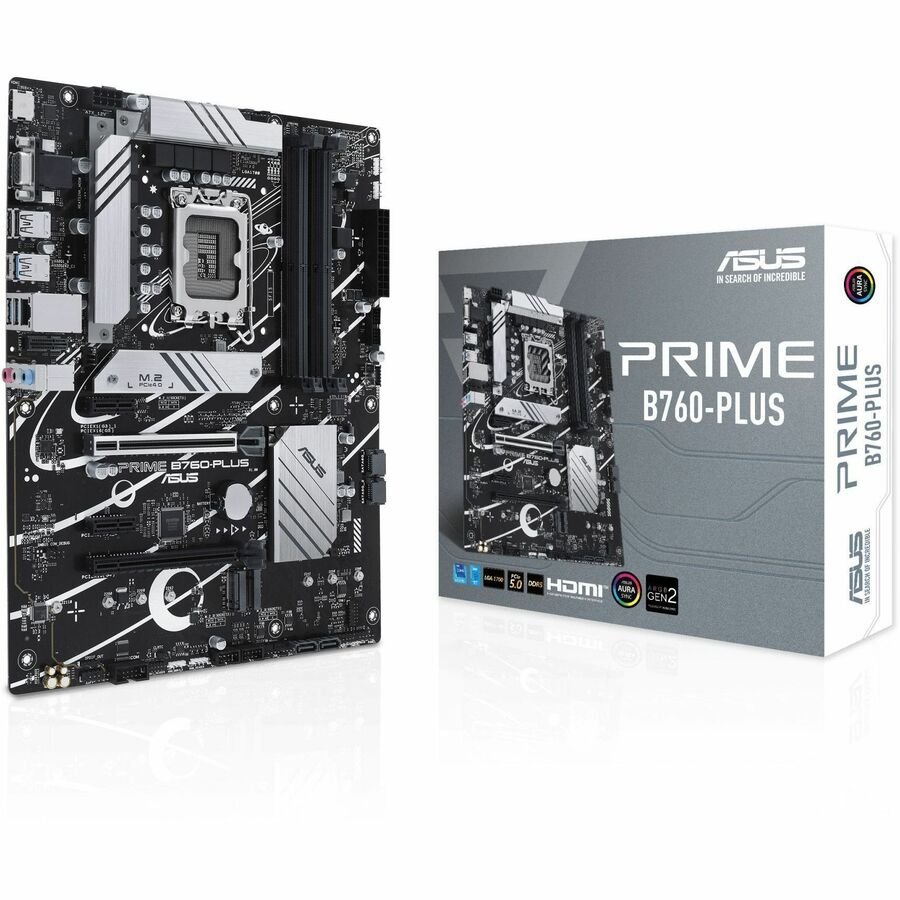

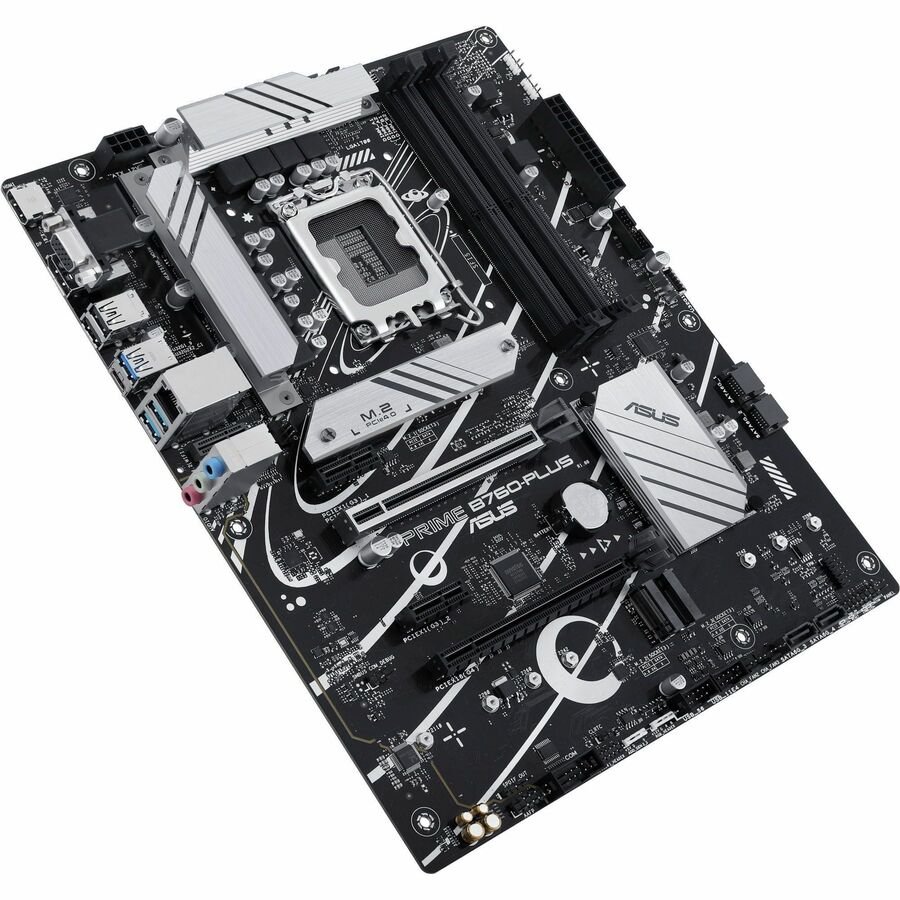

Asus Prime PRIME B760-PLUS DDR5 Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - ATX

Interfaces/Ports: HDMI, DisplayPort, & VGA
Chipset: Intel B760
CPU Socket: LGA 1700
# of Memory Slots: 4
Brand: ASUS
Memory Technology: DDR5
UPC/EAN: 197105102989
Form Factor: ATX
Core, Celeron, Pentium Gold Processor Supported - 192 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 4 x SATA Interfaces
Product Details
General Information
Manufacturer:   ASUS Computer International
Manufacturer Part Number:   PRIME B760-PLUS
Manufacturer Website Address:   usa.asus.com
Brand Name:   Asus
Product Line:   Prime
Product Model:   PRIME B760-PLUS
Product Name:   Prime B760-PLUS Desktop Motherboard
Marketing Information:
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13thGen Intel®Coreâ„¢ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760-PLUS provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

FLEXIBILITY

Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760-PLUS motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

Intelligent Control
UEFI BIOS
Intelligent Control ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans. All-Around Energy Efficiency The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows. COOLING PRIME B760-PLUS motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. M.2 Heatsink M.2 heatsink wards off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws, and these removable captive screws help reduce risk of drops or loss during heatsink removal.



Product Type:   Desktop Motherboard
Processor & Chipset
Chipset Manufacturer:   Intel
Chipset Model:   B760
Total Processor Supported:   1
Processor Socket:   Socket LGA-1700
Processor Generation Supported:   13th Gen
Processor Generation Supported:   12th Gen
Processor Supported:   Celeron
Processor Supported:   Pentium Gold
Processor Supported:   Core
Memory
Number of Memory Slots:   4
Memory Form Factor:   DIMM
Memory Form Factor:   UDIMM
Maximum Memory Supported:   192 GB
Memory Technology:   DDR5 SDRAM
Memory Speed Supported:   5200 MHz
Memory Speed Supported:   5400 MHz
Memory Speed Supported:   6000 MHz
Memory Speed Supported:   6200 MHz
Memory Speed Supported:   7000 MHz
Memory Speed Supported:   4800 MHz
Memory Speed Supported:   5000 MHz
Memory Speed Supported:   5600 MHz
Memory Speed Supported:   5800 MHz
Memory Speed Supported:   6400 MHz
Memory Speed Supported:   6600 MHz
Memory Speed Supported:   6800 MHz
I/O Controller
Controller Type:   Serial ATA/600
RAID Supported:   Yes
RAID Levels:   10
RAID Levels:   5
RAID Levels:   0
RAID Levels:   1
Video
Onboard Video:   CPU Dependent Video
Audio
Audio Channels:   7.1
Network & Communication
Gigabit Ethernet:   Yes
2.5Gigabit Ethernet:   Yes
I/O Expansions
Number of Total Expansion Slots:   4
PCI Express Standard:   PCI Express 3.0
PCI Express Standard:   PCI Express 4.0
PCI Express Standard:   PCI Express 5.0
Total Number of PCI Express Slots:   4
Number of PCI Express x1 Slots:   2
Number of PCI Express x16 Slots:   2

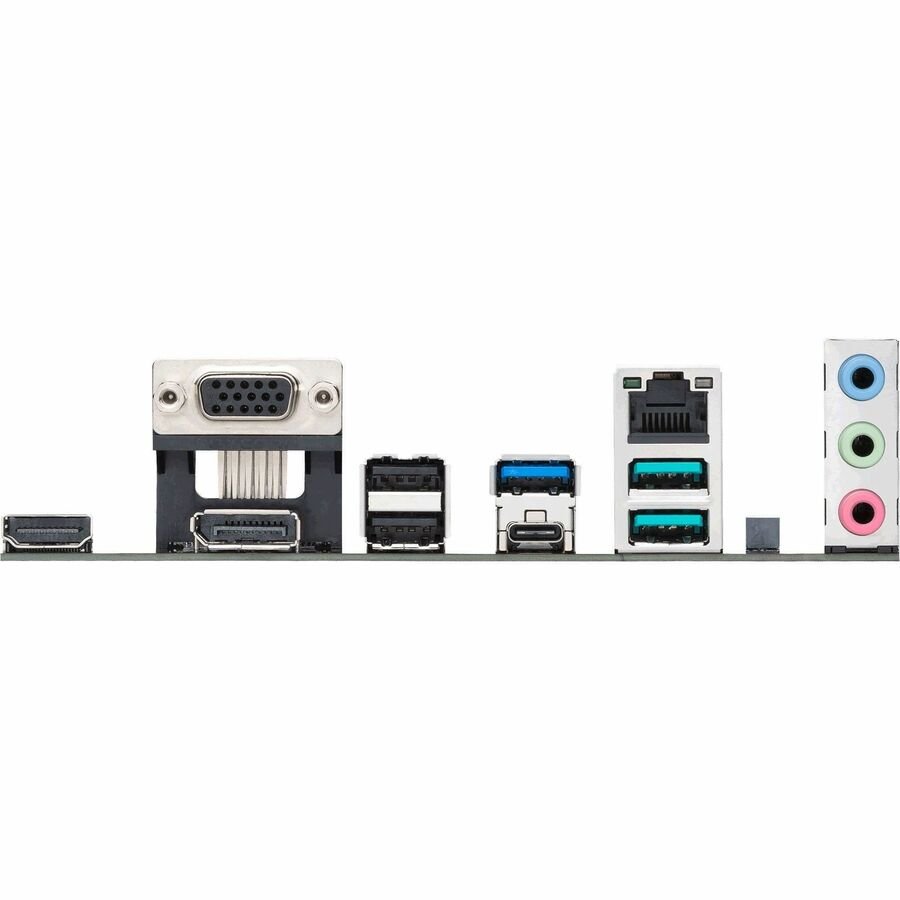

Interfaces/Ports
Total Number of USB Ports:   6
Number of USB 3.2 Gen 1 Type-A Ports:   1
Number of USB 3.2 Gen 2 Type-A Ports:   2
Number of USB 3.2 Gen 2 Type-C Ports:   1
S/PDIF:   Yes
VGA:   Yes
HDMI:   Yes
HDMI Version:   2.1
DisplayPort:   Yes
Number of Network (RJ-45) Ports:   1
Thunderbolt:   Yes
Number of Thunderbolt 4 Ports:   1
Onboard Interfaces
Number of SATA Interfaces:   4
Number of M.2 Interfaces:   3
Total Number of Onboard USB Ports:   7
Number of Onboard USB 2.0 Ports:   4
Physical Characteristics
Form Factor:   ATX
Width:   12"
Depth:   9.6"
Miscellaneous
Package Contents:
Prime B760-PLUS Desktop Motherboard
2 x SATA 6Gb/s cables
1 x I/O Shield
1 x M.2 Rubber Package
2 x Screw Packages for M.2 SSD
1 x User guide

Brand Compatibility:   Intel
Environmentally Friendly:   Yes
Environmental Certification:   RoHS
Weight: 4 lbs
