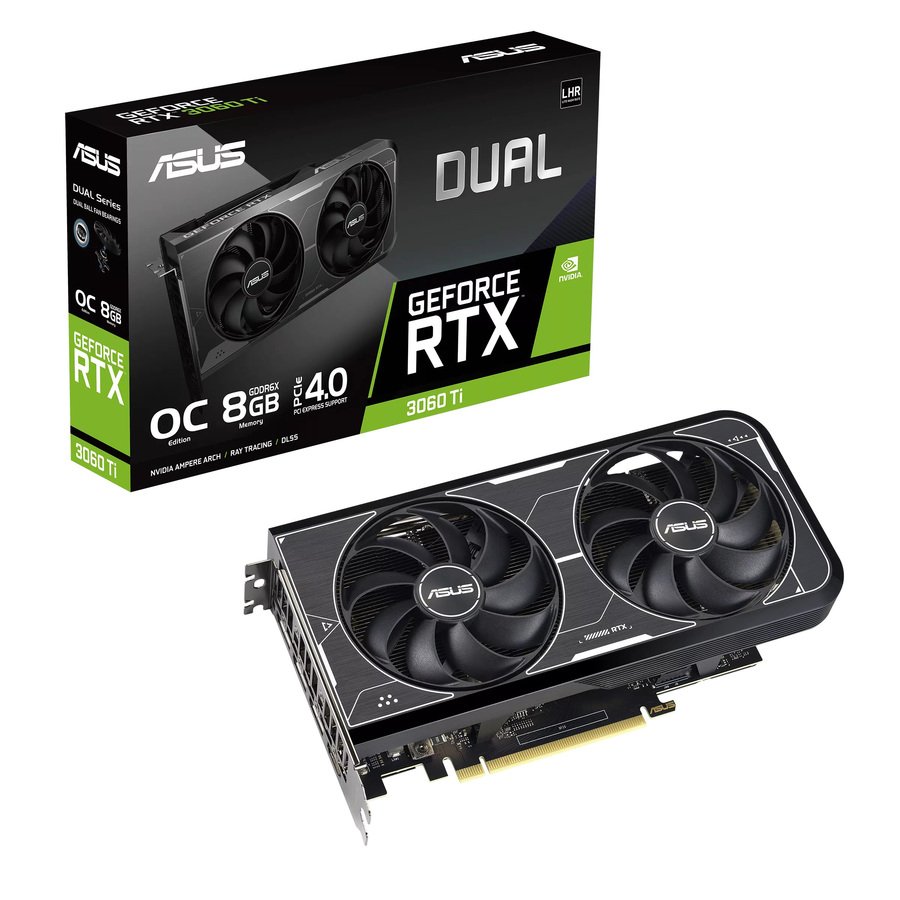

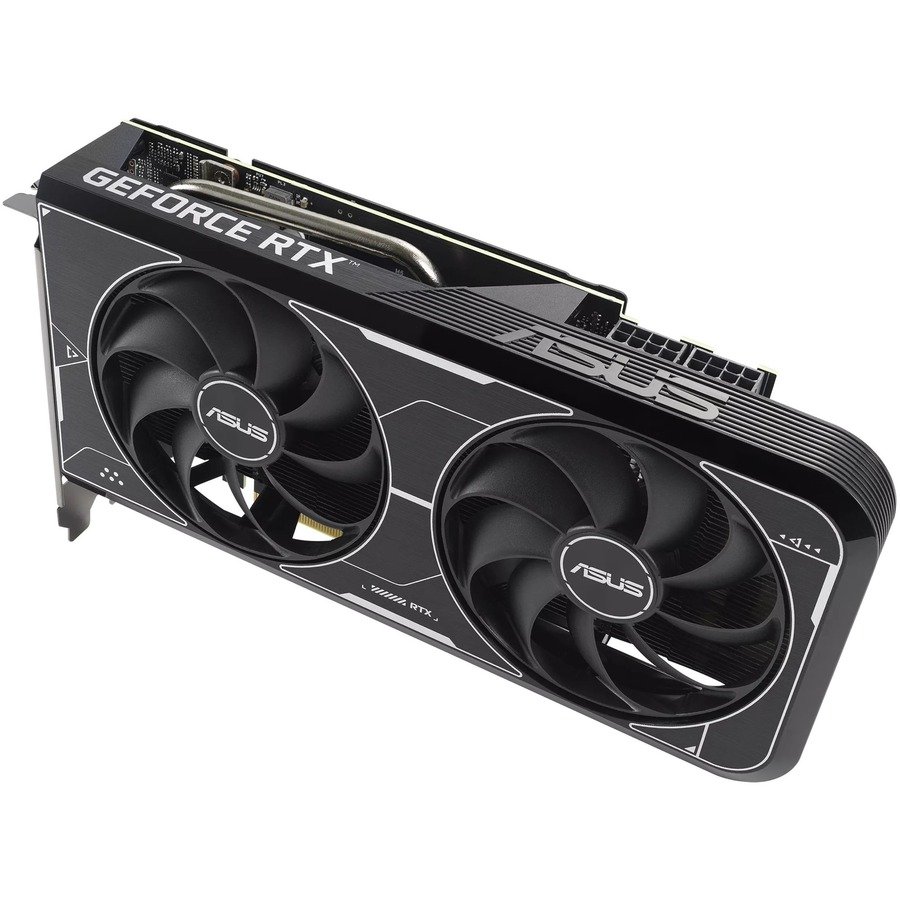

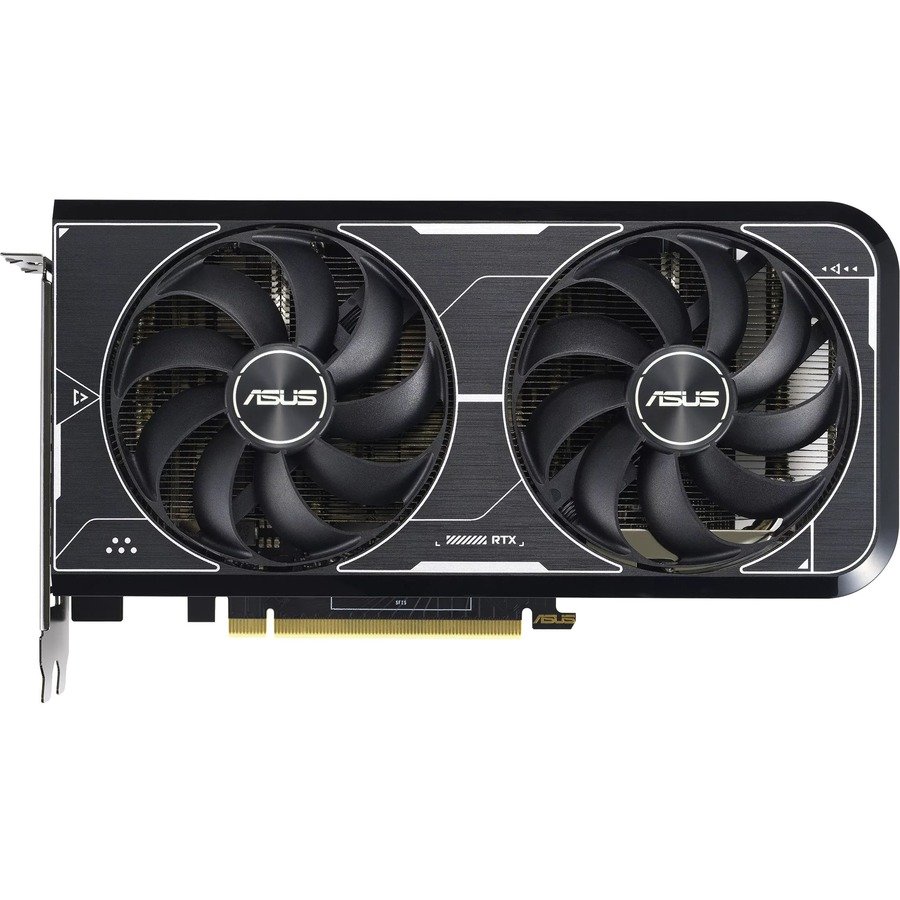

Asus NVIDIA GeForce RTX 3060 TI Graphic Card - 8 GB GDDR6X

ASUS NVIDIA GeForce RTX 3060 TI Graphic Card General Information

Manufacturer:   ASUS Computer International

Manufacturer Part Number:   DUAL-RTX3060TI-O8GD6X

Manufacturer Website Address:   usa.asus.com

Brand Name:   Asus

Product Line:   Dual

Product Model:   DUAL-RTX3060TI-O8GD6X

Product Name:   Dual ASUS NVIDIA GeForce RTX 3060 TI Graphic Card  - OC Edition 8GB GDDR6X

Marketing Information:

ASUS Dual NVIDIA GeForce RTXTM 3060 TI 8GB GDDR6X OC Edition with two powerful Axial-tech fans and a 2-slot design for broad compatibility

NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world's fastest, most efficient GPUs, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.

2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.

3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. These cores deliver a massive boost in game performance and all-new AI capabilities.

OC edition: Boost Clock 1710 MHz (OC Mode)/1680 MHz(Default Mode)

Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.

A 2-slot design maximizes compatibility and cooling efficiency for superior performance in small chassis.

0dB Technology lets you enjoy light gaming in relative silence.

Dual ball fan bearings can last up to twice as long as sleeve bearing designs.

A stainless steel bracket is harder and more resistant to corrosion.

2x Fans. 2x Fun.

Featuring the latest NVIDIA® Ampere architecture, ASUS Dual GeForce RTX 3060 Ti fuses dynamic thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards - including two Axial-tech fans for maximizing airflow to the heatsink - are packed into the 23 cm long, 2-slot card, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.

COOLING | Axial-tech Fan Design Better, faster, stronger

Two tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure.

0dB Technology Quiet intelligence

To eliminate unnecessary noise, a stop mode halts all fans when the GPU temp falls below 50 degrees and power consumption is low.

Dual Ball Fan Bearings 2x longer lifespan

Different bearing types have unique pros and cons. Ball bearings excel at durability and can last up to twice as long as sleeve bearing designs.

2-slot Design Sink your heat into this

A carefully designed shroud, heatsink, and heatpipe layout allows the two Axial-tech fans to leverage chassis side-panel ventilation and deliver thermal performance that belies the card's size.

Product Type:   Graphic Card

Technical Information

API Supported:   OpenGL 4.6

Number of Monitors Supported:   4

Maximum Digital Display Resolution:   7680 x 4320

CUDA Cores:   4864

Processor & Chipset

Chipset Manufacturer:   NVIDIA

Chipset Line:   GeForce

Chipset Series:   RTX

Chipset Model:   RTX 3060 TI

GPU Boost Clock:   1.71 GHz

Memory

Standard Memory:   8 GB

Memory Technology:   GDDR6X

Bus Width:   256 bit

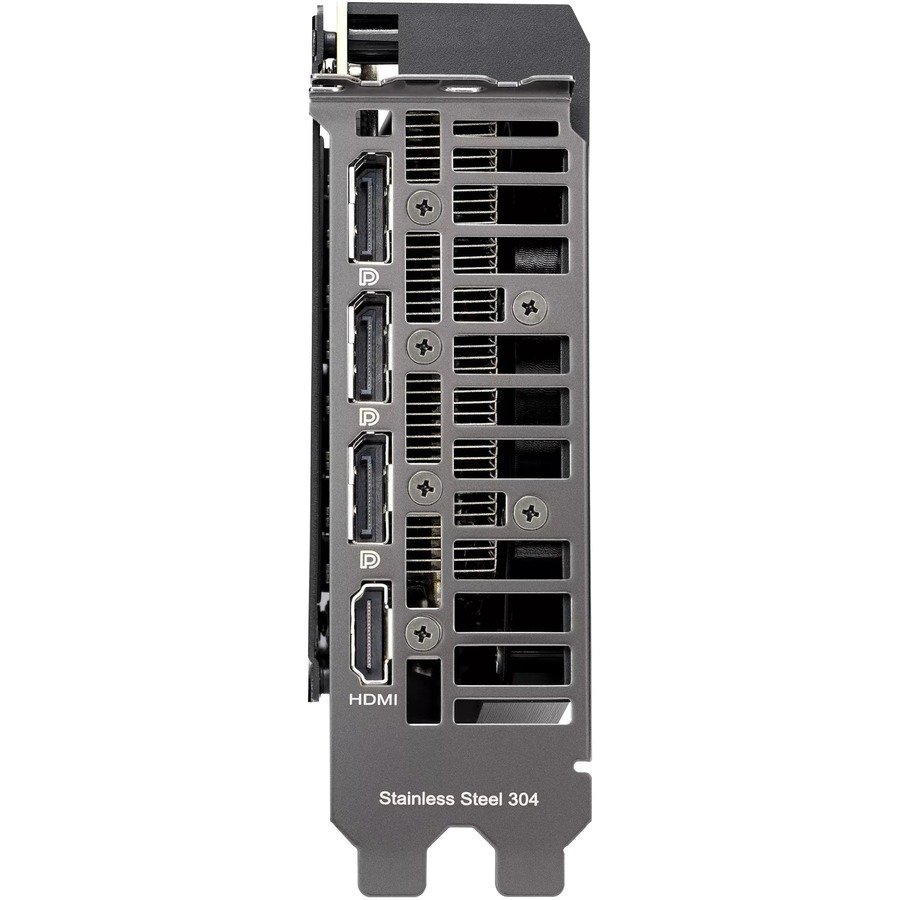

Interfaces/Ports

Host Interface:   PCI Express 4.0

DisplayPort:   Yes

Number of DisplayPort Outputs:   3

HDMI:   Yes

Number of HDMI Outputs:   1

Power Description

Power Connector:   2x 8-pin

Physical Characteristics

Slot Space Required:   Dual

Form Factor:   Plug-in Card

Cooler Type:   Fan Cooler

Height:   1.7"

Width:   4.7"

Length:   9.1"

Miscellaneous

Package Contents:

Dual GeForce RTX 3060 Ti OC Edition 8GB GDDR6X Graphic Card

1 x Collection card

1 x Speedsetup Manual

Platform Supported:   PC

Environmentally Friendly:   Yes

Environmental Certification:   RoHS

Country of Origin:   China

Warranty

Limited Warranty:   3 Year

Weight:  2.5  Depth:  14.5"
