Compatible with Intel & AMD Sockets
In-House Developed PWM Controlled Pump
High Performance allows Overclocking
Motherboard VRM Cooling Solution
Pressure Optimised Fan
Fully Sleeved Tubes
Integrated Cable Management
Maintenance-free Water Loop
Secure Hold with Backplate
At ARCTIC, we are proud of our completely new all-in-one CPU water cooler series. For the Liquid Freezer II Series, we have used our
experience in CPU water cooling to develop a completely new compact water cooling pump. The new pump of the Liquid Freezer II
Series ensures an ideal ratio of high CPU cooling performance to low noise levels.
The CPU AiO water cooler has integrated cable management within fully sleeved tubes for a clean look in your PC's case. Our powerful P-fans provide a fast heat transfer thanks to their high static pressure and outstanding performance.

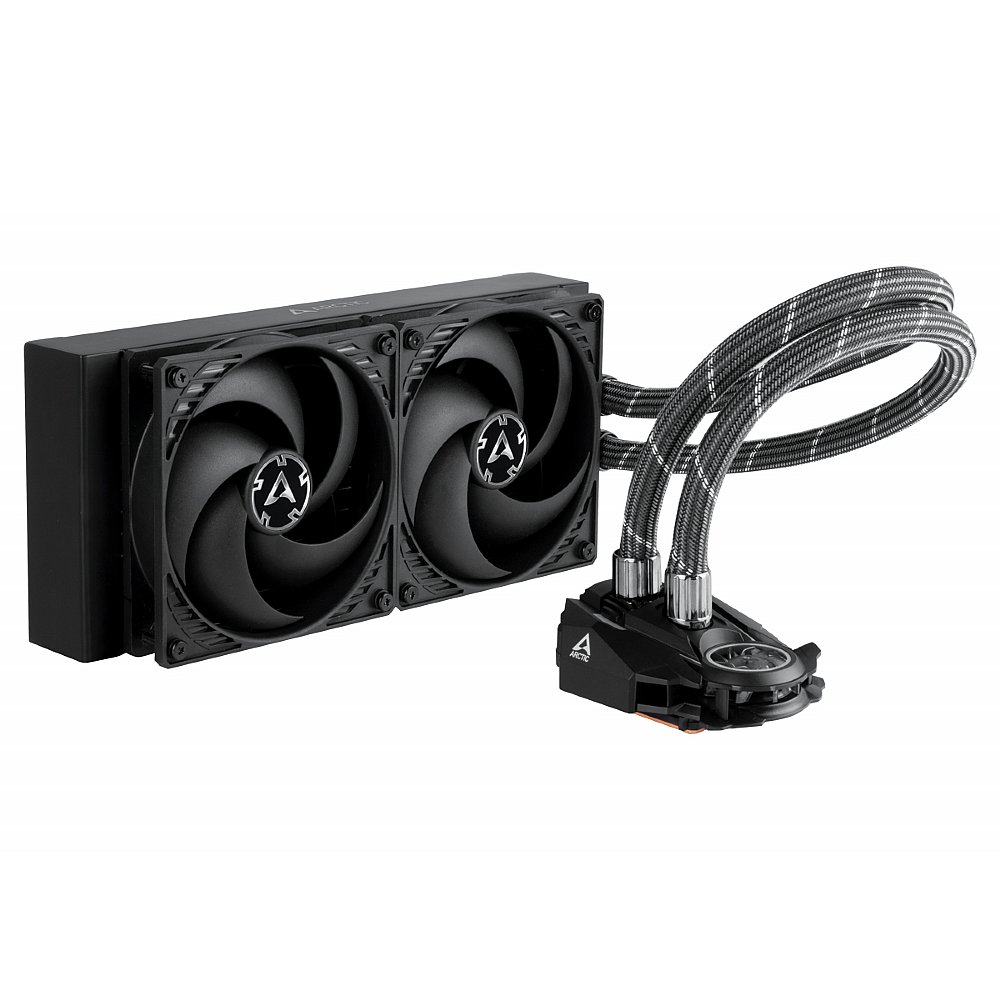

ARCTIC LIQUID FREEZER II 240 56.3 CFM Liquid Cooler

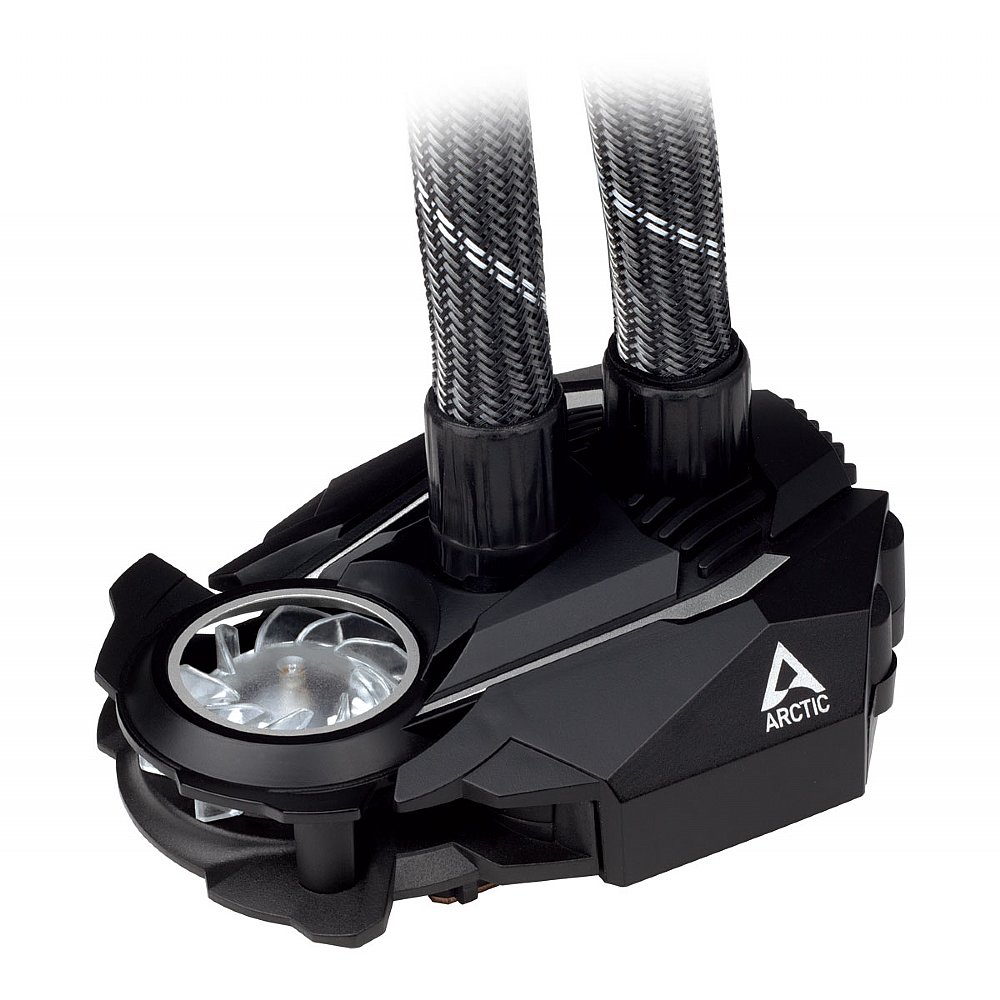

Pump/Cold Plate
VRM Fan40 mm, 1000, 3000 RPM (Controlled by PWM)
Pump800 2000 RPM (Controlled by PWM)
Power Consumption1.0 W, 2.7 W (Pump and VRM Fan)
Cold Plate Copper, Micro Skived Fin
Tube Length450 mm
Tube Diameter Outer: 12.4 mm, Inner: 6.0 mm
Dimensions (w/o tubes)98 mm x 78 mm x 53 mm
Fan x 2
Fan Speed200, 1800 RPM (Controlled via PWM)
Airflow56.3 CFM
Static Pressure2.2 mm H2O
Current/Voltage0.08 A / 12 V DC
Bearing Fluid Dynamic Bearing
Noise Level0.3 Sone
Connector4-pin-Connector
Dimensions120 mm x 120 mm x 25 mm
General
Socket Compatibility Intel 115X, 2011-3, 2066 Square ILM
AMD AM4
Thermal CompoundMX-4 (0.8 g)
Total Weight1191 g (2 Fans, Radiator, Pump, Tubes)
Radiator
Material Aluminum
Dimensions277 mm x 120 mm x 38 mm
