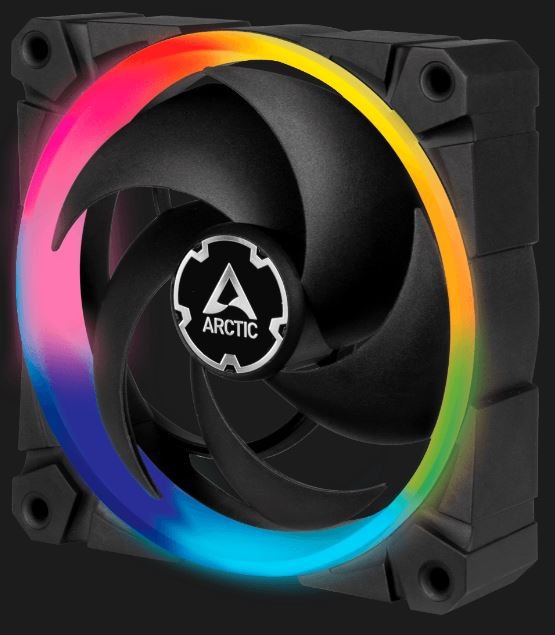

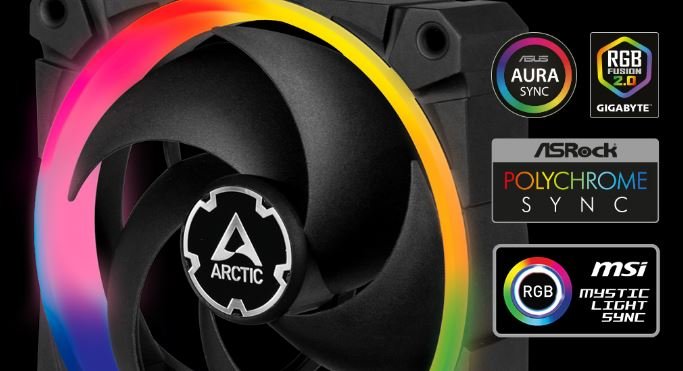

The 12 A-RGB LEDs installed in the BioniX P120 A-RGB are autonomously controllable. The BioniX P120 A-RGB is compatible with the common A-RGB standards of leading motherboard manufacturers for the simplest possible use. It can therefore be fully illuminated directly via the A-RGB motherboard connection or via an external controller and synchronized with other hardware lighting.
HIGH-QUALITY PLAIN BEARING
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced, increasing efficiency.
In this way, less heat is generated, there is less bearing noise and the service life of the fan is extended.
OPTIMISED FOR STATIC PRESSURE
With the BioniX P120 A-RGB, as with the entire P-series, special emphasis was placed on a focused airflow and high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance.
This makes the BioniX P120 A-RGB particularly suitable for use on covered case vents or inlets with filters.
MAXIMUM SMOOTHNESS, MINIMUM VIBRATION
The operating noise of the newly developed ARCTIC motor is barely noticeable even at the lowest speed.
Thanks to sinus magnetization, the P fan's motor generates only 5% of the commutation vibrations of a conventional DC motor. In addition, the ARCTIC BioniX P120 A-RGB has rubber pads on its contact surfaces for further decoupling.
400 TO 2300 RPM REGULATED VIA PWM
With a wide speed range and the connector functionality, the fan speed of the BioniX P120 A-RGB can be controlled synchronously with other fans. This reduces the noise development to a minimum while at the same time guaranteeing maximum cooling performance.
TECHNICAL SPECIFICATIONS
General data
Performance
Fan Speed:400 - 2300 rpm
Airflow:48 CFM/ 81.55 m³/h
Static Pressure:2.1 mm H₂O
Noise Level:0.45 Sone
Operating Ambient Temperature:0 - 40 °C
Fan
Fan Frame: BioniX
Control Type: PWM PST
Connector:7-Pin-Connector
Fan Bearing: Fluid Dynamic Bearing
Electric Characteristics:
Typical Voltage:12 V DC
Starting Voltage:5 V
Current/ Voltage:0.13 A/ 12 V
Cable Lenght:400 mm
Size & Weight
Lenght:120 mm
Width:120 mm
Height:30mm
Weight:209g
Packaging
Width: 125 mm
Height: 34 mm
Length: 161 mm
Weight: 0.259 kg
