Brand: ASUS
SKU: MB17D5-PRIME Z790M-PLUS

ASUS Prime Z790M-PLUS DDR5 LGA 1700 mATX

Interfaces/Ports: DisplayPort & HDMI
Chipset: Intel Z790
CPU Socket: LGA 1700
# of Memory Slots: 4
Brand: ASUS
Memory Technology: DDR5
UPC/EAN: 197105025745
Form Factor: MATX
ASUS Prime Z790M-Plus LGA 1700(Intel 12th&13th Gen) microATX motherboard (PCIe 5.0, 3xM.2 slots, 10+1 DrMOS, DDR5,1 Gb LAN, DP, USB 3.2 Gen 2x2 Type-C,front USB 3.2 Gen 1 Type-C, Thunderbolt (USB4) support)
Product Details
General Information
Manufacturer:   ASUS Computer International
Manufacturer Part Number:   PRIME Z790M-PLUS
Manufacturer Website Address:   usa.asus.com
Brand Name:   Asus
Product Line:   Prime
Product Model:   Z790M-PLUS
Product Name:   PRIME Z790M-PLUS Desktop Motherboard
Product Type:   Desktop Motherboard
Processor & Chipset
Chipset Manufacturer:   Intel
Chipset Model:   Z790
Total Processor Supported:   1
Processor Socket:   Socket LGA-1700
Processor Generation Supported:   12th Gen
Processor Generation Supported:   13th Gen
Processor Supported:   Core
Processor Supported:   Pentium Gold
Processor Supported:   Celeron
Memory
Number of Memory Slots:   4
Memory Form Factor:   DIMM
Memory Form Factor:   UDIMM
Maximum Memory Supported:   128 GB
Memory Technology:   DDR5 SDRAM
Memory Speed Supported:   5200 MHz
Memory Speed Supported:   5400 MHz
Memory Speed Supported:   5800 MHz
Memory Speed Supported:   6200 MHz
Memory Speed Supported:   7000 MHz
Memory Speed Supported:   4800 MHz
Memory Speed Supported:   5000 MHz
Memory Speed Supported:   5600 MHz
Memory Speed Supported:   6000 MHz
Memory Speed Supported:   6400 MHz
Memory Speed Supported:   6600 MHz
Memory Speed Supported:   6800 MHz
I/O Controller
Controller Type:   Serial ATA/600
RAID Supported:   Yes
RAID Levels:   10
RAID Levels:   5
RAID Levels:   0
RAID Levels:   1
Video
Onboard Video:   CPU Dependent Video
Audio
Audio Channels:   7.1
Network & Communication
Gigabit Ethernet:   Yes
I/O Expansions
Number of Total Expansion Slots:   4
PCI Express Standard:   PCI Express 4.0
PCI Express Standard:   PCI Express 5.0
Total Number of PCI Express Slots:   4
Number of PCI Express x1 Slots:   2
Number of PCI Express x16 Slots:   2

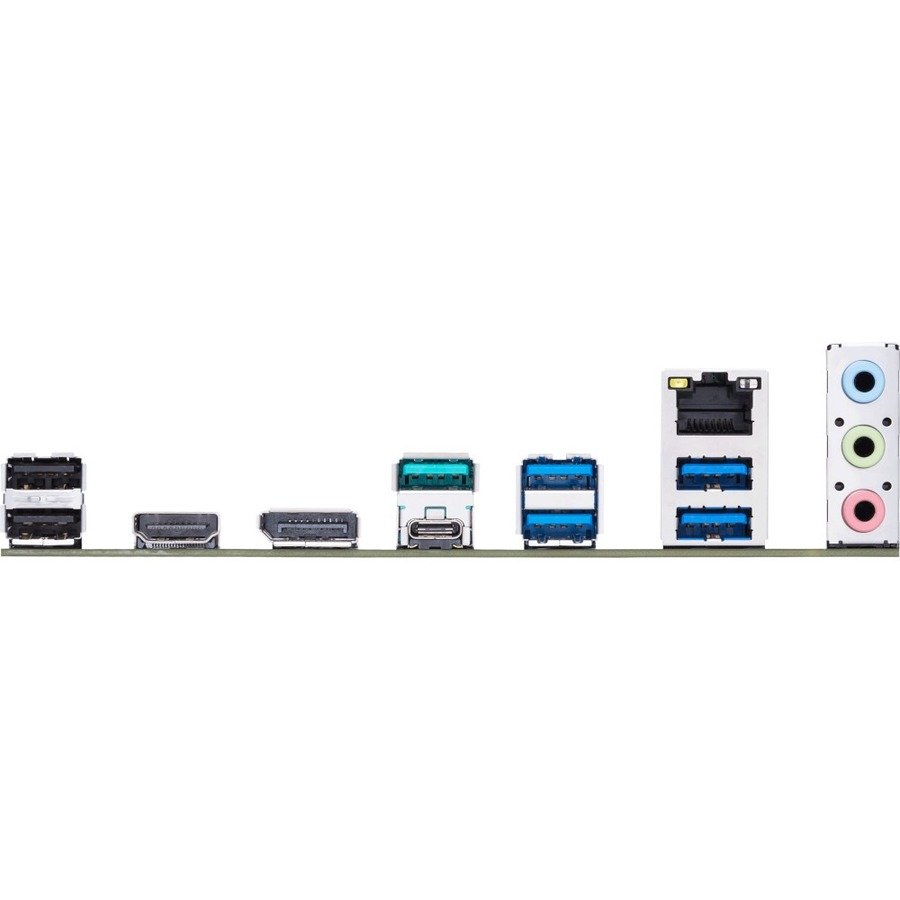

Interfaces/Ports
Total Number of USB Ports:   8
Number of USB 3.2 Gen 1 Type-A Ports:   4
Number of USB 3.2 Gen 2 Type-A Ports:   1
S/PDIF:   Yes
HDMI:   Yes
HDMI Version:   2.1
DisplayPort:   Yes
Number of Network (RJ-45) Ports:   1
Thunderbolt:   Yes
Number of Thunderbolt 4 Ports:   1
Onboard Interfaces
Number of SATA Interfaces:   4
Number of M.2 Interfaces:   3
Total Number of Onboard USB Ports:   7
Number of Onboard USB 2.0 Ports:   4
Physical Characteristics
Form Factor:   Micro ATX
Width:   9.6"
Depth:   9.6"
Miscellaneous
Package Contents:
PRIME Z790M-PLUS Desktop Motherboard
2 x SATA 6Gb/s Cables
1 x I/O Shield
2 x Screw packages for M.2 SSD
1 x User Guide

Brand Compatibility:   Intel
Warranty
Limited Warranty:   3 Year

Weight: 4 lbs
PRIME Z790M-PLUS DDR5
ASUS Prime Z790M-PLUS DDR5 LGA 1700 mATX
PRIME Z790M-PLUS DDR5
ASUS Prime Z790M-PLUS DDR5 LGA 1700 mATX
PRIME Z790M-PLUS DDR5
ASUS Prime Z790M-PLUS DDR5 LGA 1700 mATX
PRIME Z790M-PLUS DDR5
ASUS Prime Z790M-PLUS DDR5 LGA 1700 mATX
PRIME Z790M-PLUS DDR5
ASUS Prime Z790M-PLUS DDR5 LGA 1700 mATX
PRIME Z790M-PLUS DDR5
ASUS Prime Z790M-PLUS DDR5 LGA 1700 mATX
PRIME Z790M-PLUS DDR5
ASUS Prime Z790M-PLUS DDR5 LGA 1700 mATX
PRIME Z790M-PLUS DDR5
ASUS Prime Z790M-PLUS DDR5 LGA 1700 mATX
(Click to see larger image and other views)
List Price: $239.99
Price: $199.99
You Save: $40.00 (17%)
