Brand: ASUS
SKU: MB17-B660-PRO B660M-C D4-CSM

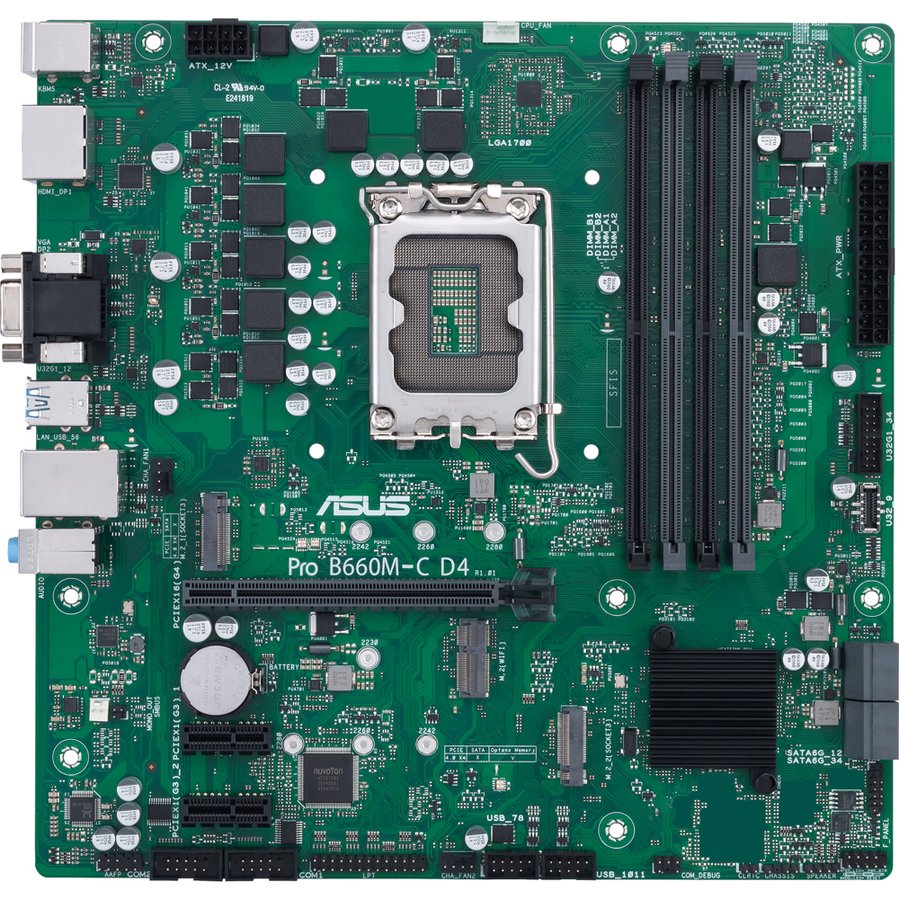

ASUS Motherboard PRO B660M-C D4-CSM B660 S1700 Max.128GB DDR4 microATX

Chipset: Intel B660
CPU Socket: LGA 1700
# of Memory Slots: 4
Brand: ASUS
Memory Technology: DDR4 Support
UPC/EAN: 195553509435
Form Factor: MATX
ASUS Pro B660M-C D4-CSM Motherboard: Pentium Gold, Celeron, Core i5, Core i9, Core i3, Core i7 Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 4 x SATA Interfaces
Product Details
General Information
Manufacturer:   ASUS Computer International
Manufacturer Part Number:   PROB660M-CD4-CSM
Manufacturer Website Address:   usa.asus.com
Brand Name:   Asus
Product Series:   PRO
Product Model:   B660M-C D4-CSM
Product Name:   PRO B660M-C D4-CSM Desktop Motherboard
Product Type:   Desktop Motherboard
Processor & Chipset
Chipset Manufacturer:   Intel
Chipset Model:   B660
Total Processor Supported:   1
Processor Socket:   Socket LGA-1700
Processor Generation Supported:   12th Gen
Processor Supported:   Celeron
Processor Supported:   Core i3
Processor Supported:   Core i5
Processor Supported:   Core i7
Processor Supported:   Core i9
Processor Supported:   Pentium Gold
Memory
Number of Memory Slots:   4
Memory Form Factor:   DIMM
Memory Form Factor:   UDIMM
Maximum Memory Supported:   128 GB
Memory Technology:   DDR4 SDRAM
Memory Speed Supported:   2133 MHz
Memory Speed Supported:   2400 MHz
Memory Speed Supported:   2666 MHz
Memory Speed Supported:   2800 MHz
Memory Speed Supported:   2933 MHz
Memory Speed Supported:   3000 MHz
Memory Speed Supported:   3200 MHz
Memory Speed Supported:   3333 MHz
Memory Speed Supported:   3400 MHz
Memory Speed Supported:   3466 MHz
Memory Speed Supported:   3600 MHz
Memory Speed Supported:   3733 MHz
Memory Speed Supported:   4000 MHz
Memory Speed Supported:   4266 MHz
Memory Speed Supported:   4400 MHz
Memory Speed Supported:   4600 MHz
Memory Speed Supported:   4800 MHz
Memory Speed Supported:   5000 MHz
Intel Optane Memory Ready:   Yes
I/O Controller
Controller Type:   Serial ATA/600
Intel RST:   Yes
RAID Supported:   Yes
RAID Levels:   0
RAID Levels:   1
RAID Levels:   10
RAID Levels:   5
Video
Onboard Video:   CPU Dependent Video
Audio
Audio Channels:   7.1
Network & Communication
Gigabit Ethernet:   Yes
I/O Expansions
Number of Total Expansion Slots:   3
Total Number of PCI Express Slots:   3
Number of PCI Express x1 Slots:   2
Number of PCI Express x16 Slots:   1
Interfaces/Ports
Total Number of USB Ports:   4
Number of USB 2.0 Ports:   2
Number of USB 3.2 Gen 1 Ports:   2
VGA:   Yes
HDMI:   Yes
DisplayPort:   Yes
Number of Network (RJ-45) Ports:   1

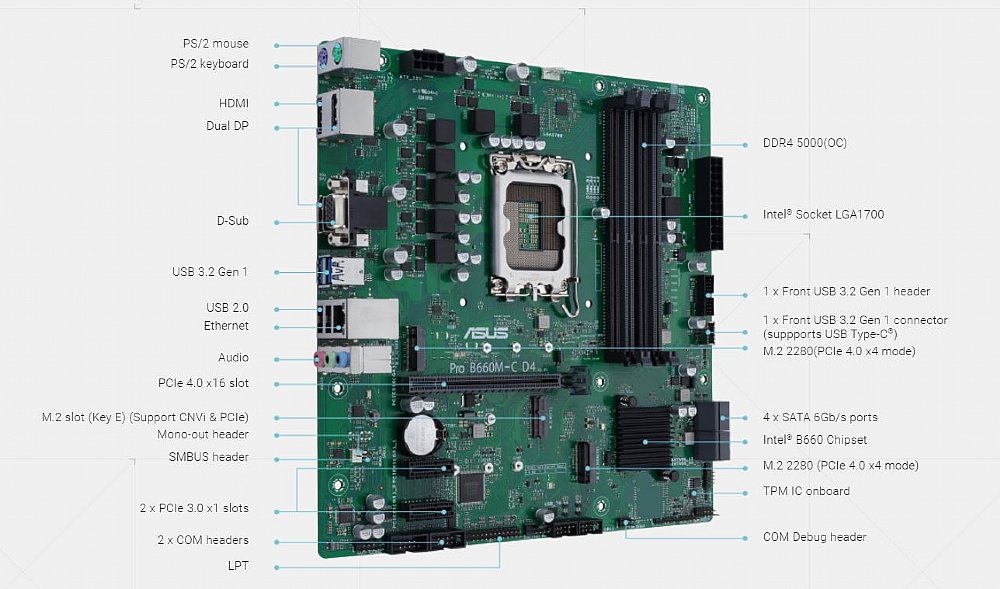

Onboard Interfaces
Number of SATA Interfaces:   4
Number of M.2 Interfaces:   2
Total Number of Onboard USB Ports:   8
Number of Onboard USB 2.0 Ports:   3
Number of Onboard USB 3.2 Ports:   4
Physical Characteristics
Form Factor:   Micro ATX
Width:   9.6"
Depth:   9.6"
Miscellaneous
Package Contents:
PRO B660M-C D4-CSM Desktop Motherboard
2 x SATA 6Gb/s cables
1 x I/O Shield
1 x M.2 SSD screw package
1 x M.2 Key E screw package
1 x Support DVD
1 x ACC Express Activation Key Card
1 x User Guide

Brand Compatibility:   Intel
Environmentally Friendly:   Yes
Environmental Certification:   RoHS
Warranty
Limited Warranty:   3 Year

PRIME B660M-A D4
ASUS Motherboard PRO B660M-C D4-CSM B660 S1700 Max.128GB DDR4 microATX
PRIME B660M-A D4
ASUS Motherboard PRO B660M-C D4-CSM B660 S1700 Max.128GB DDR4 microATX
PRIME B660M-A D4
ASUS Motherboard PRO B660M-C D4-CSM B660 S1700 Max.128GB DDR4 microATX
PRIME B660M-A D4
ASUS Motherboard PRO B660M-C D4-CSM B660 S1700 Max.128GB DDR4 microATX
PRIME B660M-A D4
ASUS Motherboard PRO B660M-C D4-CSM B660 S1700 Max.128GB DDR4 microATX
PRIME B660M-A D4
ASUS Motherboard PRO B660M-C D4-CSM B660 S1700 Max.128GB DDR4 microATX
PRIME B660M-A D4
ASUS Motherboard PRO B660M-C D4-CSM B660 S1700 Max.128GB DDR4 microATX
(Click to see larger image and other views)
List Price: $149.99
Price: $119.99
You Save: $30.00 (20%)
For sale with system
