Brand: XPG
SKU: PSA1.2-COREREACTORII1200G

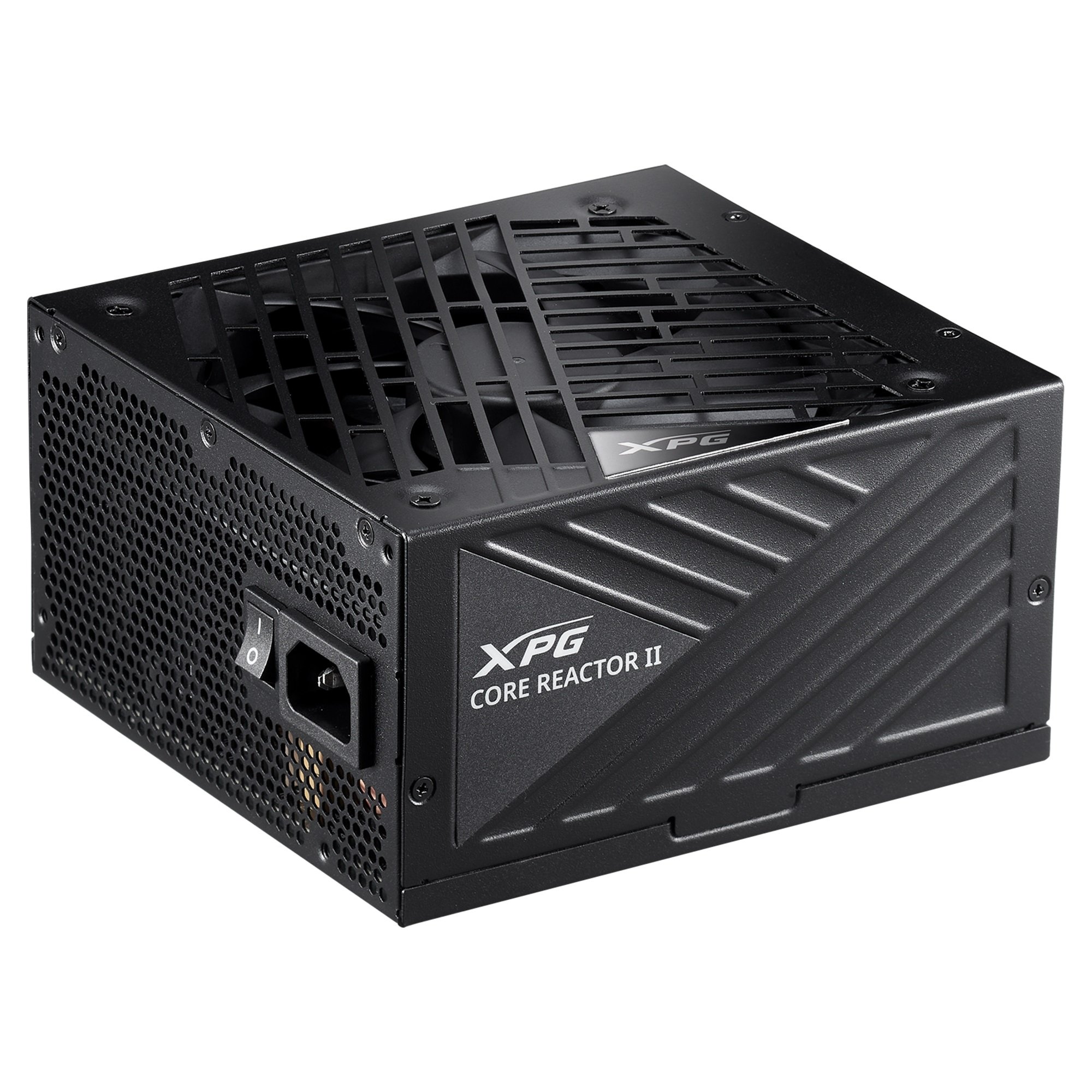

1200 Watt XPG CORE REACTOR II 1200 Gold Certified Black ATX 3.0

MPN: 276398
Brand: XPG
UPC/EAN: 842243029437
1200W ATX 3.0 80 Plus Gold Certified - Compact with Modular Design - Intelligent, Low-Noise Fan-Curve - Premium Japanese Capacitors - Industrial-Grade Protection - 10-Year Warranty
Product Details
CORE REACTOR II
IMPROVE YOUR CORE, ENHANCE YOUR PERFORMANCE
CORE REACTOR II is a top-performing power supply unit designed for ATX 3.0 compliance with a modular cable design and an 80 PLUS GOLD certification. These power supplies thrive in high-performance scenarios like servers or workstation setups, where a lot of power is needed.

Next-Gen Ready - ATX 3.0 COMPLIANT
CORE REACTOR II series power supply units meet Intel ATX 3.0 design guide specifications and feature a 12VHPWR connector. By upgrading to an ATX 3.0-compliant power supply, you'll be fully equipped for the upcoming wave of high-performance components. A must for the modern gamer, creator, or AI developer. Stay ahead of the curve by upgrading to an ATX 3.0 PSU, the new standard in PC hardware.

Certified GOLD Efficiency
CORE REACTOR II units recieved 80 PLUS GOLD certifications for efficiency, achieving up to 91.40% (115V) efficiency at 50% load. It comes in 1200W, 1000W,  850W, 750W, and 650W models for varying user needs and scenarios. It's the perfect PSU for mid-to-high level components, including the latest CPUs and GPUs.

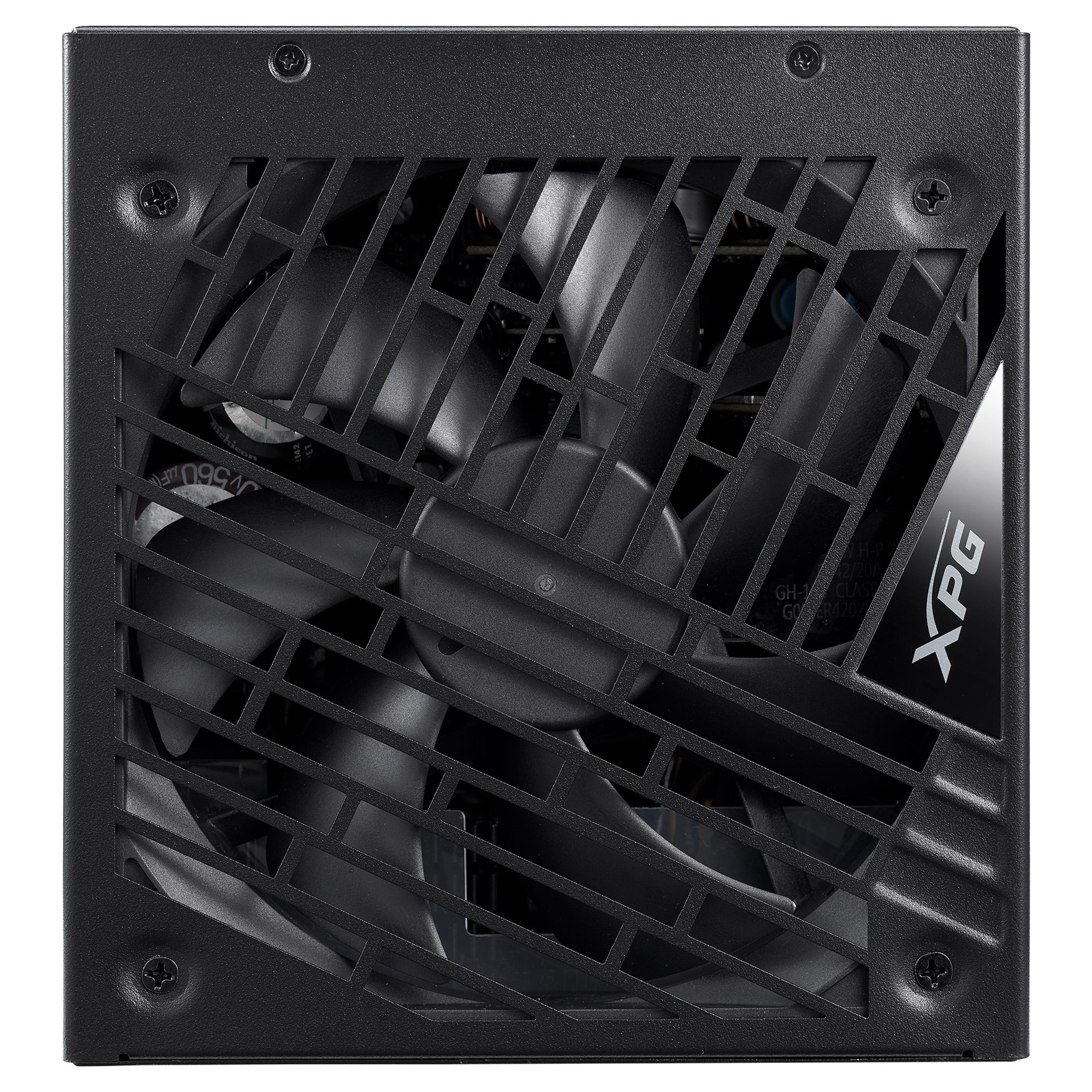

Intelligent Fan-Curve Design
The intelligent fan curve ensures quiet operation, even under full power load. By starting the fan at a low RPM, fan performance is both enhanced and extended, thereby increasing the power supply unit's lifespan.

Premium all 105°C Japanese Capacitors
CORE REACTOR II features top-tier 105°C Japanese capacitors, ensuring exceptional stability and reliability of the PSU for many years of dependable performance.

8 Industrial Protections with 10-Year Warranty
CORE REACTOR II is protected by 8 industrial-level protection mechanisms and backed by a 10-Year Warranty, ensuring the safety and stability of both the unit and the system.

Dimensions (L x W x H)
650W-850W: 140 x 150 x 86mm
1000W-1200W: 160 x 150 x 86mm
80 Plus Rating
GOLD
ATX Version
ATX 12V v3.0 and EPS v2.92
Protections
OCP | OVP | OPP | OTP | UVP | SCP | NLO | SIP
Certification
CE | CB| FCC(IC) | TUV | cTUVus | TUV S-Mark | NOM | BSMI | UKCA | EAC | CCC | RCM
PFC
> 0.99
Input Voltage
100-240V
Input Current
1200W: 15A
1000W: 13A
850W: 12A
750W: 10A
650W: 10A
Input Frequency
650/750/850W:47Hz-63Hz
1000/1200W:50Hz-60Hz
DC Output Voltage
+5V | +3.3V | +12V | -12V | +5Vsb
Total Output
1200W: +5V/+3.3V :22A, +12V:100A, -12V:0.3A, +5Vsb:3A
1000W: +5V/+3.3V :22A, +12V:83.5A, -12V:0.3A, +5Vsb:3A
850W: +5V/+3.3V :22A, +12V:70.8A, -12V:0.3A, +5Vsb:3A
750W: +5V/+3.3V :22A, +12V:62.5A, -12V:0.3A, +5Vsb:3A
650W: +5V/+3.3V :20A, +12V:54.1A, -12V:0.3A, +5Vsb:3A
Power Excursion
1200W: 2820W(*up to 235% of the PSU's rated power for 100Ž¼s)
1000W: 2350W(*up to 235% of the PSU's rated power for 100Ž¼s)
850W: 1997W (*up to 235% of the PSU's rated power for 100Ž¼s)
750W: 1762W (*up to 235% of the PSU's rated power for 100Ž¼s)
650W: 1527W(*up to 235% of the PSU's rated power for 100Ž¼s)
Operating Temperature
50°C
Fan Size
650W-850W: 120mm FDB Fan
1000W-1200W: 135mm FDB Fan
Fan Bearing
FDB (Fluid Dynamic Bearing)
Fan Speed
2400 RPM
MTBF
100K hours at full load

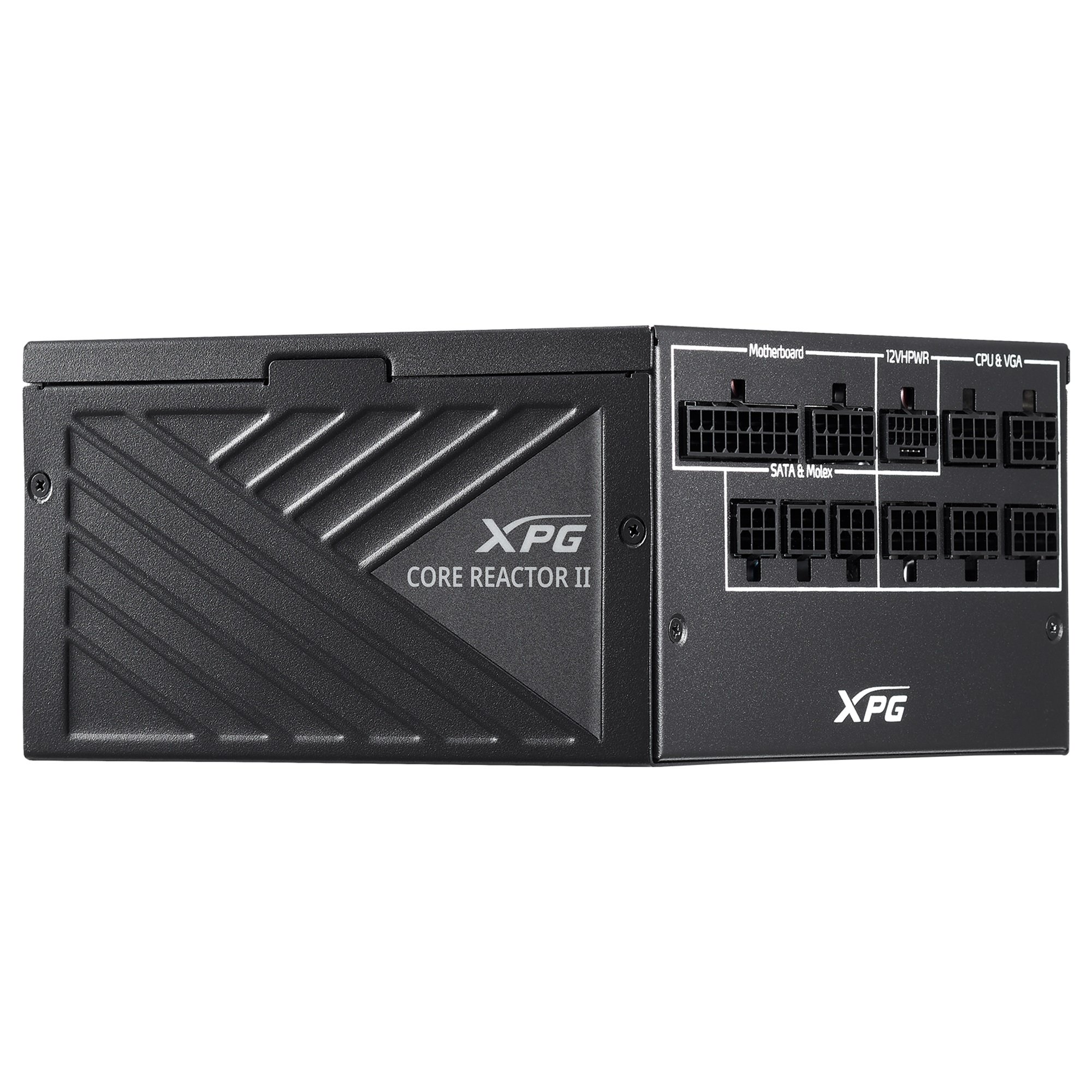

ATX 24 Pin Connector
1200W/1000W:1
850W/750W/650W:1
EPS 8 Pin Connector
1200W/1000W:2
850W/750W/650W:2
PCI-E 6+2 Pin Connector
1200W/1000W:8
850W/750W:6
650W:4
Molex 4 Pin Connector
1200W/1000W:3
850W/750W/650W:4
12VHPWR (12 + 4) Connector (600W)
1200W/1000W:1
850W/750W/650W:1
SATA Connector
1200W/1000W:9
850W/750W/650W:8
Weight
1200W/1000W:
Product+cables¯¼Å¡1.77kg+1.28kg
with Package:3.43kg
850W/750W:
Product+cables¯¼Å¡1596g+1254g
with Package:3.1kg
650W:
Product+cables¯¼Å¡1299g+1231g
with Package:2.78kg
Warranty
10 Years

Weight: 10 lbs
