New 3rd Gen Intel� Core� Processors - Ivy Bridge CPUs

3rd Gen Ivy Bridge Motherboards from Gigabyte

Asus M5A88-M Desktop Motherboard - AMD - Socket AM3+

Our Products: Motherboards > Socket AM3

SKU: MBAM3+ASU-M5A88-M

Weight: 3 lbs

Brand: ASUS

Units in Stock: 1

Micro ATX - 1 x Processor Support - 16 GB DDR3 SDRAM Maximum RAM - CrossFireX Support - Serial ATA/600 RAID Supported Controller - Onboard Video - 1 x PCIe x16 Slot - 2 x USB 3.0 Port - HDMI This motherboard supports AMD AM3+ multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR3 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport 3.0 based system bus. This motherboard also supports AMD CPUs in the new 32nm manufacturing process. More details...

MPN: M5A88-M

Chipset: AMD 880G

CPU Socket: AM3+

# of Memory Slots: 4

Brand: ASUS

UPC: 610839180820

Form Factor: MATX

Memory Technology: DDR3 Support

List Price: $114.99

Price: $104.99

You Save: $10.00 (9%)

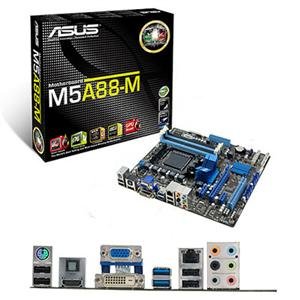

Asus M5A88-M Desktop Motherboard - AMD - Socket AM3+

Asus M5A88-M Desktop Motherboard - AMD - Socket AM3+	Asus M5A88-M Desktop Motherboard - AMD - Socket AM3+
(Click to see larger image and other views)

Product Details

Manufacturer Warranty: 3 YEARS

510-739-3777

Brand Name: Asus

Product Model: M5A88-M

Product Name: M5A88-M Desktop Motherboard

Product Type: Desktop Motherboard

Processor & Chipset

Chipset Manufacturer: AMD

Chipset Model: 880G

Total Processor Supported: 1

Processor Technology: Cool'n'Quiet Technology

Processor Technology: HyperTransport 3.0 Technology

Processor Socket: Socket AM3+

Processor Supported: FX

Processor Supported: Athlon II

Processor Supported: Phenom II X3

Processor Supported: Sempron

Processor Supported: Athlon II X3

Processor Supported: Phenom II

Processor Supported: Phenom II X4

Processor Supported: Athlon II X4

Processor Supported: Phenom II X6

Processor Supported: Athlon II X2

Processor Supported: Phenom II X2

Front Side Bus: Not Applicable

HyperTransport Speed: 2600 MHz

QuickPath Interconnect: Not Applicable

64-bit Processing: Yes

Multi GPU Supported: CrossFireX

Integrated Processor

Integrated Processor Manufacturer: Not Applicable

Integrated Processor Type: Not Applicable

Integrated Processor Model: Not Applicable

Integrated Processor Speed: Not Applicable

Integrated Processor Cache: Not Applicable

Integrated Processor Core: Not Applicable

Memory

Number of Memory Slots: 4

Memory Form Factor: DIMM

Maximum Memory: 16 GB

Memory Standard: DDR3-1866/PC3-15000 (O.C.)

Memory Standard: DDR3-1066/PC3-8500

Memory Standard: DDR3-1333/PC3-10600

Memory Standard: DDR3-1600/PC3-12800 (O.C.)

Memory Standard: DDR3-2000/PC3-16000 (O.C.)

Memory Technology: DDR3 SDRAM

I/O Controller

Controller Type: Serial ATA/600

RAID Supported: Yes

RAID Levels: 5

RAID Levels: 1+0

RAID Levels: 0

RAID Levels: 1

Video

Onboard Video: Yes

Graphics Controller Manufacturer: ATI

Graphics Controller Model: Radeon HD 4250

Audio

Sound Controller Manufacturer: Realtek

Sound Controller Model: ALC 892

Audio Channels: 7.1

Network & Communication

Gigabit Ethernet: Yes

I/O Expansions

Number of Total Expansion Slots: 4

Number of PCI Slots: 1

PCI Express Standard: PCI Express 2.0

Total Number of PCI Express Slots: 3

Number of PCI Express x1 Slots: 2

Number of PCI Express x16 Slots: 1

Storage

Number of SATA Interfaces: 6

Back Panel Interfaces

Total Number of USB Ports: 6

Number of USB 2.0 Ports: 4

Number of USB 3.0 Ports: 2

Audio Line In: Yes

Audio Line Out: Yes

Microphone Port: Yes

S/PDIF: Yes

Number of S/PDIF Out Ports: 1

VGA: Yes

HDMI: Yes

Number of HDMI Outputs: 1

DVI: Yes

Number of DVI Outputs: 1

Network (RJ-45): Yes

Number of Network (RJ-45) Ports: 1

PS/2 Port: Yes

Number of PS/2 Ports: 1

Onboard Interfaces

Total Number of Onboard USB Ports: 8

Number of Onboard USB 2.0 Ports: 8

Onboard Parallel Header: Yes

Onboard Serial Header: Yes

Onboard LEDs Header: Yes

Onboard Audio Header: Yes

Onboard S/PDIF Header: Yes

Power Description

Power Supply Supported: ATX12V

Physical Characteristics

Form Factor: Micro ATX

Width: 9.6"

Depth: 9.6"
