Package Type: Â Retail Product Type: Â Desktop Motherboard Processor & Chipset
Chipset Manufacturer: Â AMD Chipset Model: Â 870 Total Processor Support: Â 1 Processor Technology: Â Cool'n'Quiet Technology Processor Socket: Â Socket AM3 PGA-941 Processor Support: Â Athlon II X4 Athlon II X3 Athlon II X2 Phenom II X6 Phenom II X4 Phenom II X3 Phenom II X2 Sempron
HyperTransport: Â 2600 MHz 64-bit Processing: Â Yes Memory
Number of Memory Slots: Â 4 Maximum Memory: Â 16 GB Memory Standard: Â DDR3-1600/PC3-12800 DDR3-1333/PC3-10600 DDR2-800/PC2-6400
Memory Technology: Â DDR3 SDRAM I/O Controller
IDE Controller: Â Yes IDE Standard: Â Ultra ATA/133 (ATA-7) SATA Controller: Â Yes SATA Standard: Â Serial ATA/600 RAID Controller: Â Yes RAID Levels: Â 0 1 5 1+0
Audio
Sound Controller Manufacturer: Â VIA Sound Controller Model: Â VT1818 Audio Channels: Â 7.1 Network & Communication
Gigabit Ethernet: Â Yes I/O Expansions
Expansion Slots: Â 1 x PCI Express x16 1 x PCI Express x4 1 x PCI Express x1 3 x PCI
Interfaces/Ports
Back Panel Interfaces: Â 1 x mini-DIN Keyboard 1 x mini-DIN Mouse 6 x Type A USB 2.0 USB 2 x Type A USB 3.0 USB 1 x RJ-45 Network 1 x Toslink S/PDIF Out 1 x Mini-phone Audio Line In 4 x Mini-phone Audio Line Out 1 x Mini-phone Microphone
Internal Interfaces: Â 1 x HDD LED 1 x Power LED 1 x On/Off Switch 1 x Reset Switch 3 x USB Header 1 x S/PDIF Out 1 x Audio Header 1 x COM1
Number of IDE Interfaces: Â 1 Number of SATA Interfaces: Â 6 Physical Characteristics
Form Factor: Â ATX Dimensions: Â 12" Width x 8.40" Depth Miscellaneous

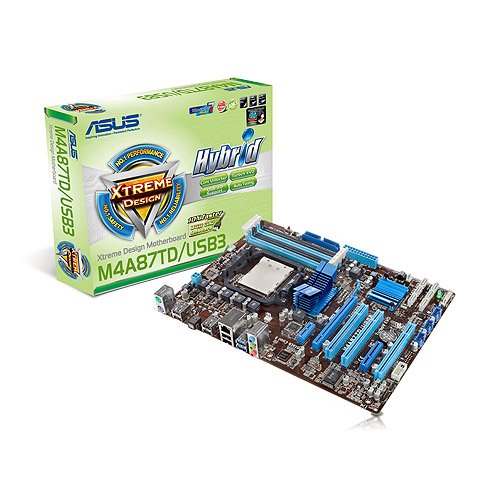

Package Contents: Â M4A87TD/USB3 Desktop Motherboard 1 x Ultra DMA 133/100 cable 2 x Serial ATA 3.0Gb/s cables 1 x Serial ATA 6.0Gb/s cables 1 x IO Shield 2 in 1 Q-connector User Manual Support Disc
Green Compliance: Â Yes Green Compliance Certificate/Authority: Â RoHS WEEE
|
