Thermaltake Smart SP-500AH2NKW ATX12V & EPS12V 86% Efficiency - 500W Power Supply

Name: Thermaltake Smart SP-500AH2NKW ATX12V & EPS12V 86% Efficiency - 500W Power Supply
Brand: ThermalTake
SKU: PSA500TT-PS-SPD-0500NPCWUS-W
Price: 43.99 USD
Availability: InStock

MPN: PS-SPD-0500NPCWUS-W

Brand: Thermaltake

Wattage: 500w 80+

UPC/EAN: 841163062234

Internal - 120 V AC, 230 V AC Input - 3.3 V DC @ 20 A, 5 V DC @ 15 A, 12 V DC @ 35 A, -12 V DC @ 500 mA, 5 V DC @ 2.5 A Output - 500 W - 1 +12V Rails - 1 Fan(s) - 86% Efficiency

Product Details

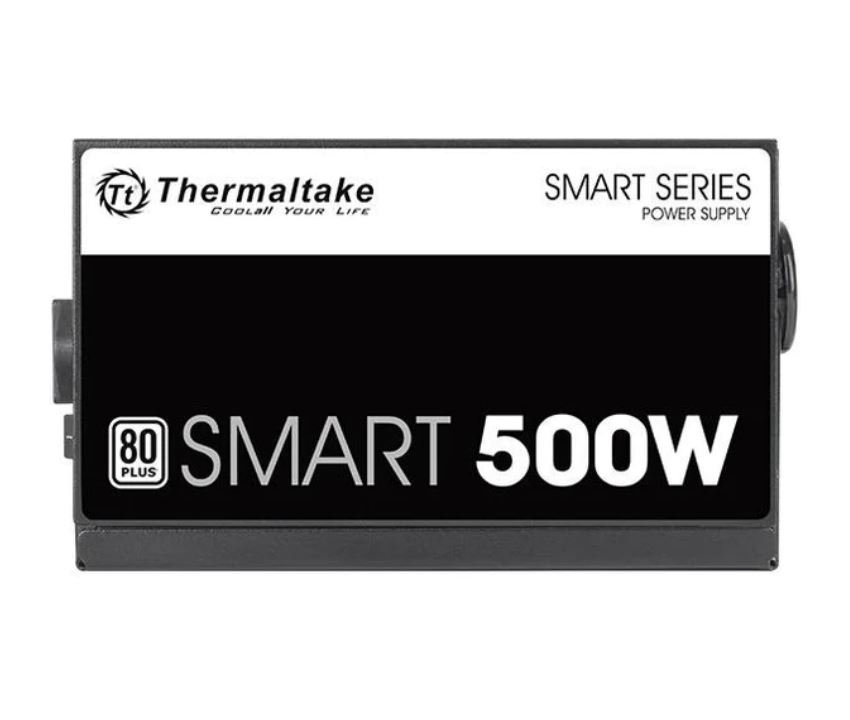

Smart 500W

Incorporating various high-quality components, the Smart Series â€“ models are rated from 500W to 700W â€“ saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance.

120mm Ultra Quiet Fan

Thermaltake Smart Series power supply's adopt 120mm cooling fan delivers excellent airflow at an exceptionally low noise level.

P/N

PS-SPD-0500NPCW-W

TYPE

Intel ATX 12V 2.3

FORM FACTOR

ATX

RGB FAN

WATTS

500W

COLOR

Black

OPERATING TEMPERTURE

5â„ƒ to +40â„ƒ

COOLING SYSTEM

120mm Fan: 1800 R.P.M. ± 10%

EFFICIENCY

82-86% efficiency @ 20-100% load

MTBF

100,000 hrs minimum

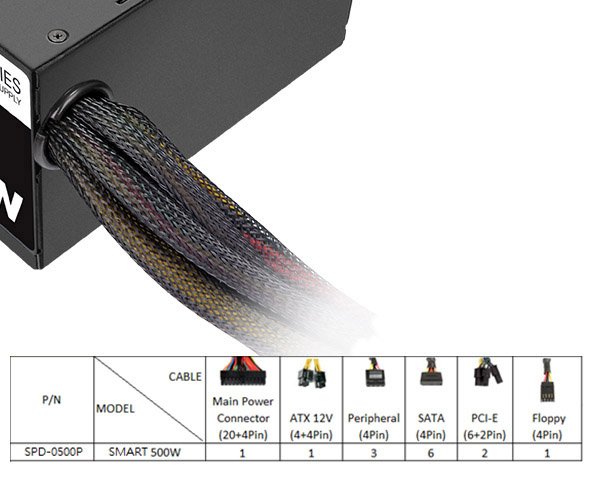

Thermaltake Smart 500W Power Supply Technical Specifications: 80PLUS Bronze - Form Factor Intel ATX 12 V - Fan Information Fan Size 120 mm Fan Control Seasonic S2FC Fan Bearing Sleeve bearing - Life Expectancy 30,000 hours at 40oC, 15 % - 65 % RH - Cable Information Modularity Fixed cable Cable type Flat black cables - Electrical Features Operating Temperature 40oC MTBF at 25oC, excl. fan 100,000 hours AC Input Full Range Protection OPP, OVP, UVP, SCP- Safety and Environmental Safety and EMC cTUVus, TUV, Gost-R, CB , BSMI, CCC, CE, FCC, C-tick Environmental Compliance Energy Star, RoHS, WEEE, REACH - Power Output AC Input Voltage: 110 V - 240 V Current: 8 A - 4 A Frequency: 50 Hz - 60 Hz Rail +3.3 V Maximum Power 20 A 100 W Rail +5 V Maximum Power 20 A 100 W Rail +12 V Maximum Power 40 A 480 W Rail -12 V Maximum Power 0.3 A 3.6 W Rail +5 VSB Maximum Power 2.5 A 12.5 W Total continuous power 500 W - CABLES Connector Main Power (24/20 pins) Connector Count 1 Cable Length 1 x 550 mm - attached Connector CPU (8/4 pins) Connector Count 1 Cable Length 1 x 600 mm - 8/4 pins attached Connector PCIe (8/6 pins) Connector Count 2 Cable Length 1 x 550 + 150 mm - 8/6 pins attached Connector SATA Connector Count 4 Cable Length 2 x 400 + 120 mm - attached Connector Peripheral Connector Count 3 Cable Length 1 x 450 + 120 + 120 mm - attached Connector Floppy Connector Count 1 Cable Length 1 x 120 mm - end connector of the peripheral cable- Item Dimension (L"xW"xH") 6 x 6 x 4 Weight 4.75 LB Thermaltake Smart 500W Power Supply Warranty Information 5 years

Weight: 6 lbs
