Product Type: Desktop Motherboard
Processor & Chipset
Chipset Manufacturer: AMD
Chipset Model: 760G
Total Processor Supported: 1
Processor Technology: HyperTransport 3.0 Technology
Processor Technology: Cool'n'Quiet Technology
Processor Socket: Socket AM3+
Processor Supported: FX
Processor Supported: Athlon II X2
Processor Supported: Sempron Dual Core
Processor Supported: Phenom II X4
Processor Supported: Phenom II
Processor Supported: Athlon II
Processor Supported: Athlon II X3
Processor Supported: Phenom II X2
Processor Supported: Phenom II X3
Processor Supported: Phenom II X6
Processor Supported: Athlon II X4
Front Side Bus: Not Applicable
HyperTransport Speed: 5.20 GT/s
QuickPath Interconnect: Not Applicable
64-bit Processing: Yes
Integrated Processor
Integrated Processor Manufacturer: Not Applicable
Integrated Processor Type: Not Applicable
Integrated Processor Model: Not Applicable
Integrated Processor Speed: Not Applicable
Integrated Processor Cache: Not Applicable
Integrated Processor Core: Not Applicable
Memory
Number of Memory Slots: 2
Memory Form Factor: DIMM
Maximum Memory: 8 GB
Memory Standard: DDR3-1333/PC3-10600
Memory Standard: DDR3-1866/PC3-15000 (O.C.)
Memory Standard: DDR3-1066/PC3-8500
Memory Standard: DDR3-1600/PC3-12800 (O.C.)
Memory Technology: DDR3 SDRAM
I/O Controller
Controller Type: Serial ATA/300
RAID Supported: Yes
RAID Levels: JBOD
RAID Levels: 1
RAID Levels: 1+0
RAID Levels: 0
Video
Onboard Video: Yes
Graphics Controller Manufacturer: AMD
Graphics Controller Model: Radeon HD 3000
Audio
Sound Controller Manufacturer: Realtek
Sound Controller Model: ALC887
Audio Channels: 7.1
Network & Communication
Gigabit Ethernet: Yes
I/O Expansions
Number of Total Expansion Slots: 4
Number of PCI Slots: 1
PCI Express Standard: PCI Express 2.0
Total Number of PCI Express Slots: 3
Number of PCI Express x1 Slots: 2
Number of PCI Express x16 Slots: 1
Storage
Number of SATA Interfaces: 6
Back Panel Interfaces
Total Number of USB Ports: 4
Number of USB 2.0 Ports: 4
Parallel Port: Yes
Serial Port: Yes
Audio Line In: Yes
Audio Line Out: Yes
Microphone Port: Yes
VGA: Yes
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 1
PS/2 Port: Yes
Number of PS/2 Ports: 2
Onboard Interfaces
Total Number of Onboard USB Ports: 6
Number of Onboard USB 2.0 Ports: 6
Onboard LEDs Header: Yes
Onboard Audio Header: Yes
Onboard S/PDIF Header: Yes
Power Description
Power Supply Supported: EPS12V
Physical Characteristics
Form Factor: Micro ATX
Width: 9.6"
Depth: 8"
Miscellaneous
Package Contents:

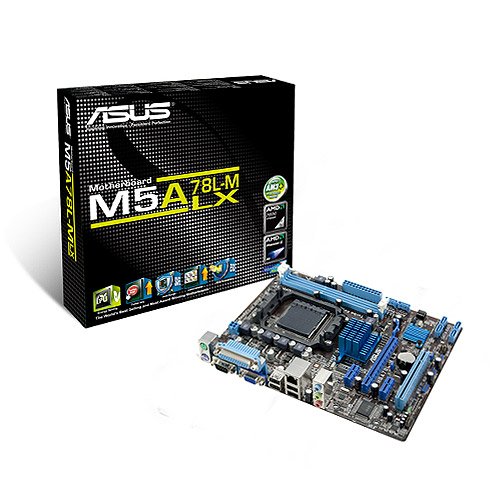

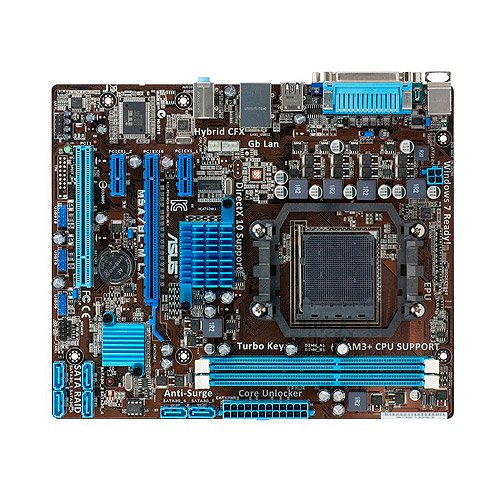

M5A78L-M LX PLUS Desktop Motherboard
1 x User's manual
1 x I/O Shield
2 x SATA 3Gb/s Cable(s)
1 x Support DVD
Certifications & Standards:
ErP Ready
FCC
CE
Green Compliant: Yes
Green Compliance Certificate/Authority: WEEE
Green Compliance Certificate/Authority: REACH
Warranty
Standard Warranty: 3 Year
